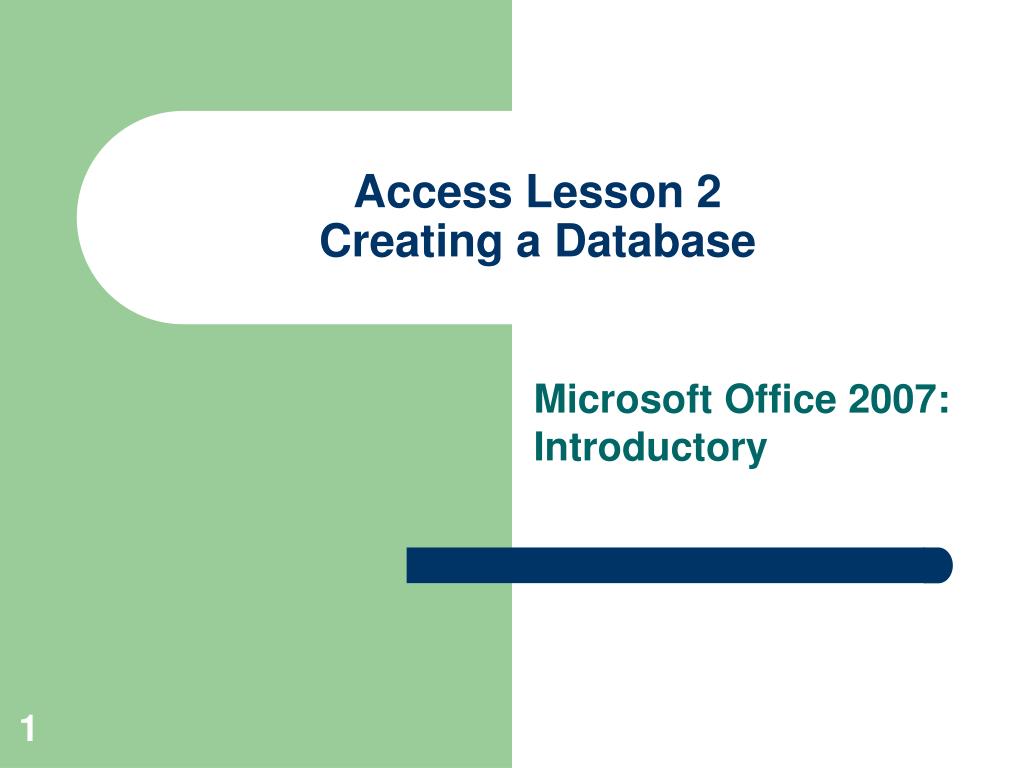

1. Access Lesson 2Creating a Database Microsoft Office 2007: Introductory

2. Objectives • Create a database. • Design, create, and save a table in Datasheet view. • Set a field’s data type in Datasheet view. • Add, delete, rename, and move fields in Design view. • Set field properties in Design view. Microsoft Office 2007: Introductory

3. Vocabulary • Alphanumeric data • AutoNumber • Blank Database template • Data type • Default Value property Microsoft Office 2007: Introductory

4. Description property Design grid Design view Field Properties pane Field property Field Size property Format property Primary key Required property Template Vocabulary (continued) Microsoft Office 2007: Introductory

5. Creating a Database • The first step in creating a database is to create the file that will hold the database objects. • You can use a template that already has objects in it. • You can also use a Blank Database template with no objects in it. Microsoft Office 2007: Introductory

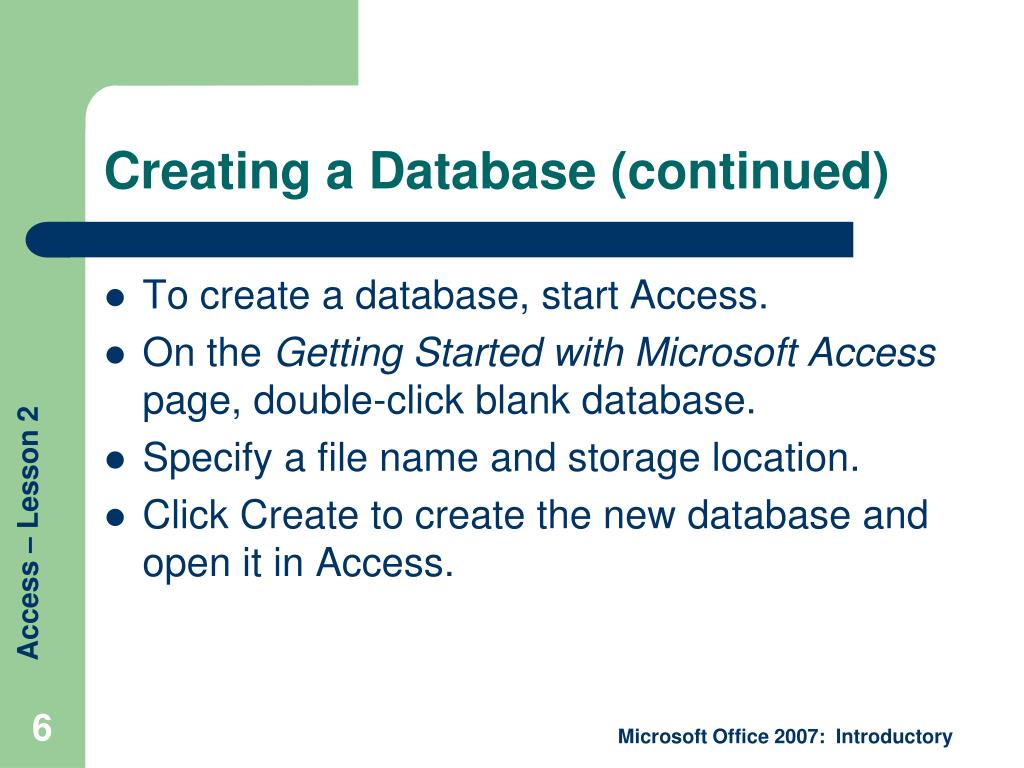

6. Creating a Database (continued) • To create a database, start Access. • On the Getting Started with Microsoft Access page, double-click blank database. • Specify a file name and storage location. • Click Create to create the new database and open it in Access. Microsoft Office 2007: Introductory

7. Creating a Database (continued)

8. Creating and Saving a Table • When you create a blank database, Access creates the first table and names it Table1. • You can change the name when you save it. • To save, click the Save button on the Quick Access Toolbar. Fill in the name in the Save As dialog box. • The new table name appears on the tab for the table and as an object in the Navigation Pane. Microsoft Office 2007: Introductory

9. Designing a Table • After creating a table, you need to tell Access what fields to include. • Access creates one field named ID and sets it as the primary key. • A primary key is the field that contains a unique field value for each record. • In some tables, this field is called AutoNumber because it automatically adds a unique number. Microsoft Office 2007: Introductory

10. Designing a Table (continued) • You can tell that Access created an AutoNumber for the ID field because of the word New in the first record’s field. • Good candidates for being a primary key are • Employee numbers • Social security numbers • Student ID numbers • The advantage of setting a primary key is that Access will not let you enter duplicate values for this field in different records. Microsoft Office 2007: Introductory

11. Designing a Table (continued) • To enter a field name in Datasheet view, double-click the “Add New Field” field selector. • After you have created all the fields, you can enter the first record. • Access assigns a data type as you enter data (Text, Memo, Number, etc.). • You can change the data type for a field by: • Table Tools Datasheet tab • Data Type & Formatting group • Data Type Microsoft Office 2007: Introductory

12. Working in Design View • In Design view you can add, delete, and make changes to how fields store data. • The field names and data types appear in the upper half in a design grid. • The Field Properties pane appears below. • A selected field turns orange. The primary key has a key symbol in it. Microsoft Office 2007: Introductory

13. Working in Design View (continued) • You can use the options in the Tool group on the Table Tools Design tab to: • Add and delete fields, insert a field • Drag fields in the design grid to a new location • Rename a field, and change a field’s data type • The Description property in the design grid is optional, and you can use it to describe what to enter in the field. • Any changes made in Design view are automatically updated in Datasheet view when you save the table. Microsoft Office 2007: Introductory

14. Changing Field Properties in Design View • A field property describes the field’s contents beyond the field’s basic data type, such as: • Indicating number of characters allowed • Indicating allowable values • Field properties will vary depending on the field’s data type. • The Field Size property sets the number of characters you can store in a Text, Number or AutoNumber field. • There is an array of Field Size property options including the ability to store decimals, positive numbers, negative numbers, or whole numbers. Microsoft Office 2007: Introductory

15. Changing Field Properties in Design View (continued) • Use the Format property to specify how you want Access to display numbers, dates, times and text. • For example, if you enter the date 10-28-10, Access will display it as October 28, 2010, if the Format property is set that way. • The Default Value property enters the same field value in a field every time a new record is added to a table. • The Required property specifies whether you must enter a field value in a record. Microsoft Office 2007: Introductory
