  1. Internet TCP/IP Cameron Schmidt Jordan Gallo

  2. Outline • History • TCP/IP Layers • Applications • Transport • Internetwork – IPV6 • Network Interface and Hardware

  3. History/Development • 60’s and 70’s • Many standalone networks • Difficult to communicatebetween networks

  4. History/Development • 70s - Defense Advanced Research Projects Agency (DARPA) • Internetworking • Define a set of protocols

  5. History/Development • TCP/IP protocol took its current form in 1978 • 1983 DARPA’s research network ARPANET

  6. TCP/IP • Protocol suite • Standard method of interconnecting hosts, networks, and the internet • Enables communication between hosts on different networks

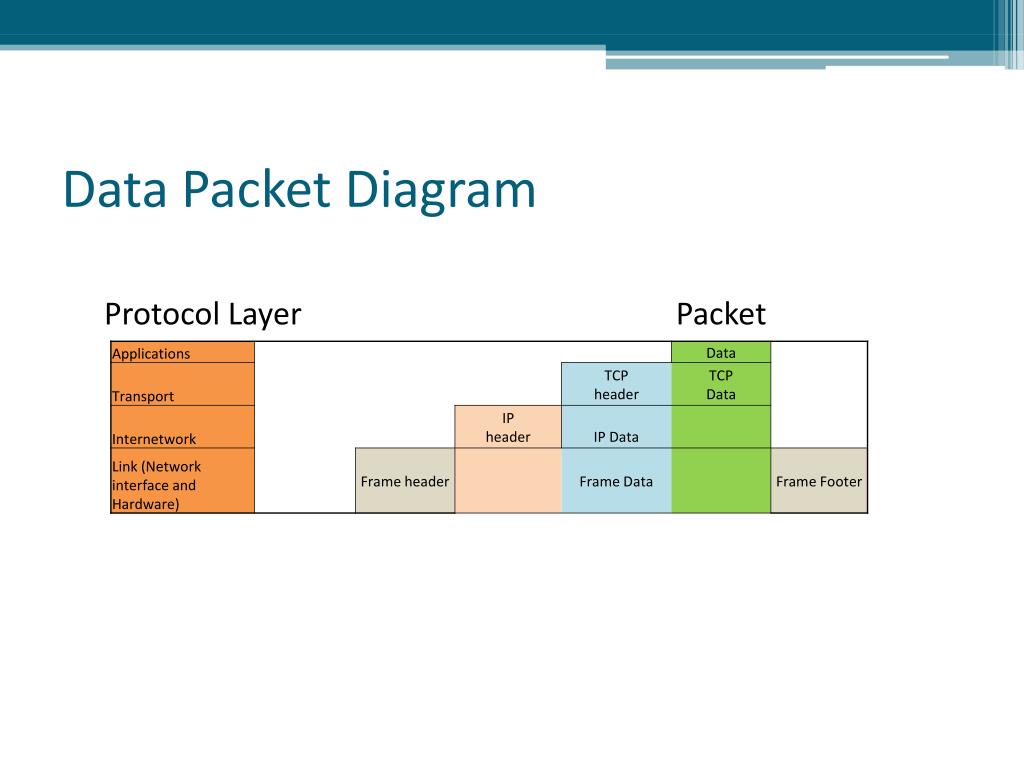

  7. Data Packet Diagram Packet Protocol Layer

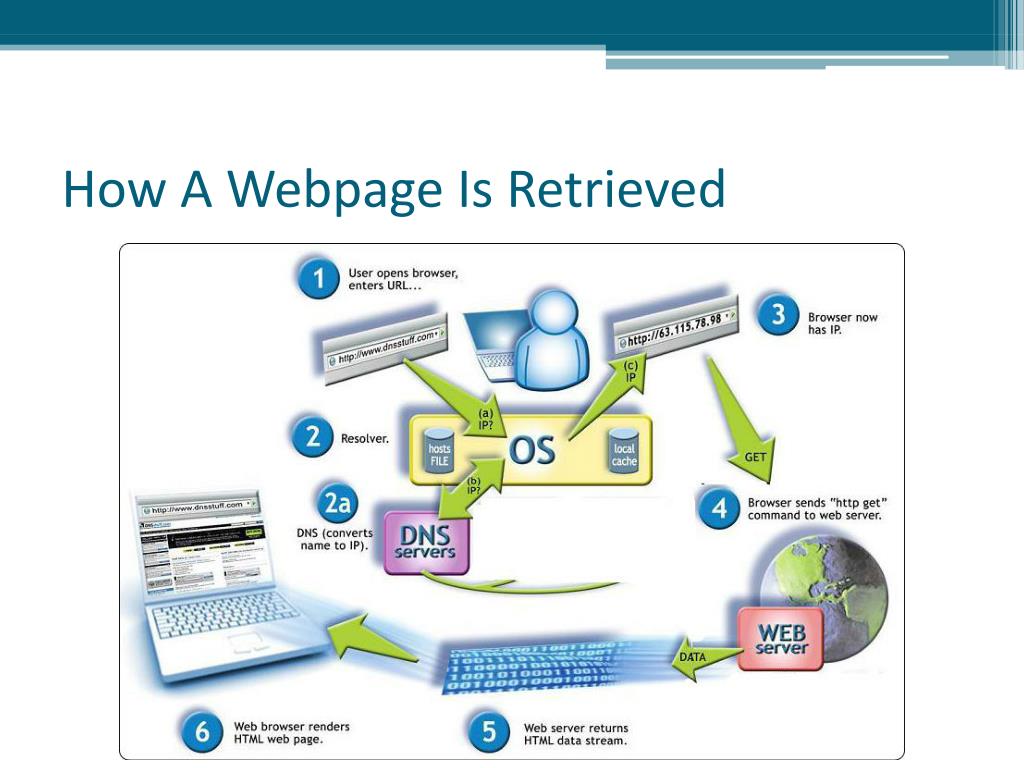

  8. How A Webpage Is Retrieved

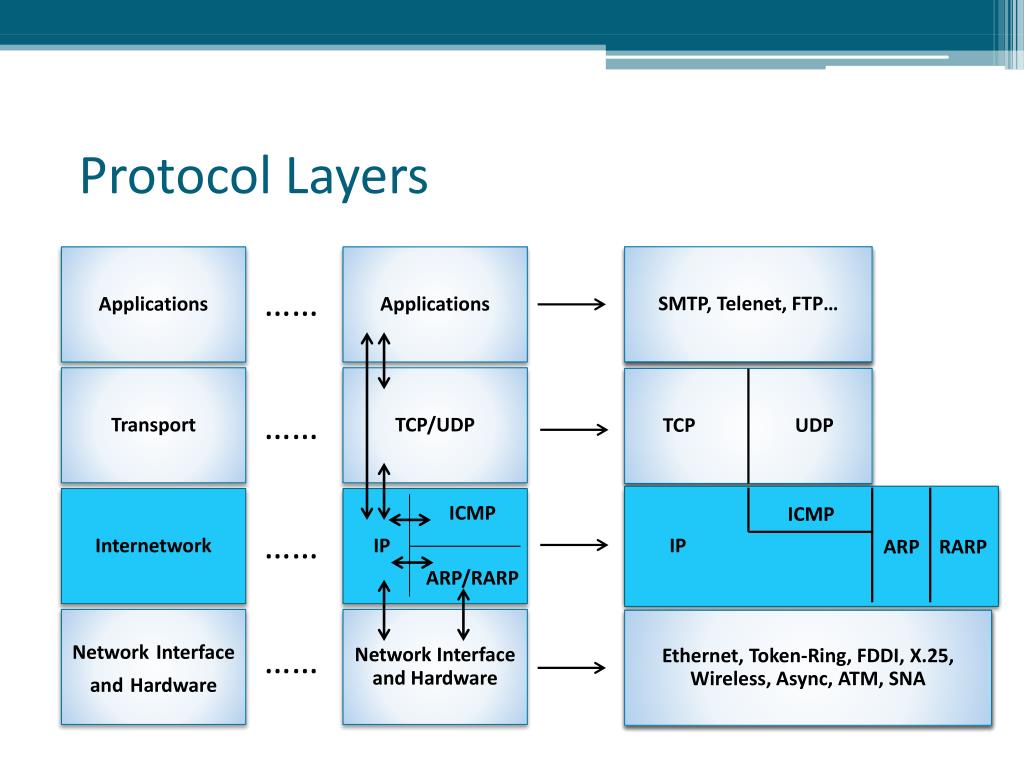

  9. IP • SMTP, Telenet, FTP… • TCP UDP • Ethernet, Token-Ring, FDDI, X.25, Wireless, Async, ATM, SNA Protocol Layers …… …… …… ICMP ARP RARP ……

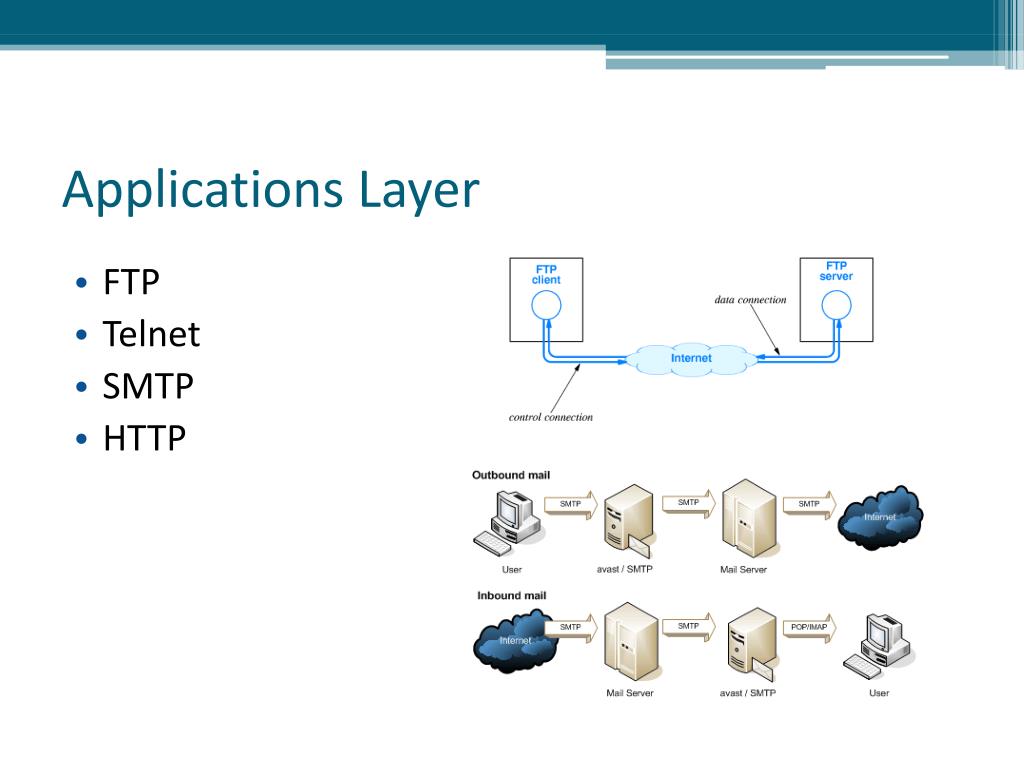

  10. Applications Layer • FTP • Telnet • SMTP • HTTP

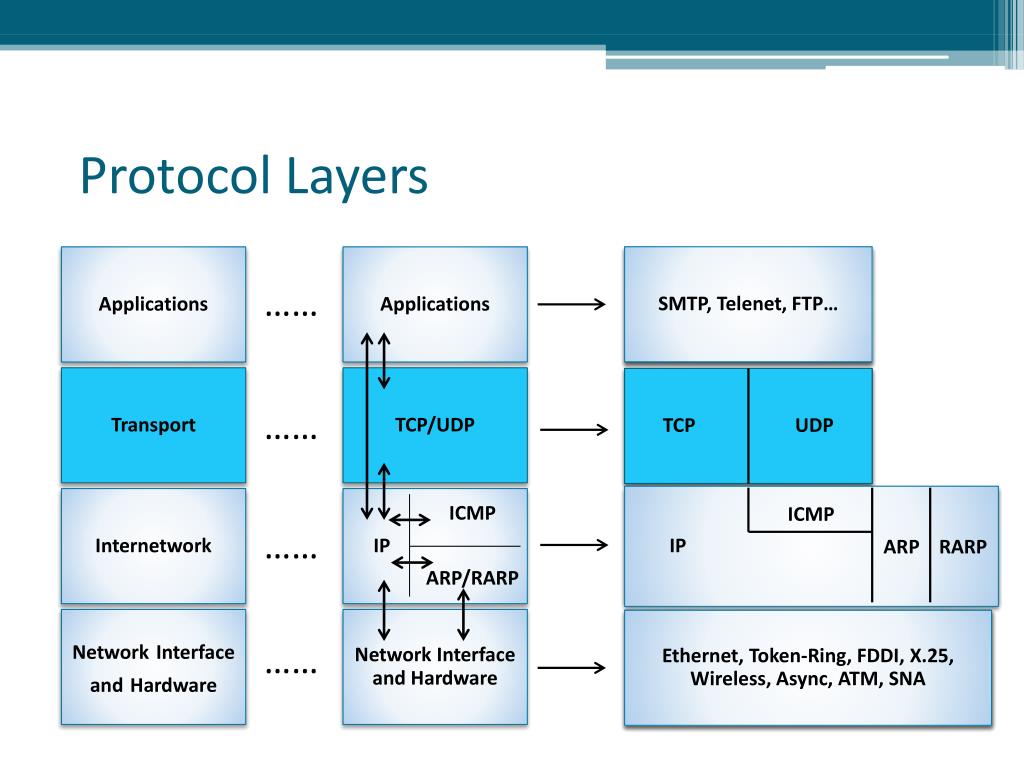

  11. IP • SMTP, Telenet, FTP… • TCP UDP • Ethernet, Token-Ring, FDDI, X.25, Wireless, Async, ATM, SNA Protocol Layers …… …… …… ICMP ARP RARP ……

  12. Transport Layer • TCP • connection oriented • duplicate data suppression • congestion/flow control • UDP • Connectionless • best- effort service • better performance

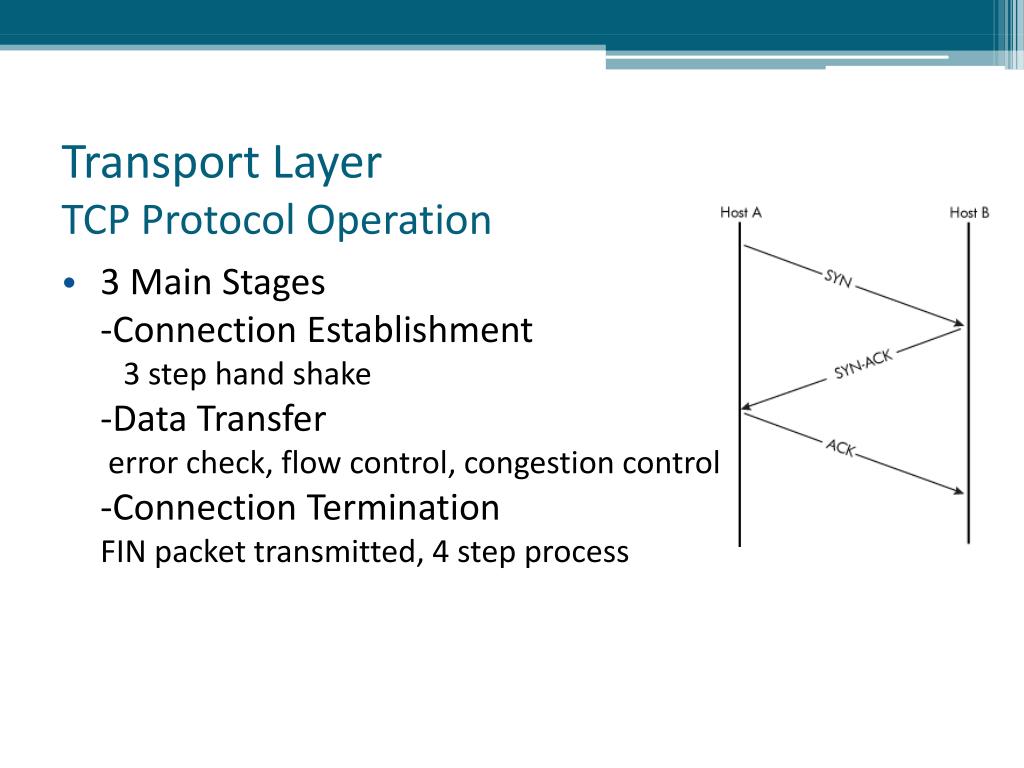

  13. Transport LayerTCP Protocol Operation • 3 Main Stages -Connection Establishment 3 step hand shake-Data Transfer error check, flow control, congestion control-Connection TerminationFIN packet transmitted, 4 step process

  14. TCP Packet

  15. IP • SMTP, Telenet, FTP… • TCP UDP • Ethernet, Token-Ring, FDDI, X.25, Wireless, Async, ATM, SNA Protocol Layers …… …… …… ICMP ARP RARP ……

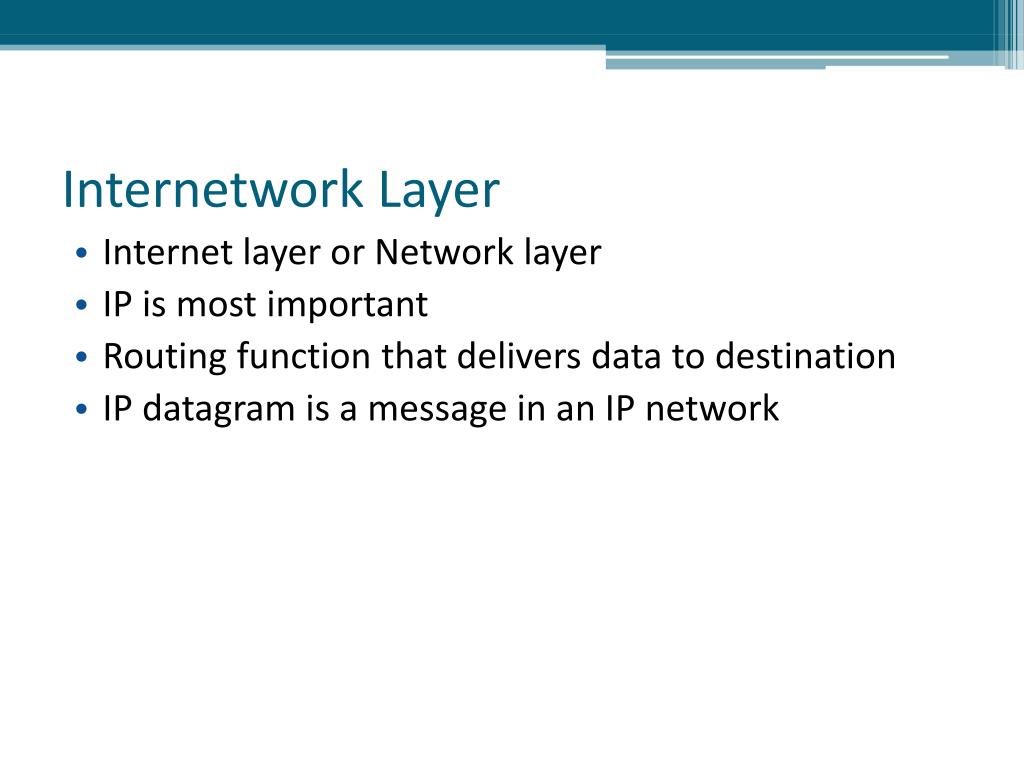

  16. Internetwork Layer • Internet layer or Network layer • IP is most important • Routing function that delivers data to destination • IP datagram is a message in an IP network

  17. IP packet

  18. IP addressing • Each host on a network is assigned an IP address • Network number is assigned by one of five Regional Internet Registries (RIR), depending on geographical location • IP address = <Network Number><Host Number>

  19. IP Address Classes • Class based on size of network, A B C • D - multicasting, multiple hosts receive single datagram • E - experimental use

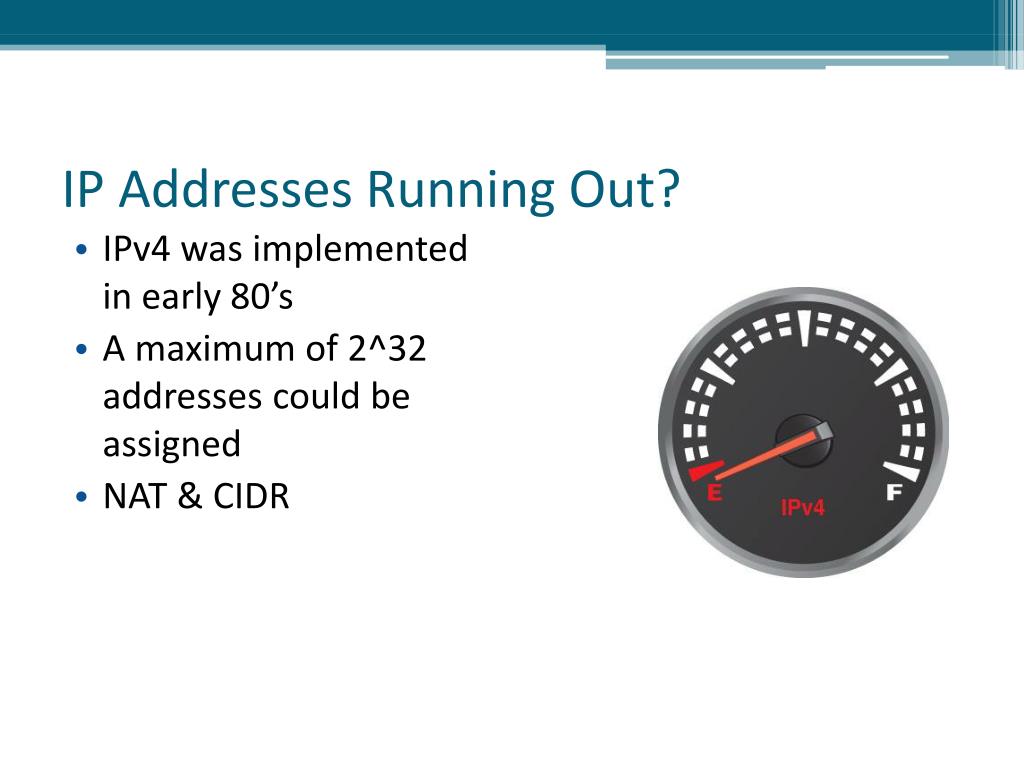

  20. IP Addresses Running Out? • IPv4 was implemented in early 80’s • A maximum of 2^32 addresses could be assigned • NAT & CIDR

  21. What Is Being Done? • IPv6 – next Internet protocol suite that can have 2^128 IP addresses • Slowly being implemented by businesses • Will eventually become the new standard

  22. IP • SMTP, Telenet, FTP… • TCP UDP • Ethernet, Token-Ring, FDDI, X.25, Wireless, Async, ATM, SNA Protocol Layers …… …… …… ICMP ARP RARP ……

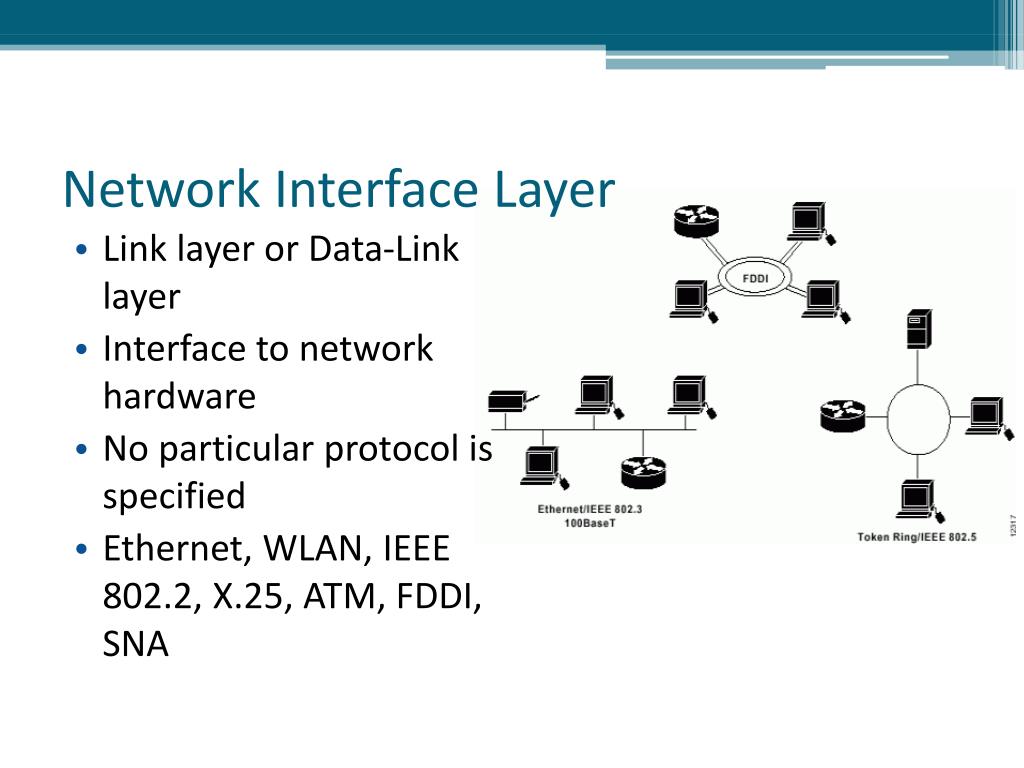

  23. Network Interface Layer • Link layer or Data-Link layer • Interface to network hardware • No particular protocol is specified • Ethernet, WLAN, IEEE 802.2, X.25, ATM, FDDI, SNA

  24. References • http://www.yale.edu/pclt/COMM/TCPIP.HTM • http://www.garykessler.net/library/tcpip.html • http://www.linuxjunkies.org/network/tcpip/intro1.html • http://www.ciscopress.com/articles/article.asp?p=377101 • http://www.redbooks.ibm.com/redbooks/pdfs/gg243376.pdf • http://www.omnisecu.com/tcpip/tcpip-model.htm • http://gargasz.info/index.php/how-internet-works-dns/ • http://penguin.dcs.bbk.ac.uk/academic/networks/application-layer/ftp/index.php • http://www.avast.com.au/server_protection/smtp • http://km2.iiietc.ncu.edu.tw/xms/content/show.php?id=17803 • http://4.bp.blogspot.com/_FdmXjI_9KMI/TBUy2HdobQI/AAAAAAAAAE8/rfpSs9VjODo/s1600/LAN1_lanfig1_0000.GIF • http://upload.wikimedia.org/wikipedia/commons/thumb/4/49/World_IPv6_launch_logo.svg/500px-World_IPv6_launch_logo.svg.png • http://msdn.microsoft.com/en-us/library/aa918342.aspx • http://computing.dcu.ie/~humphrys/Notes/Networks/tanenbaum/5-53.jpg • http://projectcongregate.net/survey/pics/arnet-1970.png • http://projectcongregate.net/survey/pics/arnet-1977.png • http://www.dlpcorporate.com/wp-content/uploads/ip-empty.jpg

  25. Questions?
