Decision Analysis

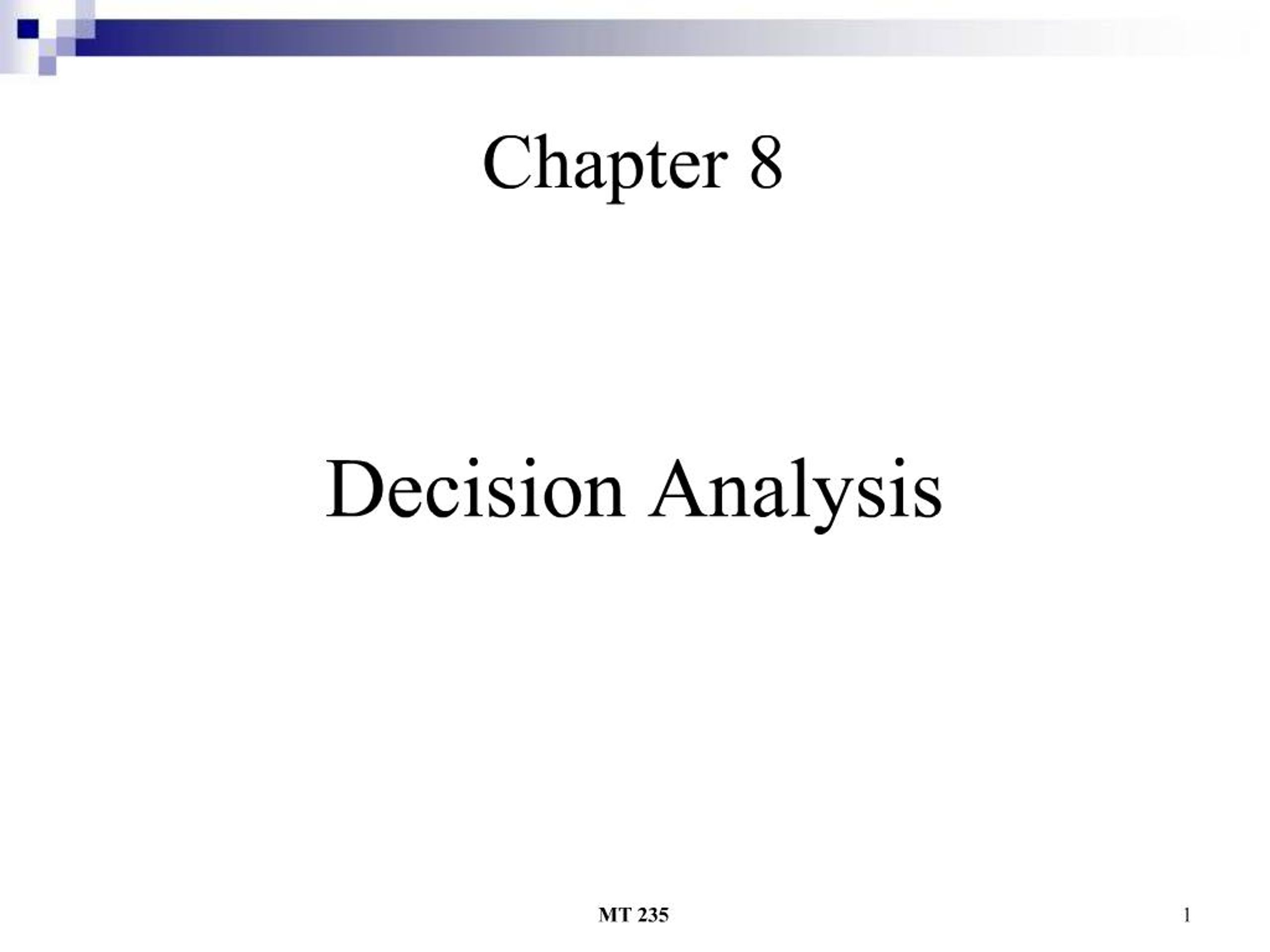

1. MT 235 1 Chapter 8 Decision Analysis

2. MT 235 2 Decision Analysis A method for determining optimal strategies when faced with several decision alternatives and an uncertain pattern of future events.

3. MT 235 3 The Decision Analysis Approach Identify the decision alternatives - di Identify possible future events - sj mutually exclusive - only one state can occur exhaustive - one of the states must occur Determine the payoff associated with each decision and each state of nature - Vij Apply a decision criterion

4. MT 235 4 Types of Decision Making Situations Decision making under certainty state of nature is known decision is to choose the alternative with the best payoff

5. MT 235 5 Types of Decision Making Situations Decision making under uncertainty The decision maker is unable or unwilling to estimate probabilities Apply a common sense criterion

6. MT 235 6 Decision Making Under Uncertainty Maximax Criterion (for profits) - optimistic list maximum payoff for each alternative choose alternative with the largest maximum payoff

7. MT 235 7 Decision Making Under Uncertainty Maximin Criterion (for profits) - pessimistic list minimum payoff for each alternative choose alternative with the largest minimum payoff

8. MT 235 8 Decision Making Under Uncertainty Minimax Regret Criterion calculate the regret for each alternative and each state list the maximum regret for each alternative choose the alternative with the smallest maximum regret

9. MT 235 9 Decision Making Under Uncertainty Minimax Regret Criterion Regret - amount of loss due to making an incorrect decision - opportunity cost

10. MT 235 10 Types of Decision Making Situations Decision making under risk Expected Value Criterion compute expected value for each decision alternative select alternative with “best” expected value

11. MT 235 11 Computing Expected Value Let: P(sj)=probability of occurrence for state sj and N=the total number of states

12. MT 235 12 Computing Expected Value Since the states are mutually exclusive and exhaustive

13. MT 235 13 Types of Decision Making Situations Then the expected value of any decision di is

14. MT 235 14 Decision Trees A graphical representation of a decision situation Most useful for sequential decisions

15. MT 235 15

16. MT 235 16

17. MT 235 17 Decision Making Under Risk:Another Criterion Expected Regret Criterion Compute the regret table Compute the expected regret for each alternative Choose the alternative with the smallest expected regret The expected regret criterion will always yield the same decision as the expected value criterion.

18. MT 235 18 Expected Regret Criterion The expected regret for the preferred decision is equal to the Expected Value of Perfect Information - EVPI EVPI is the expected value of knowing which state will occur.

19. MT 235 19 EVPI – Alternative to Expected Regret EVPI – Expected Value of Perfect Information EVwPI – Expected Value with Perfect Information about the States of Nature EVwoPI – Expected Value without Perfect Information about the States of Nature EVPI=|EVwPI-EVwoPI|

20. MT 235 20

21. MT 235 21 Bayes Law In this equation, P(B) is called the prior probability of B and P(B|A) is called the posterior, or sometimes the revised probability of B. The idea here is that we have some initial estimate of P(B) , and then we get some additional information about whether A happens or not, and then we use Bayes Law to compute this revised probability of B.

22. MT 235 22

23. MT 235 23

24. MT 235 24

25. MT 235 25

26. MT 235 26 Expected Value of Sample Information – EVSI EVSI – Expected Value of Sample Information EVwSI – Expected Value with Sample Information about the States of Nature EVwoSI – Expected Value without Sample Information about the States of Nature EVSI=|EVwSI-EVwoSI|

27. MT 235 27 Efficiency of Sample Information – E Perfect Information has an efficiency rating of 100%, the efficiency rating E for sample information is computed as follows: Note: Low efficiency ratings for sample information might lead the decision maker to look for other types of information

28. MT 235 28

29. MT 235 29

30. MT 235 30

31. MT 235 31

32. MT 235 32
