  1. Model-Driven Development Maturity Model Tatiana Ribeiro Hipólito

  2. Roteiro • Projeto MODELWARE WP2 • Model-Driven Development Maturity Model • Outros Modelos • Kleppe and Warmer’s Modelling Maturity Levels • IBM MDD Maturity Matrix • Conclusão • Referência

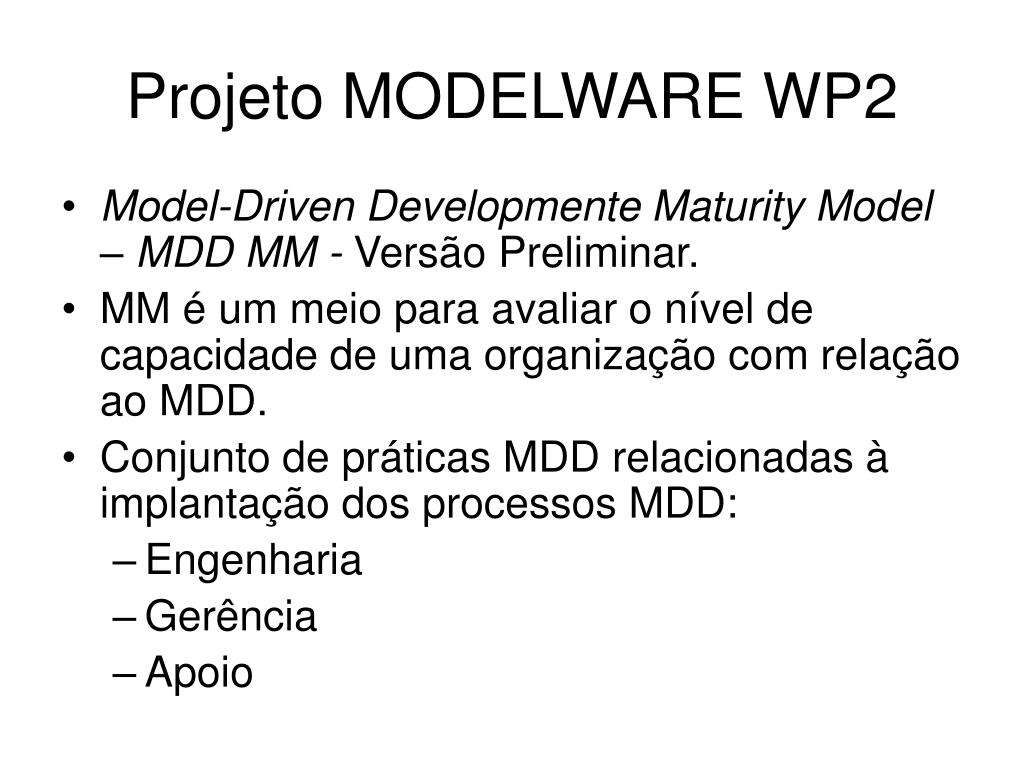

  3. Projeto MODELWARE WP2 • Model-Driven Developmente Maturity Model – MDD MM - Versão Preliminar. • MM é um meio para avaliar o nível de capacidade de uma organização com relação ao MDD. • Conjunto de práticas MDD relacionadas à implantação dos processos MDD: • Engenharia • Gerência • Apoio

  4. MDD TCM Guidelines MDD Engineering Metrics helps in transition measures level MDD Metrics MDD Maturity Model refers to MDD Business Metrics consist of Level includes MDD Element’s Aspect Practice Modelo Conceitual WP2 Technology Change Management: guia para introduzir e melhorar MDD nas organizações. Em desenvolvimento e serão refinadas na versão final.

  5. Estrutura do MDD MM

  6. MDD Maturity Model consist of Level includes MDD Element’s Aspect Practice Maturity Levels Level 1: Ad-hoc Modelling Level 2: Manual Modelling Level 3: Initial MDD Level 4: Integrated MDD Level 5: Ultimate MDD

  7. MDD Maturity Model consist of Level includes MDD Element’s Aspect Practice Práticas • Engineering (ENG) • Project Management (PJM) • Support (SUP)

  8. Ultimate MDD Integrated MDD Initial MDD Manual Modeling Ad-hoc Modeling Práticas

  9. Práticas Modelling practices are sporadically used or not used at all.

  10. Práticas

  11. Práticas

  12. Práticas

  13. Práticas

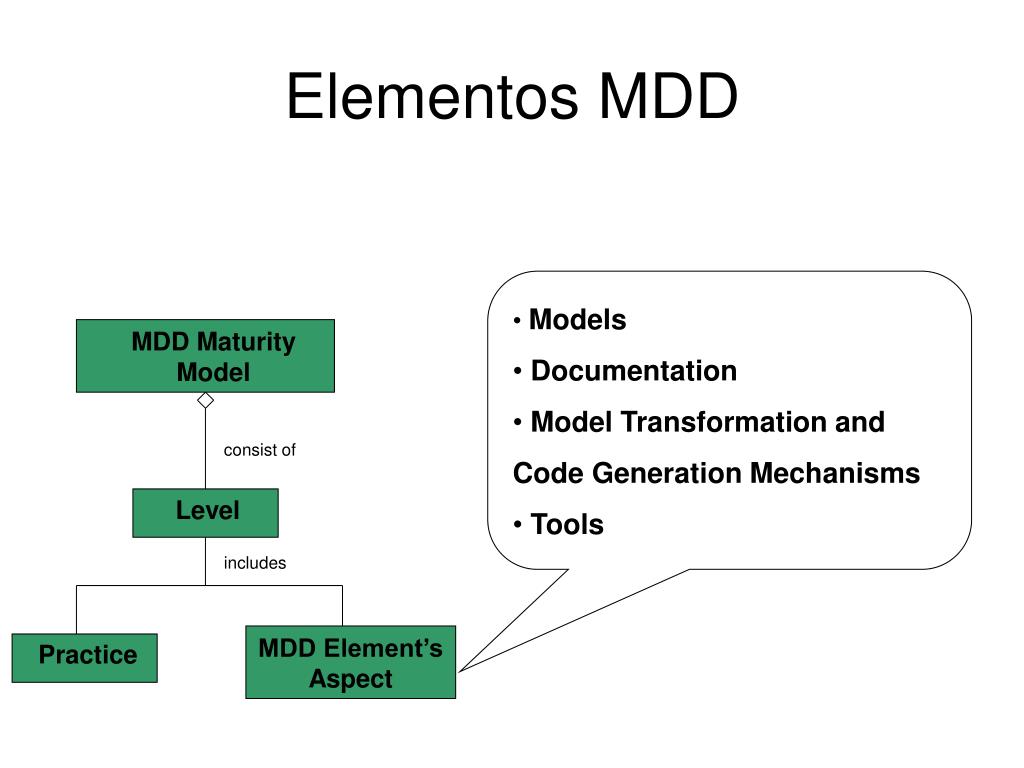

  14. Elementos MDD • Models • Documentation • Model Transformation and Code Generation Mechanisms • Tools MDD Maturity Model consist of Level includes MDD Element’s Aspect Practice

  15. Aspectos

  16. Aspectos

  17. Aspectos

  18. O que se espera de cada nível

  19. MDD Elements and Related Apstects Implemented Model

  20. MDD Elements and Related Apstects Code

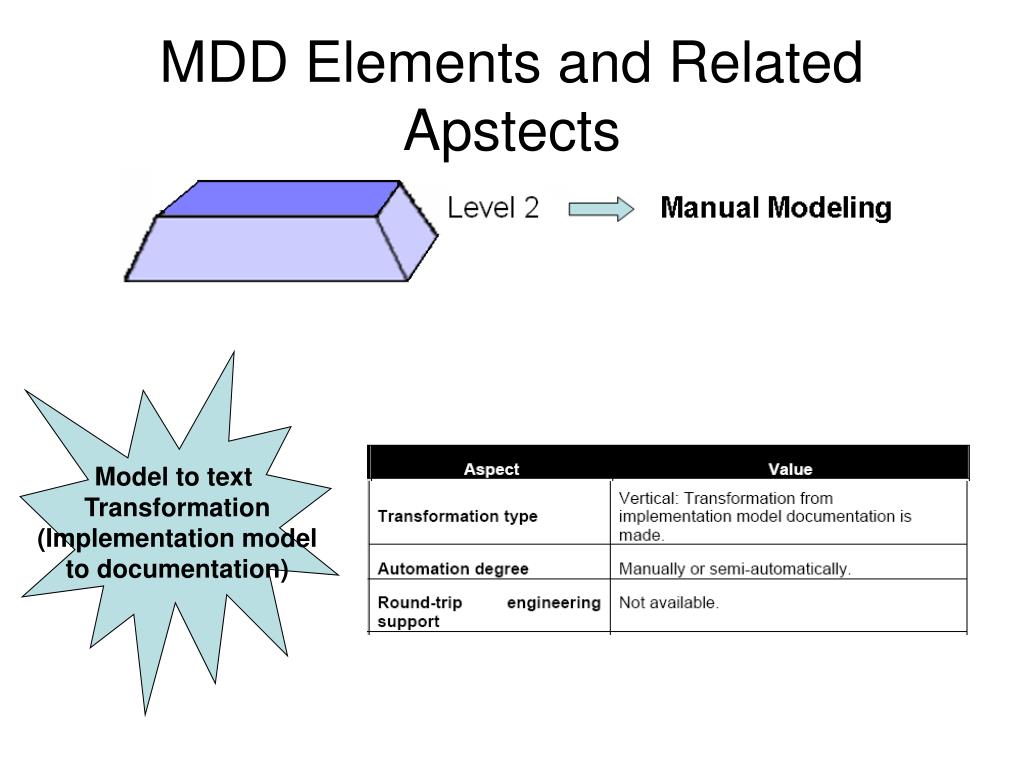

  21. MDD Elements and Related Apstects Model to text Transformation (Implementation model to documentation)

  22. MDD Elements and Related Apstects Tools

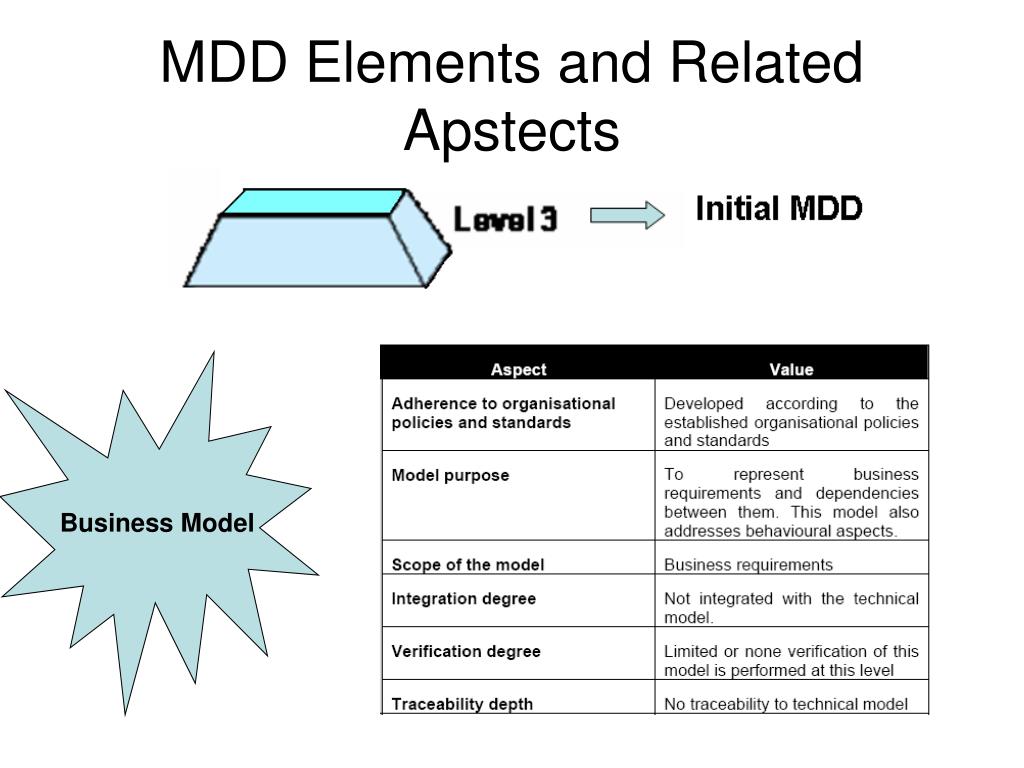

  23. MDD Elements and Related Apstects Business Model

  24. MDD Elements and Related Apstects Technical Model

  25. MDD Elements and Related Apstects Model to text Transformation (Technical model to documentation)

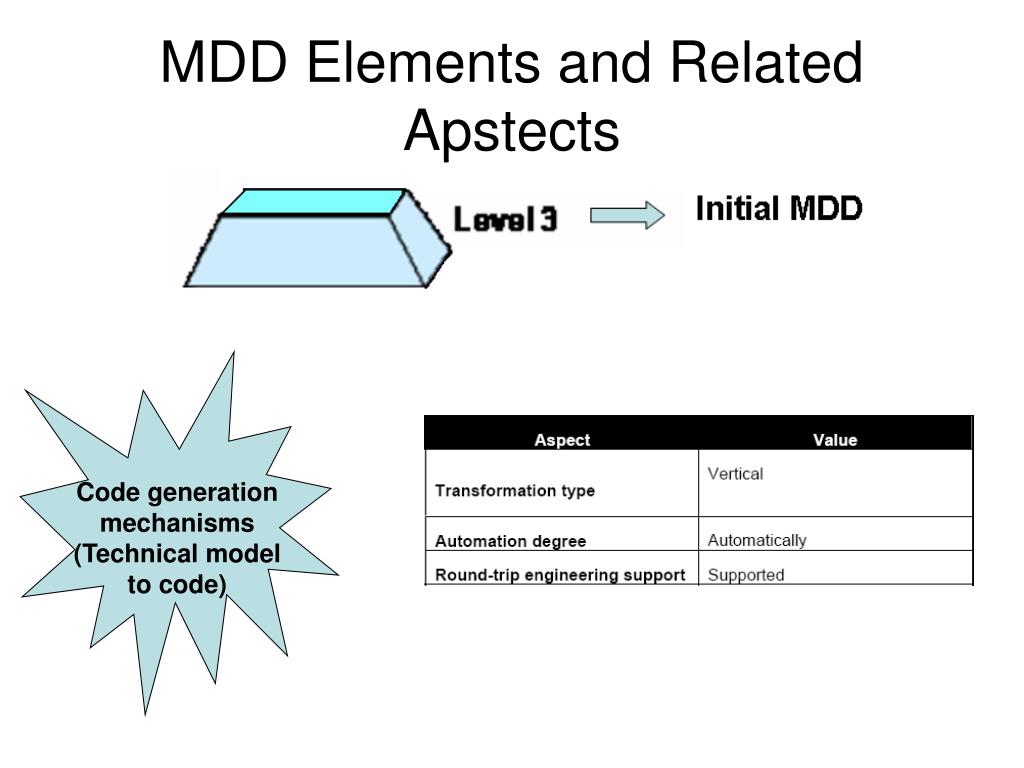

  26. MDD Elements and Related Apstects Code generation mechanisms (Technical model to code)

  27. MDD Elements and Related Apstects Tools: Modelling tools

  28. MDD Elements and Related Apstects Domain Model

  29. MDD Elements and Related Apstects Business Model

  30. MDD Elements and Related Apstects Architecture-centric meta model

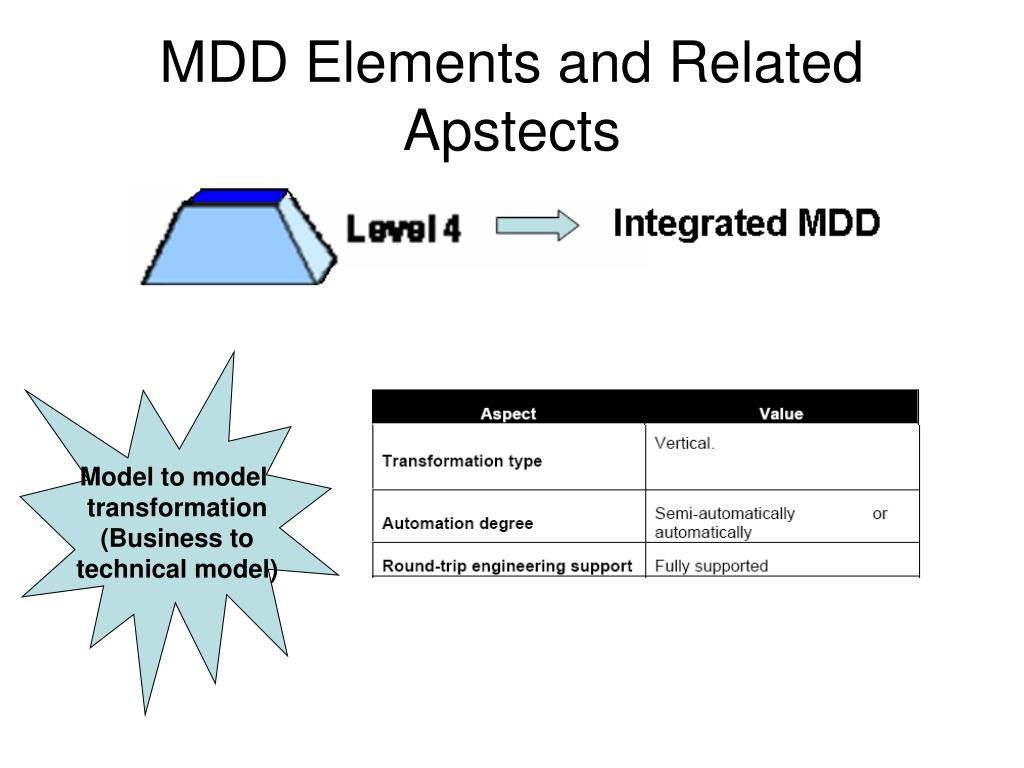

  31. MDD Elements and Related Apstects Model to model transformation (Business to technical model)

  32. MDD Elements and Related Apstects Tools: Modelling tools; Model repositories; Basic model Testing tools

  33. MDD Elements and Related Apstects Domain meta model

  34. MDD Elements and Related Apstects Domain model

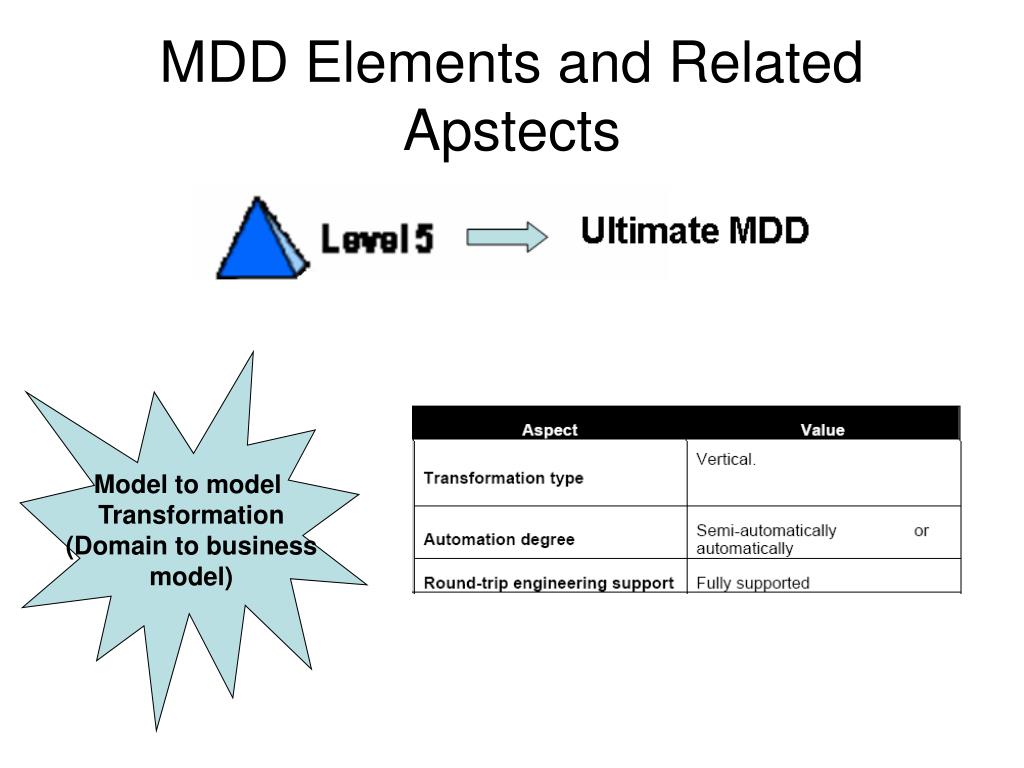

  35. MDD Elements and Related Apstects Model to model Transformation (Domain to business model)

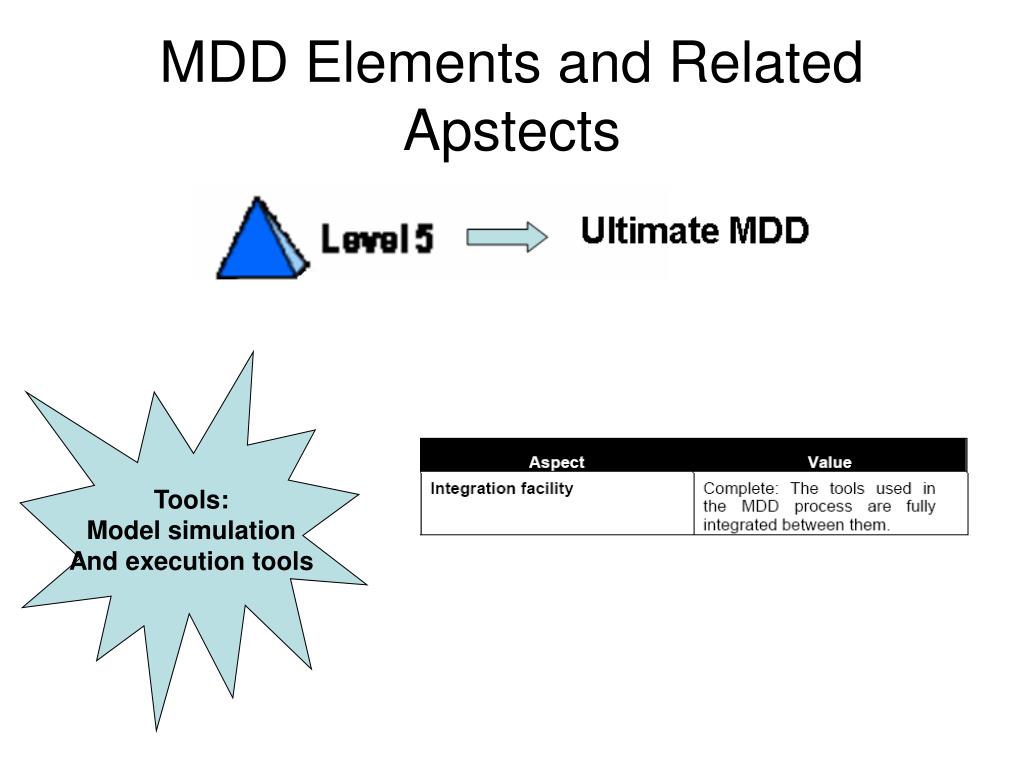

  36. MDD Elements and Related Apstects Tools: Model simulation And execution tools

  37. Kleppe and Warmer’s Modelling Maturity Levels

  38. Kleppe and Warmer’s Modelling Maturity Levels

  39. IBM MDD Maturity Matrix

  40. IBM MDD Maturity Matrix

  41. IBM MDD Maturity Matrix

  42. IBM MDD Maturity Matrix

  43. Conclusão • Complemento do CMMI • Versão preliminar

  44. Referência • MODELWARE – 511731 – D2.6 MDD Maturity Model – Preliminary – Revision 1.2.5 date: 12/12/05. • Maximize the Business Value of the Software – Model-Driven Architecture. Borland, 2006.

  45. FIM !!!
