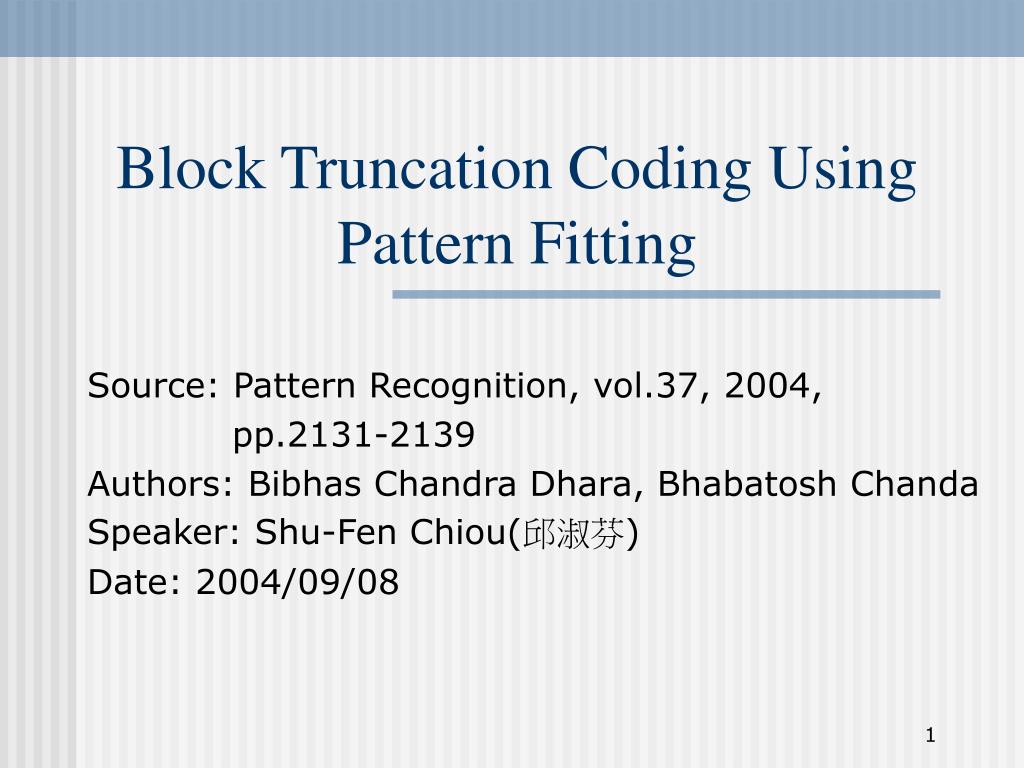

  1. Block Truncation Coding Using Pattern Fitting Source: Pattern Recognition, vol.37, 2004, pp.2131-2139 Authors: Bibhas Chandra Dhara, Bhabatosh Chanda Speaker: Shu-Fen Chiou(邱淑芬) Date: 2004/09/08

  2. Outline • Introduction • BTC (Block Truncation Coding) • Purposed method • Experimental results • Conclusions • Comments

  3. Introduction • Since 1970s the block truncation coding (BTC) has been studied a lot. • High PSNR but low compression ration. • A modified scheme of BTC is proposed to achieve high compression ration and keeping PSNR as high as possible.

  4. BTC (1/3)

  5. BTC (2/3) 44 block + Bit pattern

  6. BTC (3/3) (a) Original image (b) Reconstructed image with conventional BTC(PSNR=32.89 and bpp=2)

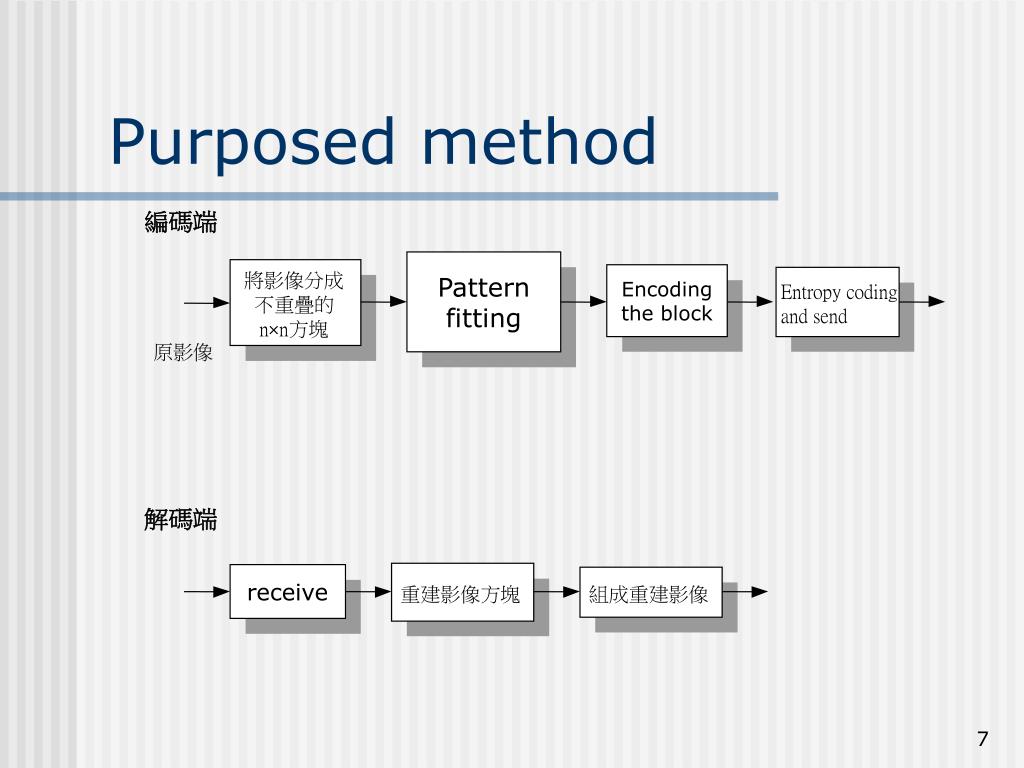

  7. Purposed method 編碼端 Pattern fitting Encoding the block 將影像分成 Entropy coding and send 不重疊的 n n方塊 原影像 解碼端 receive 重建影像方塊 組成重建影像

  8. Pattern fitting (1/4) Pattern book Set of two-level patterns

  9. Pattern fitting (2/4) 44 block

  10. Pattern fitting (3/4) 44 block

  11. Pattern fitting (4/4) Output image after pattern fitting

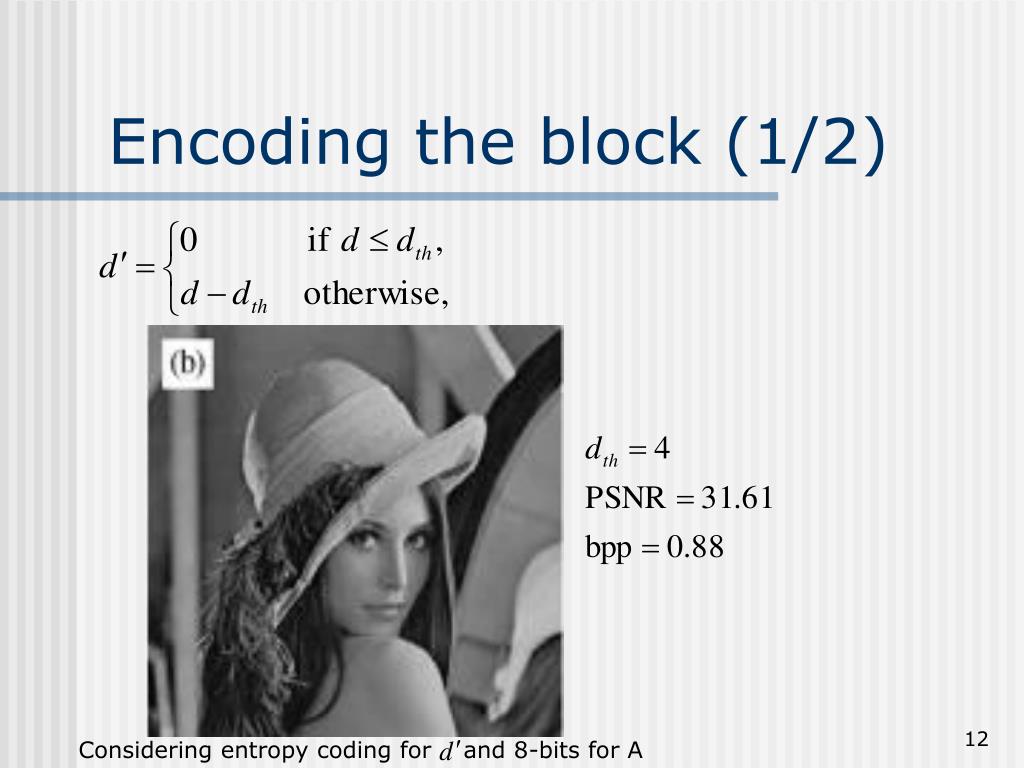

  12. Encoding the block (1/2) Considering entropy coding for and 8-bits for A

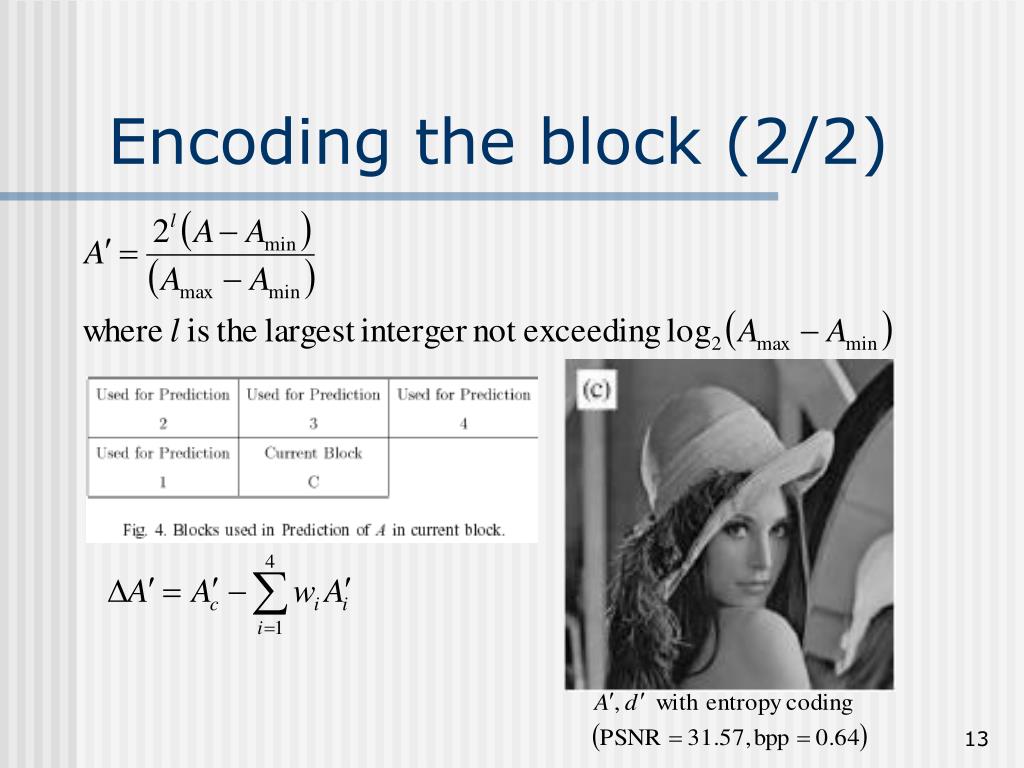

  13. Encoding the block (2/2)

  14. Reconstruction

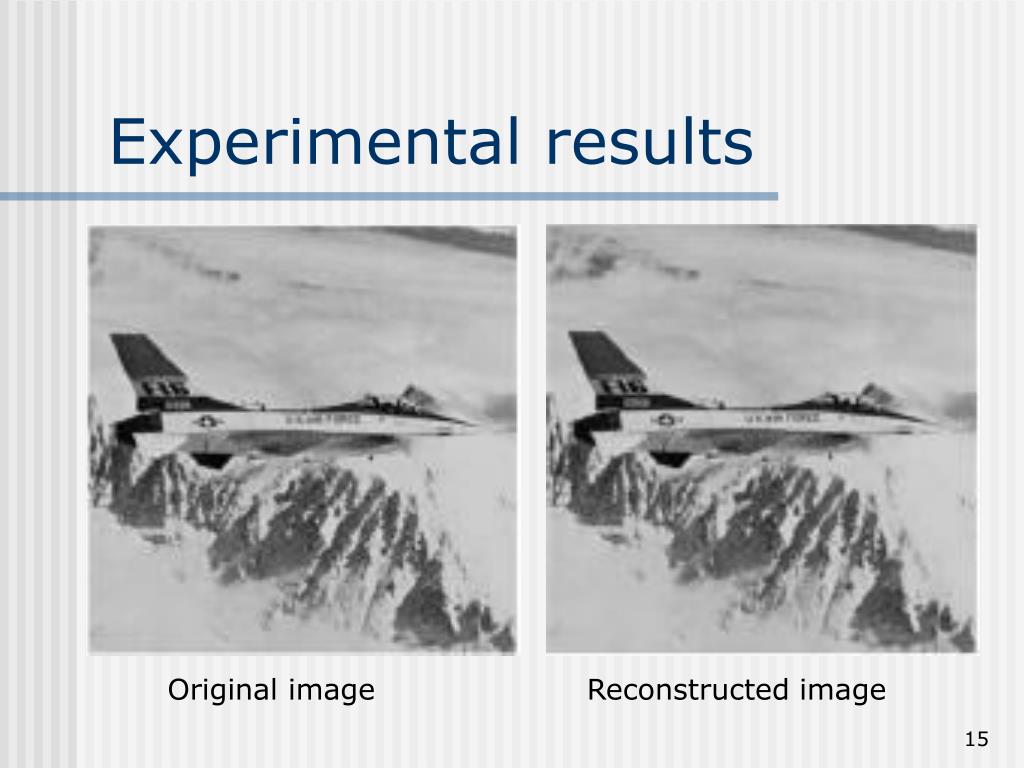

  15. Experimental results Original image Reconstructed image

  16. Experimental results Original image Reconstructed image

  17. Experimental results Conventional BTC (PSNR=32.89 and bpp=2) Purposed method (PSNR=31.59 and bpp=0.64)

  18. Experimental results Experimental result of proposed method and others

  19. Conclusions • Instead of determining bit-pattern for a block, an optimum bit-pattern is selected from a pattern-book. • Our method is presented to achieve higher compression ration and keeping PSNR as high as possible.

  20. Comments • 如何決定wi? • 計算壓縮率時, 是否也應考慮Pattern book?
