  1. Quick Guide for Your IBM ThinkPad 2389-1DU Presented by: Arey Jones Educational Solution

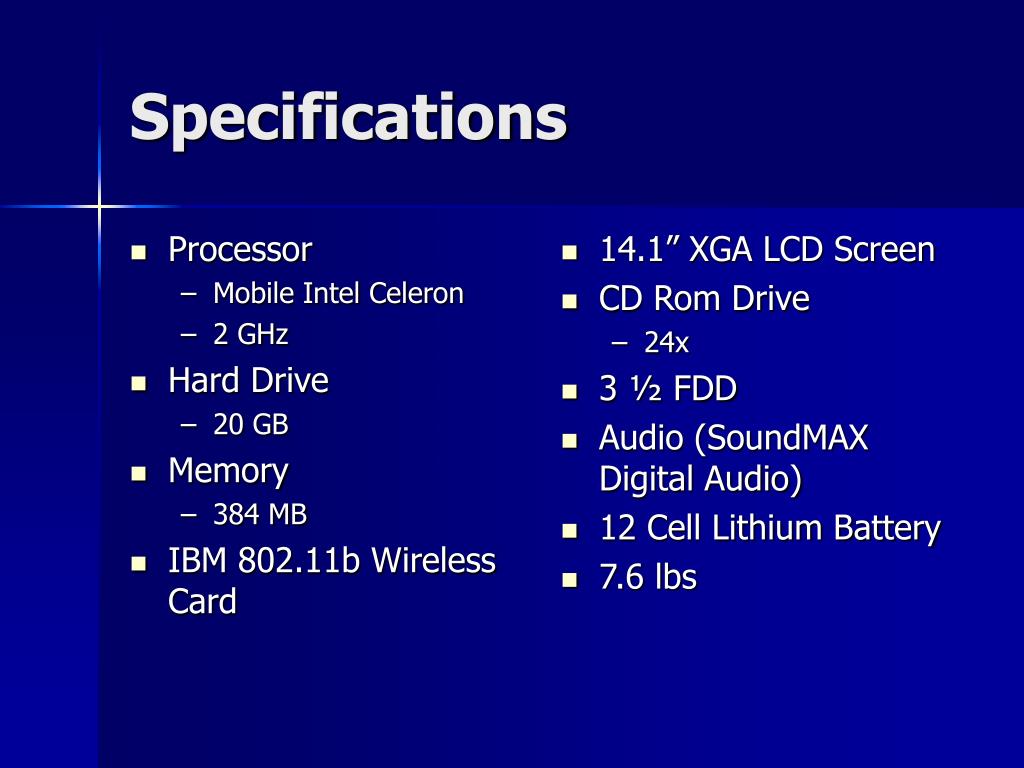

  2. Processor Mobile Intel Celeron 2 GHz Hard Drive 20 GB Memory 384 MB IBM 802.11b Wireless Card 14.1” XGA LCD Screen CD Rom Drive 24x 3 ½ FDD Audio (SoundMAX Digital Audio) 12 Cell Lithium Battery 7.6 lbs Specifications

  3. 14.1 XGA LCD • Integrated Intel • Extreme Graphics CD Rom Drive (24x) 3 ½ FDD

  4. Intel Celeron 2.0 GHz Processor Lithium Battery 20 GB Hard Drive Integrated 802.11b Wireless Card 384 MB Memory

  5. PCMCIA (Expansion Connector) AC Adapter Jack RJ-11 (Dial-up) GBit 10/100/1000 RJ-45 (Ethernet) 4 USB 2.0 PS/2 Parallel/Printer XVGA Audio Output/Connectors

  6. PCMCIA AC Adapter Jack RJ-11 (Dial-up) Ethernet 2 USB 2.0 Audio PS/2 XVGA 2 USB 2.0 Parallel/Printer

  7. Features • TrackPoint • Full Keyboard

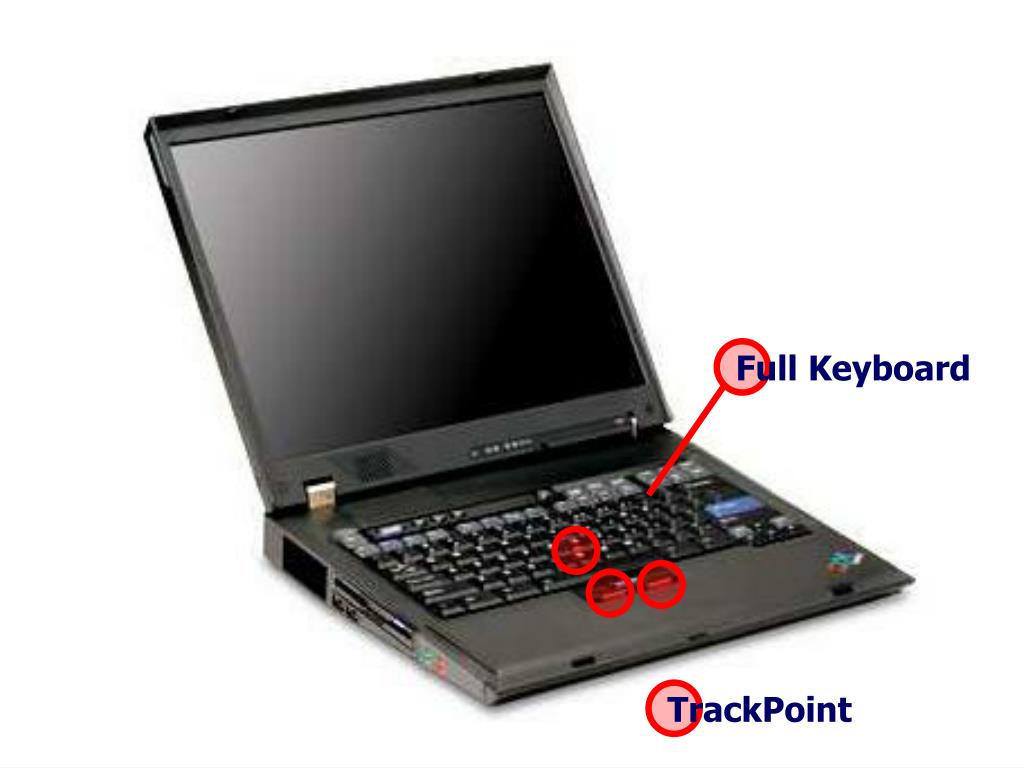

  8. Full Keyboard TrackPoint

  9. Keyboard Functions (Fn) • Fn + F3 = Turns off Screen • Fn + F4 = Sleep Mode • Fn + F5 = 802.11 Wireless Radios • Fn + F7 = Switch to External CRT • Fn + F12 = Hibernate Mode • Fn + Home = Brightens Screen • Fn + End = Darkens Screen • Fn + Space Bar = Zoom In and Out • Programmable Keys

  10. Expansion Options • Plug and Play Support • Up to 1 GB Memory • External Devices (USB) • CD Burner • Zip Drive • Digital Camera • Scanner • Mouse • Keyboard • Printer • Etc.

  11. Windows XP Pro • Overview • How to keep your system up to date with the latest Windows and Symantec Virus updates.

  12. Questions??

  13. Thank You for Your Participation!! Presented by Kaarin Lunneberg, Server Specialist Arey Jones Educational Solution
