  1. Force, Pressure and Area

  2. The force acting on a certain area is called pressure • If you change the area but keep the force the same the pressure changes • Ex. Snowshoes, boxing gloves, thumbtack Pressure = Force (N) P = F = N/M2 or Pascal (Pa) Area (m2) A Kilopascal (kPa) = 1000 Pa

  3. Pascal’s Law • Pressure exerted on a contained fluid is transmitted undiminished in all directions throughout the fluid and perpendicular to the walls of the container • Ex. Squeezing anywhere on the tube of toothpaste will force toothpaste out of the tube • Remember liquids take the shape of their container and are practically uncompressible

  4. Hydraulic Lift • A mechanical system that lifts heavy objects • Uses fluid under pressure in a closed system • Your circulatory system is a closed system • Has a small cylinder and a large cylinder, each filled with hydraulic fluid (usually oil) • Both cylinders have a platform or piston that rests on the surface of the fluid • A hydraulic lift uses a liquid to produce a large force on a load with a small effort force on the liquid

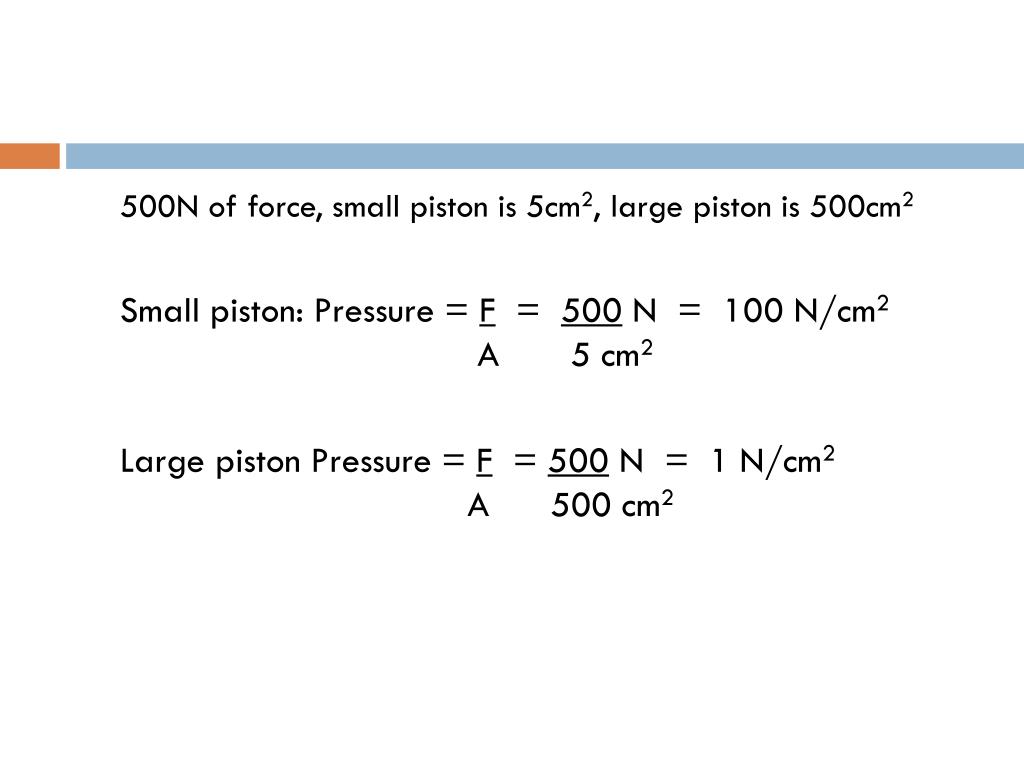

  5. 500N of force, small piston is 5cm2, large piston is 500cm2 Small piston: Pressure = F = 500 N = 100 N/cm2 A 5 cm2 Large piston Pressure = F = 500 N = 1 N/cm2 A 500 cm2
