Presentation Transcript

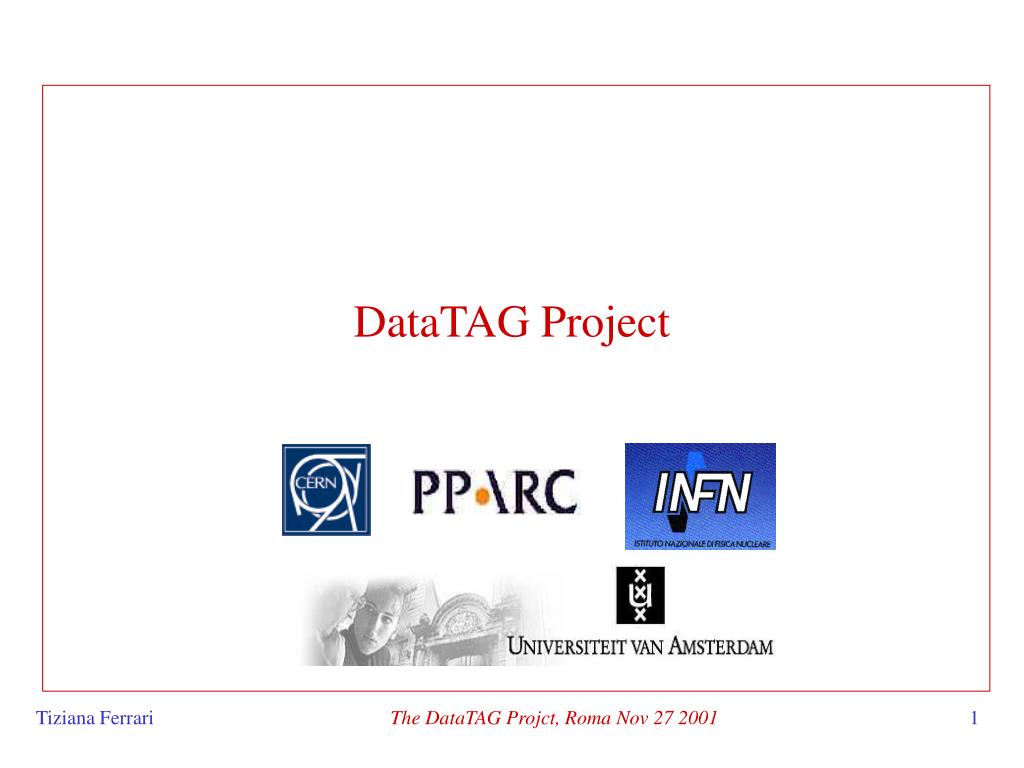

  1. DataTAG Project The DataTAG Projct, Roma Nov 27 2001

  2. The EU DataTAG project • Two main focus: • Grid applied network research • Interoperability between Grids • 2.5 Gbps transatlantic lambda between CERN (Geneva) and StarLight (Chicago) • dedicated to research (no production traffic) • Expected outcomes: • Better interoperability between GRID projects in Europe and North America • DataGrid, possibly other EU funded Grid projects • PPDG, GriPhyN, DTF, iVDGL (USA) The DataTAG Projct, Roma Nov 27 2001

  3. The EU DataTAG project (cont) • European partners: INFN (IT), PPARC (UK), University of Amsterdam (NL) and CERN, as project coordinator • Strong collaborations already in place with ANL, Caltech, FNAL, SLAC, University of Michigan, as well as Internet2 and ESnet. • Budget: 3.9 MEUR • 2 years • Expected starting date: December 1, 2001 • Kick-off meeting: CERN, Dec 5 2001 • NSF support through the existing collaborative agreement with CERN (Eurolink award) The DataTAG Projct, Roma Nov 27 2001

  4. UK SuperJANET4 NL SURFnet GEANT IT GARR-B NewYork Abilene STAR-LIGHT ESNET CERN MREN STAR-TAP The DataTAG Projct, Roma Nov 27 2001

  5. DataTAG planned set-up (2nd half 2002) DataTAGtest equipment DataTAGtest equipment DataTAGtest equipment CERN PoP Chicago STARLIGHT UvA INFN …... PPARC DataTAGtest equipment ESNET GEANT ABILENE 2.5 Gb DataGRID PPDG iVDGL CERN GriPhyN DTF CIXP The DataTAG Projct, Roma Nov 27 2001

  6. Work Packages • WP1: Provisioning & Operations (CERN) • Will be done in cooperation with DANTE • Two major issues: • Procurement • Routing, how can the DataTAG partners have transparent access to the DataTAG circuit across GEANT and their national network? • WP5: Information dissemination and exploitation (CERN) • WP6: Project management (CERN) The DataTAG Projct, Roma Nov 27 2001

  7. Work Packages (cont) • WP2: High Performance Networking (PPARC) • High performance Transport • tcp/ip performance over large bandwidth*delay networks • Alternative transport solutions • End to end inter-domain QoS • Advance network resource reservation • WP3: Bulk Data Transfer & Application performance monitoring (University of Amsterdam) • Performance validation • End to end user performance • Validation, Monitoring, Optimization • Application performance • Netlogger The DataTAG Projct, Roma Nov 27 2001

  8. Work Packages (cont) • WP4: Interoperability between Grid Domains (INFN) • GRID resource discovery • Access policies, authorization & security • Identify major problems • Develop inter-Grid mechanisms able to interoperate with domain specific rules • Interworking between domain specific Grid services • Test Applications • Interoperability, performance & scalability issues The DataTAG Projct, Roma Nov 27 2001

  9. Work programme: details • The lambda availability is expected in the second half of 2002 • Initially, test systems will be either at CERN or connect via GEANT • GEANT is expected to provide VPNs (or equivalent) for Datagrid and/or access to the GEANT PoPs. • Later, it is hoped that GEANT will provide dedicated lambdas for Datagrid • Initially a 2.5 Gb/sec POS link • WDM later, depending on equipment availability The DataTAG Projct, Roma Nov 27 2001

  10. INFN: Participation - draft • CNAF, Padova, Milano, Torino (?) • 8 or 9 contracts available • Wp1, Wp2, Wp4 • Wp2: 2 fte, CNAF (S.Andreozzi, S.Cammarata) • Wp4: • 4.1: resource discovery: A.Cavalli, Cischini, + 1 fte • 4.2: security/authorization: R.Cecchini, Spataro, INFN security group • 4.3: internetworking of collective services: • Wp1 DataGrid • 1 fte CNAF • Milano and Padova (2 fte + 2 fte) The DataTAG Projct, Roma Nov 27 2001
