  1. The Design of a Grid Computing System for Drug Discovery and Design David Gobaud Computational Drug Discovery Stanford University 14 March 2006

  2. Outline • Overview • Network Topology • Structure Summary • Resource Management Agent • Job Submission Client • Scheduler Node • Execution Node • Experimental Results • Questions

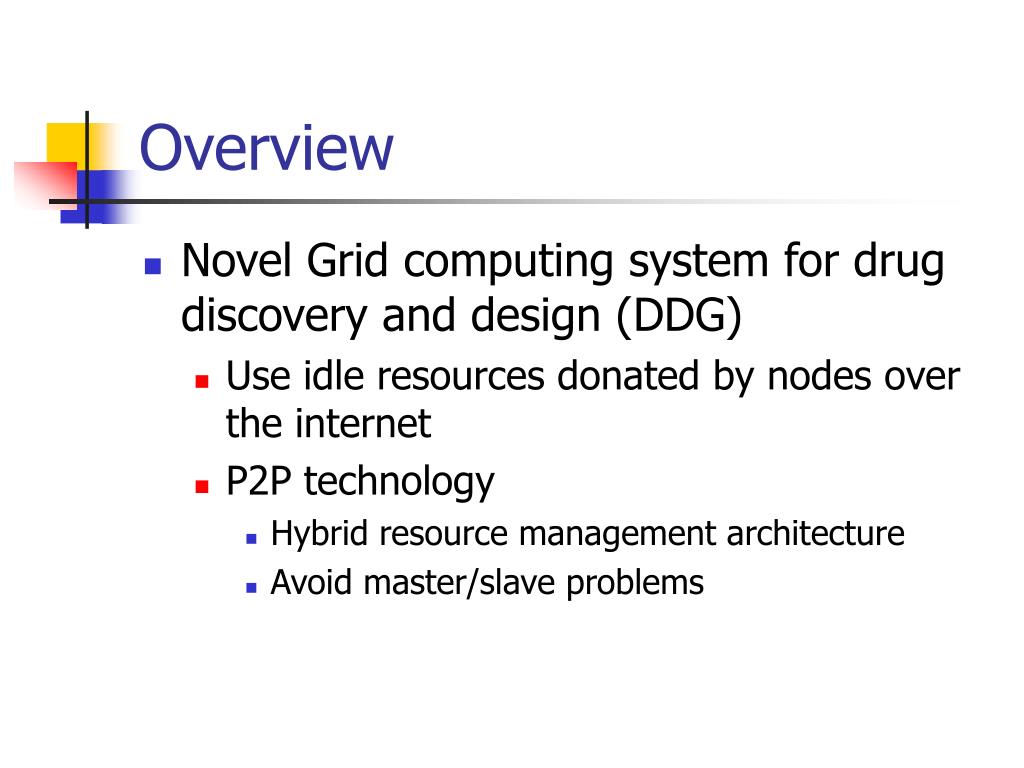

  3. Overview • Novel Grid computing system for drug discovery and design (DDG) • Use idle resources donated by nodes over the internet • P2P technology • Hybrid resource management architecture • Avoid master/slave problems

  4. Network Topology • Centralized + Decentralized P2P • Clusters that wish to compute join DDG and become execution nodes • Grouped into Virtual Organizations (VO) by structures and interests • Communicate via Resource Management Agents (RMA) in P2P mode • One peer fails – other peers can compensate • Each local RMA captures and maintains resource info of a VO

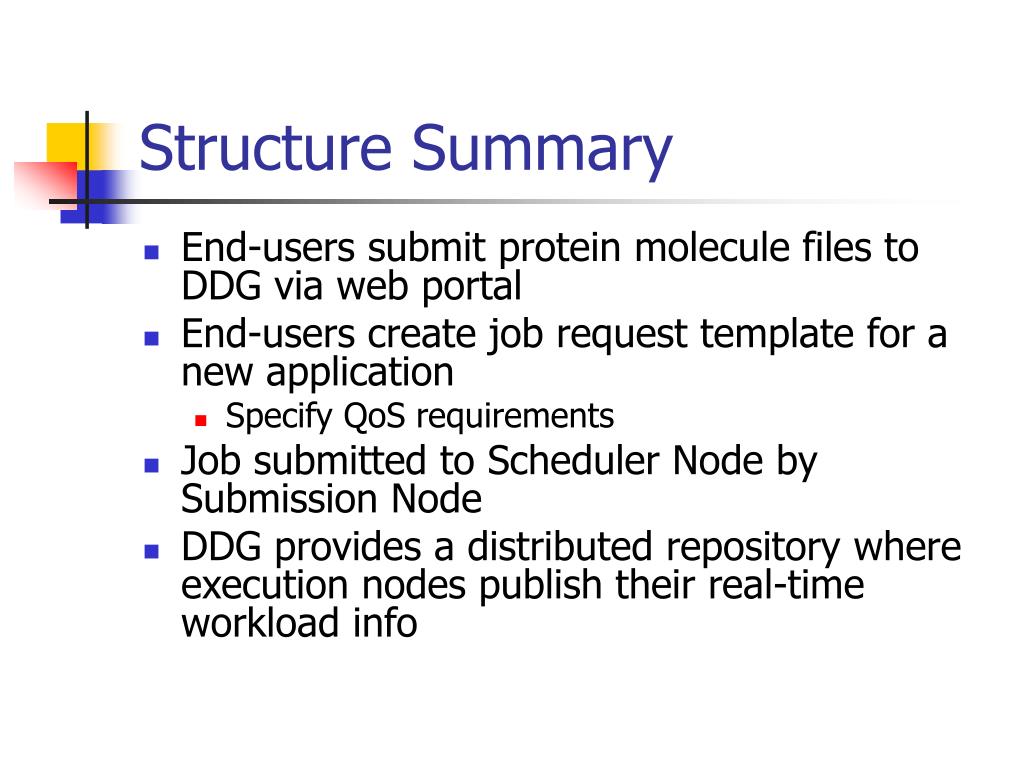

  5. Structure Summary • End-users submit protein molecule files to DDG via web portal • End-users create job request template for a new application • Specify QoS requirements • Job submitted to Scheduler Node by Submission Node • DDG provides a distributed repository where execution nodes publish their real-time workload info

  6. Structure Summary • Scheduler Node • Divide job into many parallel sub-jobs • Query repository to find and allocate execution nodes for sub-jobs to satisfy QoS requirements • Combine results from sub-jobs into whole docking result • Return result to submission node which informs the user the job is complete

  7. High-Level Workflow of DDG

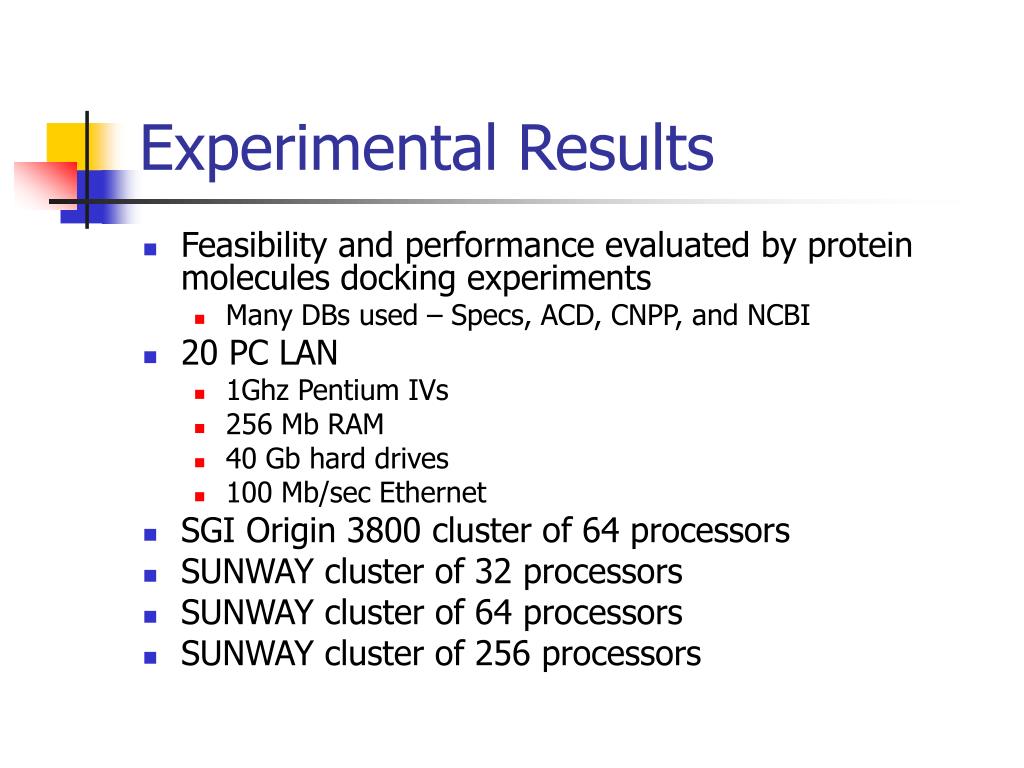

  8. Experimental Results • Feasibility and performance evaluated by protein molecules docking experiments • Many DBs used – Specs, ACD, CNPP, and NCBI • 20 PC LAN • 1Ghz Pentium IVs • 256 Mb RAM • 40 Gb hard drives • 100 Mb/sec Ethernet • SGI Origin 3800 cluster of 64 processors • SUNWAY cluster of 32 processors • SUNWAY cluster of 64 processors • SUNWAY cluster of 256 processors

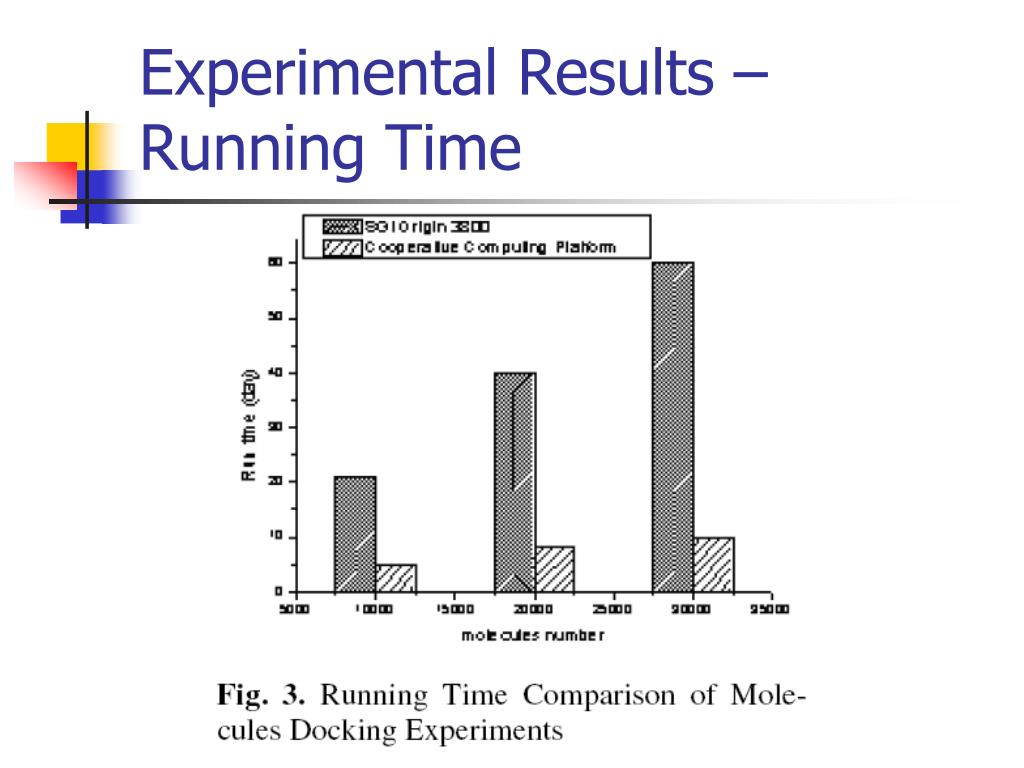

  9. Experimental Results – Running Time

  10. Experimental Results – Robustness • 20 PCs each receiving 100 protein molecules to dock • Some PCs randomly shut down • After P2P network stabilized fraction of molecules that could not be processed measures • Molecule docking failure rate almost equal to nodes failure rate as expected • No significant resource scheduling failure -> Robust

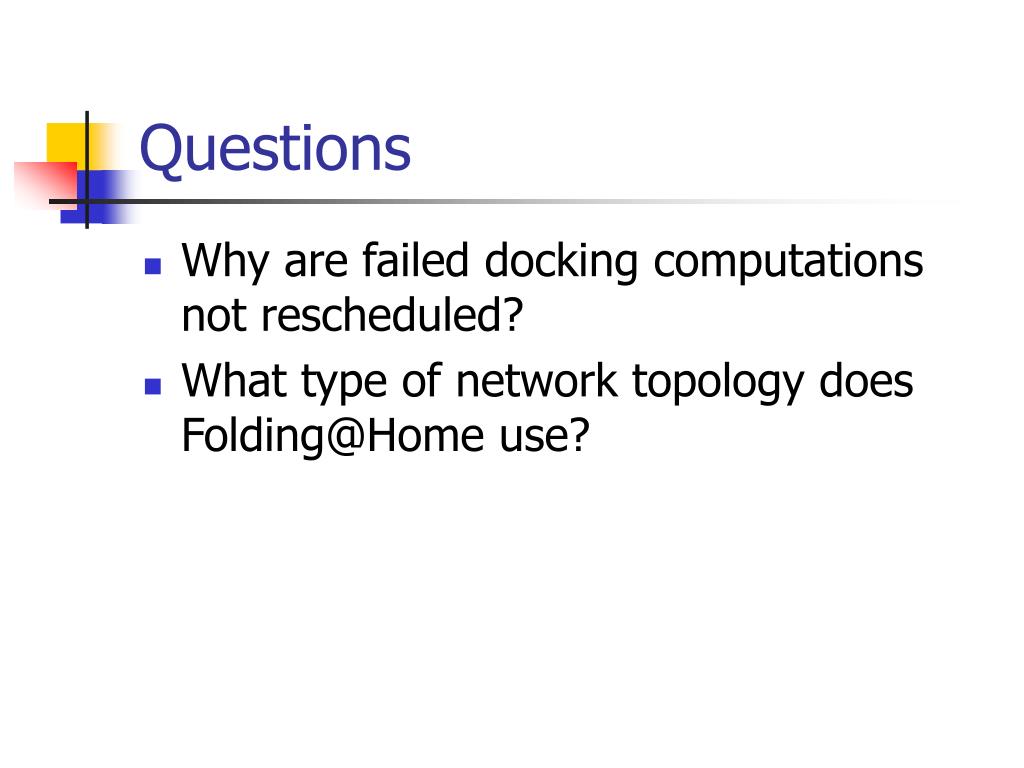

  11. Questions • Why are failed docking computations not rescheduled? • What type of network topology does Folding@Home use?
