  1. Wireless in Pavement Detection System • This system can be used in lieu of the traditional loop saw slot and fill method to provide detection at any intersection. Presentation by: Tom Hines, Ted Swansegar and Chris Kuntz

  2. System Overview

  3. A New Era in Vehicle Detection World’s fastest transportation technology adoption • Unprecedented 10+ year battery life • Installs in minutes • Virtually maintenance free • Universal loop replacement • Remote management, configuration & diagnostics • Upgradable firmware • 120,000+ deployed worldwide • 5-year warranty

  4. VDS240 Wireless Sensor Rugged, in-ground wireless sensor with unprecedented 10-year battery life • Accurate, 3-axis magnetometer • Patented ultra-low NanoPowerSM communications protocol • Mechanical packaging for in-road sensors • Complete platform for traffic detection market • Self calibrating, self-tuning • Re-usable and remotely upgradeable • Capable of over 300 million detections

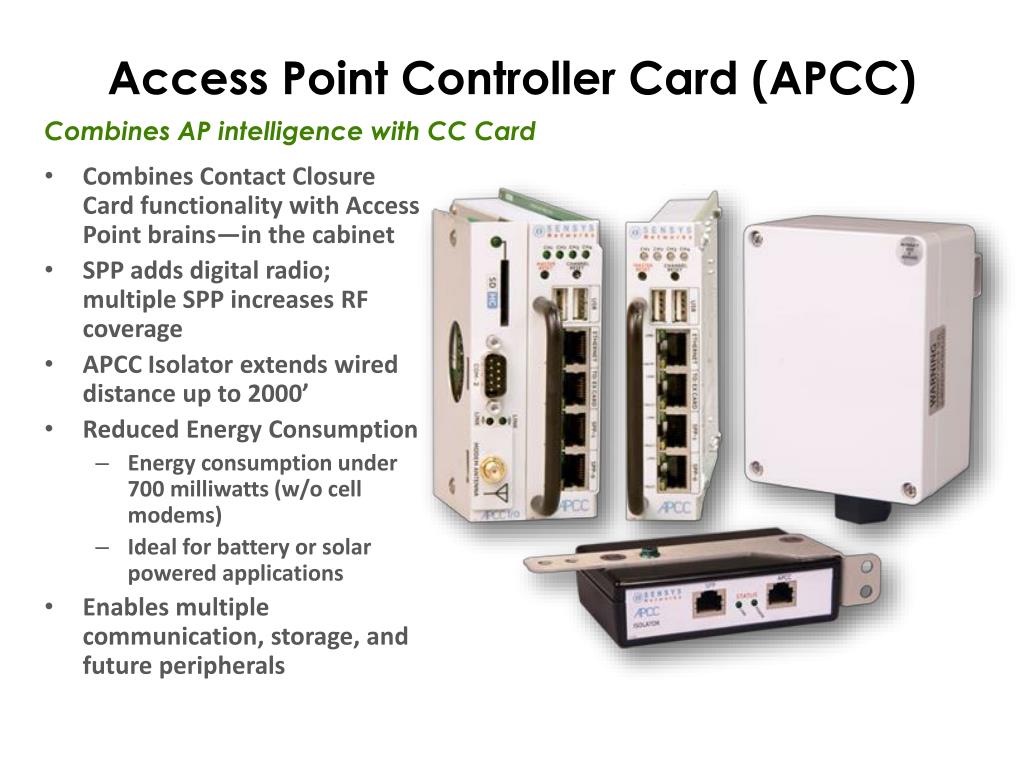

  5. Access Point Controller Card (APCC) Combines AP intelligence with CC Card • Combines Contact Closure Card functionality with Access Point brains—in the cabinet • SPP adds digital radio; multiple SPP increases RF coverage • APCC Isolator extends wired distance up to 2000’ • Reduced Energy Consumption • Energy consumption under 700 milliwatts(w/o cell modems) • Ideal for battery or solar powered applications • Enables multiple communication, storage, and future peripherals

  6. APCC System Increased flexibility • Self contained digital radio • Unique RF Channel • Communicates with • Up to 48 sensors • Dedicated repeaters

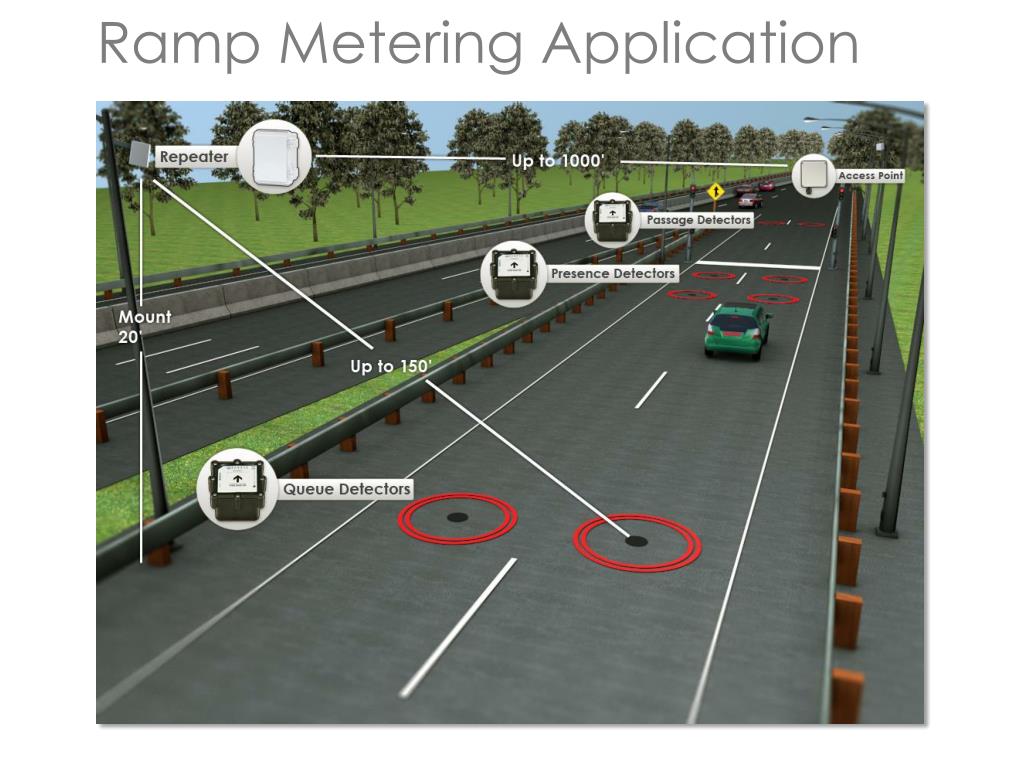

  7. Ramp Metering Application

  8. Easiest Installation Eliminates prolonged road closures and toxic waste clean up Inductive loop installation Sensys Networks sensor installation <15 minutes
