  1. Code Contracts Parameterized Unit Tests Tao Xie

  2. ? = Example Unit Test Case + Expected Outputs Test inputs Program Outputs Test Oracles void addTest() { ArrayList a = new ArrayList(1); Object o = new Object(); a.add(o); AssertTrue(a.get(0) == o); } Test Case = Test Input + Test Oracle • Appropriate method sequence • Appropriate primitive argument values • Appropriate assertions

  3. Levels of Test Oracles • Expected output for an individual test input • In the form of assertions in test code • Properties applicable for multiple test inputs • Crash (uncaught exceptions) or not, related to robustness issues, supported by most tools • Properties in production code: Design by Contract (precondition, postcondition, class invariants) supported by ParasoftJtest, Google CodeProAnalytiX • Properties in test code: Parameterized unit tests supported by MSR Pex, AgitarOne X. Xiao, S. Thummalapenta, and T. Xie. Advances on Improving Automation in Developer Testing. In Advances in Computers, 2012 http://people.engr.ncsu.edu/txie/publications.htm#ac12-devtest

  4. Economics of Test Oracles • Expected output for an individual test input • Easy to manually verify for one test input • Expensive/infeasible to verify for many test inputs • Limited benefits: only for one test input • Properties applicable for multiple test inputs • Not easy to write (need abstraction skills) • But once written, broad benefits for multiple test inputs

  5. Assert behavior of multiple test inputs Design by Contract • Example tools: ParasoftJtest, Google CodeProAnalytiX, MSR Code Contracts, MSR Pex • Class invariant: properties being satisfied by an object (in a consistent state) [AgitarOne allows a class invariant helper method used as test oracles] • Precondition: conditions to be satisfied (on receiver object and arguments) before a method can be invoked • Postcondition: properties being satisfied (on receiver object and return) after the method has returned • Other types of specs also exist http://research.microsoft.com/en-us/projects/contracts/

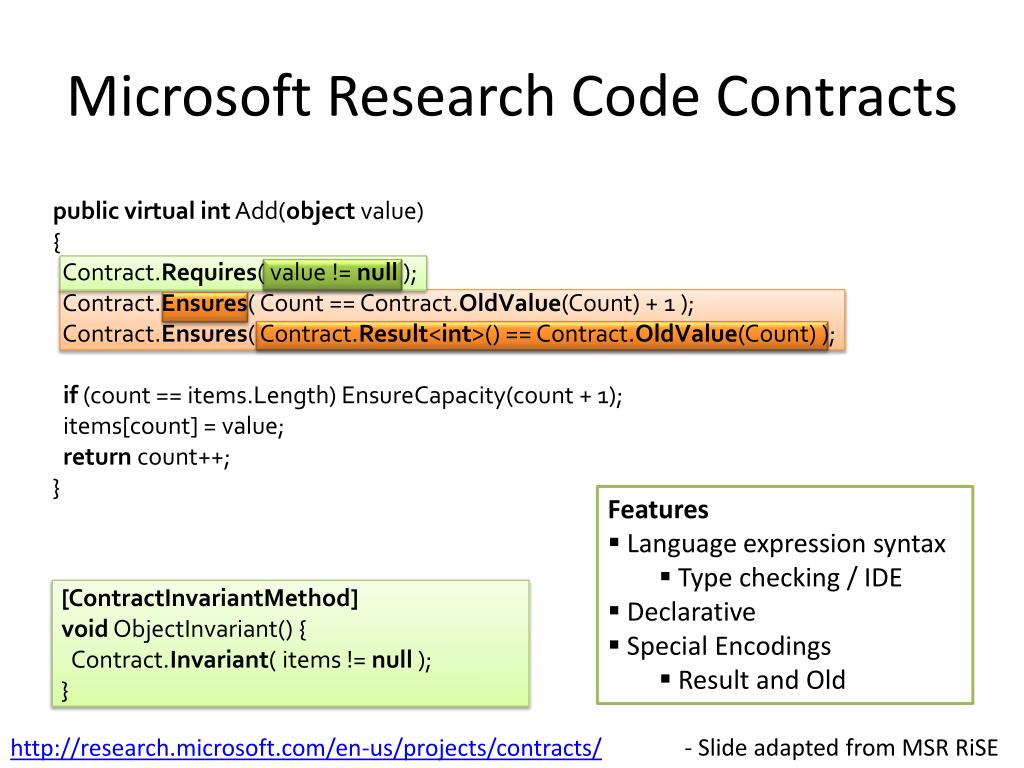

  6. Microsoft Research Code Contracts publicvirtualint Add(object value){ Contract.Requires( value != null );Contract.Ensures( Count == Contract.OldValue(Count) + 1 ); Contract.Ensures( Contract.Result<int>() == Contract.OldValue(Count) );if(count == items.Length) EnsureCapacity(count + 1); items[count] = value; returncount++;} • Features • Language expression syntax • Type checking / IDE • Declarative • Special Encodings • Result and Old [ContractInvariantMethod]voidObjectInvariant() {Contract.Invariant( items != null );} - Slide adapted from MSR RiSE http://research.microsoft.com/en-us/projects/contracts/

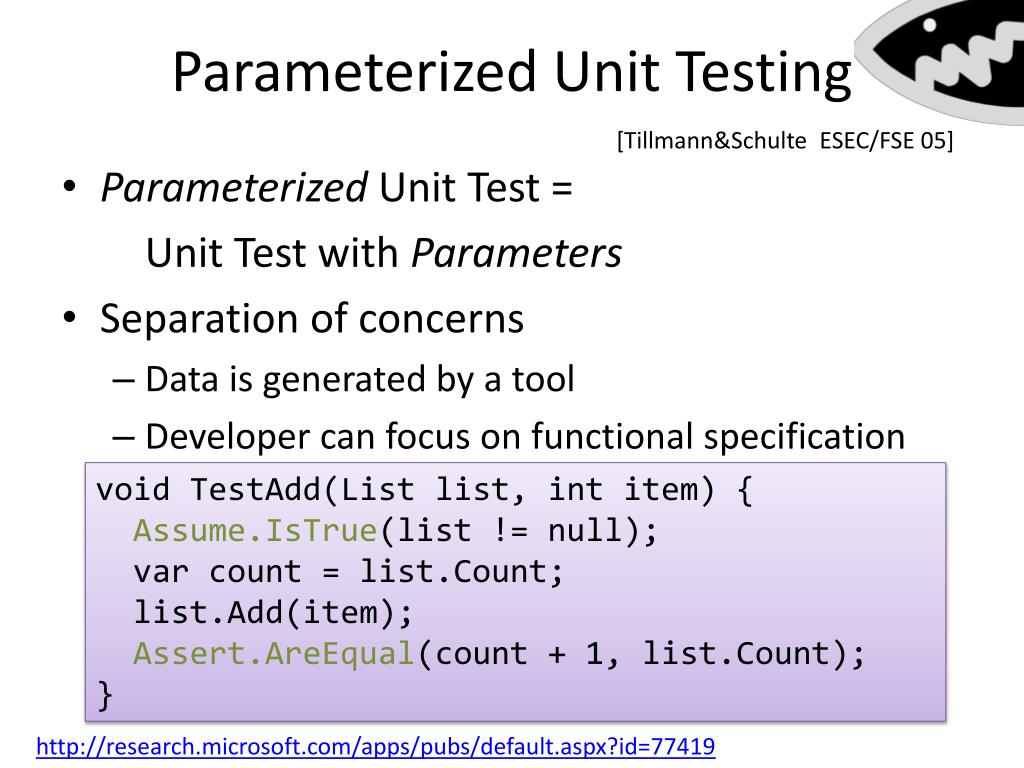

  7. Parameterized Unit Testing [Tillmann&Schulte ESEC/FSE 05] • Parameterized Unit Test = Unit Test with Parameters • Separation of concerns • Data is generated by a tool • Developer can focus on functional specification void TestAdd(List list, int item) { Assume.IsTrue(list != null); var count = list.Count; list.Add(item); Assert.AreEqual(count + 1, list.Count); } http://research.microsoft.com/apps/pubs/default.aspx?id=77419

  8. Parameterized Unit Testsare Formal SpecificationsAlgebraic Specifications • A Parameterized Unit Test can be read as a universally quantified, conditional axiom. void TestReadWrite(Res r, string name, string data) {Assume.IsTrue(r!=null & name!=null && data!=null); r.WriteResource(name, data);Assert.AreEqual(r.ReadResource(name), data); }  string name, string data, Res r: r ≠ null ⋀ name ≠ null ⋀ data ≠ null ⇒ equals( ReadResource(WriteResource(r, name, data).state, name), data)

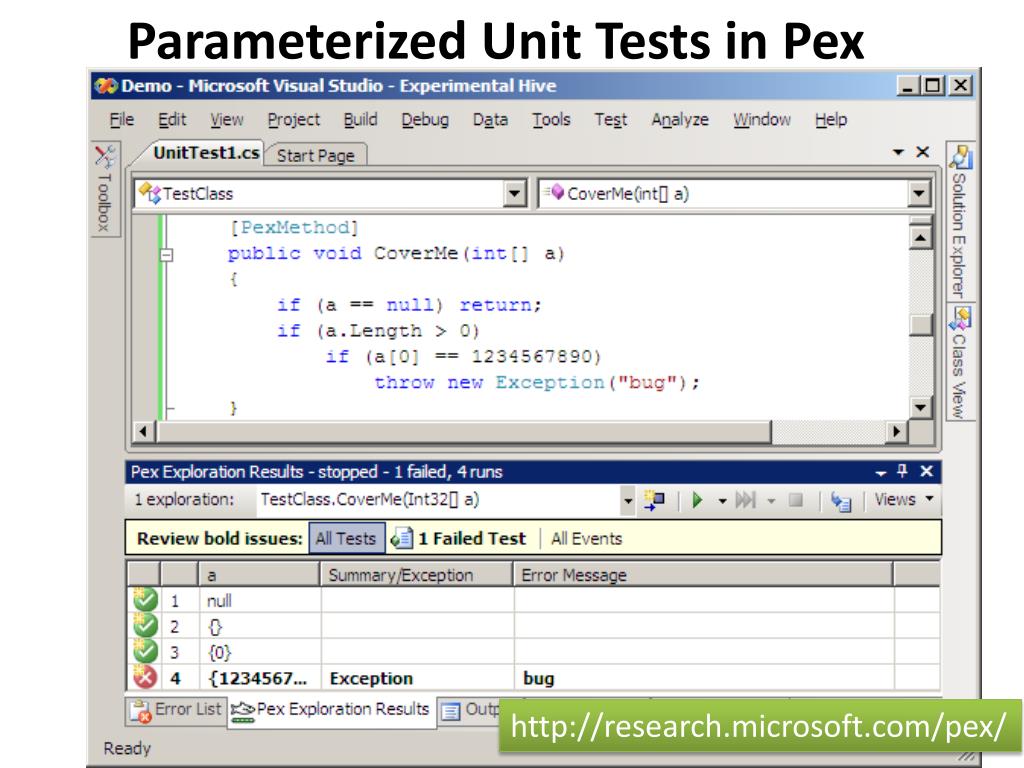

  9. Parameterized Unit Tests in Pex http://research.microsoft.com/pex/

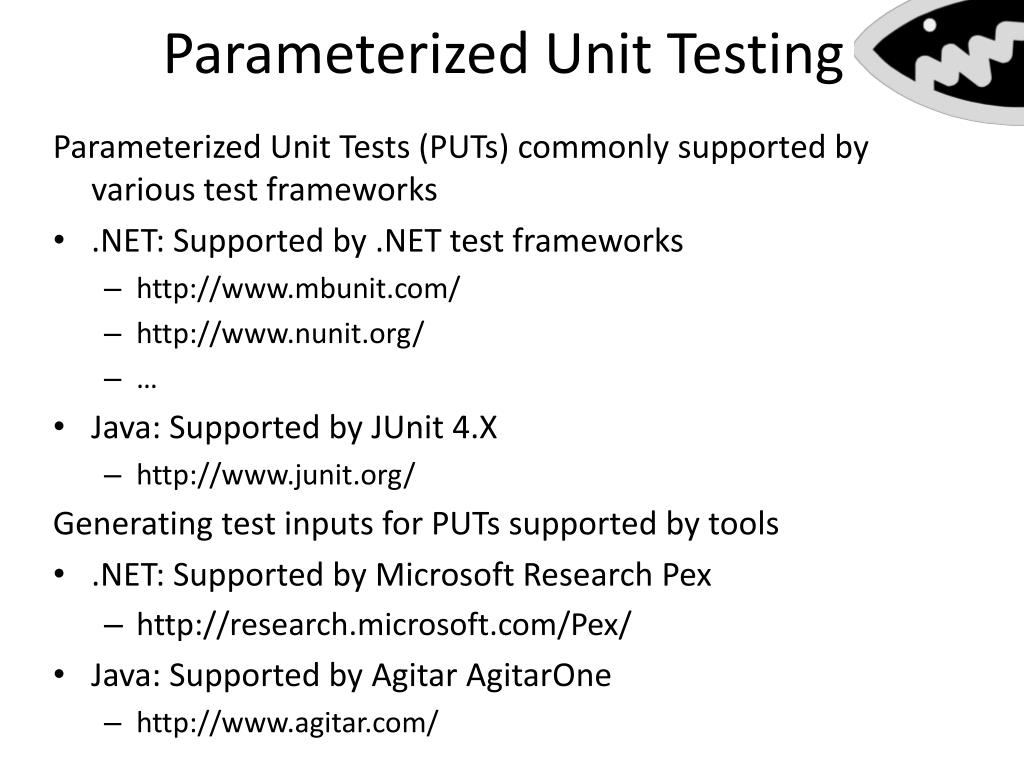

  10. Parameterized Unit TestingGetting Popular Parameterized Unit Tests (PUTs) commonly supported by various test frameworks • .NET: Supported by .NET test frameworks • http://www.mbunit.com/ • http://www.nunit.org/ • … • Java: Supported by JUnit 4.X • http://www.junit.org/ Generating test inputs for PUTs supported by tools • .NET: Supported by Microsoft Research Pex • http://research.microsoft.com/Pex/ • Java: Supported by AgitarAgitarOne • http://www.agitar.com/

  11. ParameterizedTest-Driven Development Bug in PUT Write/refine Contract as PUT Bug in Code Write/refine Code of Implementation Fix-it (with Pex), Debug with generated tests failures Run Pex no failures Use Generated Tests for Regression

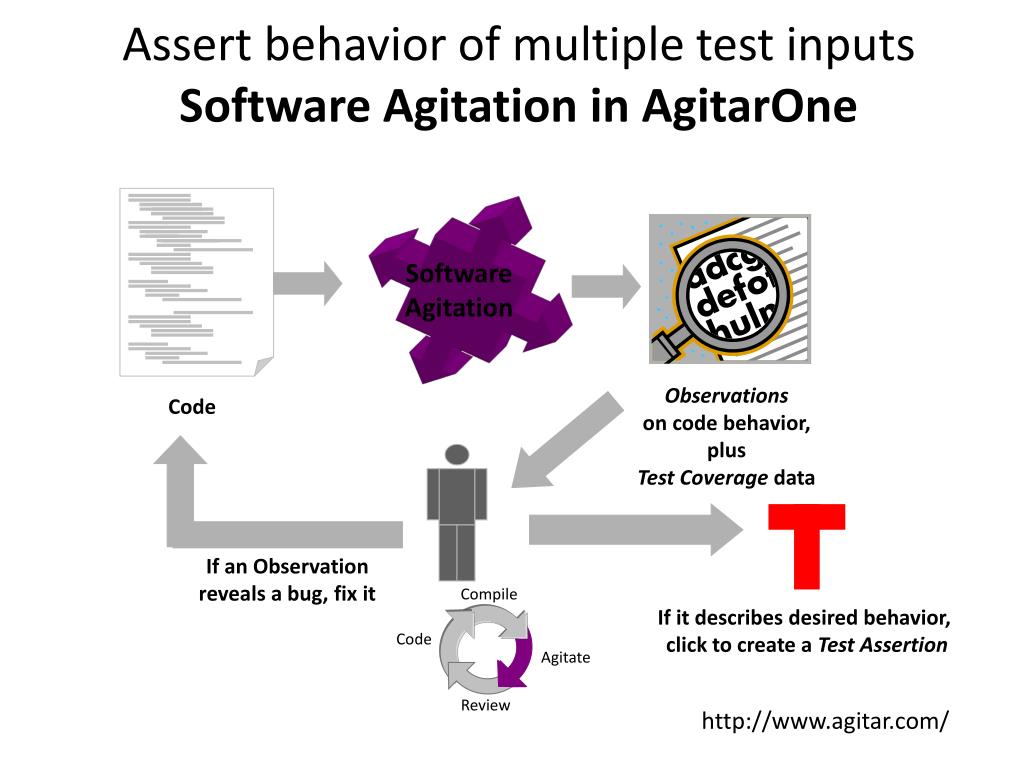

  12. SoftwareAgitation Observationson code behavior, plus Test Coverage data Code If an Observationreveals a bug, fix it Compile If it describes desired behavior, click to create a Test Assertion Code Agitate Review Assert behavior of multiple test inputs Software Agitation in AgitarOne http://www.agitar.com/ - Slide adapted from Agitar Software Inc.

  13. Software Agitation in AgitarOne Image from http://www.agitar.com/
