  1. Fault Current Limiter

  2. YBa2Cu3O7 Thin Film Fault current limiter

  3. Bi 2212 Fault Current Limiter

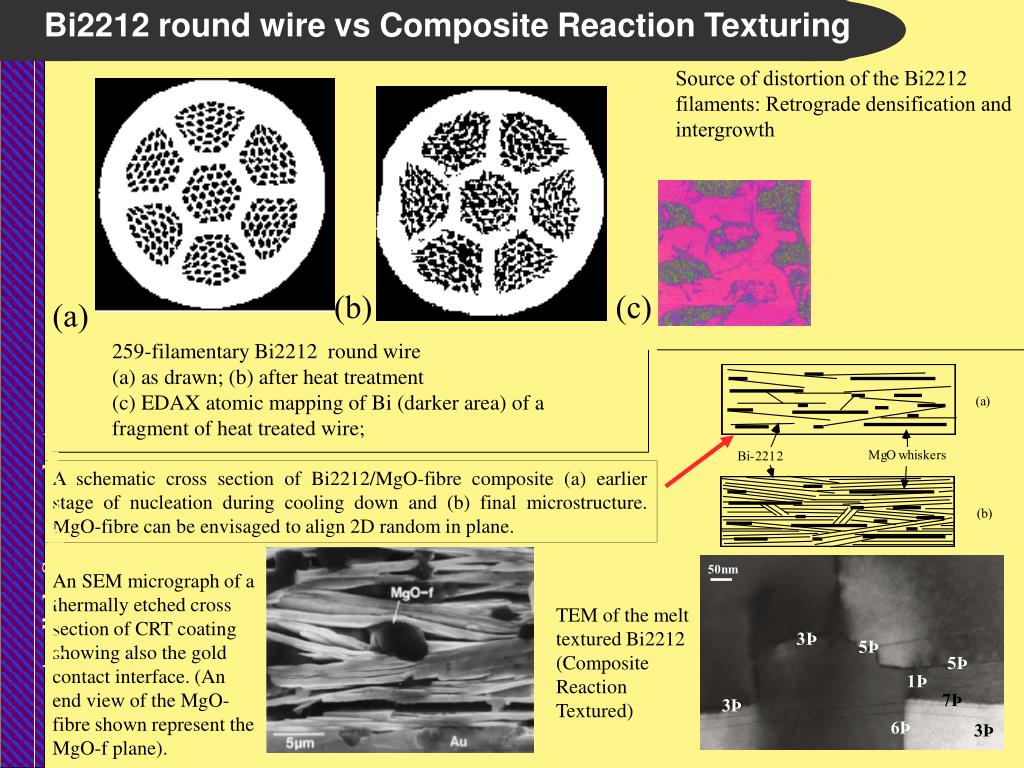

  4. Bi2212 round wire vs Composite Reaction Texturing Source of distortion of the Bi2212 filaments: Retrograde densification and intergrowth (b) (c) (a) Applied Superconductors 259-filamentary Bi2212 round wire (a) as drawn; (b) after heat treatment (c) EDAX atomic mapping of Bi (darker area) of a fragment of heat treated wire; A schematic cross section of Bi2212/MgO-fibre composite (a) earlier stage of nucleation during cooling down and (b) final microstructure. MgO-fibre can be envisaged to align 2D random in plane. An SEM micrograph of a thermally etched cross section of CRT coating showing also the gold contact interface. (An end view of the MgO-fibre shown represent the MgO-f plane). TEM of the melt textured Bi2212 (Composite Reaction Textured)

  5. Oxygen doping optimisation of Coated Bi2212 conductor To ensure that x=8.21 can be retain during the slow cooling procedure, the constant parameters of temperature, To and a, were chosen as To=870ºC and a=60ºC. Schematic representation of the temperature and oxygen partial pressure dependence of the oxygen content, x, in Bi2Sr2CaCu2Ox phase; (1) sample slowly cooled under 0.21atm partial oxygen pressure, SC, and (2) sample SC(pO2). Applied Superconductors (a) (b) High-resolution transmission electron microscopy (HRTEM) images of low angle grain boundaries recorded from individual grains of: (a) a slowly cooled conductor under constant oxygen partial pressure of 0.21 atm, SC; (b) conductor cooled under under monotonically reduced partial pressure of oxygen SC(pO2). The temperature dependence of the transport Jc characteristics for tape SC(pO2) and SC.
