Mastering Bohr Diagrams: A 5th Grade Science Study Guide

DESCRIPTION

This comprehensive study guide helps 5th graders learn how to draw Bohr diagrams for the first 20 elements on the periodic table. Students will discover how to identify their element, count electrons based on atomic number, and understand energy levels and electron shells. Step-by-step instructions guide students through drawing the nucleus, adding electrons correctly to each shell, and verifying their work. Practice exercises are included for elements like H, He, O, Al, Ne, and K. Perfect for mastering Bohr diagrams!

1 / 15

Télécharger la présentation

Mastering Bohr Diagrams: A 5th Grade Science Study Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

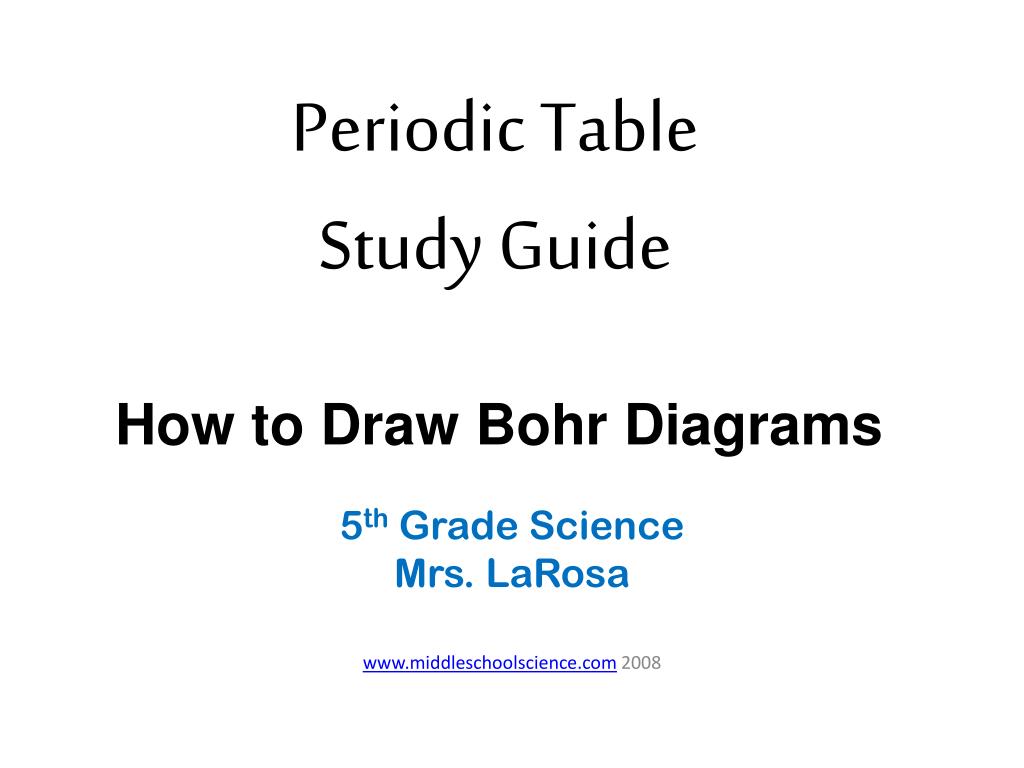

  1. Periodic Table Study Guide How to Draw Bohr Diagrams 5th Grade Science Mrs. LaRosa www.middleschoolscience.com 2008

  2. Bohr Diagrams • Find your element on the periodic table. • Determine the number of electrons – it is the same as the atomic number. • This is how many electrons you will draw.

  3. Bohr Diagrams • Find out which period (row) your element is in. • Elements in the 1st period have one energy level. • Elements in the 2nd period have two energy levels, and so on. www.chem4kids.com

  4. Bohr Diagrams • Draw a nucleus with the element symbol inside. • Carbon is in the 2nd period, so it has two energy levels, or shells. • Draw the shells around the nucleus. C

  5. Bohr Diagrams • Add the electrons. • Carbon has 6 electrons. • The first shell can only hold 2 electrons. C

  6. Bohr Diagrams • Since you have 2 electrons already drawn, you need to add 4 more. • These go in the 2nd shell. • Add one at a time -starting on the right side and going counter clock-wise. C

  7. Bohr Diagrams • Check your work. • You should have 6 total electrons for Carbon. • Only two electrons can fit in the 1st shell. • The 2nd shell can hold up to 8 electrons. • The 3rd shell can hold 18, but the elements in the first few periods only use 8 electrons. C

  8. Bohr Diagrams Try the following elements on your own: • H • He • O • Al • Ne • K C

  9. Bohr Diagrams Try the following elements on your own: • H – 1 electron • He • O • Al • Ne • K H

  10. Bohr Diagrams Try the following elements on your own: • H • He - 2 electrons • O • Al • Ne • K He

  11. Bohr Diagrams Try the following elements on your own: • H • He • O - 8 electrons • Al • Ne • K O

  12. Bohr Diagrams Try the following elements on your own: • H • He • O • Al - 13 electrons • Ne • K Al

  13. Bohr Diagrams Try the following elements on your own: • H • He • O • Al • Ne - 10 electrons • K Ne

  14. Bohr Diagrams Try the following elements on your own: • H • He • O • Al • Ne • K - 19 electrons K

  15. Bohr Diagrams End of Study Guide. You should know how to draw a Bohr Diagram for the first 20 elements.
