  1. SISTEM DIGITAL MUHAMAD ARPAN, S.Kom. PendidikanTeknologiInformasi danKomputer SEKOLAH TINGGI KEGURUAN DAN ILMU PENDIDIKAN PERSATUAN GURU REPUBLIK INDONESIA PONTIANAK

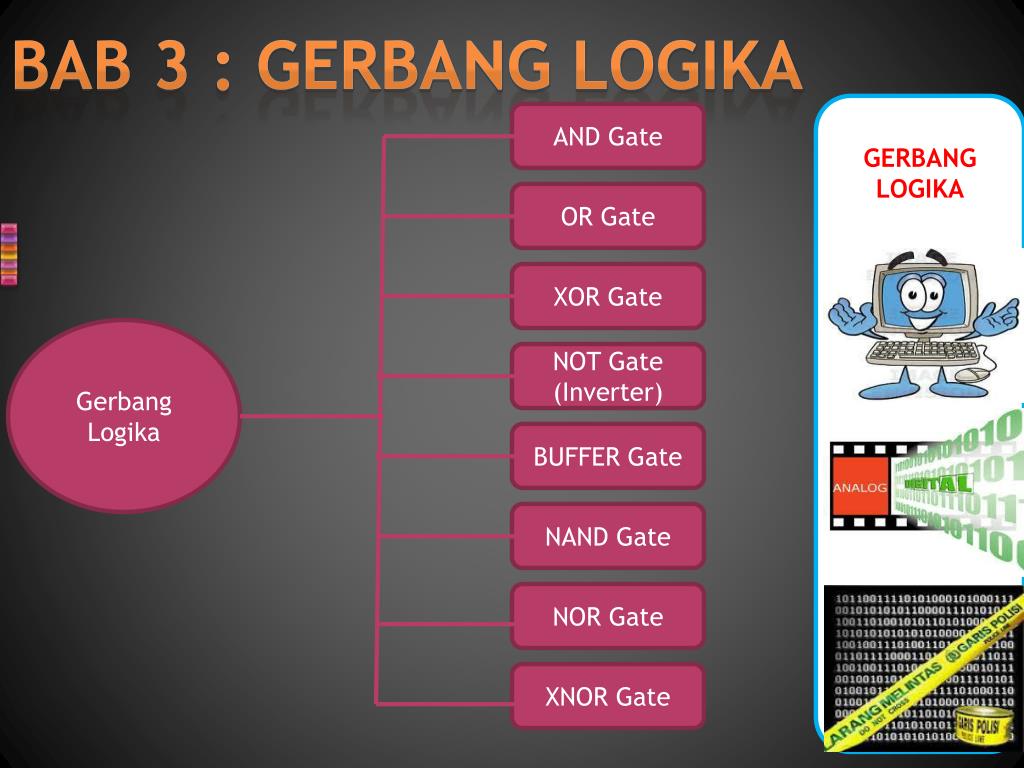

  2. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA AND Gate OR Gate XOR Gate Gerbang Logika NOT Gate (Inverter) BUFFER Gate NAND Gate NOR Gate XNOR Gate

  3. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA DEFINISI Gerbang Logika NAND AND George Boole (1854) NOR, XOR, XNOR OR Dasarpembentuksistem digital BUFFER NOT Rangkaianelektronika (IC) Pengendaliarusinformasi

  4. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA AND GATE Lampu ( Y ) hanyaakanmenyalajikakeduasaklarmasukan ( A dan B) tertutup.

  5. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA AND GATE

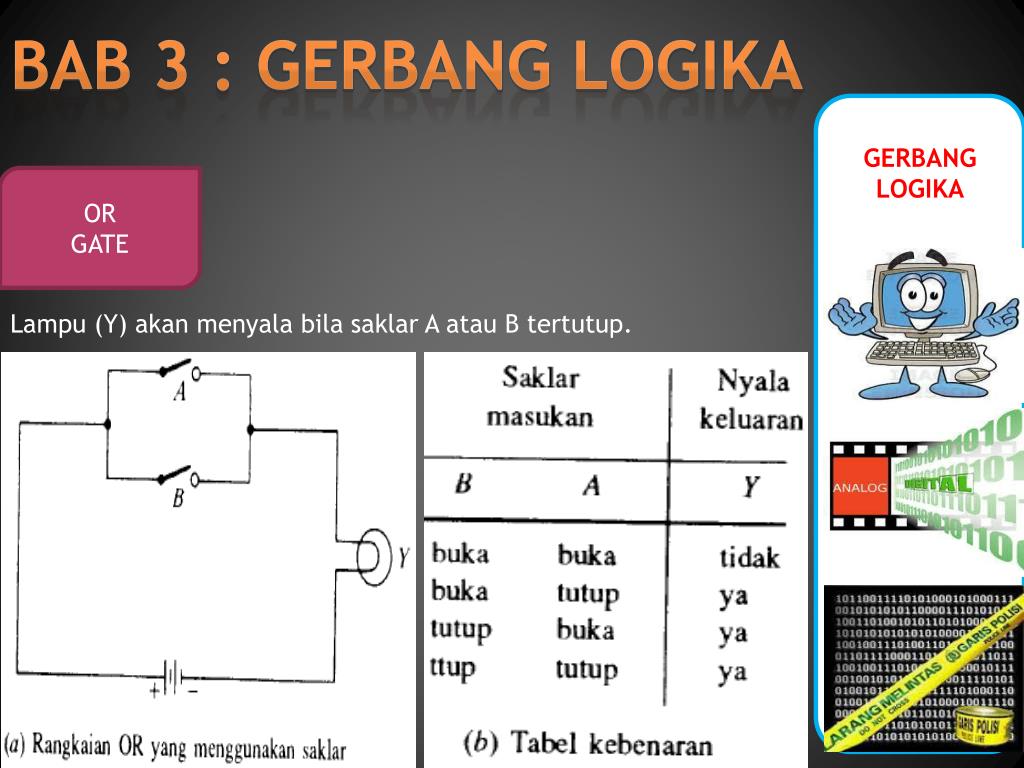

  6. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA OR GATE Lampu (Y) akan menyala bila saklar A atau B tertutup.

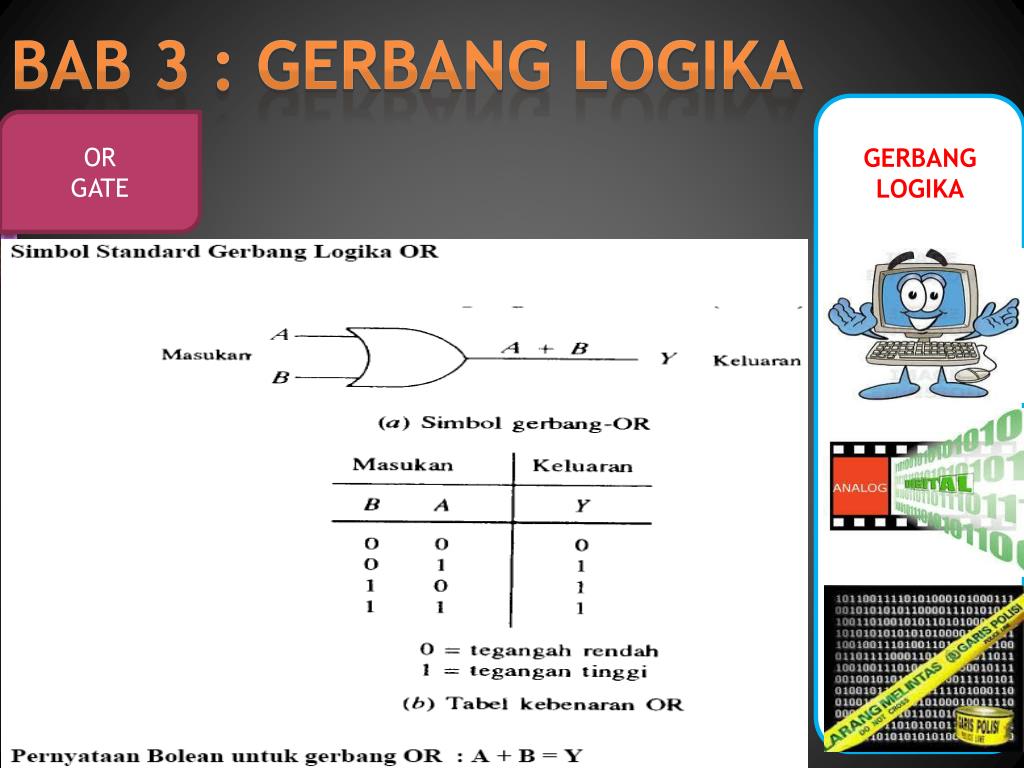

  7. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA OR GATE

  8. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA XOR GATE Gerbang XOR (Exclusive OR) menghasilkan output tinggiketikasalahsatu input adalahtinggi. XOR

  9. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA NOT GATE Disebutjugapembalik (inverter), hanyamempunyaisatumasukandansatukeluaran, dimanaoutput selalu merupakan kebalikan inputnya.

  10. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA BUFFER GATE Apabiladuagerbang inverter disusunrangkap, makadidapatkangerbang non-inverting amplifier (Buffer). Buffer akanmemberikansinyalkeluaran yang samadenganmasukan. (a) Simbolduagerbang inverter Dengankata lain : (c) Tabelkebenaran buffer (b) Simbolgerbang buffer

  11. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA NAND GATE Rangkaianlogika yang dibangunolehgerbang NOT dangerbang AND.

  12. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA NOR GATE Rangkaianlogika yang dibangunolehgerbang NOT dangerbang OR. OR NOR NOR

  13. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA XNOR GATE Gerbang XNOR (Exclusive NOT-OR) merupakanrangkaianlogika yang dibangunolehgerbang NOT dangerbang XOR.

  14. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN Apakahhasil Y, jika : 1).

  15. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 2).

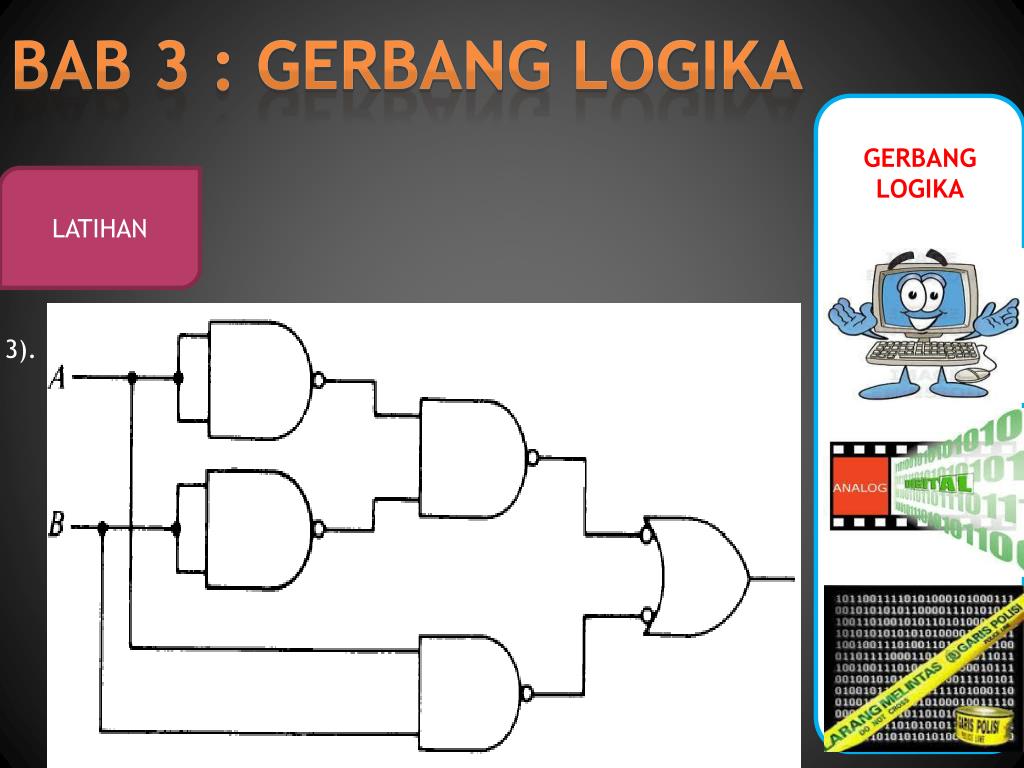

  16. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 3).

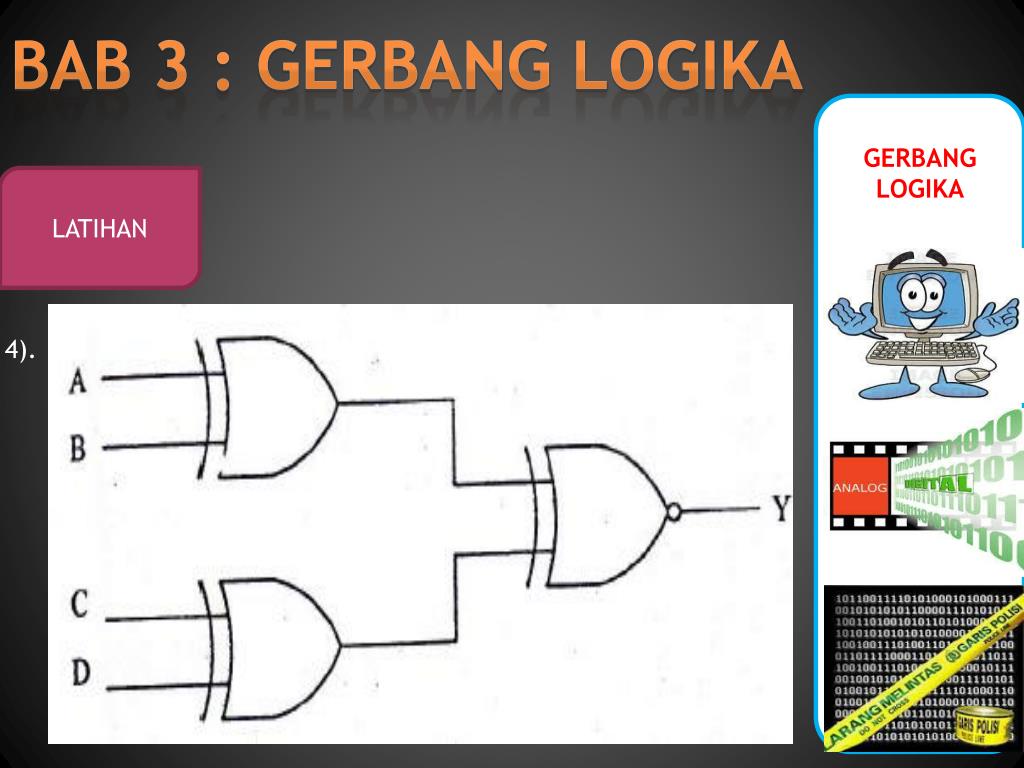

  17. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 4).

  18. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 5).

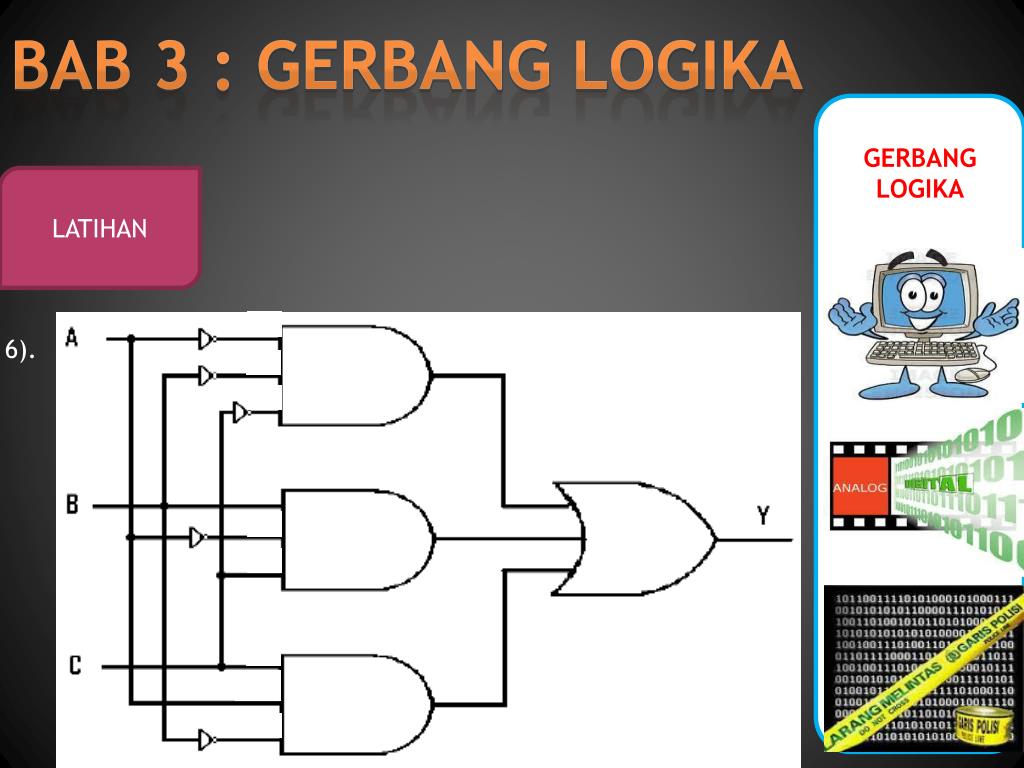

  19. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 6).

  20. BAB 3 : GERBANG LOGIKA GERBANG LOGIKA LATIHAN 7). Y = (A + B) (CD) 8). Y = ((AB) + C + (D + E)) + F 9). Y=((A OR B OR C) AND NOT D) OR (NOT E XOR F) 10). Y=((A AND (B XOR C)) OR NOT D) AND (E AND F)
