Pythagoras

Pythagoras. History. Pythagoras was a Greek mathematician who was born approximately 2700 years ago. He was responsible for figuring out a lot of modern maths, especially geometry and trigonometry. Pythagoras came up with a rule to work out the sides of a right angled triangle.

ulla
Télécharger la présentation

Pythagoras

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Pythagoras

  2. History Pythagoras was a Greek mathematician who was born approximately 2700 years ago. He was responsible for figuring out a lot of modern maths, especially geometry and trigonometry.

  3. Pythagoras came up with a rule to work out the sides of a right angled triangle. The rule only works for right angled triangles. To use the rule you need 2 sides.

  4. The rule says that if you square each of the two short sides of a triangle then add them together it will equal the square of the long side. Short Long Short

  5. c a b a2 + b2 = c2

  6. long short short short2 + short2 = long2

  7. To find the long side • Square both short sides • Add the squares together • Square-root your answer

  8. 3 x 4 32 = 9 42 = 16 16 + 9 = 25 Square root of 25 = 5

  9. 9 x 12 92= 81 122= 144 81 + 144 = 225 Square root of 225 = 15

  10. To find a short side • Square the long side • Square the short side • Subtract the short square from the long square • Square-root your answer

  11. a 20 16 202 = 400 162 = 256 400 - 256 = 144 Square root of 144 = 12

  12. a 14 11 142= 196 112= 121 196- 121 = 75 Square root of 75 = 8.7 (1dp)

  13. Recap (don’t copy) • Pythagoras's rule can be used to find the last side of a right angled triangle. • The first step is to square the sides. • Then: • if they are both short sides add them. • or take the short side away from the long. • Then square root your answer.

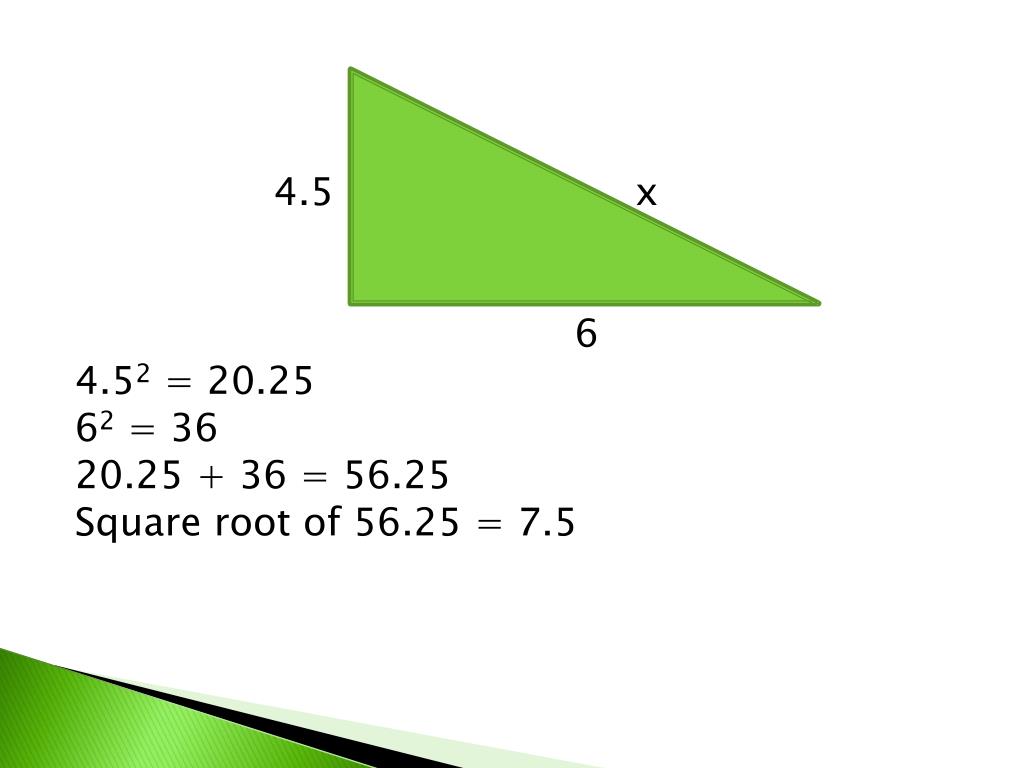

  14. 4.5 x 6 4.52 = 20.25 62 = 36 20.25 + 36 = 56.25 Square root of 56.25 = 7.5

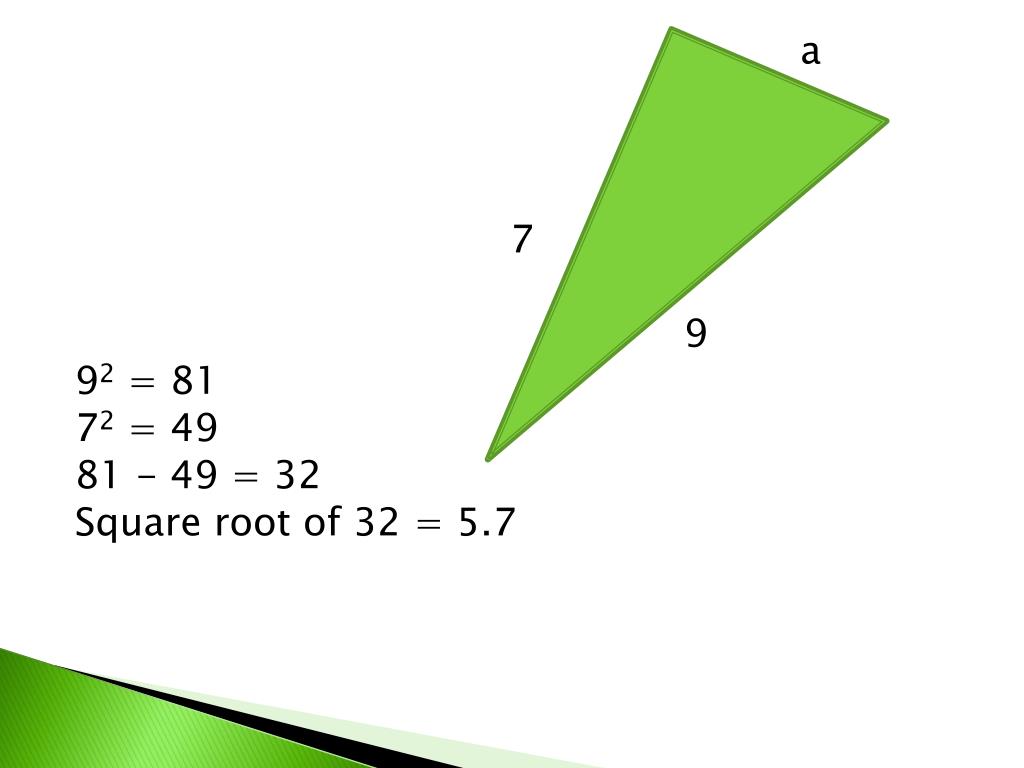

  15. a 20 7 16 9 92 = 81 72 = 49 81 - 49 = 32 Square root of 32 = 5.7
