Analysis of Pigments and Oxidation Processes in Photosynthetic Organisms: Lab Session 6

ulric avatar
ulric
10 diapositives · 249 Views · Sep 18, 2014

This lab session focuses on the analysis of pigments and oxidation processes in photosynthetic organisms. Key components such as chlorophylls, phycobilins, and carotinoids enable these organisms to trap visible light and produce ATP. The session explores the extraction of pigments from nettle leaves, the solubility differences of various pigments in solvents, and the formation of chlorophyll derivatives through chemical reactions. Key oxidative enzymes involved in energy production within mitochondria are also discussed, highlighting their roles in secondary metabolite oxidation.

#analysis of pigments and oxidation processes in photosynthetic organisms: lab session 6 #analysis of pigments and oxidation processes in photosynthetic organisms: lab session 6 ppt #powerpoint #presentation
Analysis of Pigments and Oxidation Processes in Photosynthetic Organisms: Lab Session 6 - slide 1
01 / 10Analysis of Pigments and Oxidation Processes in Photosynthetic Organisms: Lab Session 6
1 / 17

Télécharger la présentation

Analysis of Pigments and Oxidation Processes in Photosynthetic Organisms: Lab Session 6
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

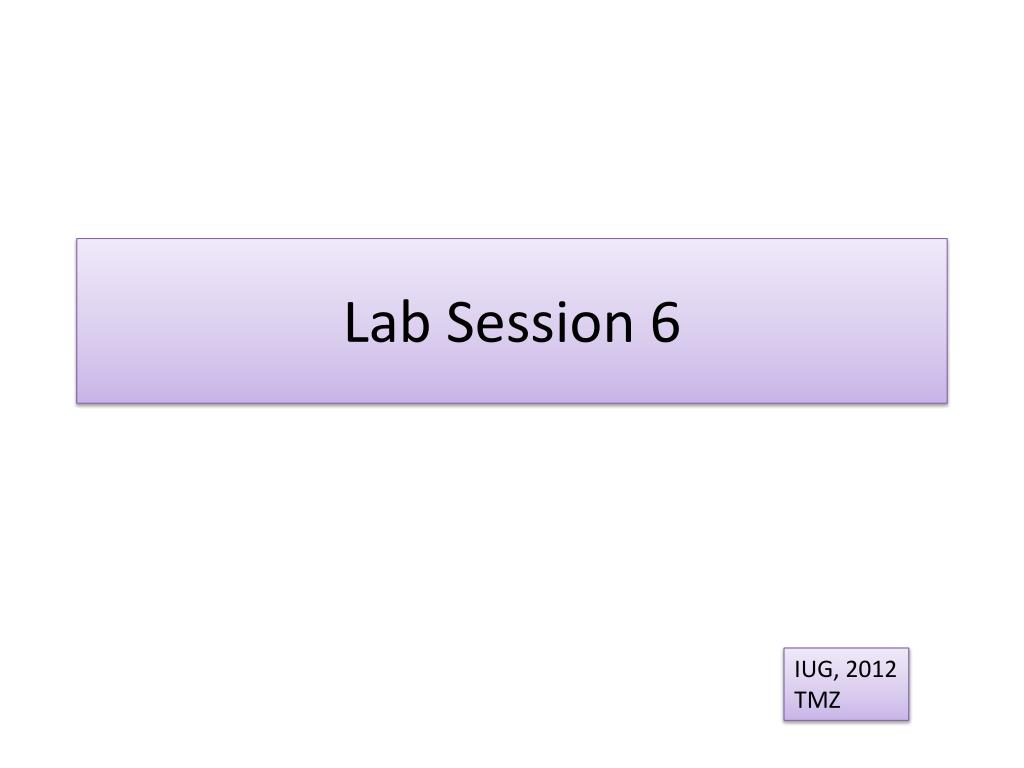

  1. Lab Session 6 IUG, 2012 TMZ

  2. Analysis of pigments and Oxidation processes in photosynthetic organisms

  3. 1. Photosynthetic Organisms They contain an operative system that can selectively trap the visible light and use it in production of energy in form of ATP: This operative system includes: • Chlorophylls • Phycobilins • Carotinoids

  4. 2. Animal and plant cells • In mitochondria of animal and plant cells , the energy is produced in a similar system (respiratory chain), where there are specific enzymes responsible for the production of energy

  5. In plants… A number of high actively enzymes called oxidases is observed: • Peroxidases • Polyphenoloxidases • Such enzymes are involved in oxidation of secondary metabolites

  6. Color reactions for plant pigments A. extraction of pigments from nettle leaves Principle Pigments such as chlorophyll and others have the property to dissolve in hot ethanol • Reacting with ethanol, chlorophyll is converted to ethylchlorophyllide (an ester in which the phytol is replaced by the ethanol)

  7. B. Separation of pigments according to Kraus • Principle Different pigments have different solubility in petroleum ether. Chlorophyll and chlorophyllide are soluble, while xanthophyl insoluble

  8. C. Precipitation of chlorophyll • Principle • Chlorophyll ester groups are able to form a water-insoluble barium salts of chlorophyllide a & b on saponification with barium hydroxide solution • Supernatant liquid has a yellow color due to the presence of carotene and xanthophyll.

  9. D. Reduction of chlorophyll with ascorbic acid • Principle Ascorbic acid can reduce chlorophyll that forms a yellow color in a reduced form state.

  10. E. Formation of Pheophytin from chlorophyll • Principle Hydrochloric acid can bind to Mg2+ of chlorophyll, to produce a Pheophytin that has an olive-brown color.
