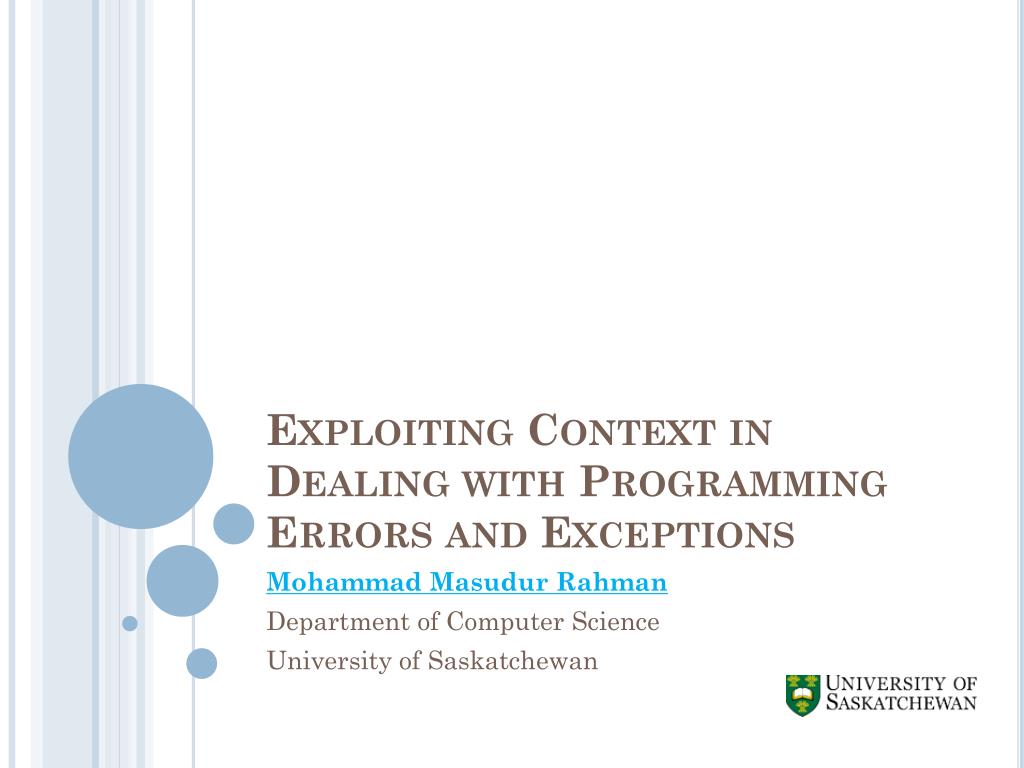

  1. Exploiting Context in Dealing with Programming Errors and Exceptions Mohammad Masudur Rahman Department of Computer Science University of Saskatchewan

  2. Exception triggering point Software Research Lab, U of S Exception: a common experience!!

  3. Exception Debugging Software Research Lab, U of S Web search!! Not a helpful message for understanding or solving the exception

  4. Solving Exception (Step I: Web Search) Switching is often distracting Software Research Lab, U of S • The browser does not know the context (i.e., details) of the exception. • Not much helpful ranking • Hundreds of search results • Forces the developer to switch back and forth between IDE and browser. • Trial and error in searching

  5. Solving Exception (Step II: Query Selection) Selection of traditional search query Software Research Lab, U of S This query may not be sufficient enough for most of the exceptions Switching to web browser for web search

  6. Solving Exception (Step III: Post-Search Analysis) 4 2 • Only the most relevant section needs to be checked to determine the relevance of a page. • Frequent switching between IDE and web browser for content analysis • Manual analysis of a number of web pages is non-trivial and time-consuming 3 1

  7. Solving Exception (Step IV: Handling Exceptions) • Only adds a generic handler (i.e., printStackTrace()) for the exception. • Not much helpful for effective handling of the exception

  8. Observations on Traditional/Ad-hoc Approach for Exception Solving • Step I: Web searchmay not be much effective or reliable • Step II: Support for search query formulationis not enough • Step III: Support for post-search analysisis insufficient • Step IV: Support for exception handlingis not enough Software Research Lab, U of S

  9. Dealing with Errors & Exceptions:Proposed Approach

  10. Contributions of this Thesis (1) SurfClipse (WCRE 2013, CSMR/WCRE 2014) Web search (2) QueryClipse (ICSME 2014) Query formulation (5) ExcClipse (3) ContentSuggest Post-search analysis User study (4) SurfExample (SCAM 2014) Exception handling

  11. Technical Details & Programming Context of an Exception 3 Programming context (i.e., context code) 1 Error message Software Research Lab, U of S Stack trace 2

  12. SurfClipse: IDE-Based Context-Aware Meta Search Engine

  13. Motivational Experiment • 75 programming exceptions (details later) • Individual engine can provide solutions for at most 58 exceptions & each has some unique results. • Combination of content & context is always better than content only Software Research Lab, U of S

  14. The Key Idea !! Meta Search Engine Software Research Lab, U of S Fig: Meta search engine

  15. Proposed IDE-Based Meta Search Model Software Research Lab, U of S Web page Start Results

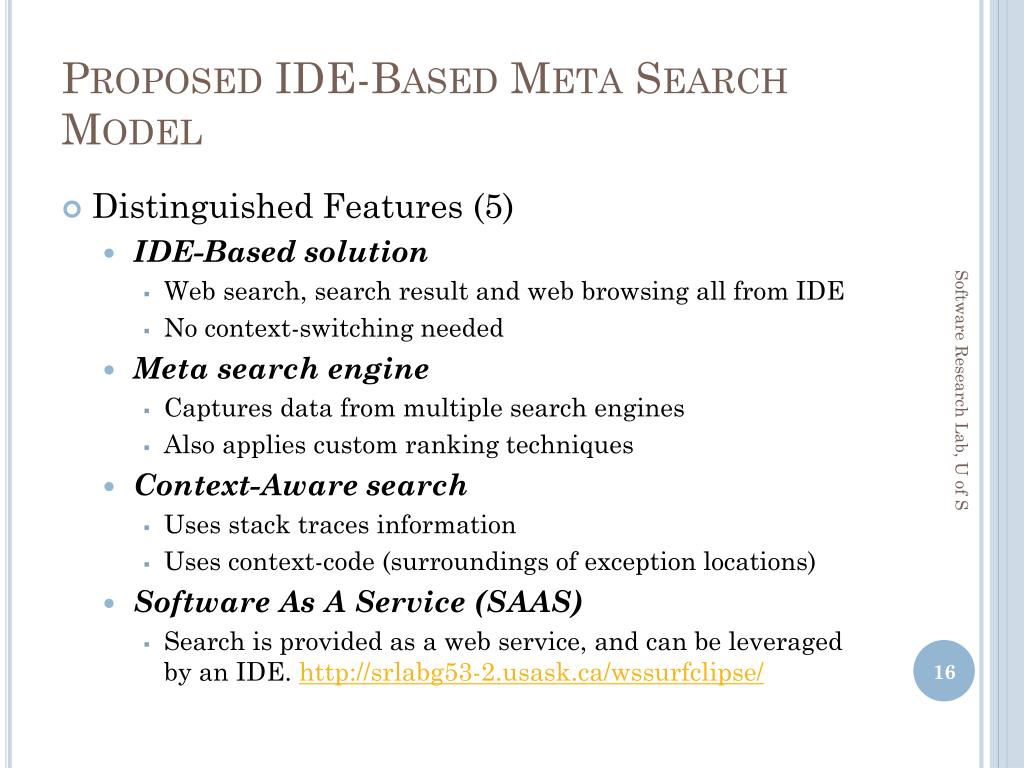

  16. Proposed IDE-Based Meta Search Model • Distinguished Features (5) • IDE-Based solution • Web search, search result and web browsing all from IDE • No context-switching needed • Meta search engine • Captures data from multiple search engines • Also applies custom ranking techniques • Context-Aware search • Uses stack traces information • Uses context-code (surroundings of exception locations) • Software As A Service (SAAS) • Search is provided as a web service, and can be leveraged by an IDE. http://srlabg53-2.usask.ca/wssurfclipse/ Software Research Lab, U of S

  17. Proposed IDE-Based Meta Search Model • Two Working Modes • Proactive Mode • Auto-detects the occurrence of an exception • Initiates search for exception by client itself • Aligned withCordeiro et al. (RSSE’ 2012) &Ponzanelli et al. (ICSE 2013) • Interactive Mode • Developer starts search using context menu • Also facilitates keyword-based search • Aligned with traditional web search within the IDE Software Research Lab, U of S

  18. Proposed Metrics & Scores • Content Matching Score (Scms) • Cosine similarity based measurement • Stack trace Matching Score (Sstm) • Structural and lexical similarity measurement of stack traces • Code context Matching Score (Sccx) • Code snippet similarity (code clones) • StackOverflow Vote Score (Sso) • Total votes for all posts in the SO result link Software Research Lab, U of S

  19. Proposed Metrics & Scores • Site Traffic Rank Score (Sstr)-- Alexa and Compete Rank of each link • Search Engine weight (Ssew)---Relative reliability or importance of each search engine. Experiments with 75 programming queries against the search engines. • Heuristic weights of the metrics are determined through controlled experiments. Software Research Lab, U of S

  20. Experiment Overview Eclipse plug-in & Java development 75 exceptions Software Research Lab, U of S Gold set solutions Peers

  21. Results on Different Ranking Aspects Software Research Lab, U of S [ MP = Mean Precision, R = Recall, TEF= Total Exceptions Fixed]

  22. Comparison with Existing Approaches Software Research Lab, U of S [ MP = Mean Precision, R = Recall, TEF= Total Exceptions Fixed]

  23. Comparison with Traditional Search Engines Software Research Lab, U of S

  24. Contributions of this Thesis (1) SurfClipse (WCRE 2013, CSMR/WCRE 2014) Web search (2) QueryClipse (ICSME 2014) Query formulation (5) ExcClipse (3) ContentSuggest Post-search analysis User study (4) SurfExample (SCAM 2014) Exception handling

  25. QueryClipse: Context-Aware Search Query Recommender

  26. Motivating Example 1 2 Context code Stack trace QueryClipse Software Research Lab, U of S Recommended search queries

  27. Proposed Context-Aware Query Recommendation Approach • Distinguishing Features (4) • Context-Aware Query • Exploits both stack trace and context code • Extract search keywords carefully and systematically • Ranked List for Queries • Ranked list based on keyword importance in queries • Automatic suggestion through auto-completion • Custom Search Query • Stack trace graph based on implied relationships • Keyword importance based on network connectivity • Query Length Customization • Number of query keywords customizable • Search-friendly & easily applicable for any search engines Software Research Lab, U of S

  28. ContentSuggest: Context-Aware Page Content Recommender

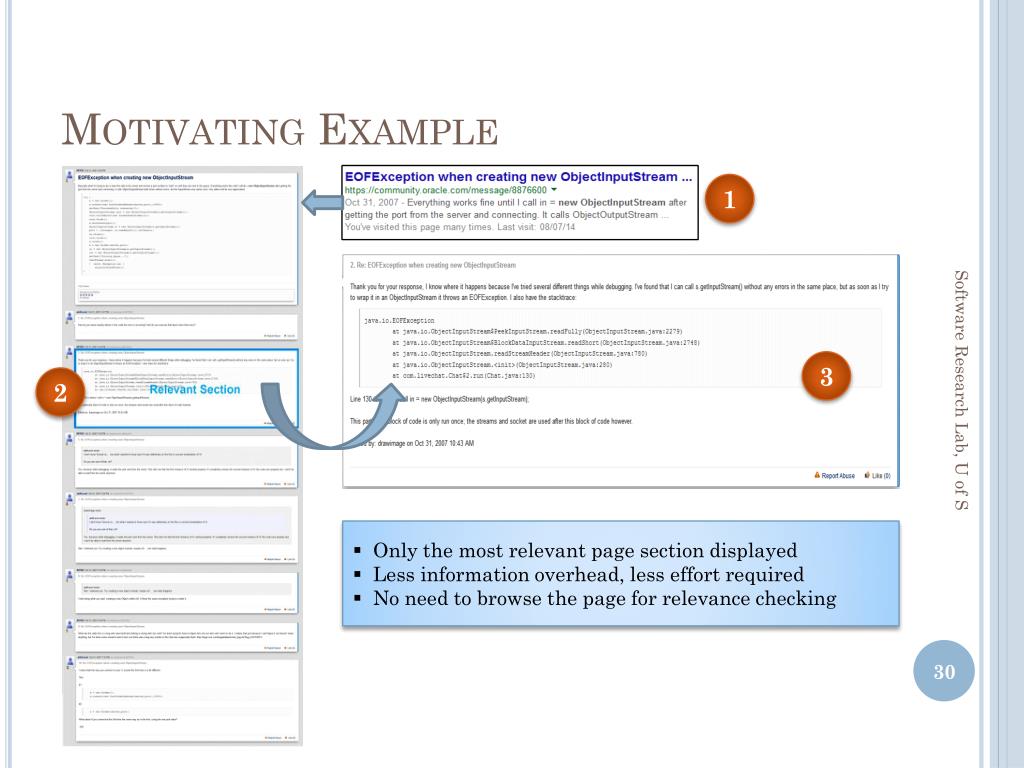

  29. Motivating Example 1 3 2 Software Research Lab, U of S • Only the most relevant page section displayed • Less information overhead, less effort required • No need to browse the page for relevance checking

  30. Proposed Context-Aware Page Content Suggestion Approach • Distinguishing Features (3) • Relevant section(s) suggestion • Analyzes both quality and relevance of the content • Exploits stack trace & context code for relevance checking • Partial automation in post-search analysis • Less content, less overhead • Need to analyze less content for page relevance checking • Displayed content more useful than meta description • Noise-free version of the page • Removes advertisements, irrelevant widgets and so on • Applies link-based heuristics • Returns a noise-free version of the web page Software Research Lab, U of S

  31. Contributions of this Thesis (1) SurfClipse (WCRE 2013, CSMR/WCRE 2014) Web search (2) QueryClipse (ICSME 2014) Query formulation (5) ExcClipse (3) ContentSuggest Post-search analysis User study (4) SurfExample (SCAM 2014) Exception handling

  32. SurfExample: Context-Aware Code Example Recommender for Exception Handling

  33. Motivating Example Context code Software Research Lab, U of S SurfExample Recommended code example

  34. Proposed Context-Aware Code Example Recommender for Exception Handling • Distinguishing Features (3) • Graph-based structural relevance • Static relationship and data dependency graph • Graph structure matching • Handler quality Paradigm • Novel idea to ensure quality of exception handlers • Based on readability, amount & quality of the handler actions • Seamless integration of dataset • Exploits GitHub API for data collection • Hundreds of popular and mature open source projects from Eclipse, Apache and others Software Research Lab, U of S

  35. Contributions of this Thesis (1) SurfClipse (WCRE 2013, CSMR/WCRE 2014) Web search (2) QueryClipse (ICSME 2014) Query formulation (5) ExcClipse (3) ContentSuggest Post-search analysis User study (4) SurfExample (SCAM 2014) Exception handling

  36. ExcClipse: Comparative Analysis between Proposed Approaches and Traditional ones

  37. User Study Overview Four exceptions Six participants Software Research Lab, U of S Four tasks

  38. User Study Overview Questionnaire Observation checklist Software Research Lab, U of S Evaluation Training Execution

  39. Evaluation Features Software Research Lab, U of S

  40. Feature-wise Ratings (Web Search) Software Research Lab, U of S

  41. Feature-wise Ratings (Code Search) Software Research Lab, U of S

  42. Feature-wise Ratings (Non-Functional) Software Research Lab, U of S

  43. Overall Ratings Software Research Lab, U of S

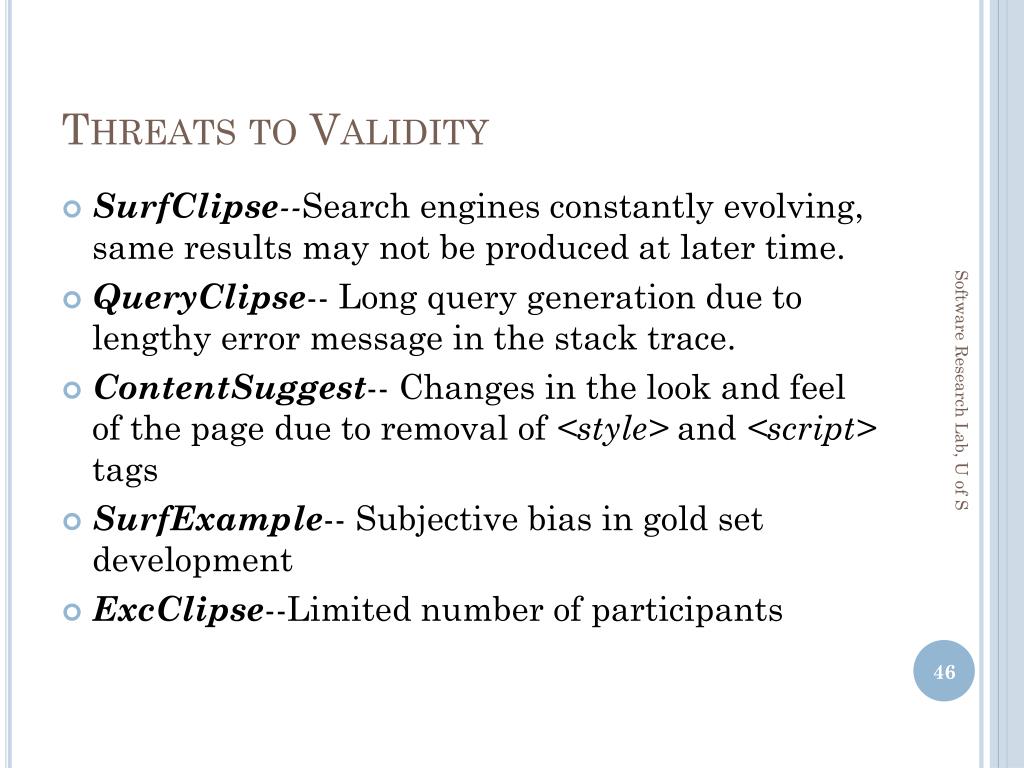

  44. Threats to Validity • SurfClipse--Search engines constantly evolving, same results may not be produced at later time. • QueryClipse-- Long query generation due to lengthy error message in the stack trace. • ContentSuggest-- Changes in the look and feel of the page due to removal of <style> and <script> tags • SurfExample-- Subjective bias in gold set development • ExcClipse--Limited number of participants Software Research Lab, U of S

  45. Conclusion

  46. Concluding Remarks • SurfClipse – context-aware meta search engine • IDE-based complete web search solution • Outperforms two relevant existing approaches • More recall than three search engines with precision comparable to Google, the best performing engine. • QueryClipse– context-aware query recommender • More effective than traditional queries and queries by existing approaches • Highly applicable in terms of pyramid score Software Research Lab, U of S

  47. Concluding Remarks • ContentSuggest– context-aware page content recommender • Exploits exception details and recommends relevant section(s) from the page • Less information, less overhead for relevance check • Great potential for problem solving • SurfExample– code example recommender for exception handling • Graph-based structural relevance matching • Handler Quality paradigm • Outperforms four existing approaches in all metrics Software Research Lab, U of S

  48. Future Work • SurfClipse – DOM-based element extraction & topic modeling • QueryClipse– Semantic and customized query recommendation • ContentSuggest– More focused content recommendation (e.g., paragraph of interest) for problem solving • SurfExample– More directed support (e.g., applicability of an example) for exception handling Software Research Lab, U of S

  49. Thank You!! Software Research Lab, U of S

  50. References [1] J. Cordeiro, B. Antunes, and P. Gomes. Context-based Recommendation to Support Problem Solving in Software Development. In Proc. RSSE, pages 85 –89, June 2012. [2] L. Ponzanelli, A. Bacchelli, and M. Lanza. Seahawk: Stack Overflow in the IDE. In Proc. ICSE, pages 1295–1298, 2013 [3] J. Brandt, P. J. Guo, J. Lewenstein, M. Dontcheva, and S. R. Klemmer. Two Studies of Opportunistic Programming: Interleaving Web Foraging, Learning, and Writing Code. In Proc. SIGCHI, pages 1589–1598, 2009. [4] F. Sun, D. Song, and L. Liao. DOM Based Content Extraction via Text Density. In Proc. SIGIR, pages 245–254, 2011. [5] T. Gottron. Content Code Blurring: A New Approach to Content Extraction. In Proc. DEXA, pages 29–33, 2008. [6] S. Bajracharya, J. Ossher, and C. Lopes. Sourcerer: An Internet-Scale Software Repository. In Proc. SUITE, pages 1–4, 2009 [7] E. A. Barbosa, A. Garcia, and M. Mezini. Heuristic Strategies for Recommendation of Exception Handling Code. In Proc. SBES, pages 171–180, 2012 [8] R. Holmes and G. C. Murphy. Using Structural Context to Recommend Source Code Examples. In Proc. ICSE, pages 117–125, 2005 [9] W. Takuya and H. Masuhara. A Spontaneous Code Recommendation Tool Based on Associative Search. In Proc. SUITE, pages 17–20, 2011. [10] M. M. Rahman, S. Yeasmin, and C. K. Roy. Towards a Context-Aware IDEBased Meta Search Engine for Recommendation about Programming Errors and Exceptions. In Proc. CSMR-WCRE, pages 194–203, 2014 [11] M. M. Rahman and C.K. Roy. On the Use of Context in Recommending Exception Handling Code Examples. In Proc. SCAM, 10 pp., 2014 (to appear) [12] M. M. Rahman and C.K. Roy. SurfClipse: Context-Aware Meta Search in the IDE. In Proc. ICSME, 4 pp., 2014 (to appear) [13] Slide 13, Meta Search Engine, http://en.wikipedia.org/wiki/Metasearch_engine Software Research Lab, U of S
