  1. Carbon Canisters 101 Sean Whelan Lead Engineer Integrated Fuel Systems

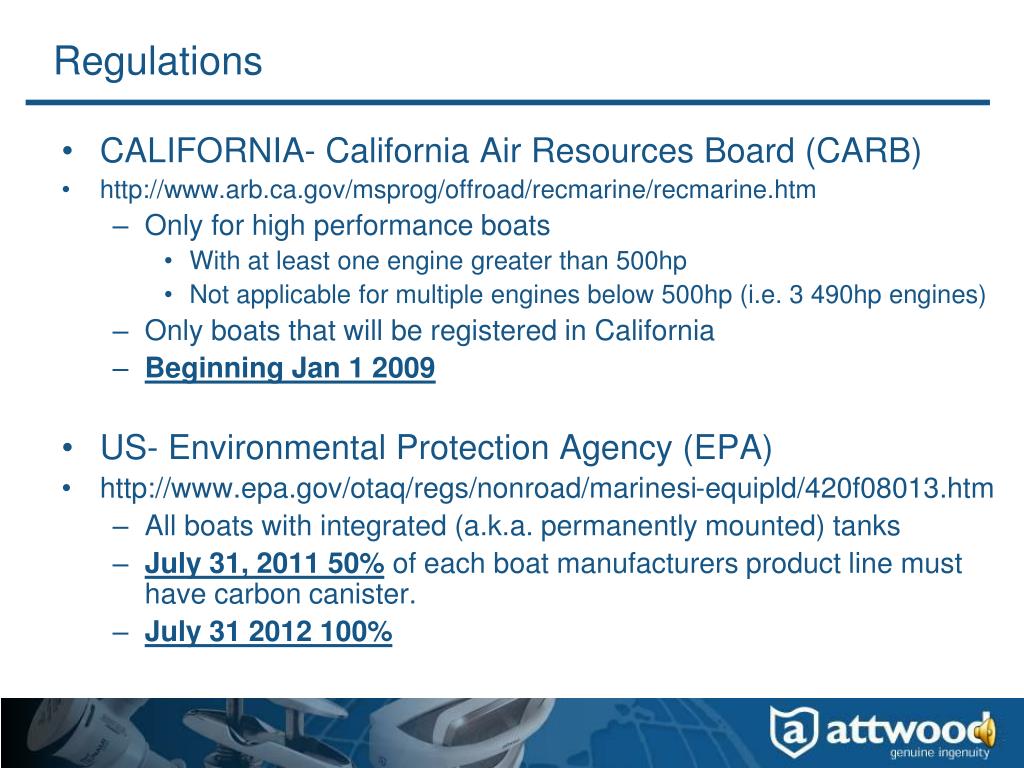

  2. Regulations CALIFORNIA- California Air Resources Board (CARB) http://www.arb.ca.gov/msprog/offroad/recmarine/recmarine.htm Only for high performance boats With at least one engine greater than 500hp Not applicable for multiple engines below 500hp (i.e. 3 490hp engines) Only boats that will be registered in California Beginning Jan 1 2009 US- Environmental Protection Agency (EPA) http://www.epa.gov/otaq/regs/nonroad/marinesi-equipld/420f08013.htm All boats with integrated (a.k.a. permanently mounted) tanks July 31, 2011 50% of each boat manufacturers product line must have carbon canister. July 31 2012 100%

  3. California/EPA Diurnal Emission Limits • Trailerable boats (<8.5ft beam & <26ft LOA): • Less than .4 grams per gallon per day of hydrocarbon emissions. • Non-trailerable boats (>8.5ft beam or >26ft LOA): • Less than .16 grams per gallon per day of hydrocarbon emissions. 3

  4. Carbon Canister Sizing 4

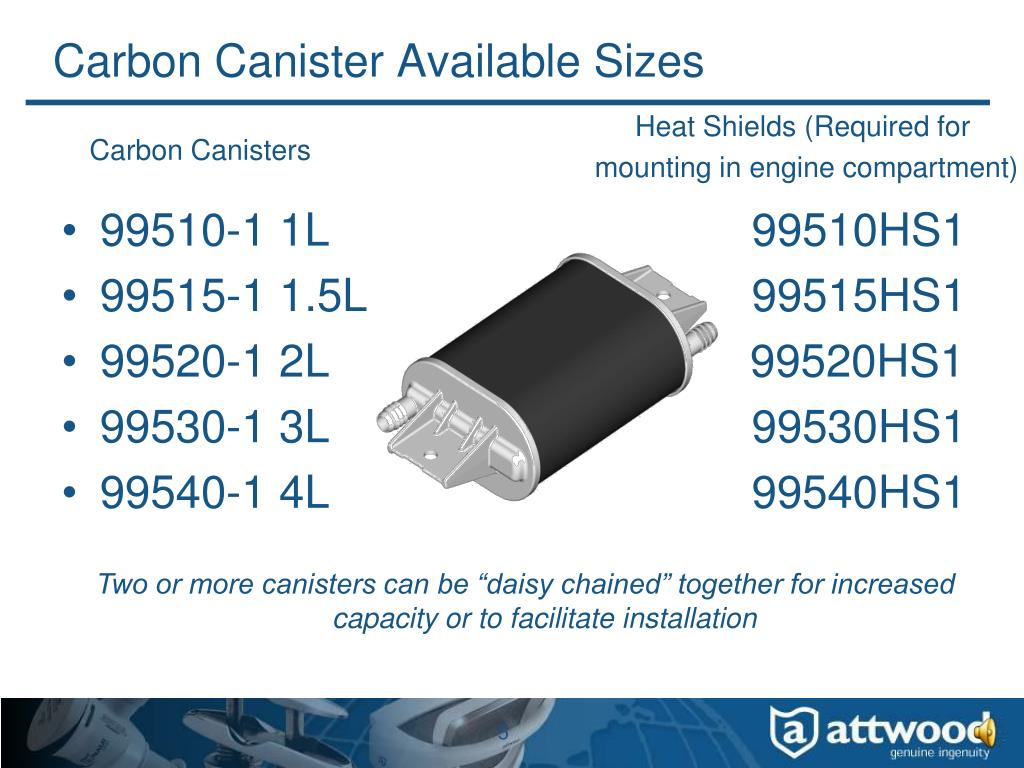

  5. Carbon Canister Available Sizes Carbon Canisters Heat Shields (Required for mounting in engine compartment) • 99510-1 1L 99510HS1 • 99515-1 1.5L 99515HS1 • 99520-1 2L 99520HS1 • 99530-1 3L 99530HS1 • 99540-1 4L 99540HS1 • Two or more canisters can be “daisy chained” together for increased capacity or to facilitate installation 5

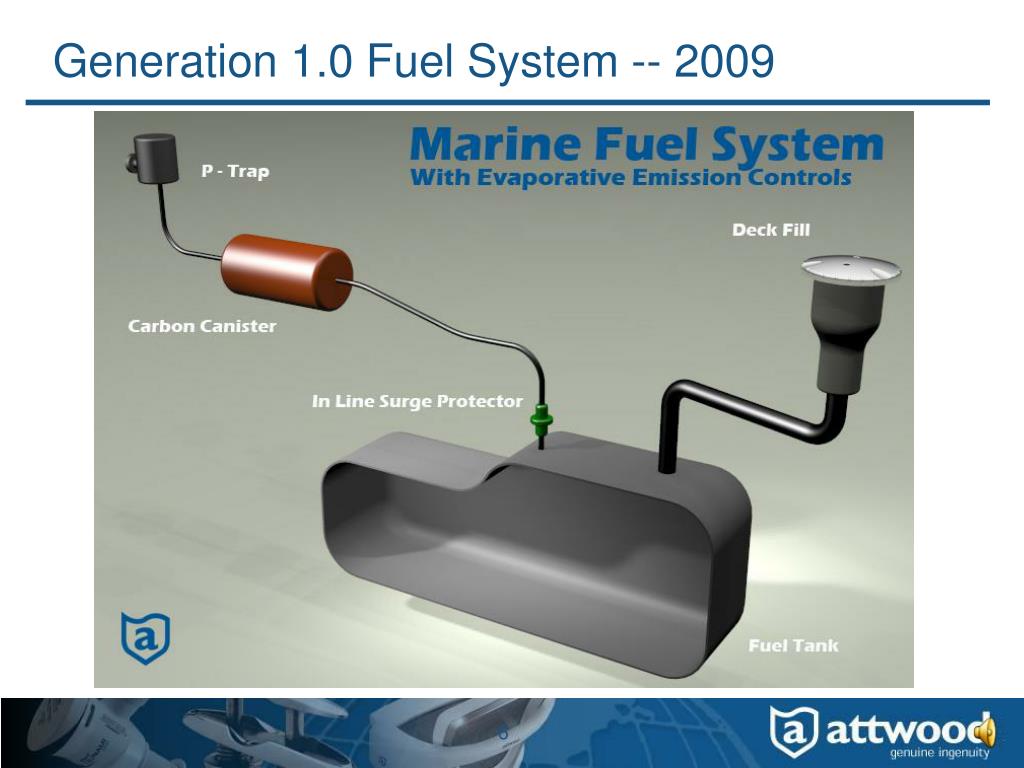

  6. Generation 1.0 Fuel System -- 2009 6

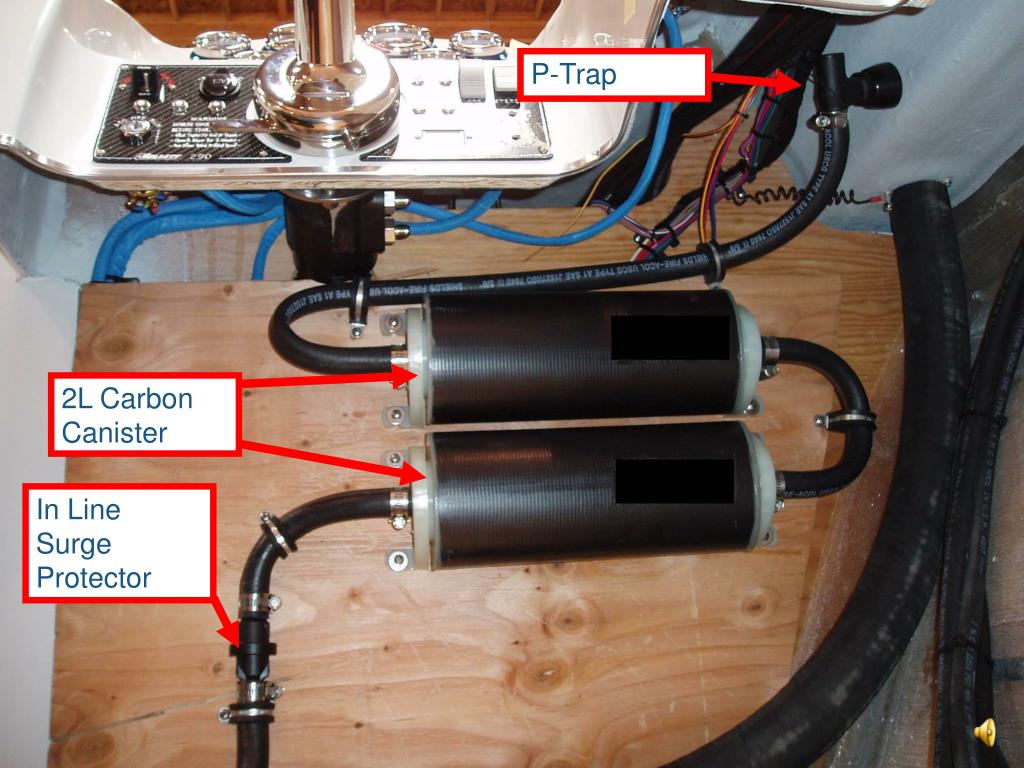

  7. P-Trap 2L Carbon Canister In Line Surge Protector Sean Whelan Product Development Engineer Hardware, Fuel & Trailering Categories phone/fax (616) 897-2275 / (616) 897-2218 Brunswick Confidential

  8. ATTWOOD MARINE attwoodinfo@attwoodmarine.com PHONE: 616.897.2290 http://www.attwoodmarine.com
