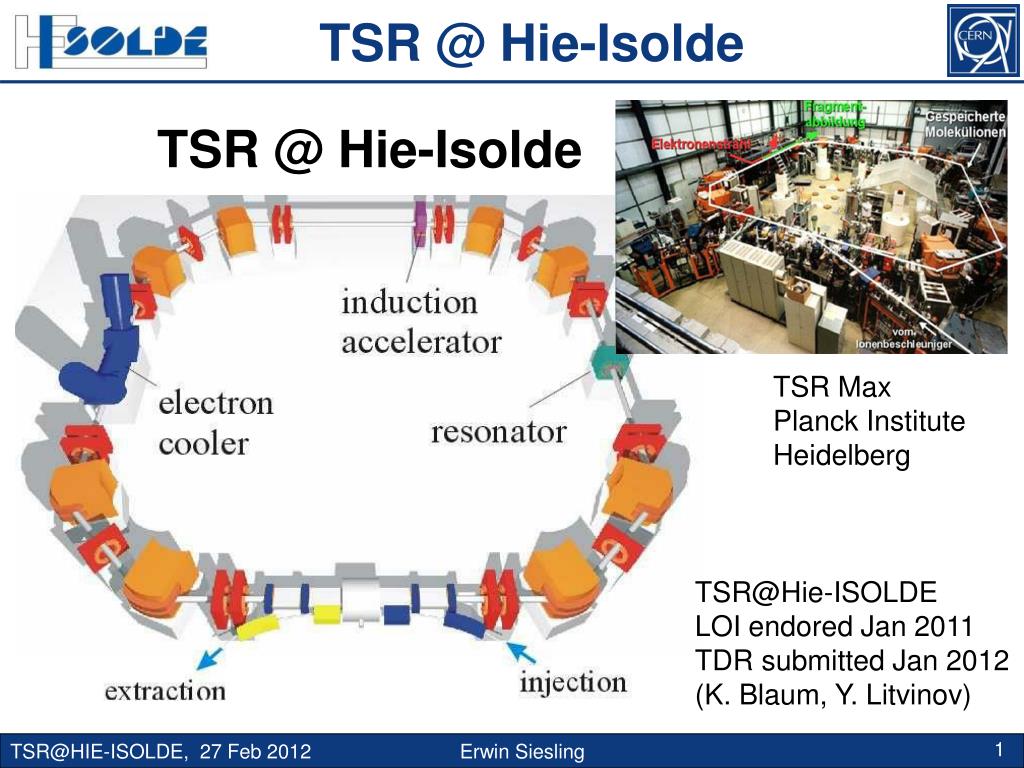

  1. TSR @ Hie-Isolde TSR @ Hie-Isolde TSR Max Planck Institute Heidelberg TSR@Hie-ISOLDE LOI endored Jan 2011 TDR submitted Jan 2012 (K. Blaum, Y. Litvinov)

  2. TSR @ Hie-Isolde Jura (west) side 25m 30m 10m (7m between floor and crane hook) Proposed layout to fit the TSR: Installation above the CERN service-tunnel Tilted beamline coming up from the machine. Coststudy: Eliseo Perez-Duenas GS/SE Approx 3m higher than Isolde hall floor

  3. TSR @ Hie-Isolde 30m Building coststudy: Eliseo Perez-Duenas GS/SE Drawing: courtesyDidier Voulot 12.4m 25m

  4. TSR @ Hie-Isolde 30m 4.5m 2m 12.4m 25m 5m

  5. TSR Integration Possible TSR integration: - TSR building & TSR cooling station pit TSR cooling station TSR building Control room

  6. Surface & Weight Total surface TSR floor: 25x30m=750m2 of which 20x20m (400m2) reserved for the ring (final position of the ring within the building to be defined) 10.4x25m =260m2 experimental area TSR floor approx . 3m above HieLinac floor Level of the center of beam at 1.77m above TSR floor Total surface available basement: 12mx30m=360m2 to house power-supplies and additional racks (total 29m length floor space for the TSR equipment and 7m for the e-target equipment + 10 standard 19’’ racks and ECOOL HV cage 4x4m2) TSR Building surface

  7. Surface & Weight Weight in each corner: Dipole: iron 12t + coil 0.8t Quadrupole: iron 1.9t + coil 0.36t Sextupole: 0.65t Concrete bases 3.2t (to be verified, unknown) Each corner: 2x12.8t + 5x2.26t + 3x0.65t + 2x3.2t= 45.25 ton Electron cooler: ECOOL magnet 6t ECOOL supporting structure 4t (to be verified, unknown), total 10ton Total TSR floor weight: 4x45.25ton=181ton 1 Electron cooler Total: 191 ton (Exclusive experiments, RF resonator and 19 standard 19’’ racks. Example: HELIOS magnet 12ton) TSR floor weight
