  1. Chapter 6Dynamic Programming

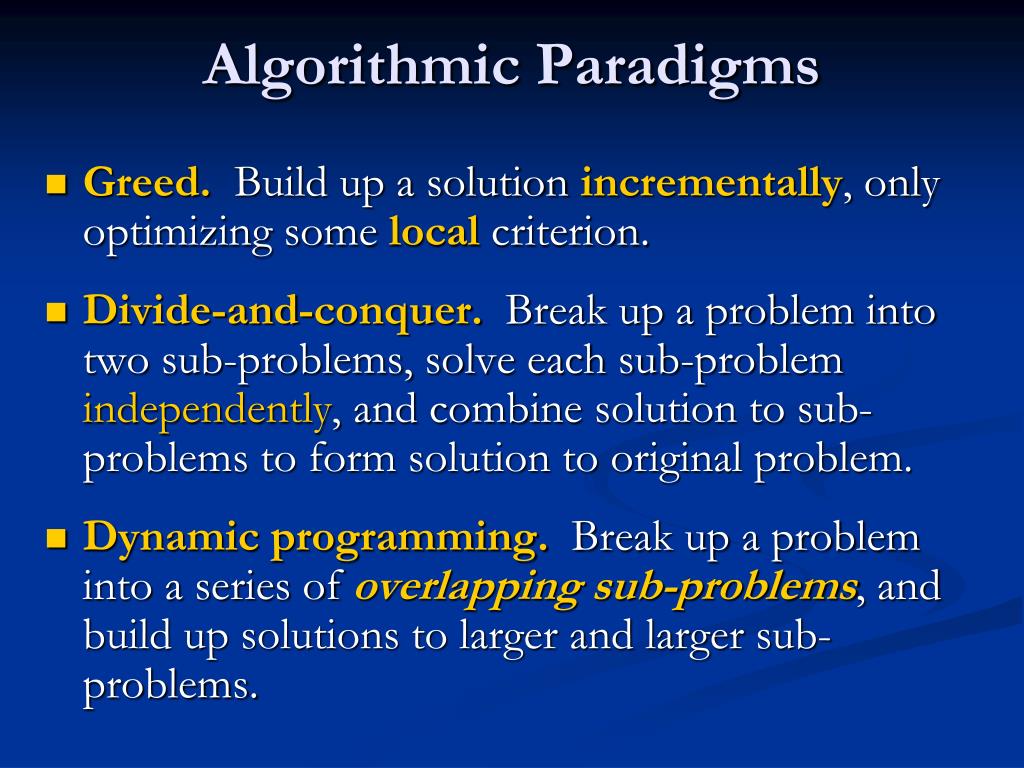

  2. Algorithmic Paradigms • Greed. Build up a solution incrementally, only optimizing some local criterion. • Divide-and-conquer. Break up a problem into two sub-problems, solve each sub-problem independently, and combine solution to sub-problems to form solution to original problem. • Dynamic programming. Break up a problem into a series of overlapping sub-problems, and build up solutions to larger and larger sub-problems.

  3. Dynamic Programming History • Richard Bellman. Pioneered the systematic study of dynamic programming in the 1950s. • CHOICE OF THE NAME DYNAMIC PROGRAMMING. • Dynamic programming = planning over time. • Secretary of Defense was hostile to mathematical research. • Bellman sought an impressive name to avoid confrontation. • "it's impossible to use dynamic in a pejorative sense" • "something not even a Congressman could object to" Reference: Bellman, R. E. Eye of the Hurricane, An Autobiography.

  4. Dynamic Programming Applications • Areas. • Bioinformatics. • Control theory. • Information theory. • Operations research. • Computer science: theory, graphics, AI, systems, …. • Some famous dynamic programming algorithms. • Bellman-Ford for shortest path routing in networks. • Smith-Waterman for sequence alignment. • Viterbi for hidden Markov models. • Unix diff for comparing two files.

  5. Dynamic Programming • Dynamic Programming is an algorithm design technique for optimization problems: often minimizing or maximizing. • Like divide and conquer, DP solves problems by combining solutions to subproblems. • Unlike divide and conquer, subproblems are not independent. • Subproblems may share subsubproblems, • However, solution to one subproblem may not affect the solutions to other subproblems of the same problem. • DP reduces computation by • Solving subproblems in a bottom-up fashion. • Storing solution to a subproblem the first time it is solved. • Looking up the solution when subproblem is encountered again. • Key: determine structure of optimal solutions

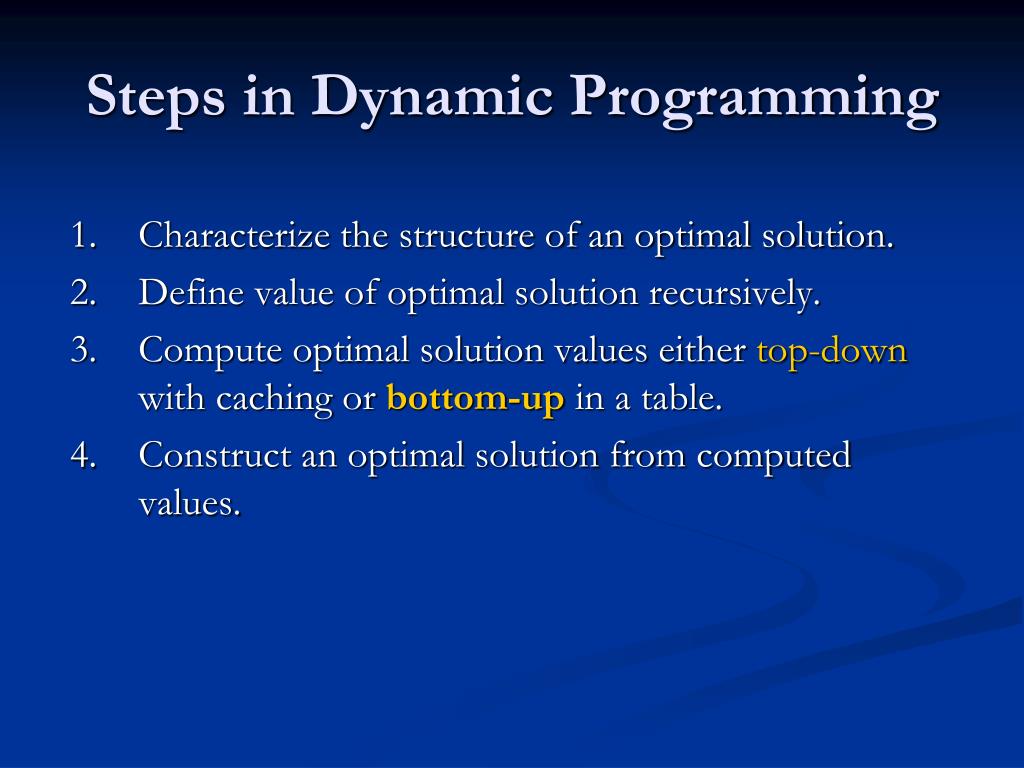

  6. Steps in Dynamic Programming • Characterize the structure of an optimal solution. • Define value of optimal solution recursively. • Compute optimal solution values either top-downwith caching or bottom-upin a table. • Construct an optimal solution from computed values.

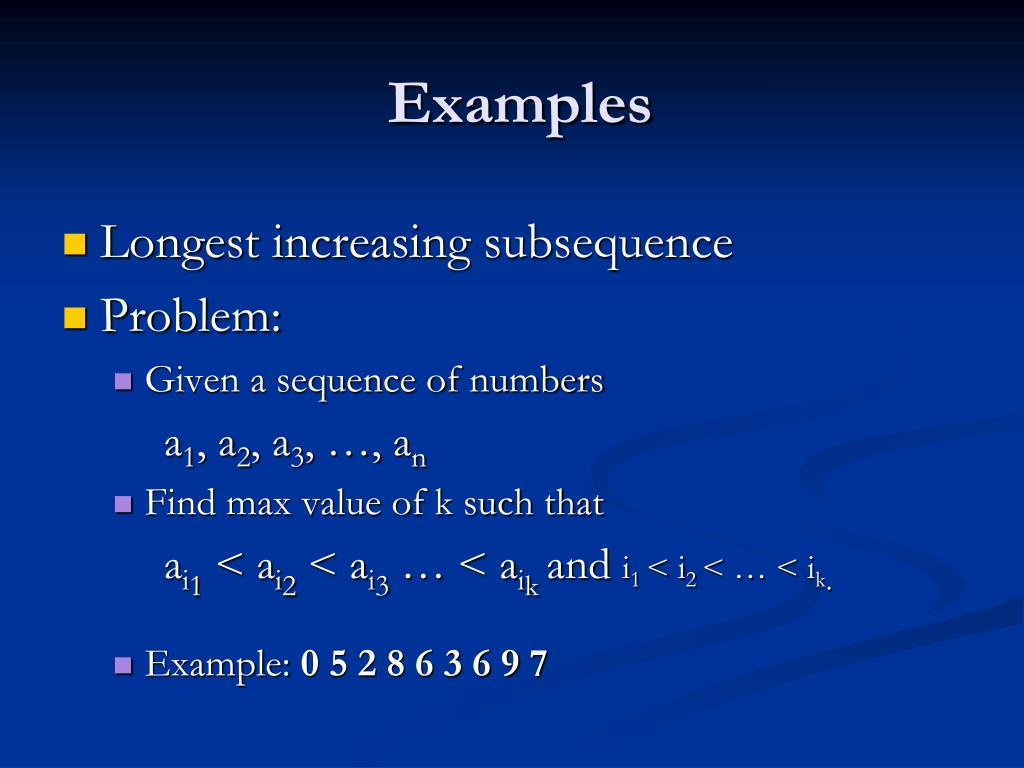

  7. Examples • Longest increasing subsequence • Problem: • Given a sequence of numbers a1, a2, a3, …, an • Find max value of k such that ai1 < ai2 < ai3 … < aikand i1 < i2 < … < ik. • Example: 0 5 2 8 6 3 6 9 7

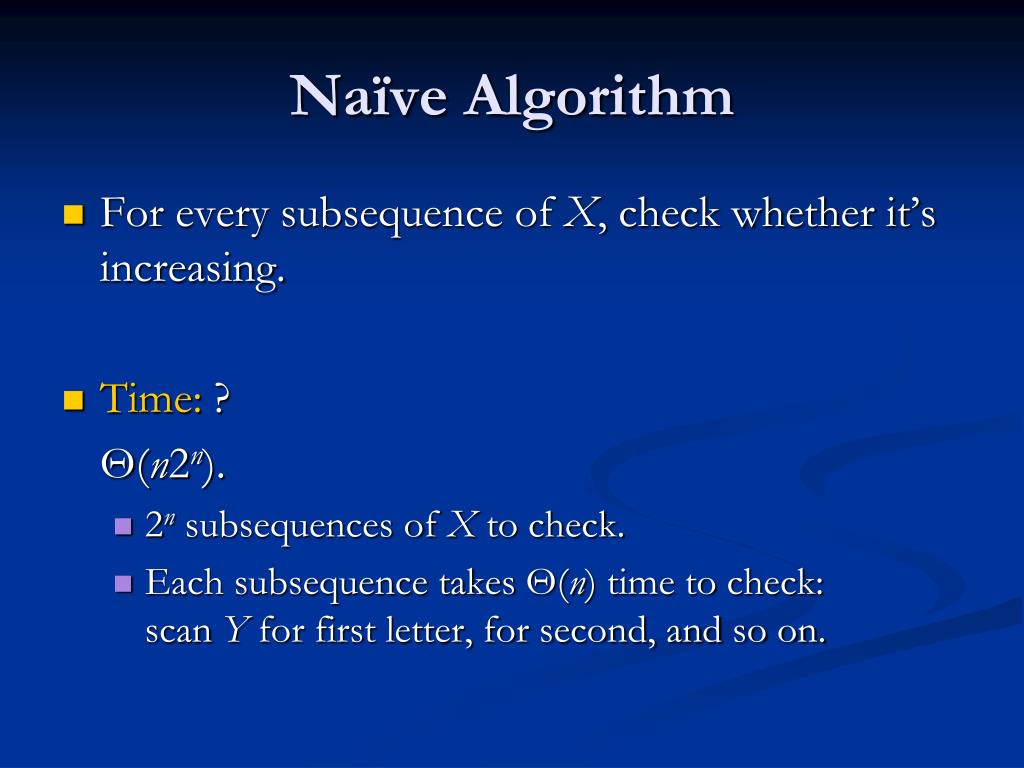

  8. Naïve Algorithm • For every subsequence of X, check whether it’s increasing. • Time: ? Θ(n2n). • 2nsubsequences of X to check. • Each subsequence takes Θ(n)time to check: scan Y for first letter, for second, and so on.

  9. 0 5 2 8 6 3 6 9 7  0 n + 1 Longest increasing subsequence Length of the subsequence ended with 2 { 5 } 0 1 1 { 5, 2 } 0 1 1 2 1 { 5, 2, 8 } 0 2 1 2 1 { 5, 2, 8, 6} 0 2 2 1 2 { 5, 2, 8, 6, 3} 0 1 3 2 2 1 2 { 5, 2, 8, 6, 3, 6 } 0 1 3 4 2 1 2 { 5, 2, 8, 6, 3, 6, 9 } 0 1 2 3 4 4 1 2 {5, 2, 8, 6, 3, 6, 9, 7} 0 1 2 2

  10. Longest increasing subsequence 5, 2, 8, 6, 3, 6, 9, 7

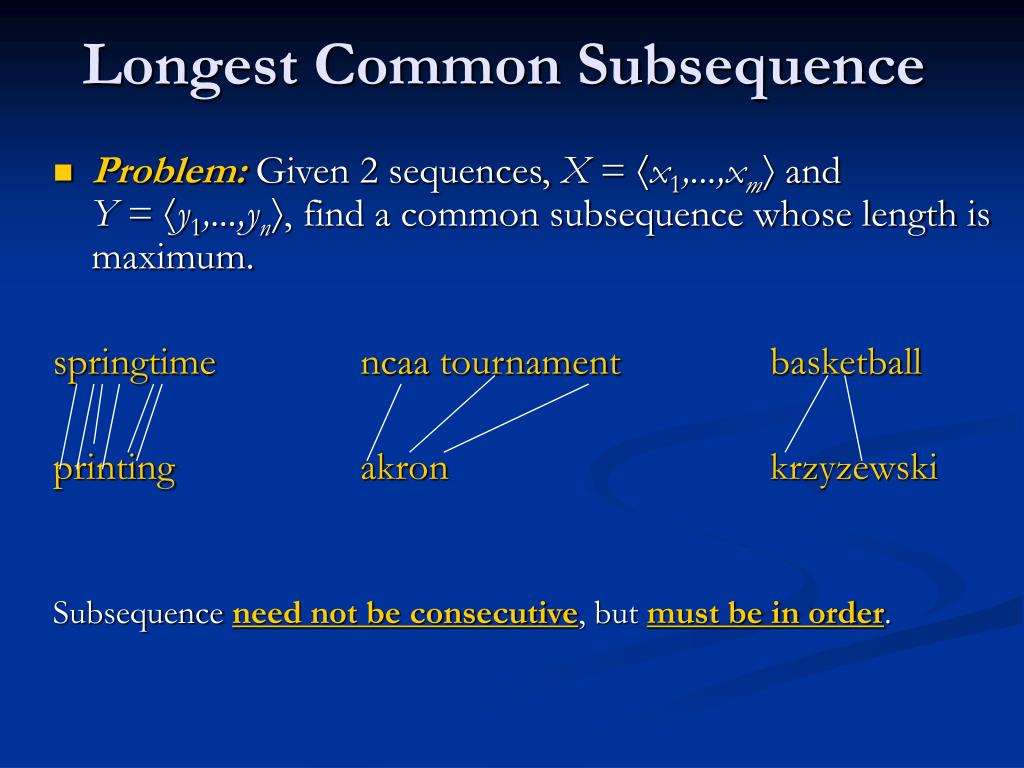

  11. Problem:Given 2 sequences, X = x1,...,xm and Y = y1,...,yn, find a common subsequence whose length is maximum. springtime ncaa tournament basketball printing akronkrzyzewski Subsequence need not be consecutive, but must be in order. Longest Common Subsequence

  12. Naïve Algorithm • For every subsequence of X, check whether it’s a subsequence of Y . • Time: ? Θ(n2m). • 2msubsequences of X to check. • Each subsequence takes Θ(n)time to check: scan Y for first letter, for second, and so on.

  13. Problem:Given 2 sequences, X = x1,...,xm and Y = y1,...,yn, find a common subsequence whose length is maximum. springtime printing Longest Common Subsequence

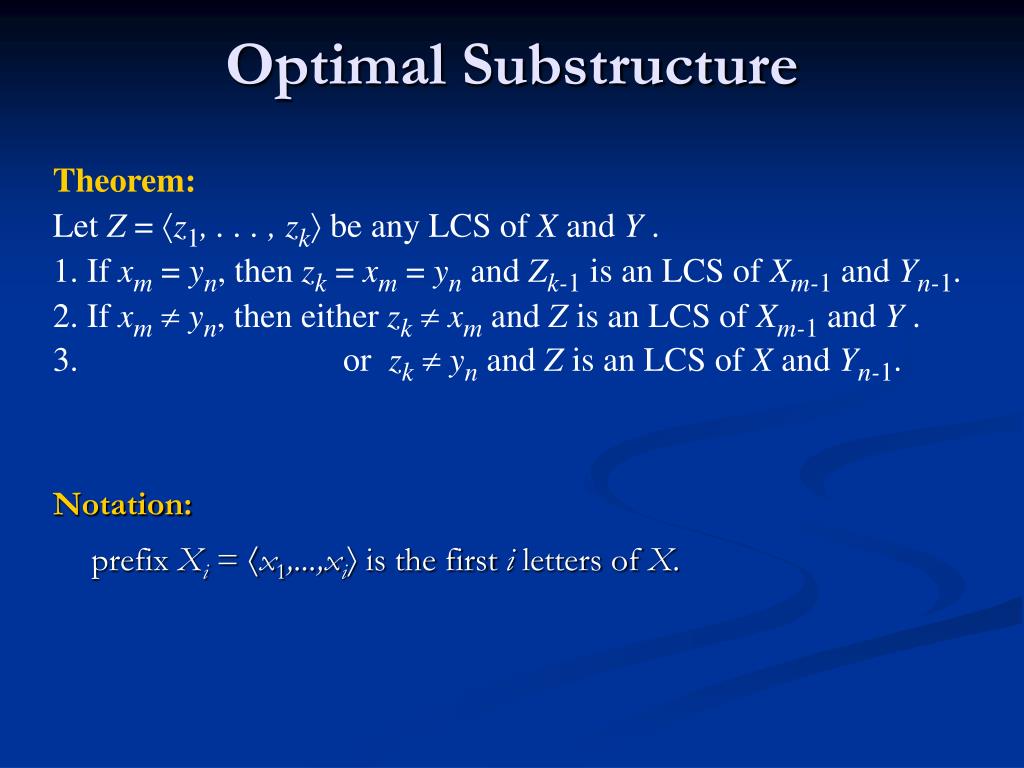

  14. Optimal Substructure Theorem: Let Z = z1, . . . , zk be any LCS of X and Y . 1. If xm= yn, then zk= xm= ynand Zk-1 is an LCS of Xm-1 and Yn-1. 2. If xmyn, then either zkxmand Z is an LCS of Xm-1 and Y . 3. or zkynand Z is an LCS of X and Yn-1. Notation: prefix Xi= x1,...,xiis the first i letters of X.

  15. Optimal Substructure Theorem: Let Z = z1, . . . , zk be any LCS of X and Y . 1. If xm= yn, then zk= xm= ynand Zk-1 is an LCS of Xm-1 and Yn-1. 2. If xmyn, then either zkxmand Z is an LCS of Xm-1 and Y . 3. or zkynand Z is an LCS of X and Yn-1. Proof: (case 1: xm= yn) Any sequence Z’ that does not end in xm= yncan be made longer by adding xm= ynto the end. Therefore, • longest common subsequence (LCS) Z must end in xm= yn. • Zk-1 is a common subsequence of Xm-1 and Yn-1, and • there is no longer CS of Xm-1 and Yn-1, or Z would not be an LCS.

  16. Optimal Substructure Theorem: Let Z = z1, . . . , zk be any LCS of X and Y . 1. If xm= yn, then zk= xm= ynand Zk-1 is an LCS of Xm-1 and Yn-1. 2. If xmyn, then either zkxmand Z is an LCS of Xm-1 and Y . 3. or zkynand Z is an LCS of X and Yn-1. Proof: (case 2: xmyn, andzkxm) Since Z does not end in xm, • Z is a common subsequence of Xm-1 and Y, and • there is no longer CS of Xm-1 and Y, or Z would not be an LCS.

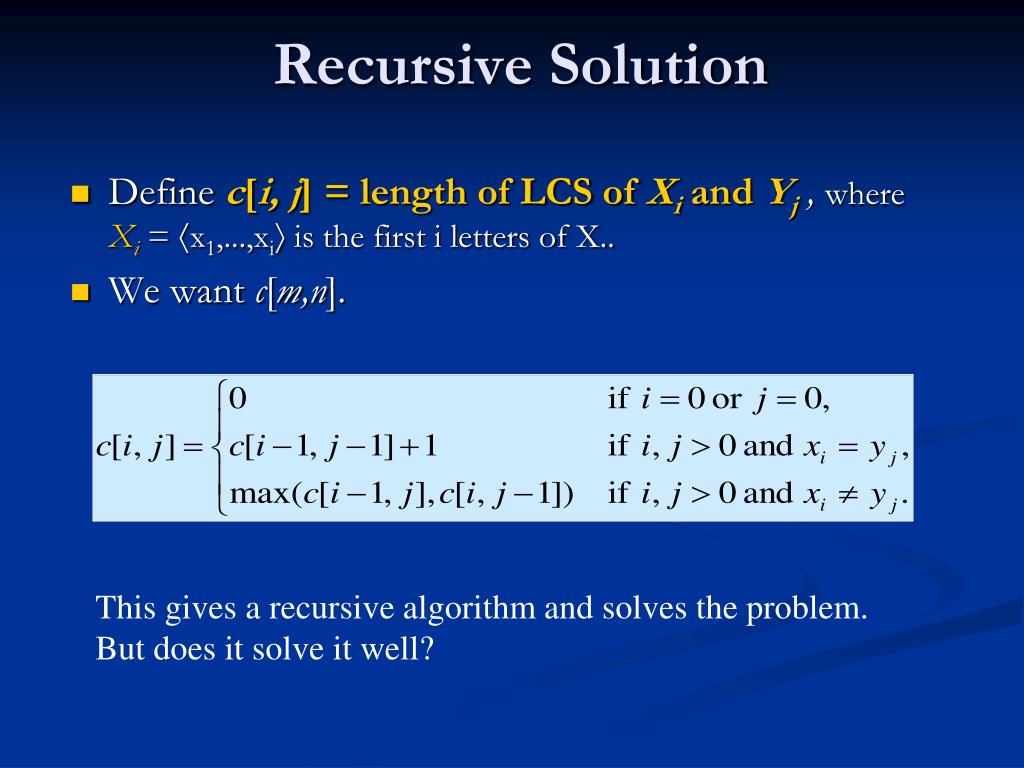

  17. Recursive Solution • Define c[i, j] = length of LCS of Xiand Yj , where Xi = x1,...,xi is the first i letters of X.. • We want c[m,n]. This gives a recursive algorithm and solves the problem.But does it solve it well?

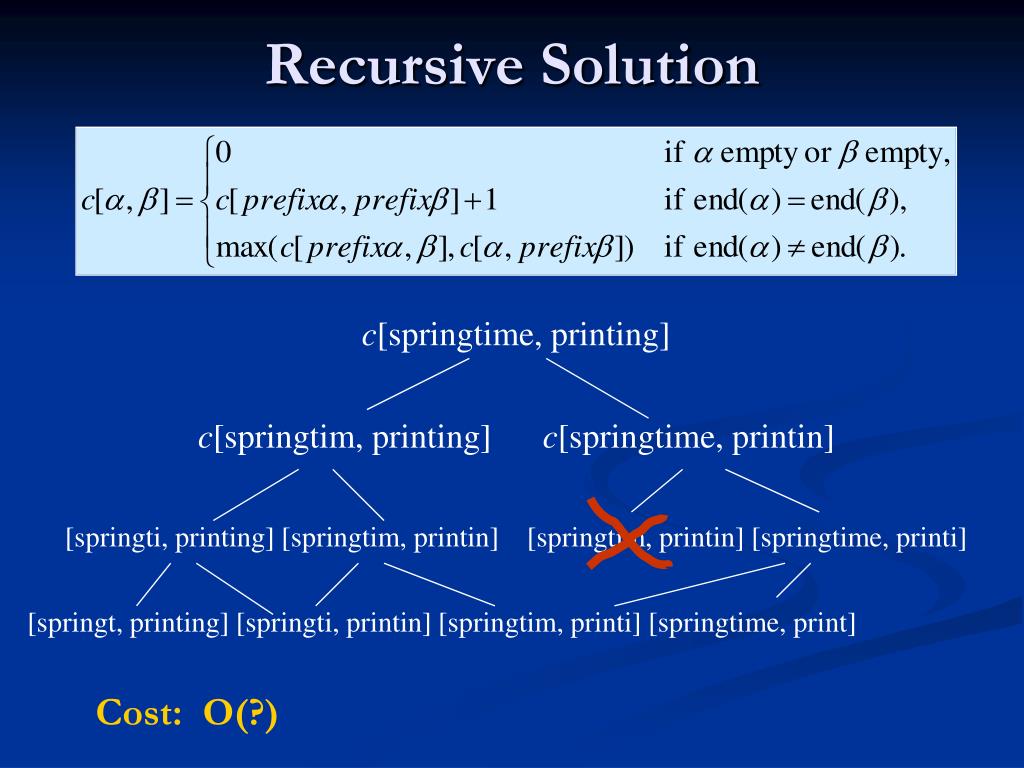

  18. Recursive Solution c[springtime, printing] c[springtim, printing] c[springtime, printin] [springti, printing] [springtim, printin] [springtim, printin] [springtime, printi] [springt, printing] [springti, printin] [springtim, printi] [springtime, print] Cost: O(?)

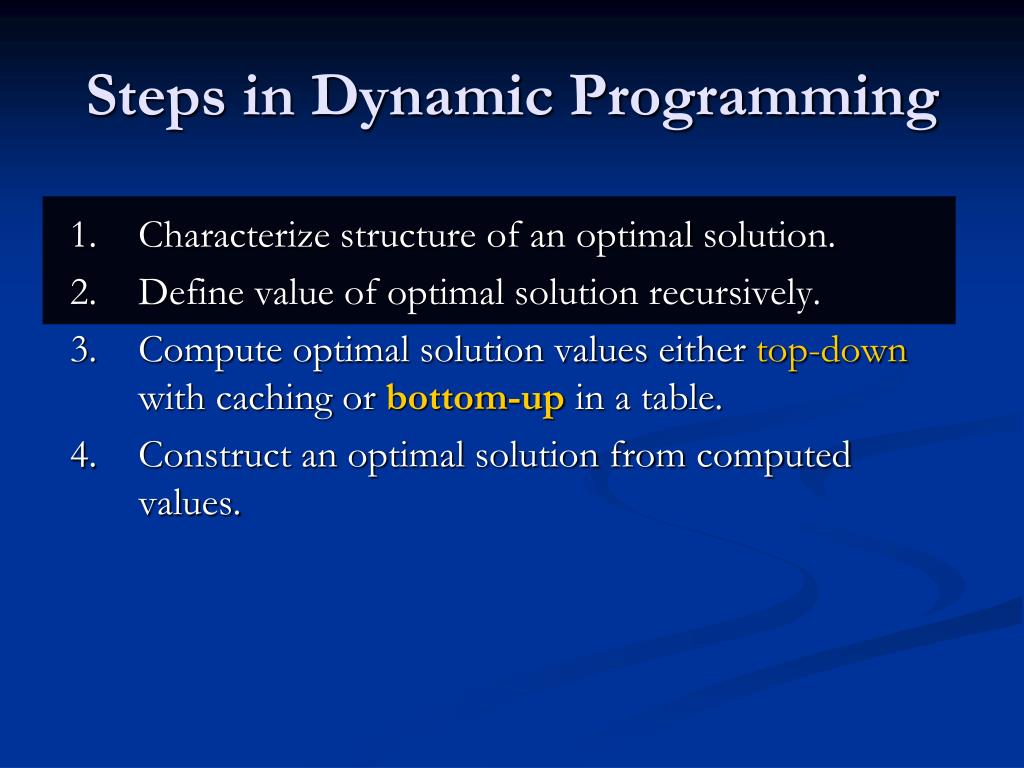

  19. Steps in Dynamic Programming • Characterize structure of an optimal solution. • Define value of optimal solution recursively. • Compute optimal solution values either top-downwith caching or bottom-upin a table. • Construct an optimal solution from computed values.

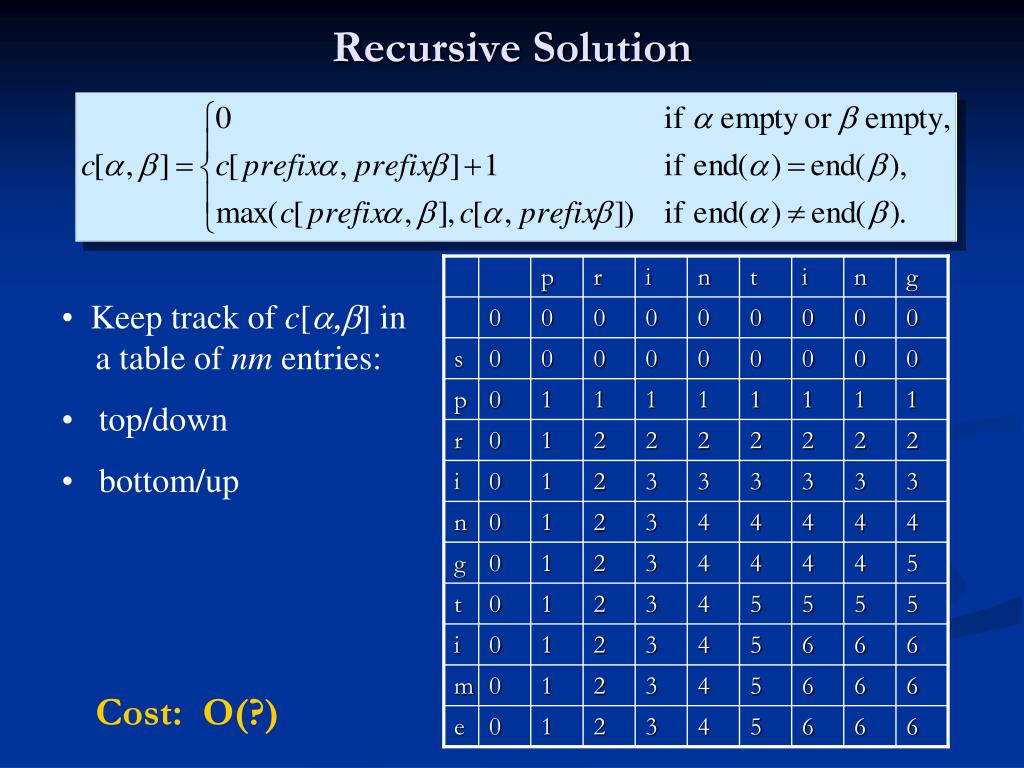

  20. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 1 2 2 2 2 2 2 2 0 1 2 3 3 3 3 3 3 0 1 2 3 4 4 4 4 4 0 1 2 3 4 4 4 4 5 0 1 2 3 4 5 5 5 5 0 1 2 3 4 5 6 6 6 0 1 2 3 4 5 6 6 6 0 1 2 3 4 5 6 6 6 Recursive Solution p r i n t i n g • Keep track of c[a,b] in • a table of nm entries: • top/down • bottom/up 0 s p r i n g t i m Cost: O(?) e

  21. Computing the length of an LCS LCS-LENGTH (X, Y) • m← length[X] • n← length[Y] • for i ← 1 to m • do c[i, 0] ← 0 • for j ← 0 to n • do c[0, j ] ← 0 • for i ← 1 to m • do for j ← 1 to n • do if xi= yj • then c[i, j ] ← c[i1, j1] + 1 • b[i, j ] ← “ ” • else if c[i1, j ] ≥ c[i, j1] • then c[i, j ] ← c[i 1, j ] • b[i, j ] ← “↑” • else c[i, j ] ← c[i, j1] • b[i, j ] ← “←” • return c and b b[i, j ] points to table entry whose subproblem we used in solving LCS of Xi and Yj. c[m,n] contains the length of an LCS of X and Y. Time:O(mn)

  22. Initial call is PRINT-LCS (b, X,m, n). • When b[i, j ] = , we have extended LCS by one character. So • LCS = entries with in them. • Time: O(m+n) Constructing an LCS PRINT-LCS (b, X, i, j) • if i = 0 or j = 0 • then return • if b[i, j ] = “ ” • then PRINT-LCS(b, X, i1, j1) • print xi • elseif b[i, j ] = “↑” • then PRINT-LCS(b, X, i1, j) • else PRINT-LCS(b, X, i, j1)

  23. Sequence Alignment

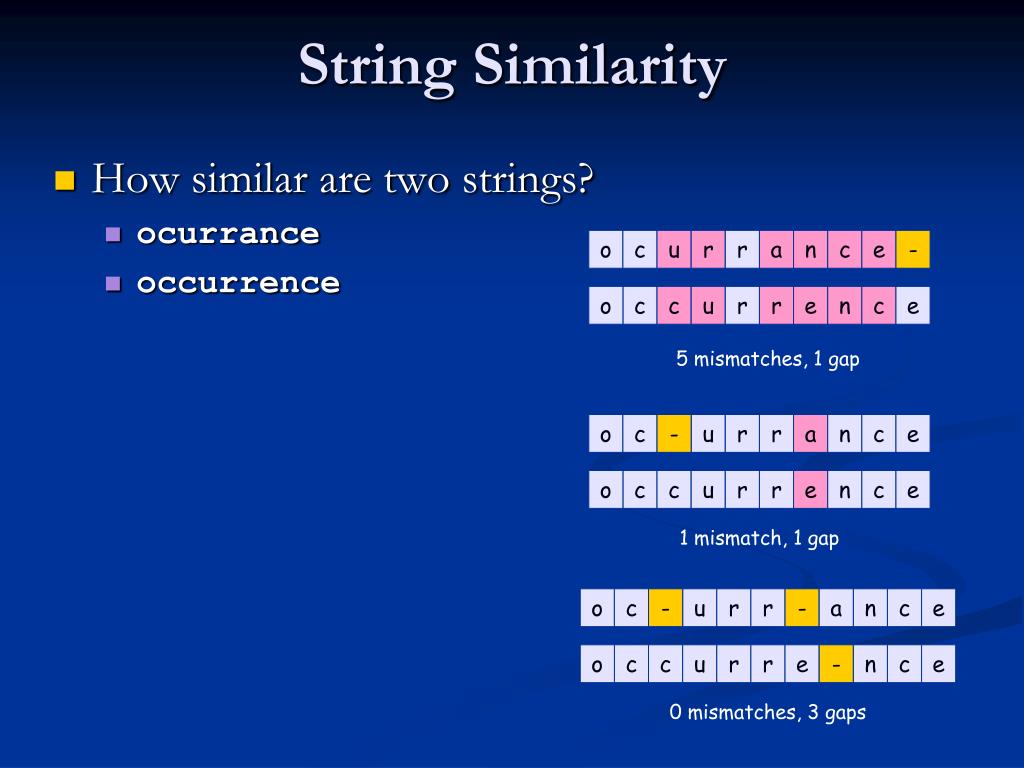

  24. o c u r r a n c e - o c c u r r e n c e 5 mismatches, 1 gap o c - u r r a n c e o c c u r r e n c e 1 mismatch, 1 gap o c - u r r - a n c e o c c u r r e - n c e 0 mismatches, 3 gaps String Similarity • How similar are two strings? • ocurrance • occurrence

  25. C T G A C C T A C C T - C T G A C C T A C C T C C T G A C T A C A T C C T G A C - T A C A T TC + GT + AG+ 2CA 2+ CA Edit Distance • Applications. • Basis for Unix diff. • Speech recognition. • Computational biology. • Edit distance. [Levenshtein 1966, Needleman-Wunsch 1970] • Gap penalty ; mismatch penalty pq. • Cost = sum of gap and mismatch penalties.

  26. A T C G A 1 -5 -5 -1 T -5 1 -1 -5 C -5 -1 1 -5 G -1 -5 -5 1 Transition-Transversion matrix Scoring Matrices for Aligning DNA Sequences

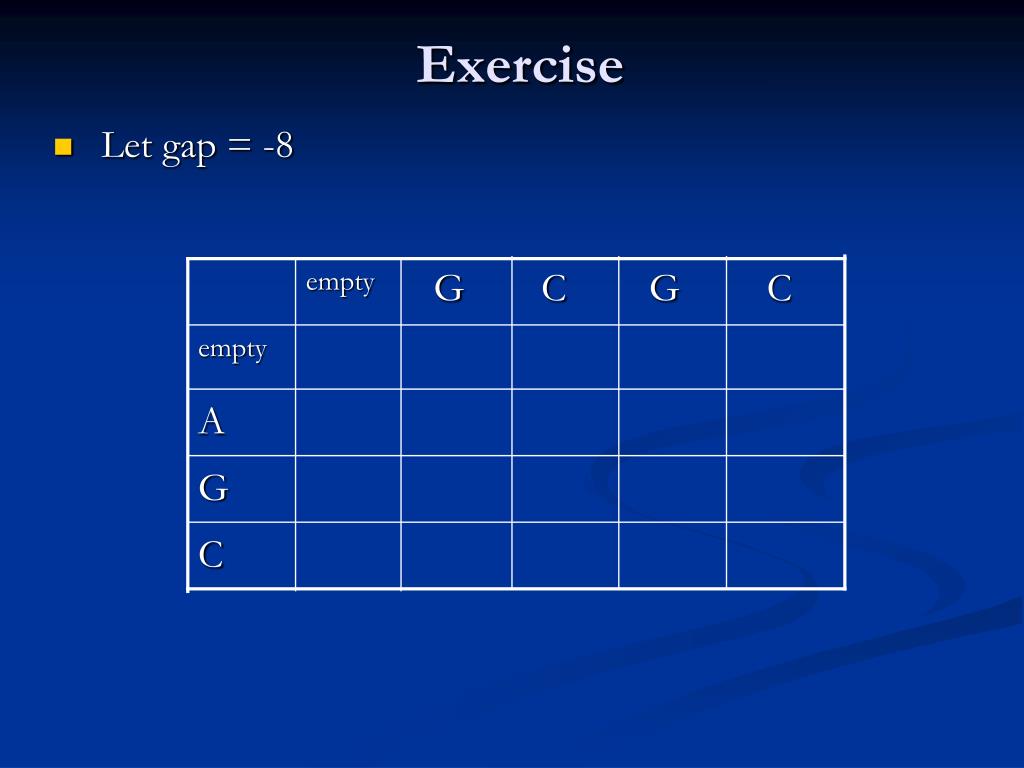

  27. empty G C G C empty A G C Exercise • Let gap = -8

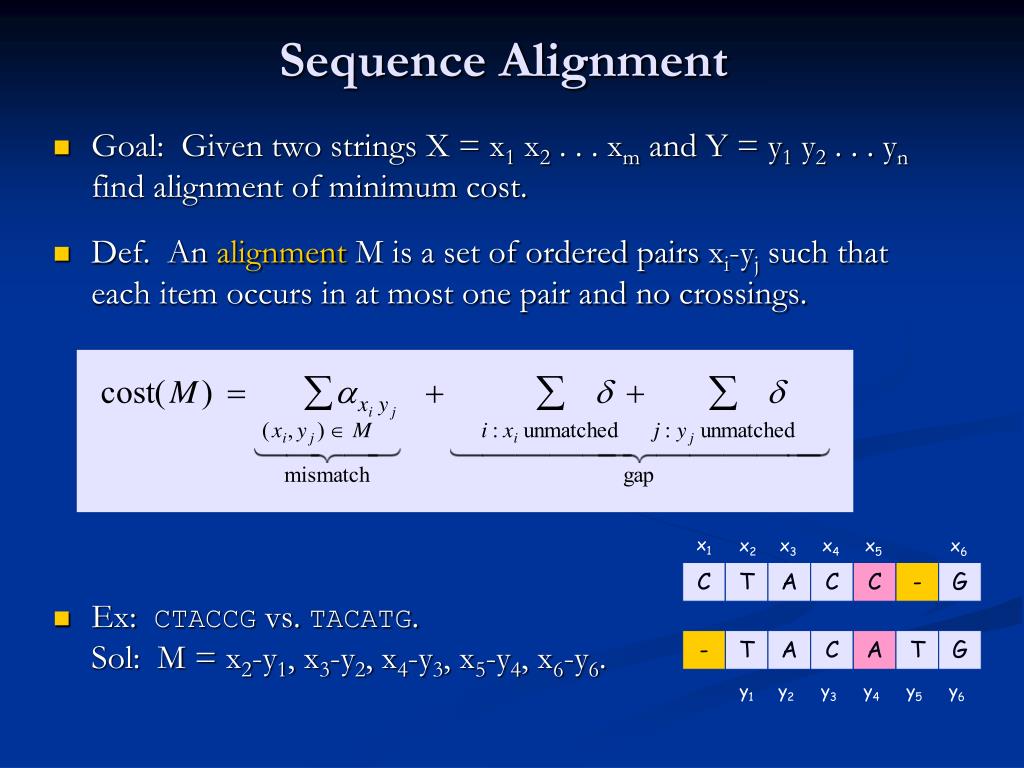

  28. x1 x2 x3 x4 x5 x6 C T A C C - G - T A C A T G y1 y2 y3 y4 y5 y6 Sequence Alignment • Goal: Given two strings X = x1 x2 . . . xm and Y = y1 y2 . . . yn find alignment of minimum cost. • Def. An alignment M is a set of ordered pairs xi-yj such that each item occurs in at most one pair and no crossings. • Ex: CTACCG vs. TACATG.Sol: M = x2-y1, x3-y2, x4-y3, x5-y4, x6-y6.

  29. Sequence Alignment: Problem Structure • Let OPT(i, j) = min cost of aligning strings x1 x2 . . . xi and y1 y2 . . . yj. • Case 1: OPT matches xi-yj. • pay mismatch for xi-yj + min cost of aligning two stringsx1 x2 . . . xi-1 and y1 y2 . . . yj-1 • Case 2a: OPT leaves xi unmatched. • pay gap for xi and min cost of aligning x1 x2 . . . xi-1 and y1 y2 . . . yj • Case 2b: OPT leaves yj unmatched. • pay gap for yj and min cost of aligning x1 x2 . . . xi and y1 y2 . . . yj-1

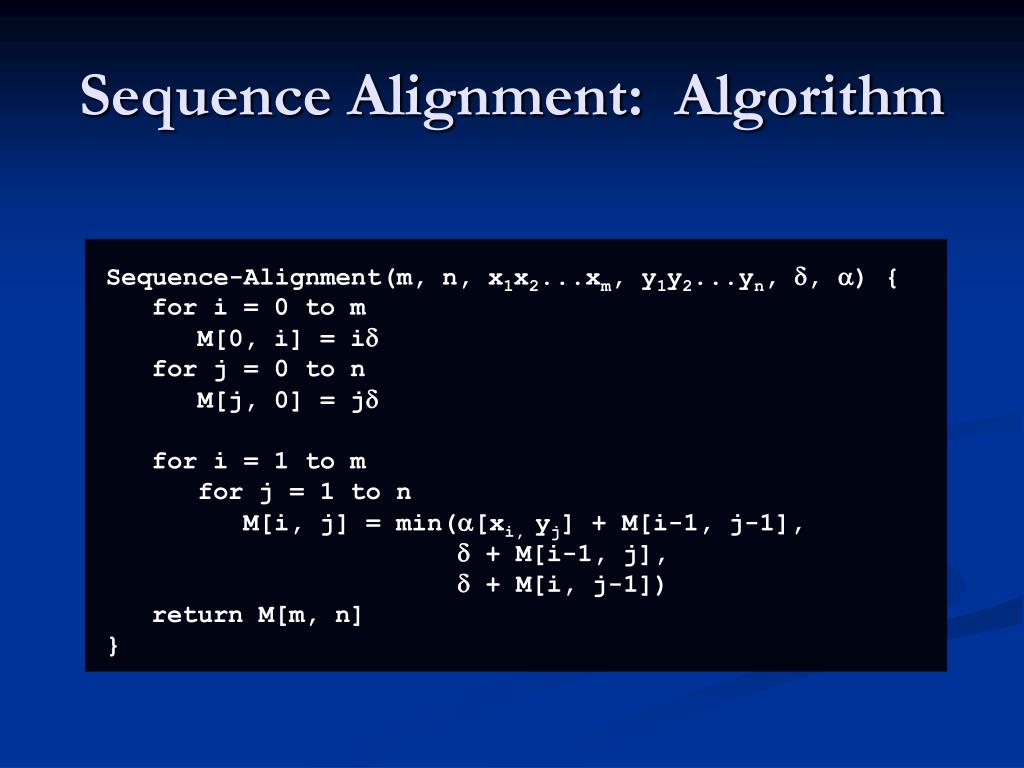

  30. Sequence Alignment: Algorithm Sequence-Alignment(m, n, x1x2...xm, y1y2...yn, , ) { for i = 0 to m M[0, i] = i for j = 0 to n M[j, 0] = j for i = 1 to m for j = 1 to n M[i, j] = min([xi, yj] + M[i-1, j-1],  + M[i-1, j],  + M[i, j-1]) return M[m, n] }

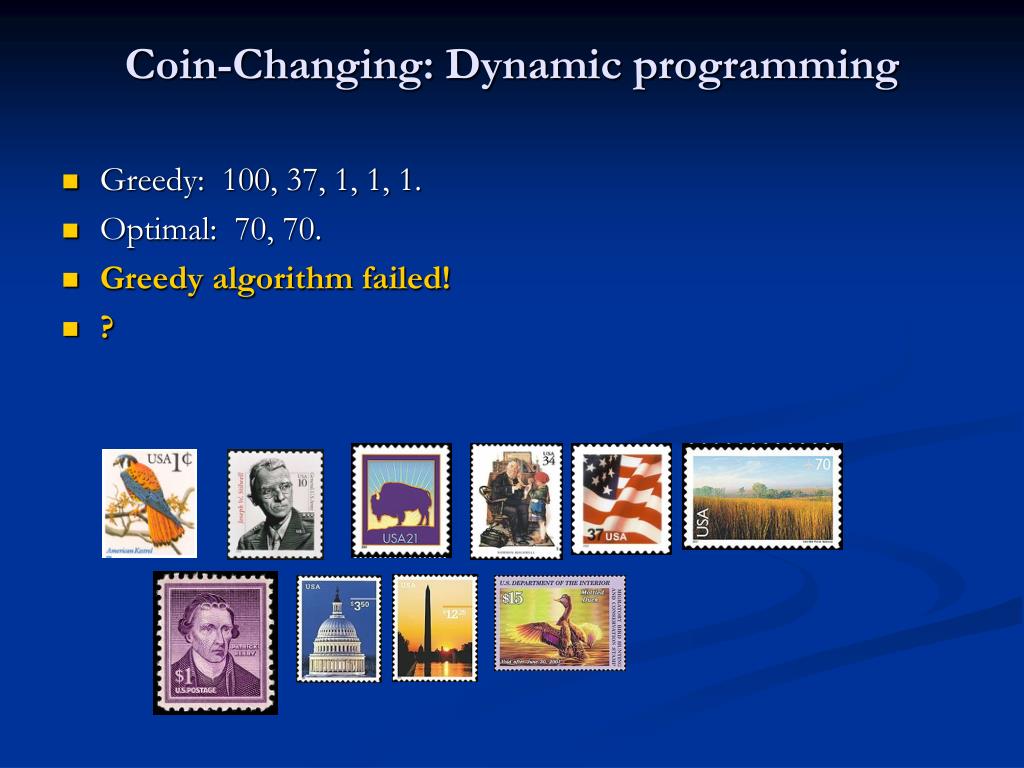

  31. Coin-Changing: Dynamic programming • Greedy: 100, 37, 1, 1, 1. • Optimal: 70, 70. • Greedy algorithm failed! • ?

  32. Weighted Interval Scheduling

  33. a b c d e f g h Time 0 1 2 3 4 5 6 7 8 9 10 11 Weighted Interval Scheduling • Weighted interval scheduling problem. • Job j starts at sj, finishes at fj, and has weight or value vj . • Two jobs compatibleif they don't overlap. • Goal: find maximum weight subset of mutually compatible jobs.

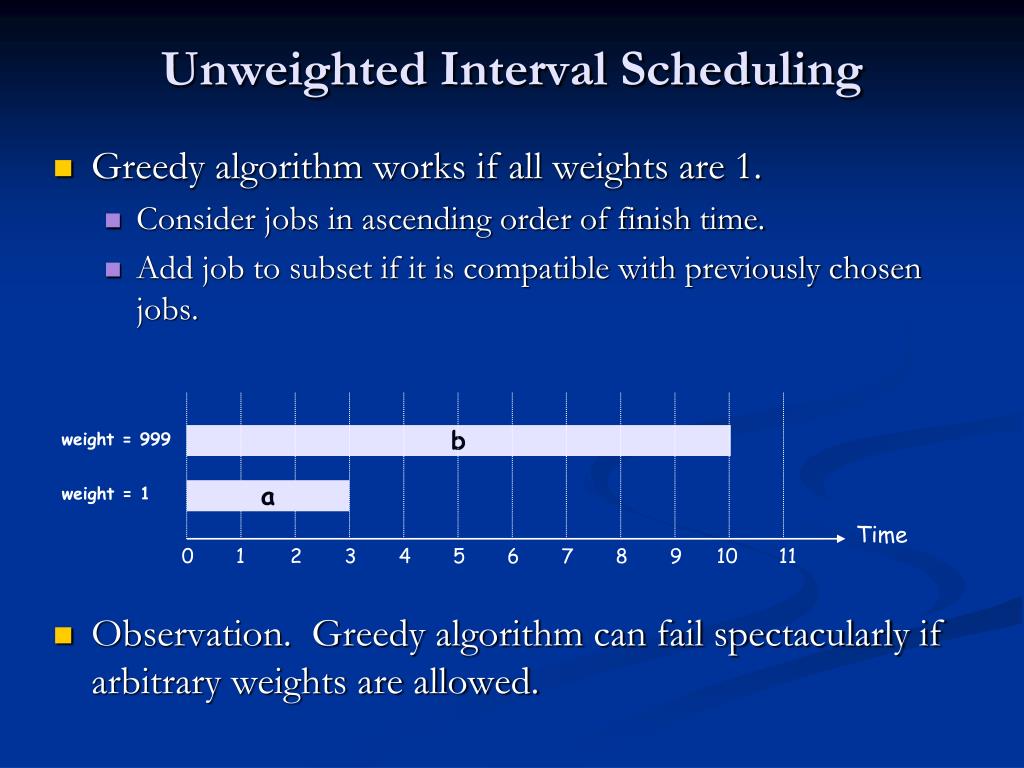

  34. weight = 999 b weight = 1 a Time 0 1 2 3 4 5 6 7 8 9 10 11 Unweighted Interval Scheduling • Greedy algorithm works if all weights are 1. • Consider jobs in ascending order of finish time. • Add job to subset if it is compatible with previously chosen jobs. • Observation. Greedy algorithm can fail spectacularly if arbitrary weights are allowed.

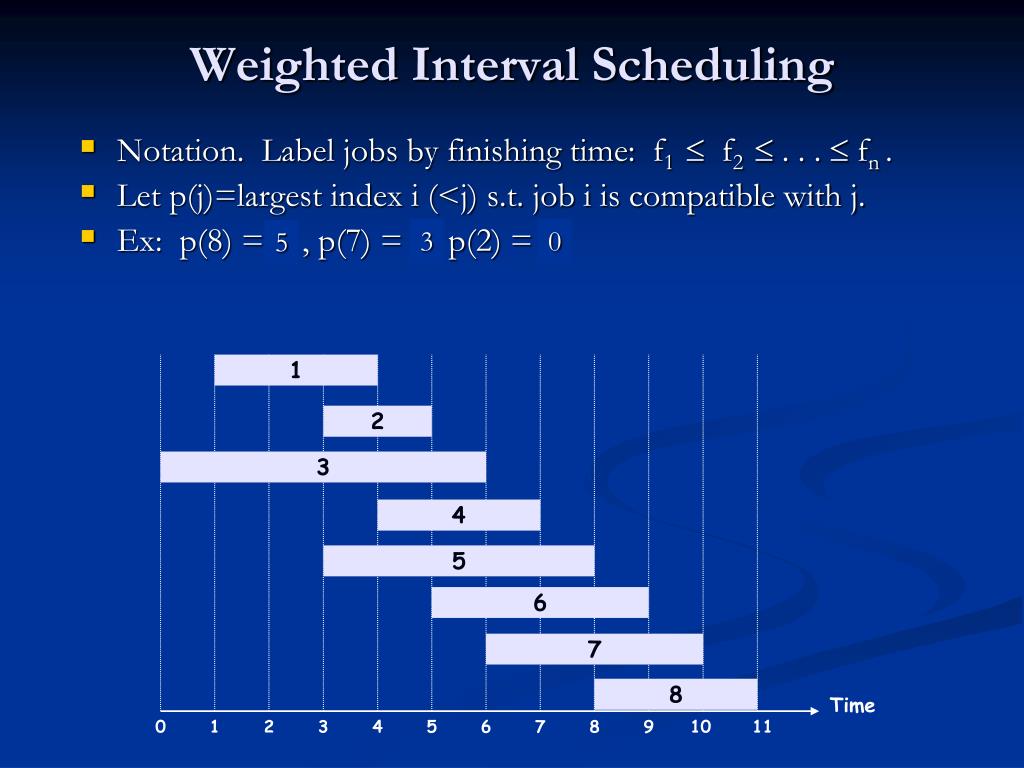

  35. 1 2 3 4 5 6 7 8 Time 0 1 2 3 4 5 6 7 8 9 10 11 Weighted Interval Scheduling • Notation. Label jobs by finishing time: f1  f2  . . .  fn . • Let p(j)=largest index i (<j) s.t. job i is compatible with j. • Ex: p(8) = ? , p(7) = ? , p(2) = ? . 3 0 5

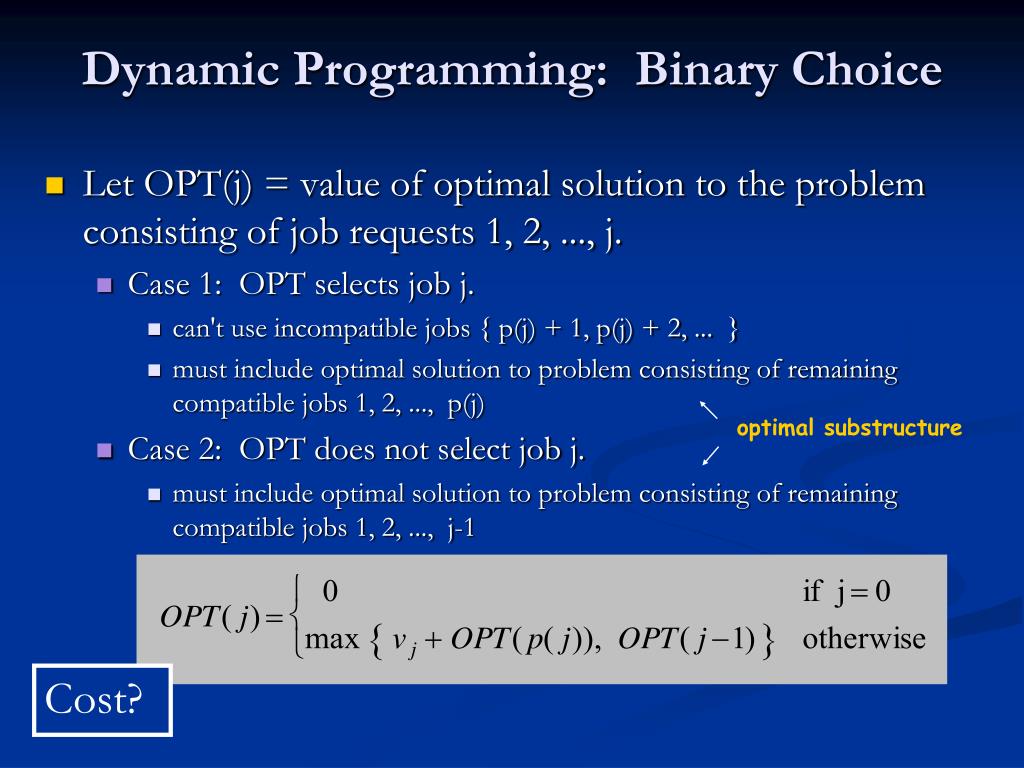

  36. optimal substructure Dynamic Programming: Binary Choice • Let OPT(j) = value of optimal solution to the problem consisting of job requests 1, 2, ..., j. • Case 1: OPT selects job j. • can't use incompatible jobs { p(j) + 1, p(j) + 2, ... } • must include optimal solution to problem consisting of remaining compatible jobs 1, 2, ..., p(j) • Case 2: OPT does not select job j. • must include optimal solution to problem consisting of remaining compatible jobs 1, 2, ..., j-1 Cost?

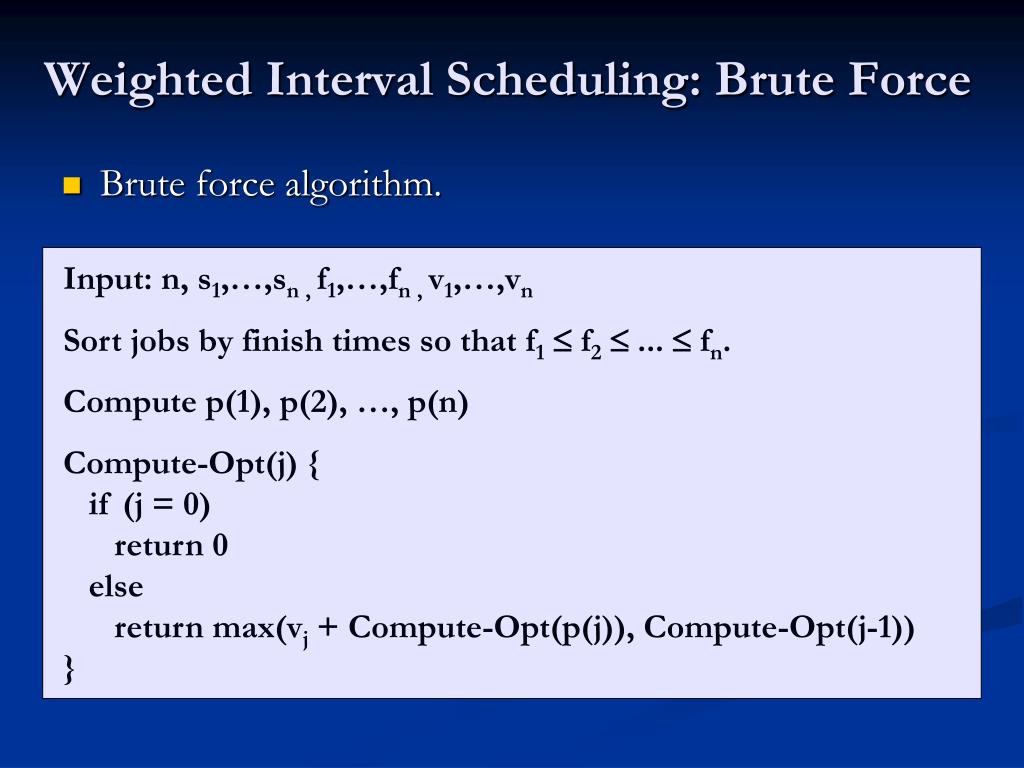

  37. Weighted Interval Scheduling: Brute Force • Brute force algorithm. Input: n, s1,…,sn , f1,…,fn , v1,…,vn Sort jobs by finish times so that f1 f2 ...  fn. Compute p(1), p(2), …, p(n) Compute-Opt(j) { if (j = 0) return 0 else return max(vj + Compute-Opt(p(j)), Compute-Opt(j-1)) }

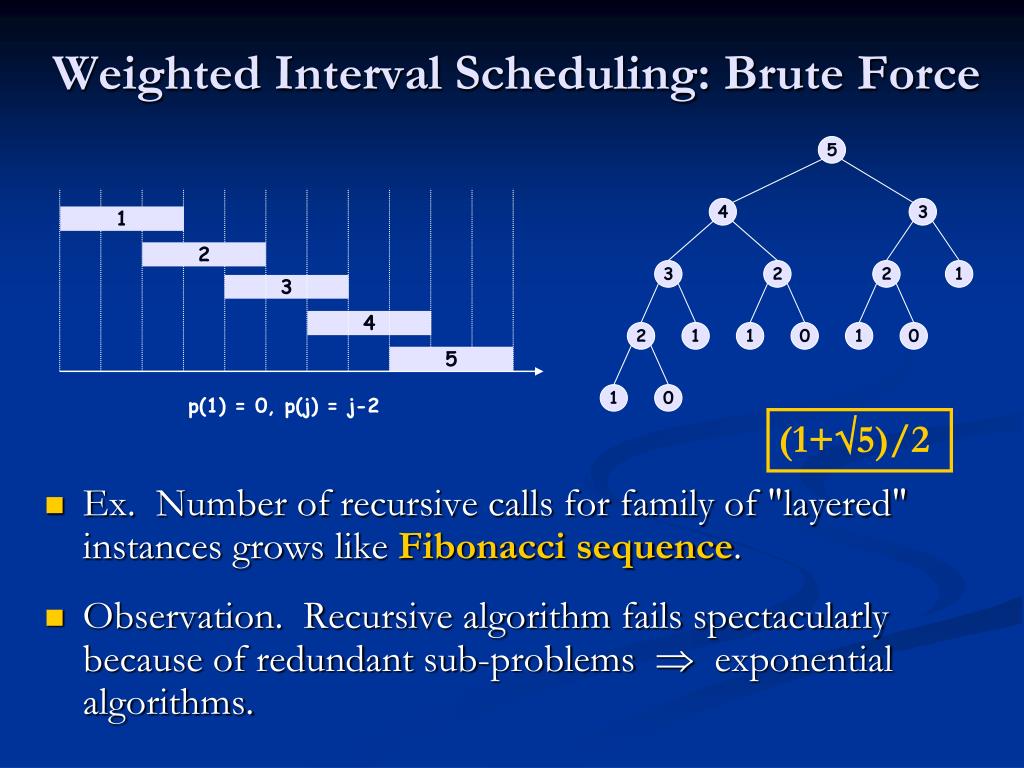

  38. 1 5 2 3 4 3 4 5 3 2 2 1 p(1) = 0, p(j) = j-2 2 1 1 0 1 0 1 0 Weighted Interval Scheduling: Brute Force • Ex. Number of recursive calls for family of "layered" instances grows like Fibonacci sequence. • Observation. Recursive algorithm fails spectacularly because of redundant sub-problems  exponential algorithms. (1+5)/2

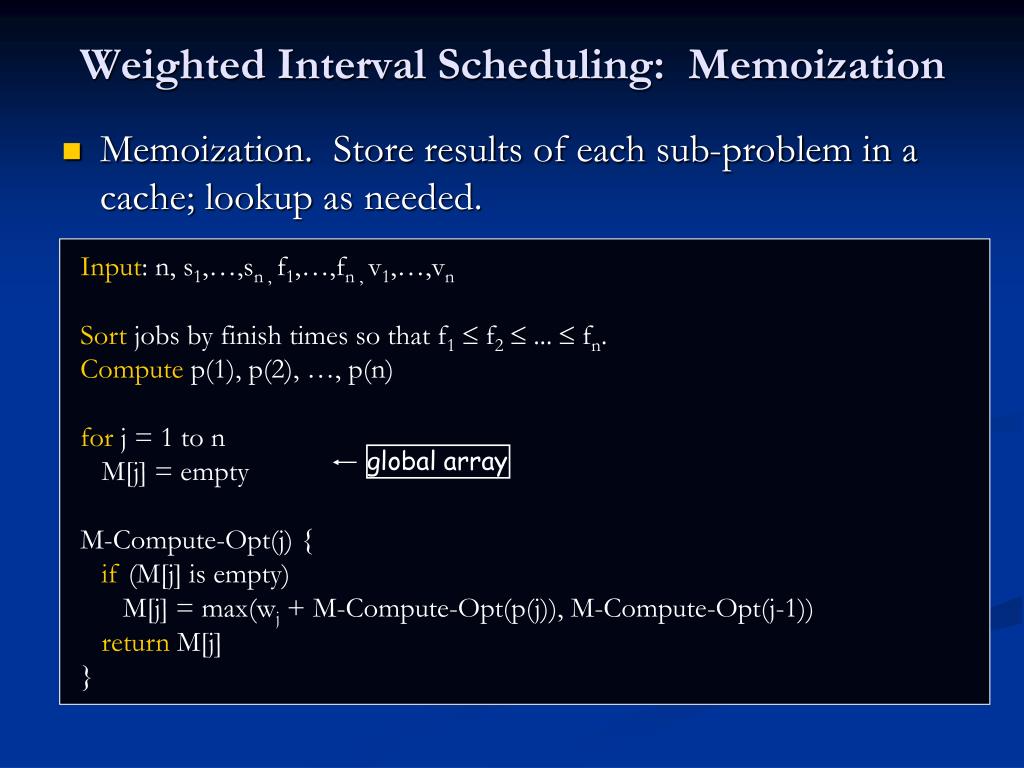

  39. Input: n, s1,…,sn , f1,…,fn , v1,…,vn Sort jobs by finish times so that f1 f2 ...  fn. Compute p(1), p(2), …, p(n) forj = 1 to n M[j] = empty M-Compute-Opt(j) { if(M[j] is empty) M[j] = max(wj + M-Compute-Opt(p(j)), M-Compute-Opt(j-1)) return M[j] } global array Weighted Interval Scheduling: Memoization • Memoization. Store results of each sub-problem in a cache; lookup as needed.

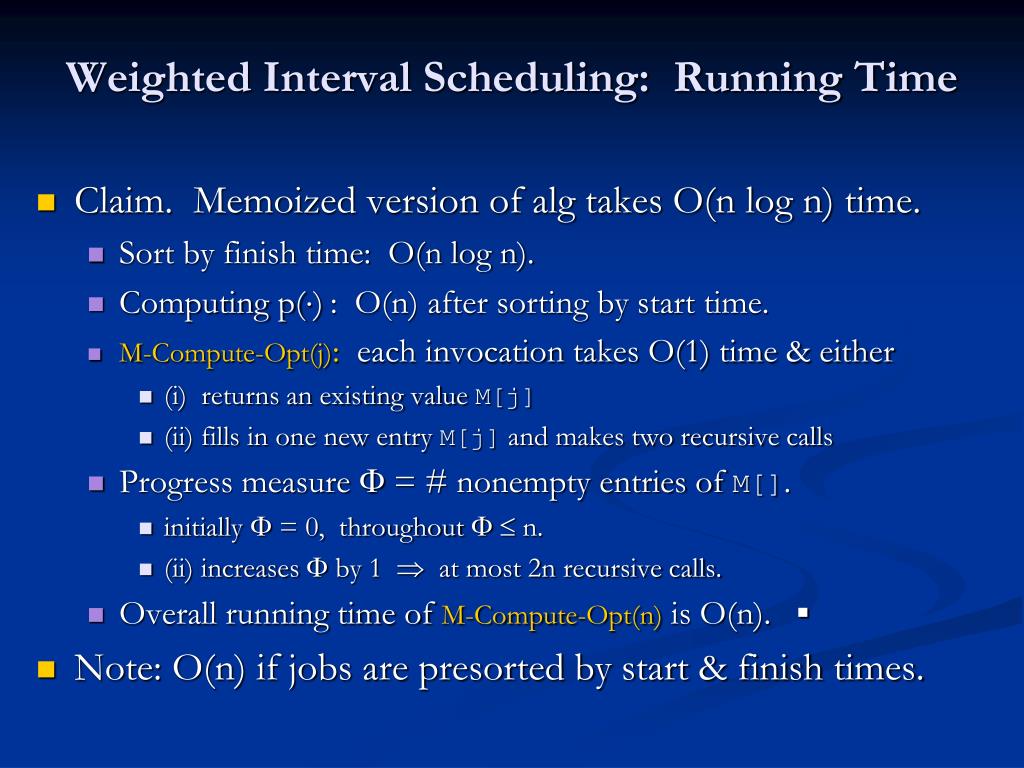

  40. Weighted Interval Scheduling: Running Time • Claim. Memoized version of alg takes O(n log n) time. • Sort by finish time: O(n log n). • Computing p(): O(n) after sorting by start time. • M-Compute-Opt(j): each invocation takes O(1) time & either • (i) returns an existing value M[j] • (ii) fills in one new entry M[j] and makes two recursive calls • Progress measure  = # nonempty entries of M[]. • initially  = 0, throughout  n. • (ii) increases  by 1  at most 2n recursive calls. • Overall running time of M-Compute-Opt(n) is O(n). ▪ • Note: O(n) if jobs are presorted by start & finish times.

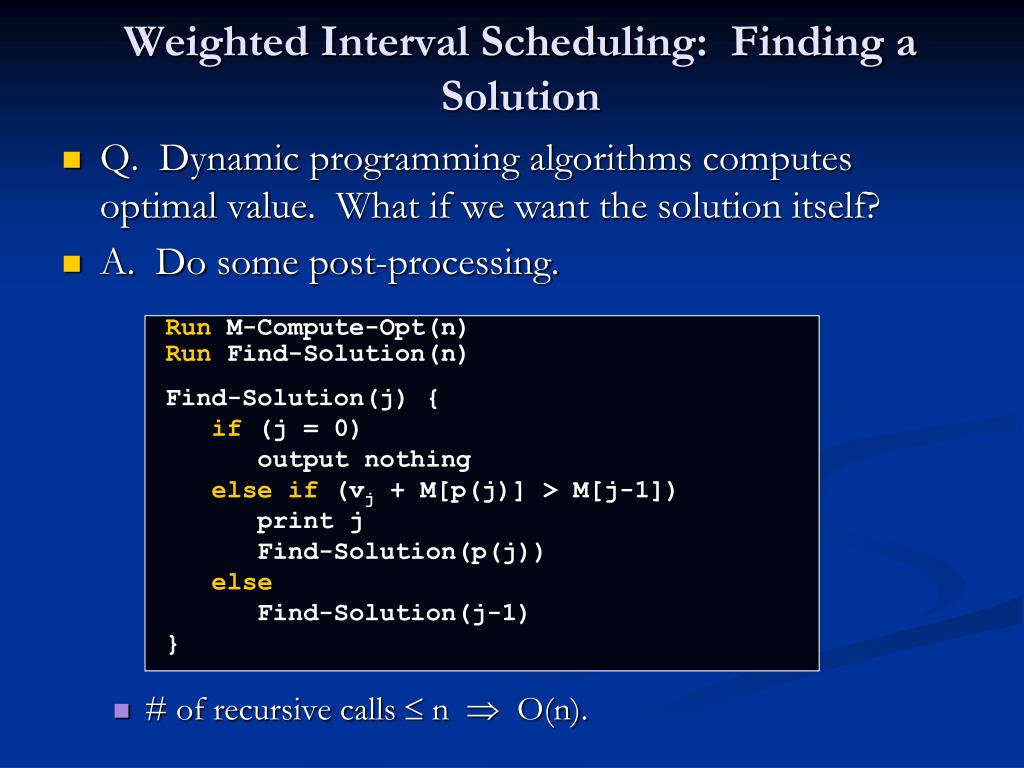

  41. Weighted Interval Scheduling: Finding a Solution • Q. Dynamic programming algorithms computes optimal value. What if we want the solution itself? • A. Do some post-processing. • # of recursive calls  n  O(n). Run M-Compute-Opt(n) Run Find-Solution(n) Find-Solution(j) { if (j = 0) output nothing else if(vj + M[p(j)] > M[j-1]) print j Find-Solution(p(j)) else Find-Solution(j-1) }

  42. Weighted Interval Scheduling: Bottom-Up • Bottom-up dynamic programming. Unwind recursion. Input: n, s1,…,sn , f1,…,fn , v1,…,vn Sort jobs by finish times so that f1 f2 ...  fn. Compute p(1), p(2), …, p(n) Iterative-Compute-Opt { M[0] = 0 forj = 1 to n M[j] = max(vj + M[p(j)], M[j-1]) }

  43. exercise Problem: Find mutually compatible jobs that maximize total value.

  44. Knapsack Problem

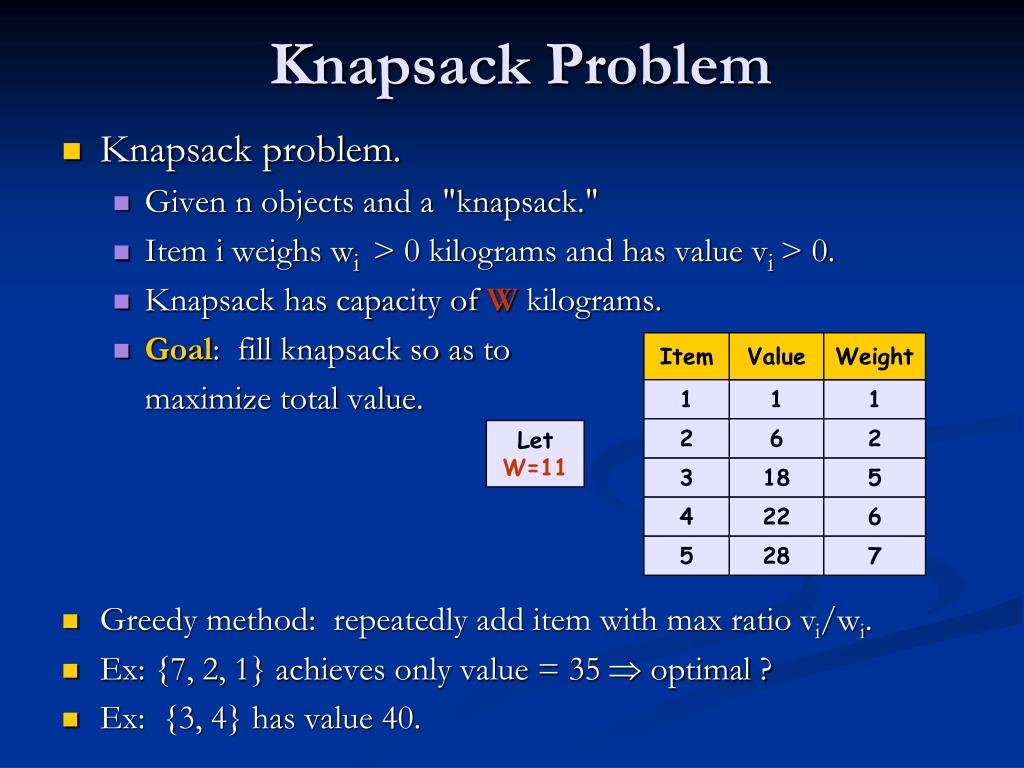

  45. Item Value Weight 1 1 1 2 6 2 Let W=11 3 18 5 4 22 6 5 28 7 Knapsack Problem • Knapsack problem. • Given n objects and a "knapsack." • Item i weighs wi > 0 kilograms and has value vi > 0. • Knapsack has capacity of W kilograms. • Goal: fill knapsack so as to maximize total value. • Greedy method: repeatedly add item with max ratio vi/wi. • Ex: {7, 2, 1} achieves only value = 35  optimal ? • Ex: {3, 4} has value 40.

  46. Dynamic Programming: False Start • Let OPT(i)=max profit for subset of items 1,…, i. • Case 1: OPT does not select item i. • OPT selects best of { 1, 2, …, i-1 } • Case 2: OPT selects item i. • accepting item i does not immediately imply that we will have to reject other items • without knowing what other items were selected before i, we don't even know if we have enough room for i • Conclusion: Need more info about sub-problems!

  47. Dynamic Programming: Adding a New Variable • Let OPT(i, w) = max profit subset of items 1, …, i with weight limit w. • Case 1: OPT does not select item i. • OPT selects best of { 1, 2, …, i-1 } using weight limit w • Case 2: OPT selects item i. • new weight limit = w – wi • OPT selects best of {1,…, i–1} using the new weight limit

  48. Knapsack Problem: Bottom-Up • Knapsack. Fill up an n-by-W array. Input: n, w1,…,wN, v1,…,vN for w = 0 to W M[0, w] = 0 for i = 1 to n for w = 1 to W if (wi > w) M[i, w] = M[i-1, w] else M[i, w] = max {M[i-1, w], vi + M[i-1, w-wi ]} return M[n, W]

  49. W + 1 0 1 2 3 4 5 6 7 8 9 10 11  0 0 0 0 0 0 0 0 0 0 0 0 { 1 } 0 1 1 1 1 1 1 1 1 1 1 1 { 1, 2 } 0 1 6 7 7 7 7 7 7 7 7 7 n + 1 { 1, 2, 3 } 0 1 6 7 7 19 24 25 25 25 25 { 1, 2, 3, 4 } 0 1 6 7 7 18 22 24 28 29 29 40 { 1, 2, 3, 4, 5 } 0 1 6 7 7 18 22 28 29 34 34 40 Item Value Weight M[i, w] = max {M[i-1, w], vi+M[i-1, w-wi ]} 1 1 1 2 6 2 3 18 5 W = 11 4 22 6 5 28 7 Knapsack Algorithm =max{7, 18+M[2, 5-5]} ? 18 OPT: { 4, 3 } value = 22 + 18 = 40

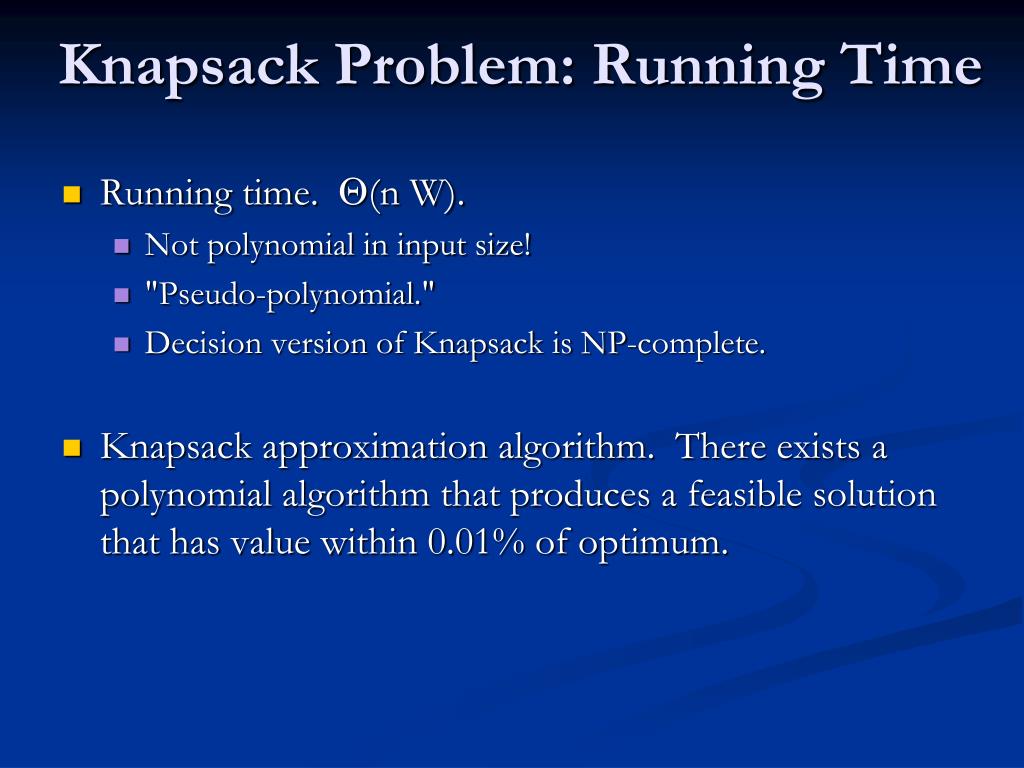

  50. Knapsack Problem: Running Time • Running time. (n W). • Not polynomial in input size! • "Pseudo-polynomial." • Decision version of Knapsack is NP-complete. • Knapsack approximation algorithm. There exists a polynomial algorithm that produces a feasible solution that has value within 0.01% of optimum.
