  1. Physiologic Control Algorithms for Rotary Blood Pumps using Pressure Sensor Input Edward Bullister, Ph.D. Sanford Reich, Ph.D. APEX Medical, Inc. ISRP 2001 18 August 2001

  2. Why Use Pressure Inputs? • Provides physiologic feedback for pump control. • Provides added-value pump diagnostic and monitoring functions. • Increases capability for patient monitoring. • Potentially increases patient quality of life.

  3. How to Implement? • Control Algorithm Development • Design Strategy to Mimic Patients’ Physiologic Control • Control Algorithm Schematic • Control Algorithm Detail • Control Algorithm Results • Added-Value Diagnostic and Monitoring Functions • Patient Monitoring • Hardware Considerations • Summary

  4. Control Algorithm

  5. Level 1: Basic Control Algorithm • Level 1 Control Input: LVDFP - Left Ventricular Diastolic “Filling Pressure” • Level 1 Control Output: Pump Flow Rate • Proportional Integral Control Algorithm d/dt(Flow) = K * (LVDFP - Pdesired) K = 0.1 L/min/mmHg • Flow  Pressure  • Simple • Robust

  6. Level 1 Results

  7. Level 2: Exercise Control Algorithm • Level 2 Control Inputs: • Arterial Pressure • Pulse Rate Increase (e.g., during exercise) • Level 2 Control Output: • Desired LVDFP • Level 2 Limits: • Max/min LVDFP • Max/min Arterial Pressure

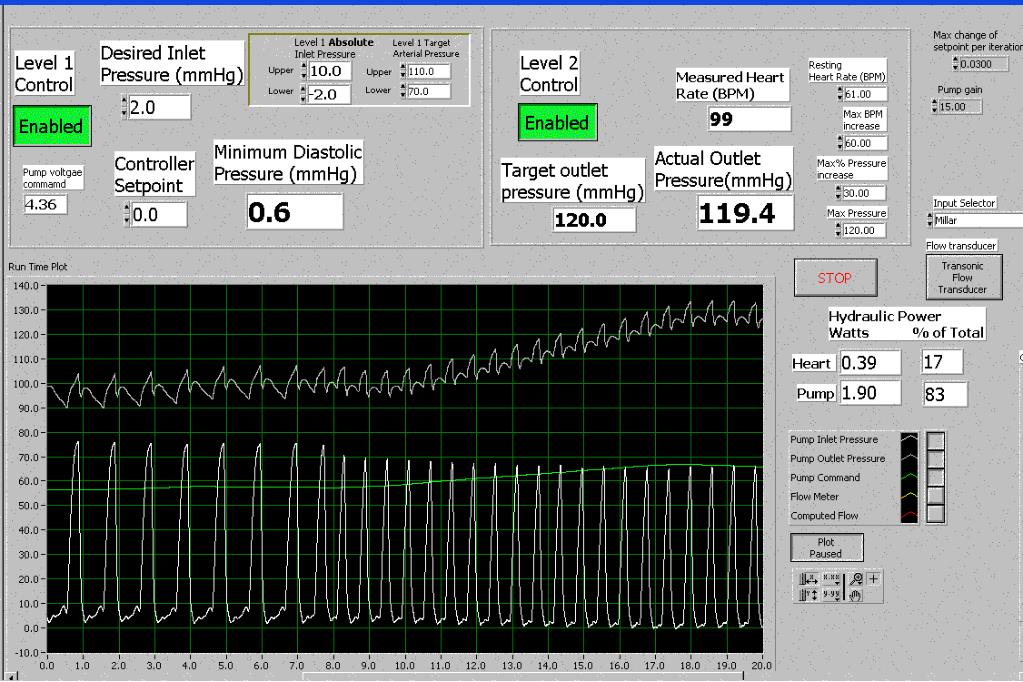

  8. Level 2 Results

  9. Flow Rate Monitor using Pressure • Pressure Calculated from Pump Speed and Pressure Difference • Independent of Motor Current • Includes High Frequency Content Flow meter Measurement  Flow (L/min)  Calculated From Pressure Time (sec)

  10. Hydraulic Power Monitor • Hydraulic Power (HP) into Blood • Pump: HPpump = Ppump * PumpFlow (continuous) • Heart: HPheart ~ Pheart * PumpFlow (measured during systole)

  11. Hardware Considerations • Pressure Sensor Technology • Thin-Film Based • MEMS Based • Any Rotary VAD • Pressure Sensor Placement

  12. Component Analysis Computational Fluid Dynamics (CFD) • Example - Inlet Cannula • Establish optimal location for pressure sensor • Calculate pressure coefficient K for nonlinear relationship: P = K*V2

  13. Summary • An initial control algorithm has been implemented to auto-regulate rotary blood pumps using physiological pressure inputs. • Two levels of control for a rotary pump have been tested in a mock loop setup. • The pressure signals produce added-value information. • Additional monitoring and control levels have been conceived. • Goal is to contribute to patient quality of life.
