  1. MairacStaticAnalyzer for Detecting Memory Leak & Null Dereference Errorsin C Programs Programming Research LaboratorySeoul National University 4/14/2006 @ SamsungSWC

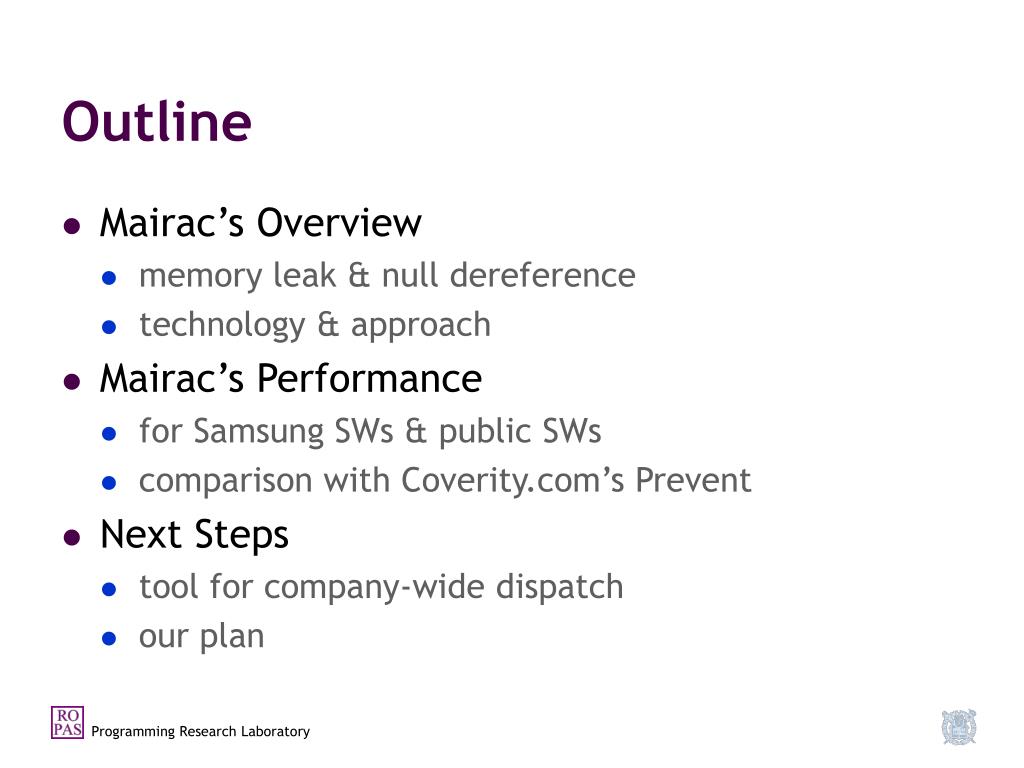

  2. Outline • Mairac’s Overview • memory leak & null dereference • technology & approach • Mairac’s Performance • for Samsung SWs & public SWs • comparison with Coverity.com’s Prevent • Next Steps • tool for company-wide dispatch • our plan Programming Research Laboratory

  3. Mairac Detects Two Fatal Bugs (f l+ l-) (f l+) (f (g l+)l ) (f (g l+)ll-) (f l+ l(g l-)) (f l+ l(g) l-) (f l+ l(g)) • memory leak • no (untimely) memory recycle • null dereference • access to recycled memory • Challenges • full ANSI C • C’s pointers as 1st-class data • C’s arbitrary flows • separate files • cost vs accuracy Programming Research Laboratory

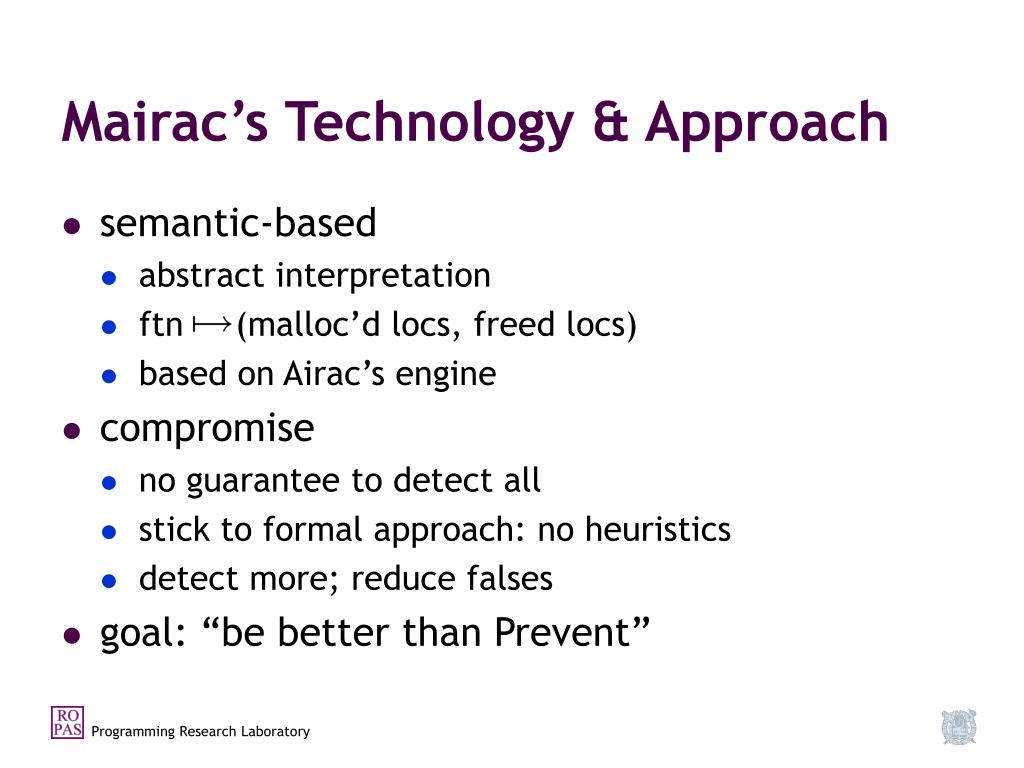

  4. Mairac’s Technology & Approach • semantic-based • abstract interpretation • ftn (malloc’d locs, freed locs) • based on Airac’s engine • compromise • no guarantee to detect all • stick to formal approach: no heuristics • detect more; reduce falses • goal: “be better than Prevent” Programming Research Laboratory

  5. Mairac’s Performance • Samsung SWs + public SWs: 530K loc Mairac Prevent 201 530 True False 89 8 45 786+223 Programming Research Laboratory

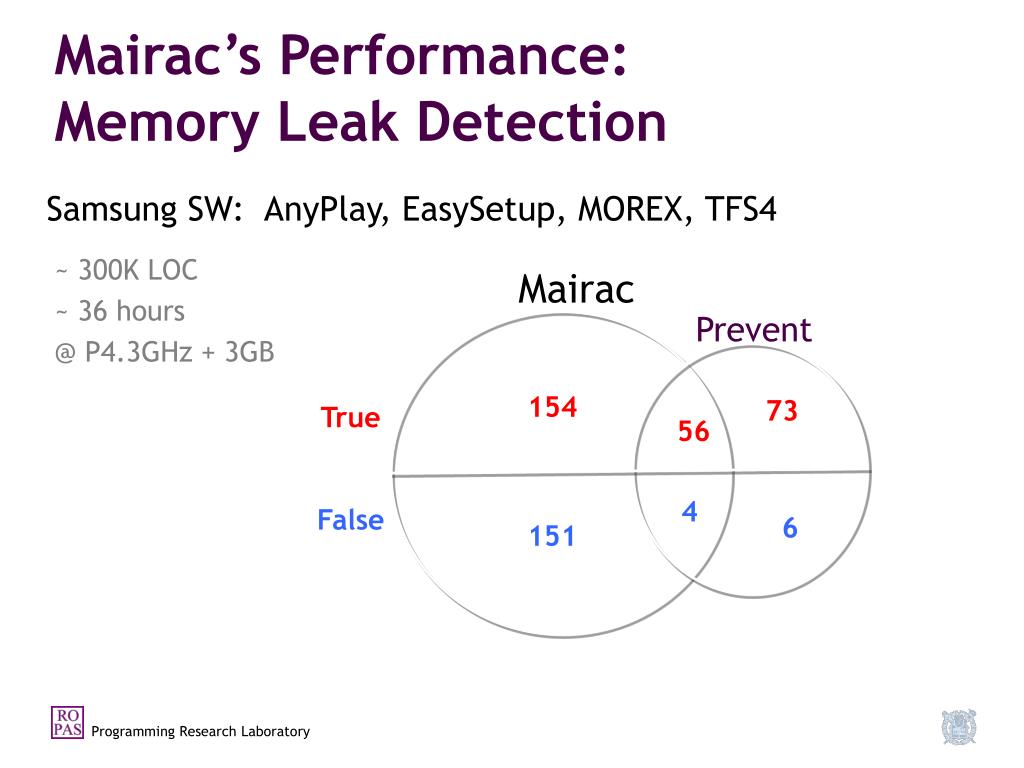

  6. Mairac’s Performance: Memory Leak Detection Samsung SW: AnyPlay, EasySetup, MOREX, TFS4 ~ 300K LOC ~ 36 hours @ P4.3GHz + 3GB Mairac Prevent 154 73 True False 56 4 6 151 Programming Research Laboratory

  7. Mairac’s Performance: Null Dereference Detection Samsung SW: AnyPlay, EasySetup, MOREX, TFS4 ~ 300K LOC ~ 36 hours @ P4.3GHz + 3GB Mairac Prevent 241 43 True False 6 4 16 241 Programming Research Laboratory

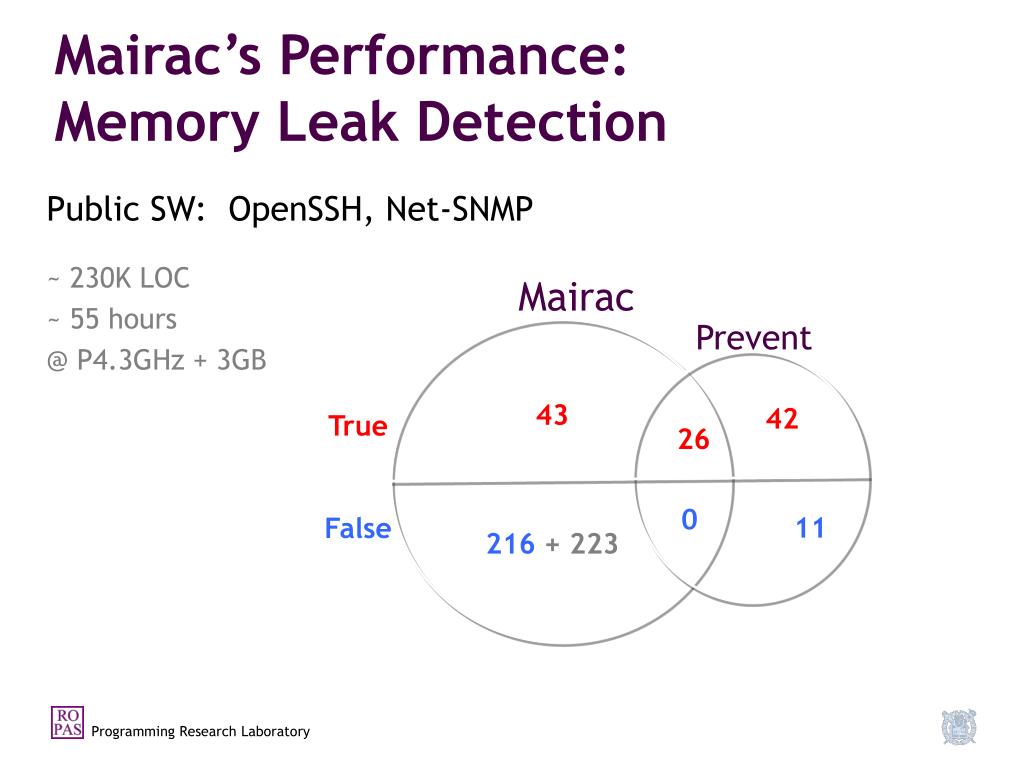

  8. Mairac’s Performance: Memory Leak Detection Public SW: OpenSSH, Net-SNMP ~ 230K LOC ~ 55 hours @ P4.3GHz + 3GB Mairac Prevent 43 42 True False 26 0 11 216+ 223 Programming Research Laboratory

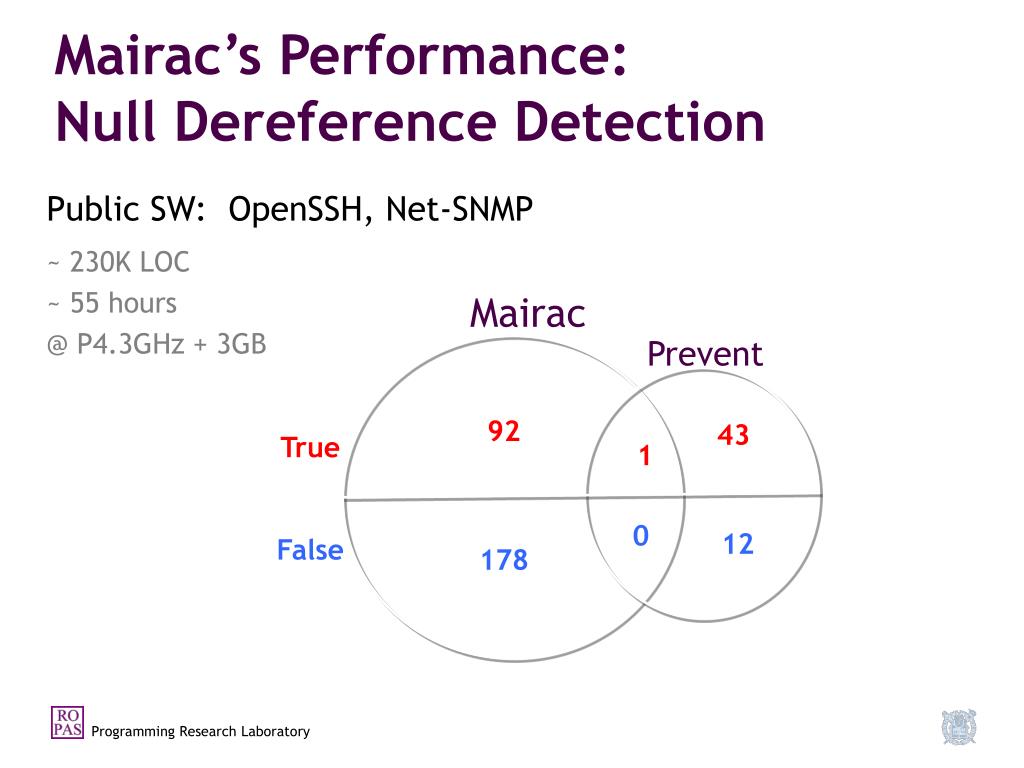

  9. Mairac’s Performance: Null Dereference Detection Public SW: OpenSSH, Net-SNMP ~ 230K LOC ~ 55 hours @ P4.3GHz + 3GB Mairac Prevent 92 43 True False 1 0 12 178 Programming Research Laboratory

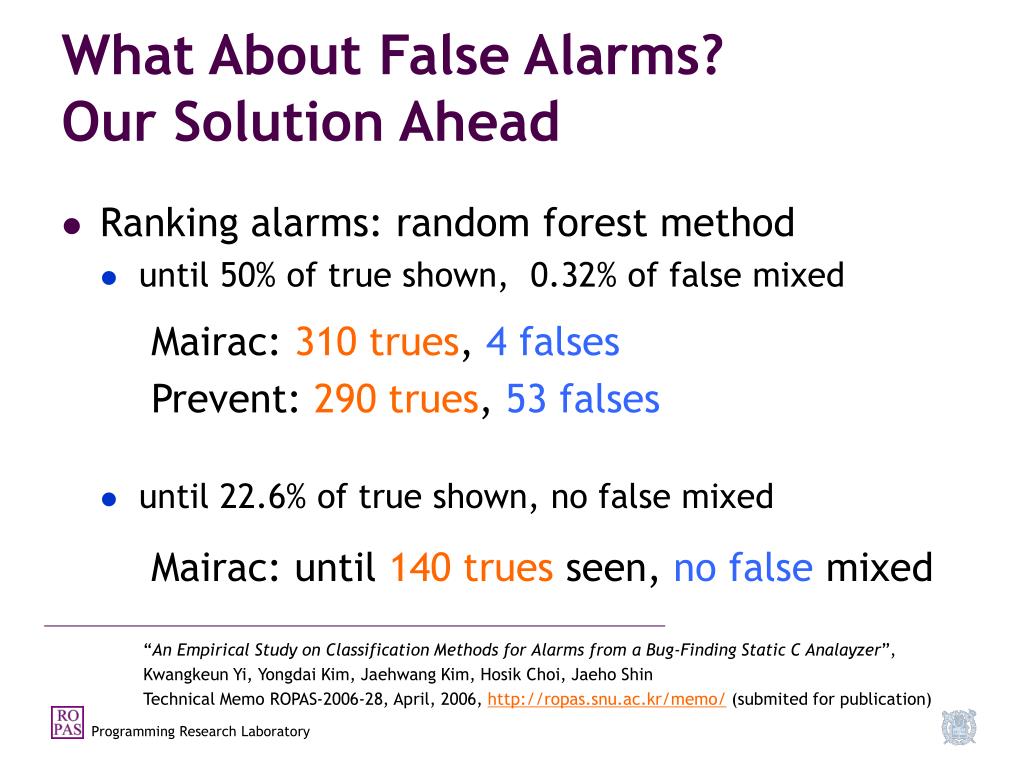

  10. What About False Alarms? Our Solution Ahead • Ranking alarms: random forest method • until 50% of true shown, 0.32% of false mixed • until 22.6% of true shown, no false mixed Mairac: 310 trues, 4 falses Prevent: 290 trues, 53 falses Mairac: until 140 trues seen, no false mixed “An Empirical Study on Classification Methods for Alarms from a Bug-Finding Static C Analayzer”, Kwangkeun Yi, Yongdai Kim, Jaehwang Kim, Hosik Choi, Jaeho Shin Technical Memo ROPAS-2006-28, April, 2006, http://ropas.snu.ac.kr/memo/ (submited for publication) Programming Research Laboratory

  11. Performance for Samsung SWs Programming Research Laboratory

  12. Performance for Public SWs Programming Research Laboratory

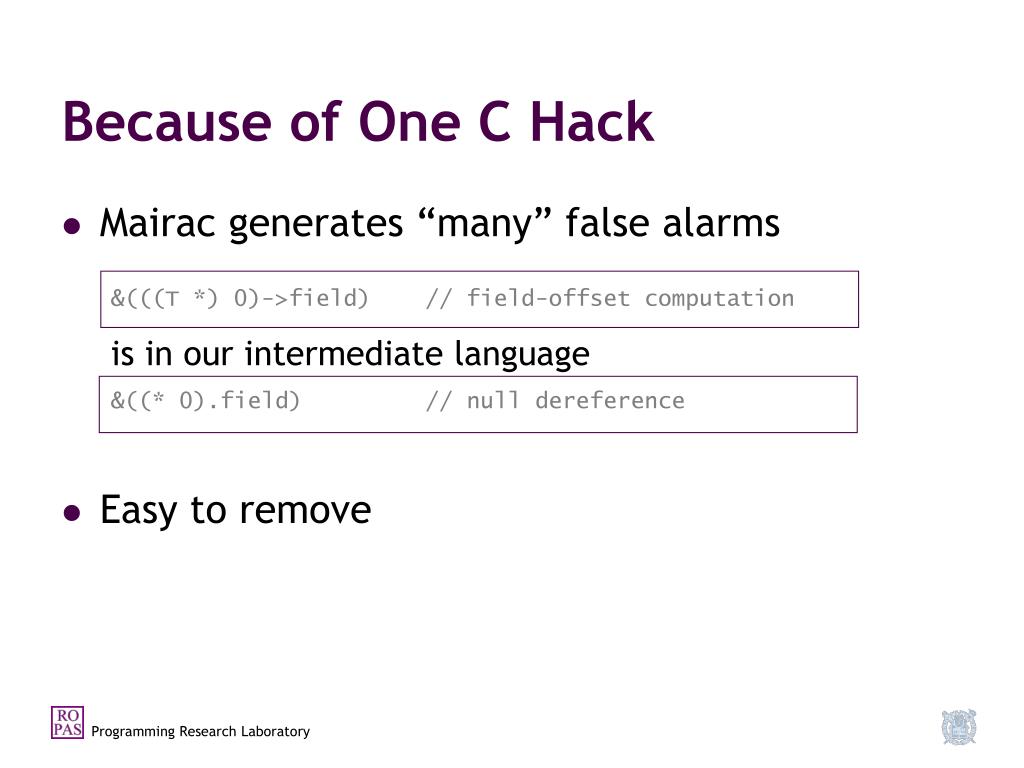

  13. Because of One C Hack • Mairac generates “many” false alarms • Easy to remove &(((T *) 0)->field) // field-offset computation is in our intermediate language &((* 0).field) // null dereference Programming Research Laboratory

  14. Qualititive Comparison (1/3) • Clear zone: cases that we know why • only Mairac can detect • only Prevent can detect • Grey zone: cases that we don’t know yet why • only Mairac can detect • only Prevent can detect Programming Research Laboratory

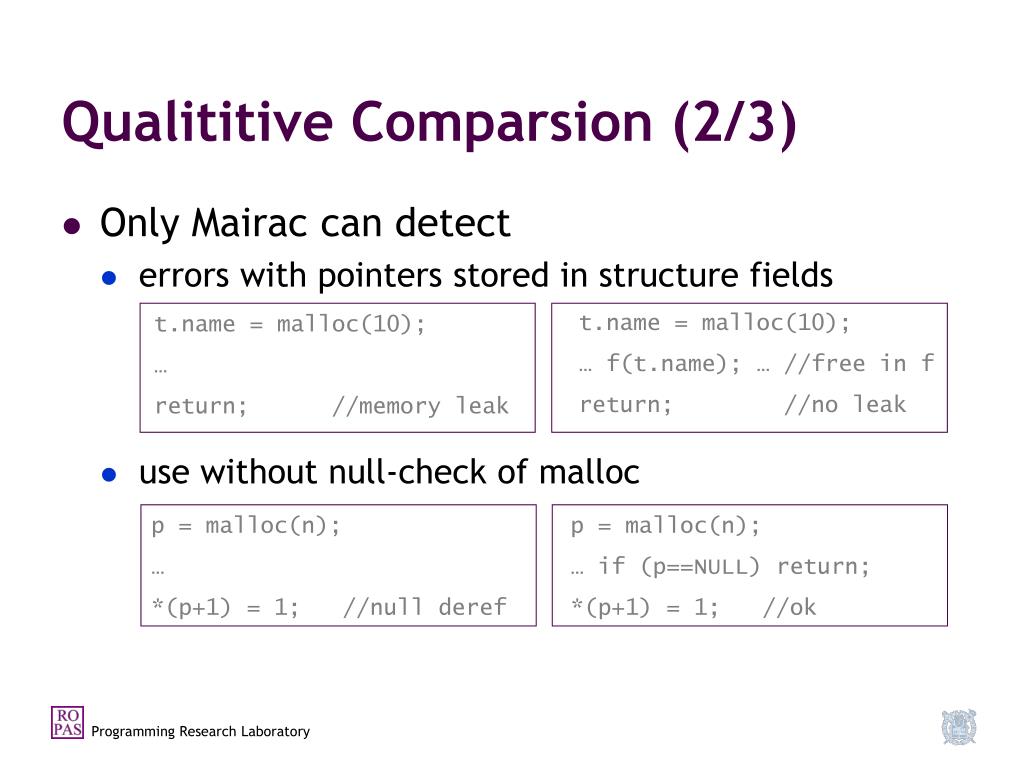

  15. Qualititive Comparsion (2/3) • Only Mairac can detect • errors with pointers stored in structure fields • use without null-check of malloc t.name = malloc(10); … f(t.name); … //free in f return; //no leak t.name = malloc(10); … return; //memory leak p = malloc(n); … *(p+1) = 1; //null deref p = malloc(n); … if (p==NULL) return; *(p+1) = 1; //ok Programming Research Laboratory

  16. Qualititive Comparison (3/3) • Only Prevent can detect • conditional free • heuristics-based P = malloc(n); if(c) free(p); if(!c) return; // memory leak if (p != NULL) { … }; … p->field // likely null deref Programming Research Laboratory

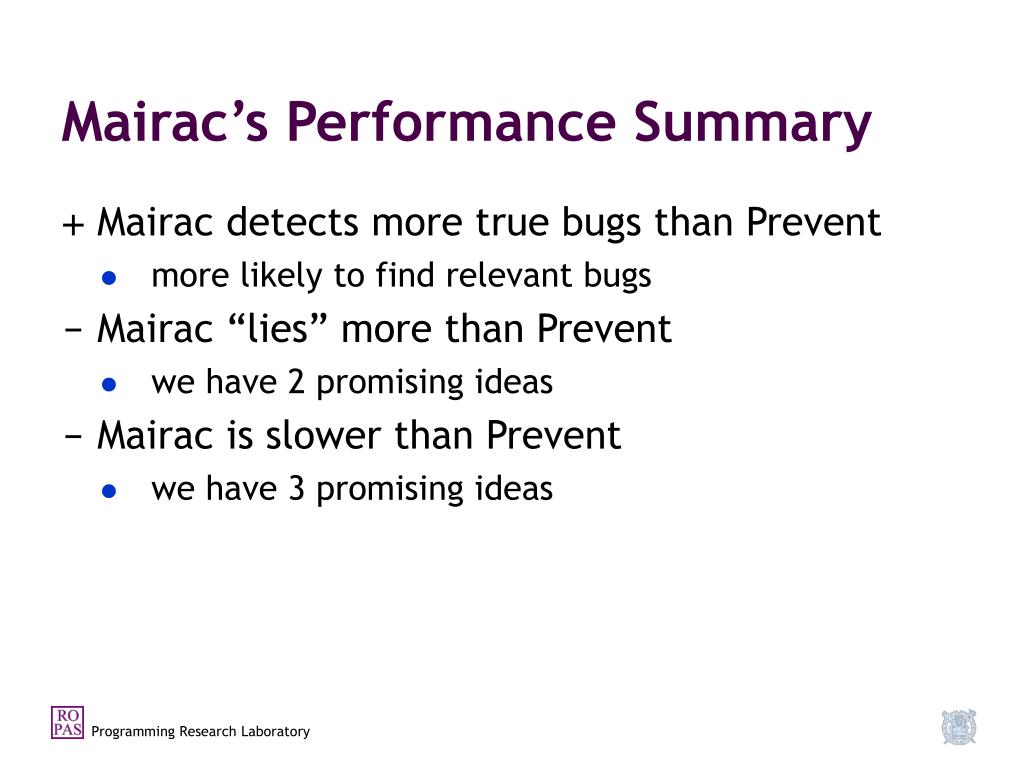

  17. Mairac’s Performance Summary + Mairac detects more true bugs than Prevent • more likely to find relevant bugs - Mairac “lies” more than Prevent • we have 2 promising ideas - Mairac is slower than Prevent • we have 3 promising ideas Programming Research Laboratory

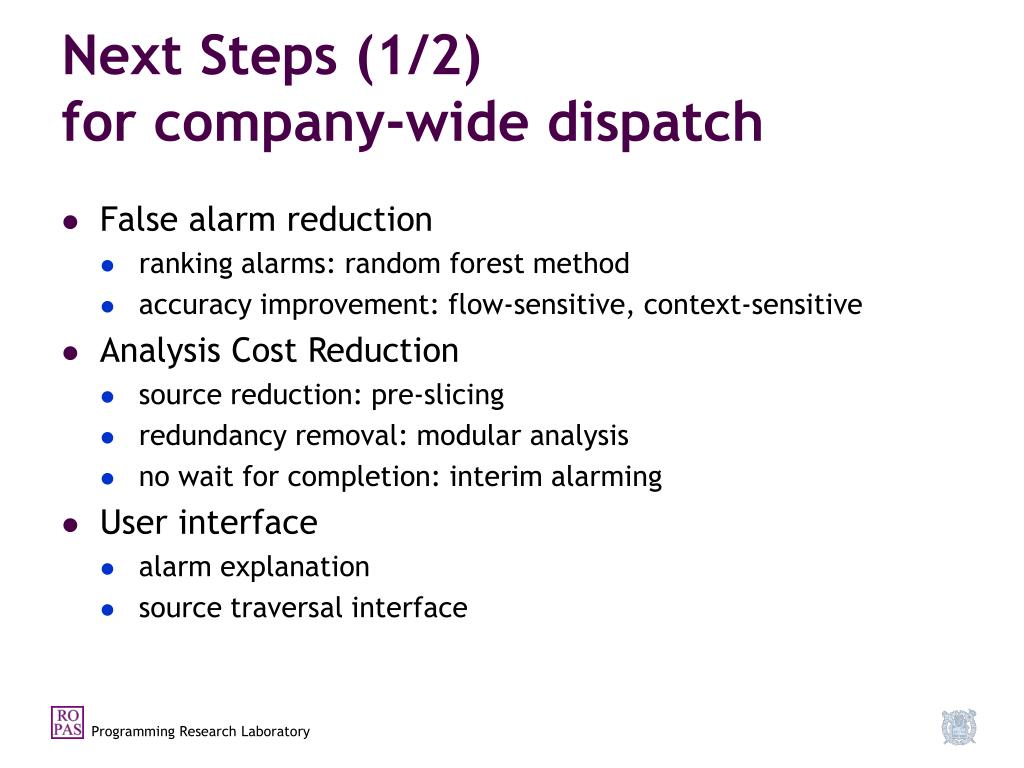

  18. Next Steps (1/2) for company-wide dispatch • False alarm reduction • ranking alarms: random forest method • accuracy improvement: flow-sensitive, context-sensitive • Analysis Cost Reduction • source reduction: pre-slicing • redundancy removal: modular analysis • no wait for completion: interim alarming • User interface • alarm explanation • source traversal interface Programming Research Laboratory

  19. Next Steps (2/2)for company-wide dispatch • All those new improvements • A SQA tool for • buffer overrun/underrun • memory leak • null dereference • uninitialized access • Alliance: Samsung SWC + SNU Ropas Programming Research Laboratory

  20. Thank you. Programming Research Laboratory
