2. Specimen Collection, Handling and Testing

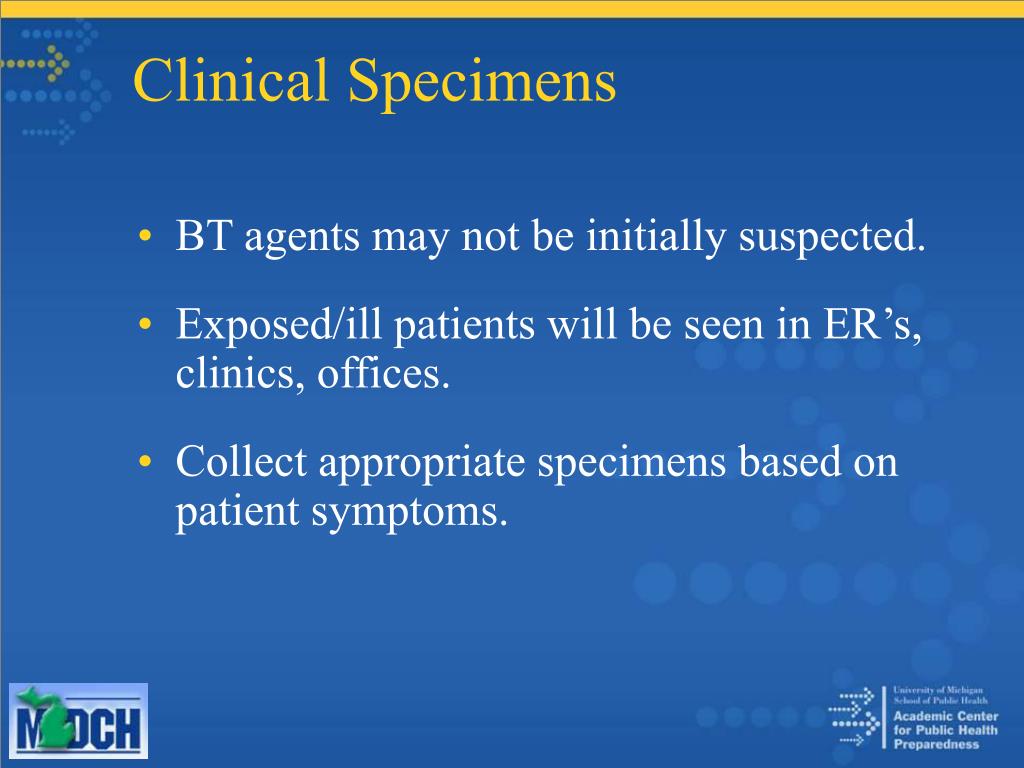

3. Clinical Specimens • BT agents may not be initially suspected. • Exposed/ill patients will be seen in ER’s, clinics, offices. • Collect appropriate specimens based on patient symptoms.

4. Nasal Cultures? • NOT recommended for asymptomatic patients with no known exposure. • Sensitivity and specificity unknown • A positive or negative nasal swab does not predict infection. • Collected for epidemiology purposes ONLY after consult with MDCH.

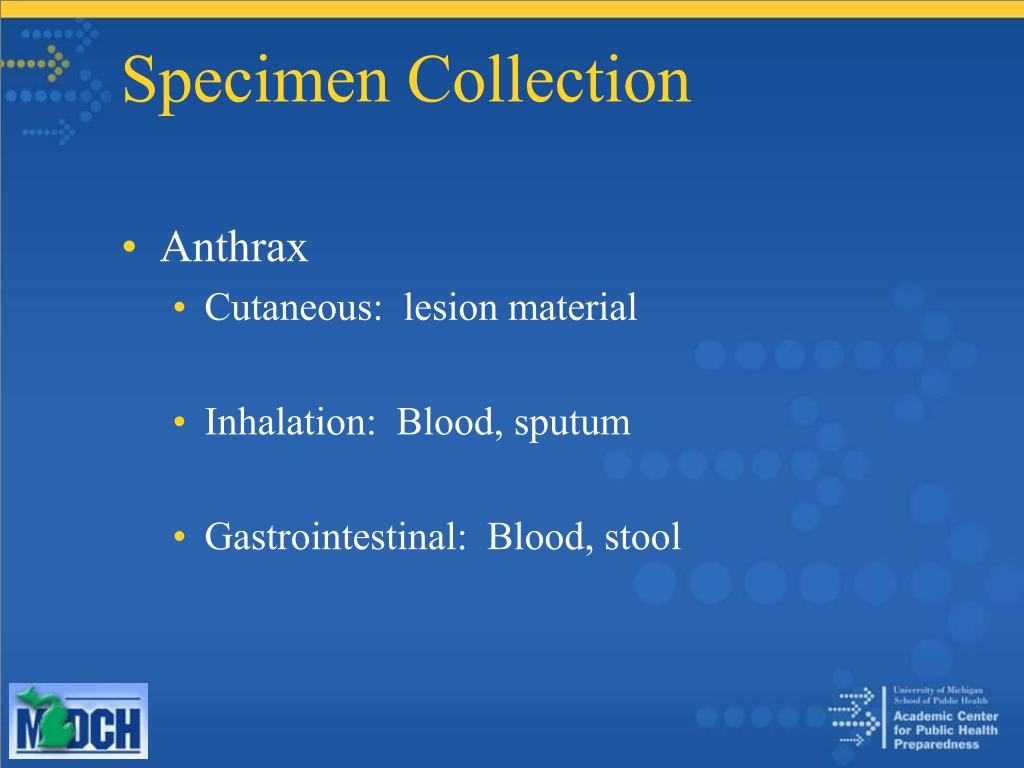

5. Specimen Collection • Anthrax • Cutaneous: lesion material • Inhalation: Blood, sputum • Gastrointestinal: Blood, stool

6. Specimen Collection • Brucellosis • Blood • Bone Marrow • Serum

7. Specimen Collection • Plague • Pneumonic: Bronchial wash, TTA • Septicemic: Blood • Bubonic: Tissue, aspirate

8. Specimen Collection • Tularemia • Blood • Biopsy • Swab

9. Specimen Collection • Botulism Toxin • Stool • Serum • Autopsy • Food

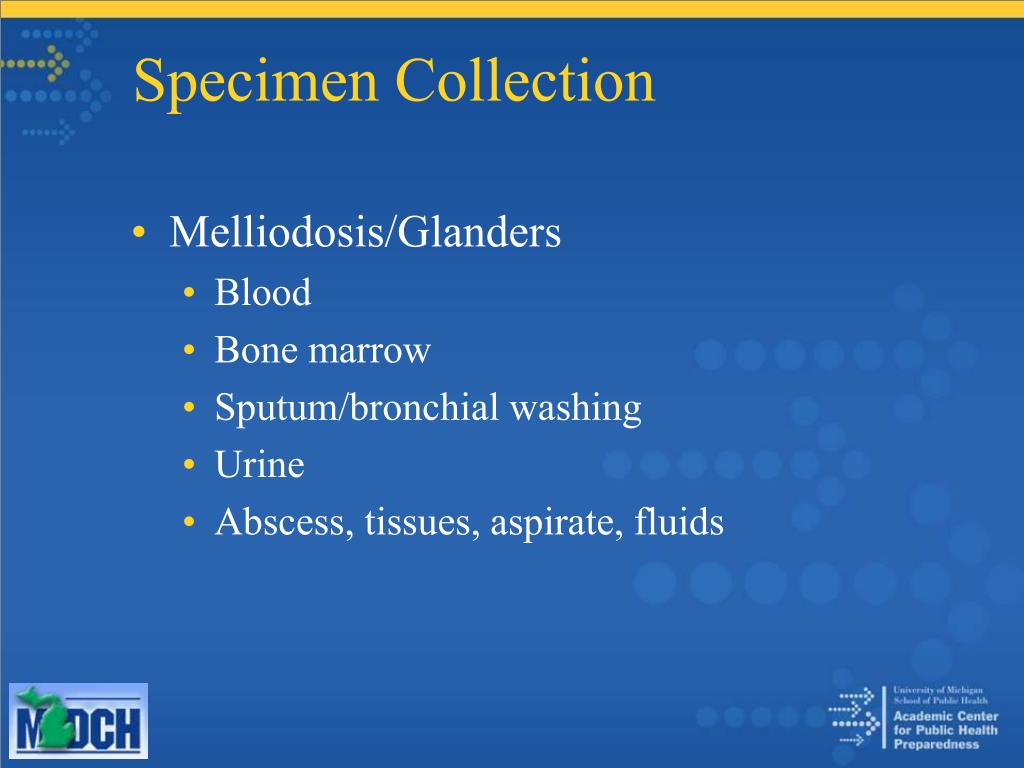

10. Specimen Collection • Melliodosis/Glanders • Blood • Bone marrow • Sputum/bronchial washing • Urine • Abscess, tissues, aspirate, fluids

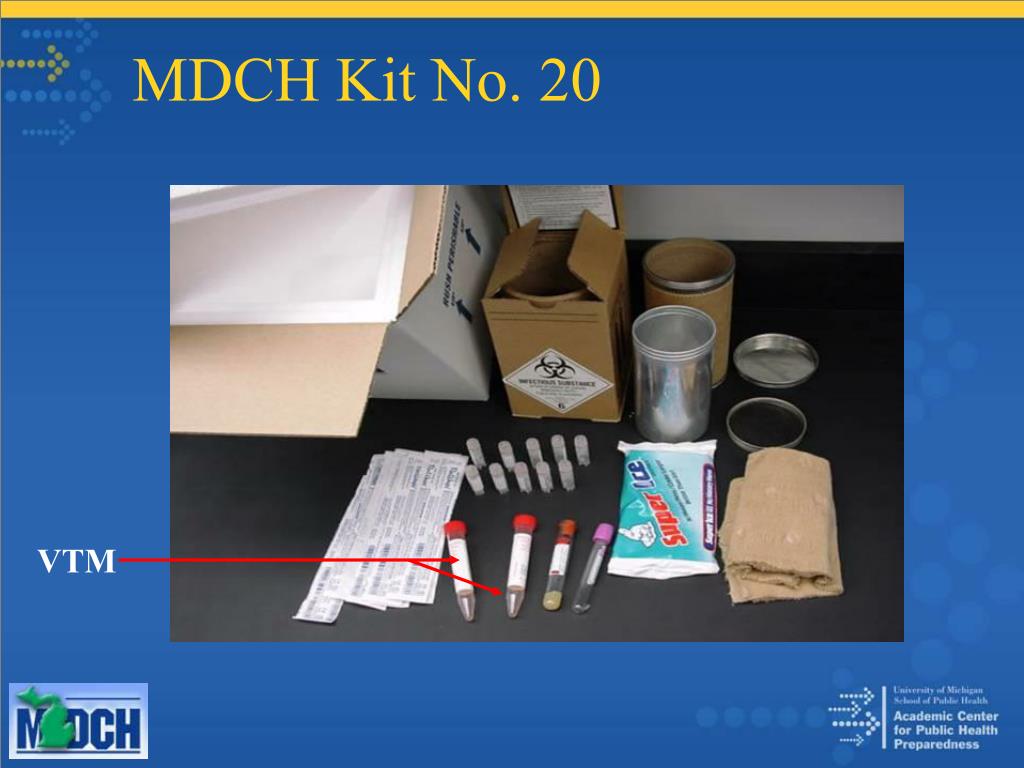

11. VTM MDCH Kit No. 20

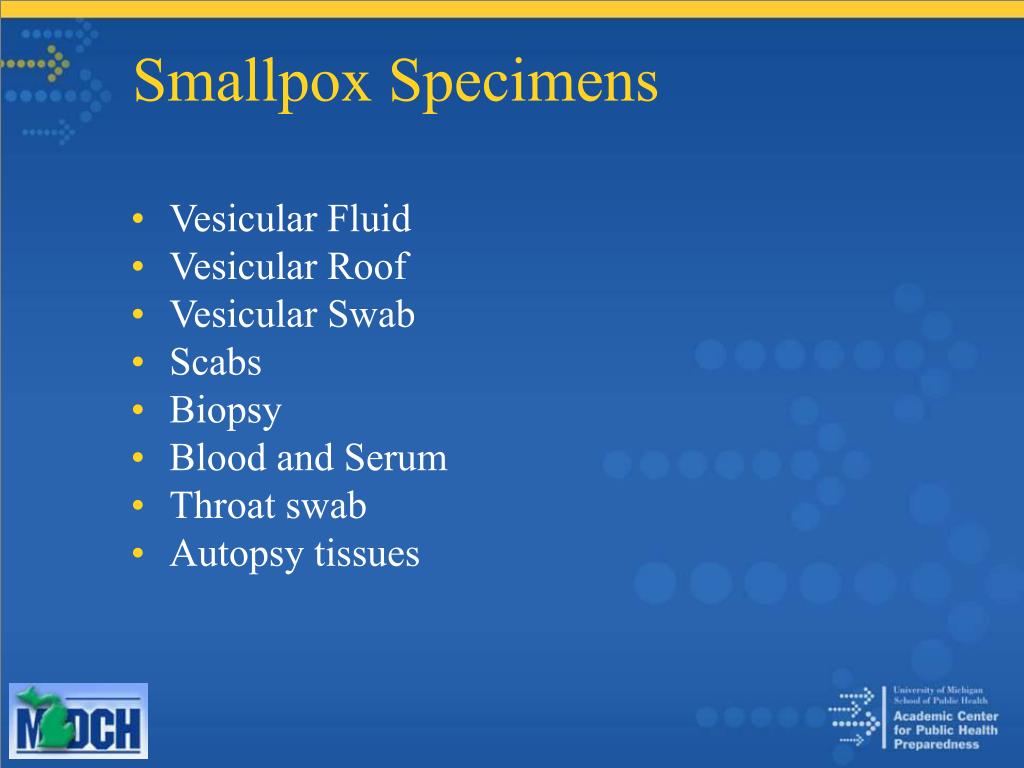

12. Smallpox Specimens • Vesicular Fluid • Vesicular Roof • Vesicular Swab • Scabs • Biopsy • Blood and Serum • Throat swab • Autopsy tissues

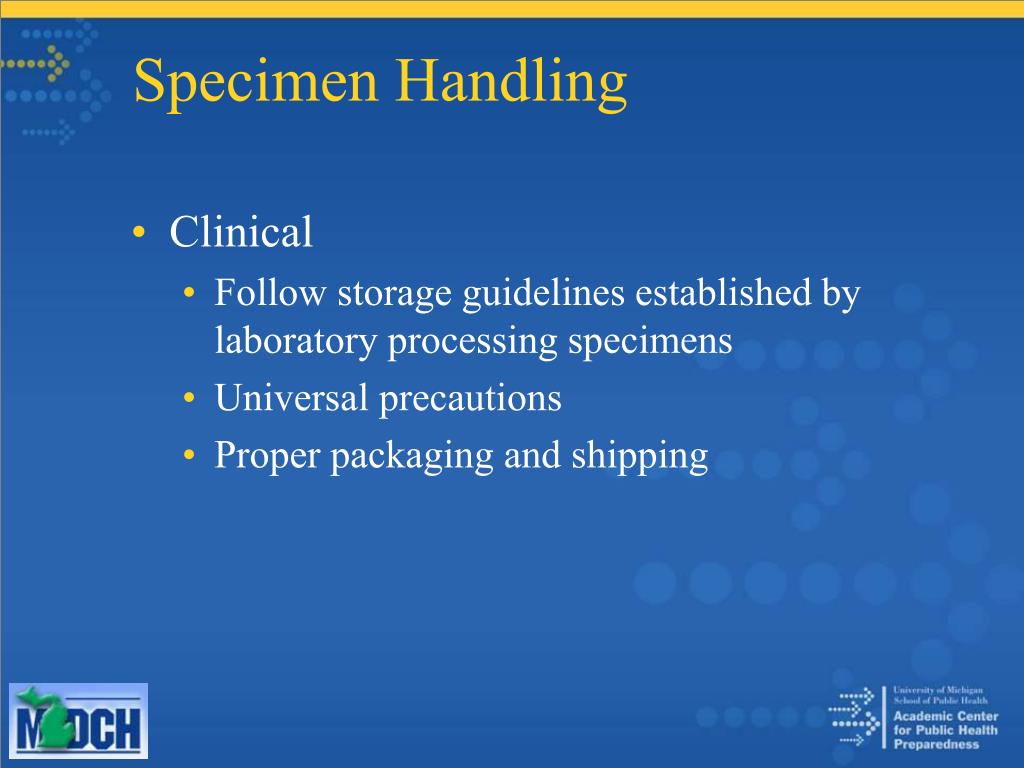

13. Specimen Handling • Clinical • Follow storage guidelines established by laboratory processing specimens • Universal precautions • Proper packaging and shipping

14. Specimen Collection, Processing & ShippingExposure to Chemical Agents

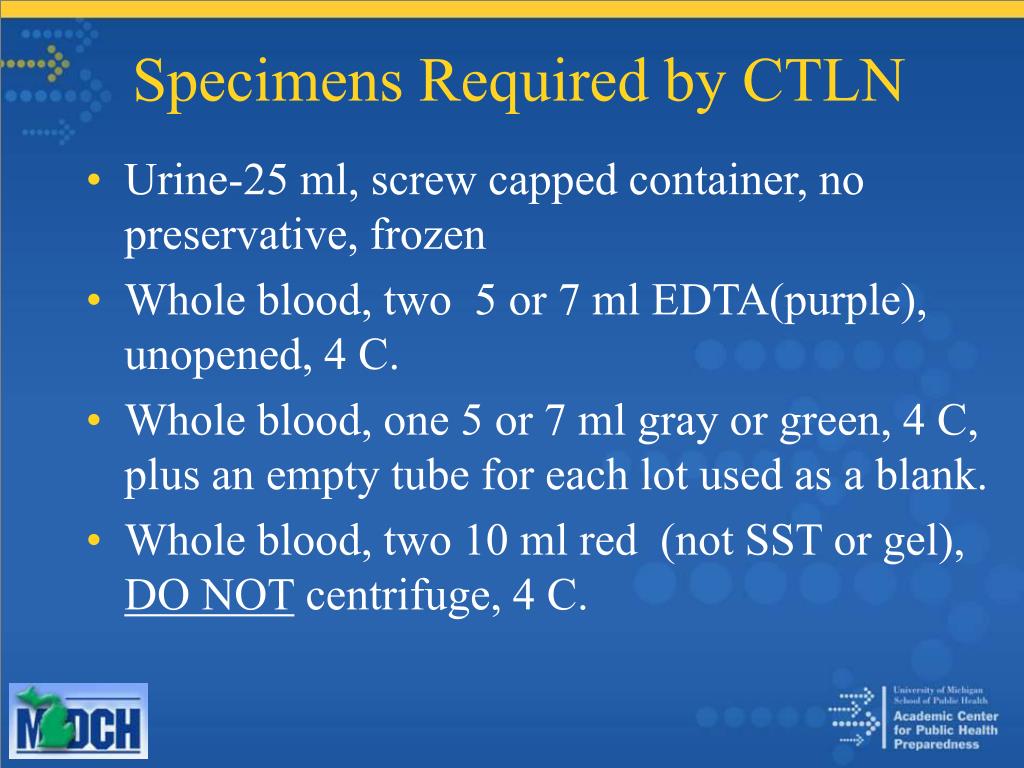

15. Specimens Required by CTLN • Urine-25 ml, screw capped container, no preservative, frozen • Whole blood, two 5 or 7 ml EDTA(purple), unopened, 4 C. • Whole blood, one 5 or 7 ml gray or green, 4 C, plus an empty tube for each lot used as a blank. • Whole blood, two 10 ml red (not SST or gel), DO NOT centrifuge, 4 C.

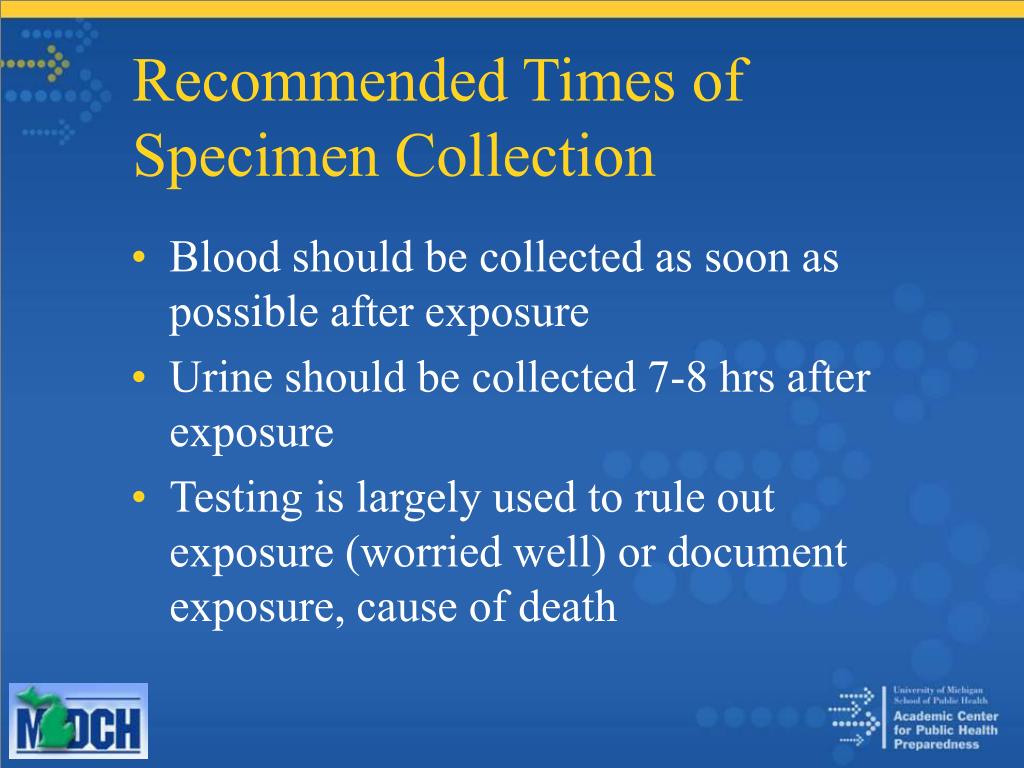

16. Recommended Times of Specimen Collection • Blood should be collected as soon as possible after exposure • Urine should be collected 7-8 hrs after exposure • Testing is largely used to rule out exposure (worried well) or document exposure, cause of death

17. Processing & Shipping (per the CDC for chemical agents) • Before shipping specimens contact MDCH or CDC. • Specimens should be labeled with identification #, collector’s initials, date & time (patient names should not be included). “De-identify”. • Sample identification # & patient names should be maintained by the submitter. • Results will be reported with identification # • Use chain of custody form and forensic tape to seal tubes and packages

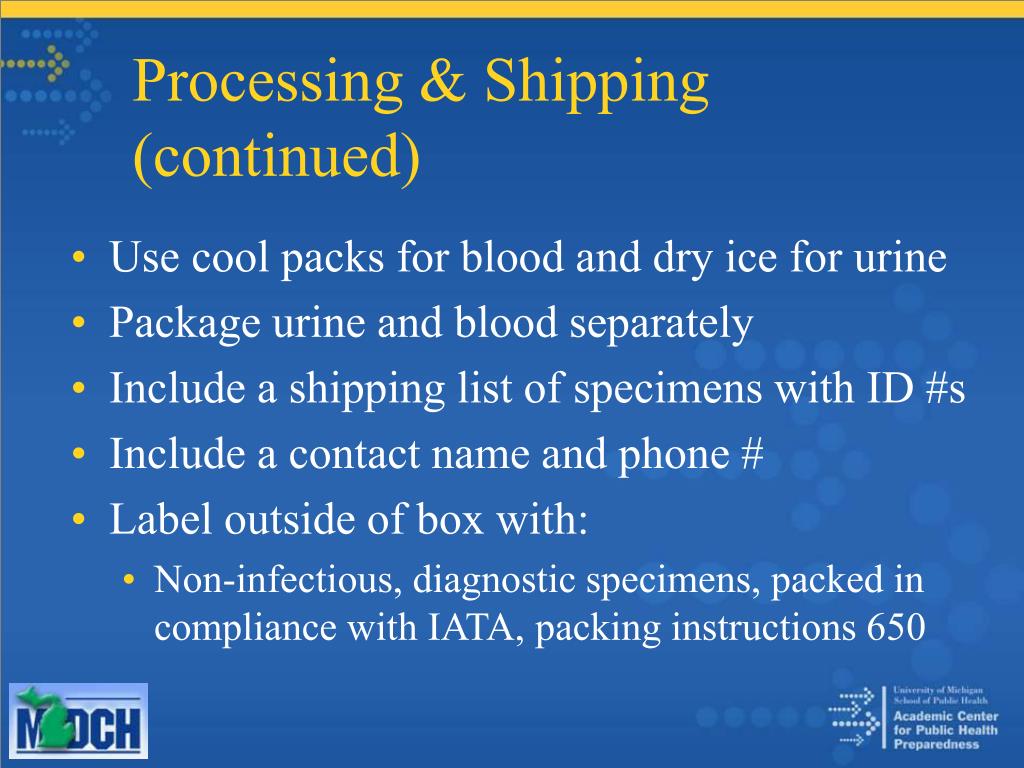

18. Processing & Shipping(continued) • Use cool packs for blood and dry ice for urine • Package urine and blood separately • Include a shipping list of specimens with ID #s • Include a contact name and phone # • Label outside of box with: • Non-infectious, diagnostic specimens, packed in compliance with IATA, packing instructions 650

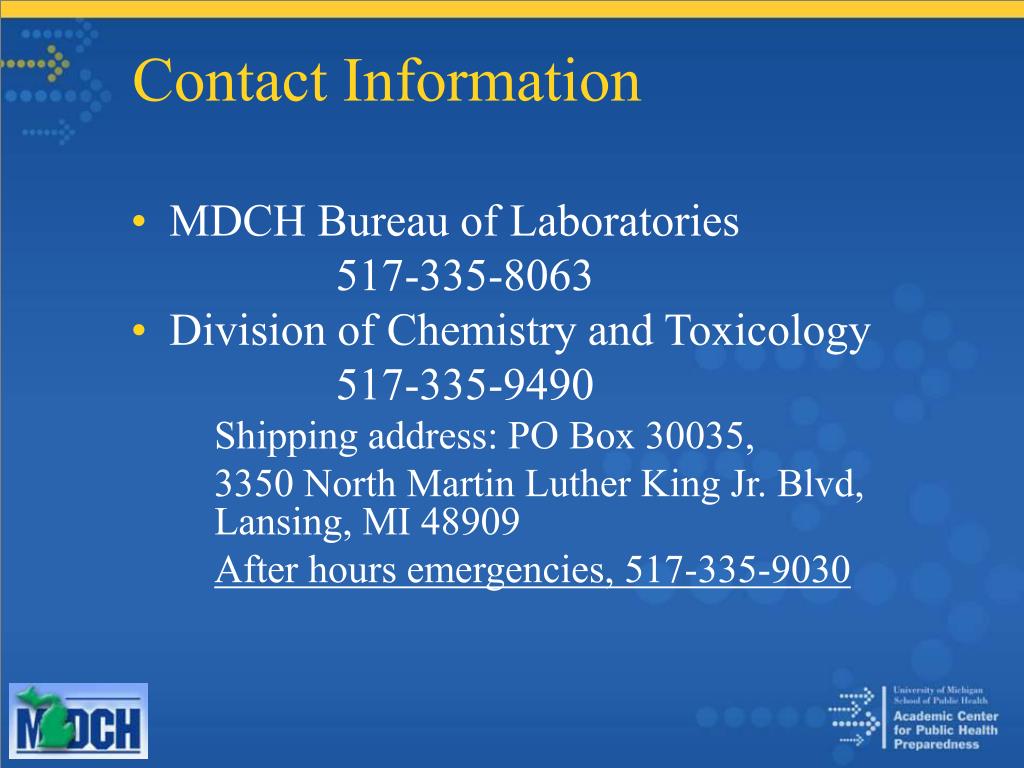

19. Contact Information • MDCH Bureau of Laboratories 517-335-8063 • Division of Chemistry and Toxicology 517-335-9490 Shipping address: PO Box 30035, 3350 North Martin Luther King Jr. Blvd, Lansing, MI 48909 After hours emergencies, 517-335-9030

20. Rapid Toxic Screen: Groups of Chemical Agents • Nerve Agents (metabolites of parent agent) • Sulfur mustards (metabolite) • Nitrogen Mustards (metabolite) • Lewisite Agents • Hydrogen Cyanide • Volatile Agents (Phosgene, Vinyl Chloride) • Heavy Metals (lead, arsenic, cadmium, uranium)

21. Rapid Handheld Equipment for Chemical Agents • Several vendors are now marketing products that may meet this need. • One high profile example is Airport Security instrumentation for explosives, illicit drugs and chemical warfare agents. • Mobile labs for biological and chemical agents are being designed. • Rapid testing is needed to make decisions but confirmation will be required • This area of laboratory testing is unregulated & performed by non-lab personnel

22. What about other Specimens to be Tested for Chemical Agents? • Laboratory expertise and testing capabilities can vary greatly with the specimen type • In human specimens, testing may target metabolites and not the parent compound • In non-clinical testing( unknowns, liquids, solids) testing will likely target parent compound • Foods and veterinary specimens need also be included in the preparedness plan • Funding is needed to develop all of these testing programs

23. Michigan Emergency Management Plan & Laboratory • Office of Public Health Preparedness: provides interdepartmental coordination of preparedness • MI Department of Environmental Quality: environmental, pesticides, chemical, nuclear, water. • MI Department of Agriculture: food safety, • 51st WMD Civil Support Team via MSP (explosives,nuclear, biological, chemical) • MI Poison Centers: Detroit & Grand Rapids, • 800-222-1222

24. Michigan Emergency Management Plan & Lab (continued) • MI Dept Labor & Economic Growth • MSU Diagnostic Center for Population & Animal Health Laboratory: veterinary specimens

25. Safety

26. Safety – Chemical & Infectious Agents • Mixing of infectious and chemical agents is a real possibility in a BT incident • Best solution is still under development • Gamma irradiation of specimens prior to chemical analysis is being evaluated by the CDC

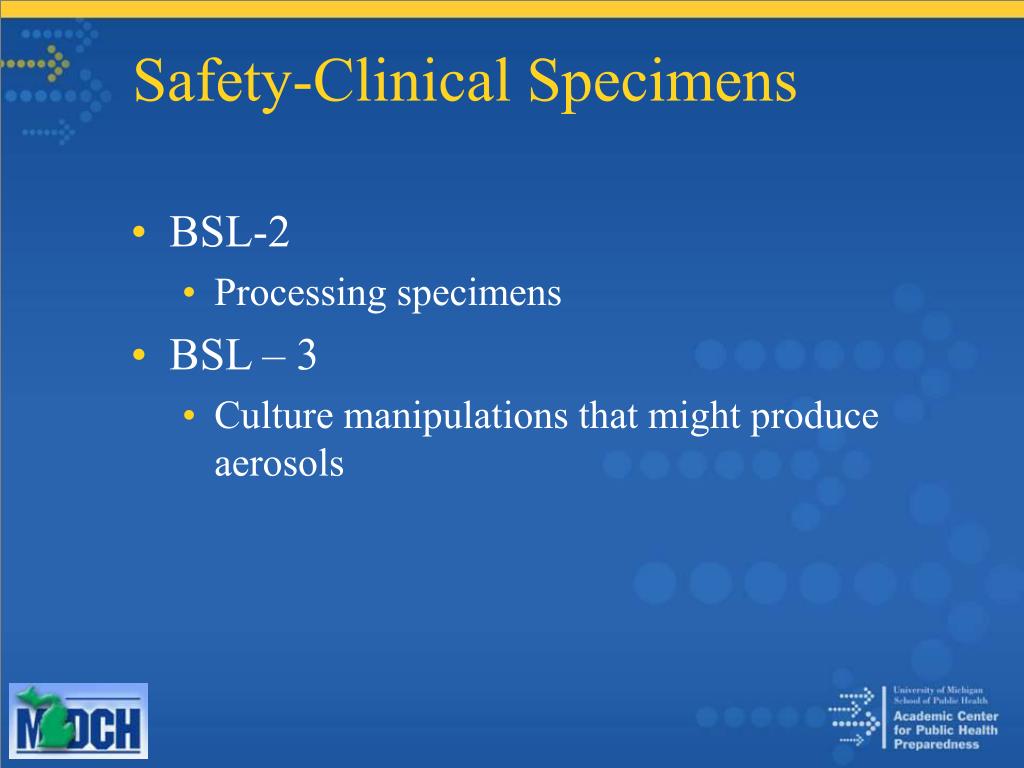

27. Safety-Clinical Specimens • BSL-2 • Processing specimens • BSL – 3 • Culture manipulations that might produce aerosols

28. Safety – Clinical Specimens • Standard Infection Control Practices: • Wash hands • Wear PPE- as appropriate • Process contaminated supplies • Clean and disinfect environmental surfaces • Follow occupational health/blood-borne pathogen procedures

29. Environmental Testing for BT Agents • What do you do if you have a suspicious item? • Notify law enforcement • What will they do? • Threat assessment, package and transport sample. • Compile a list of contacts to the item

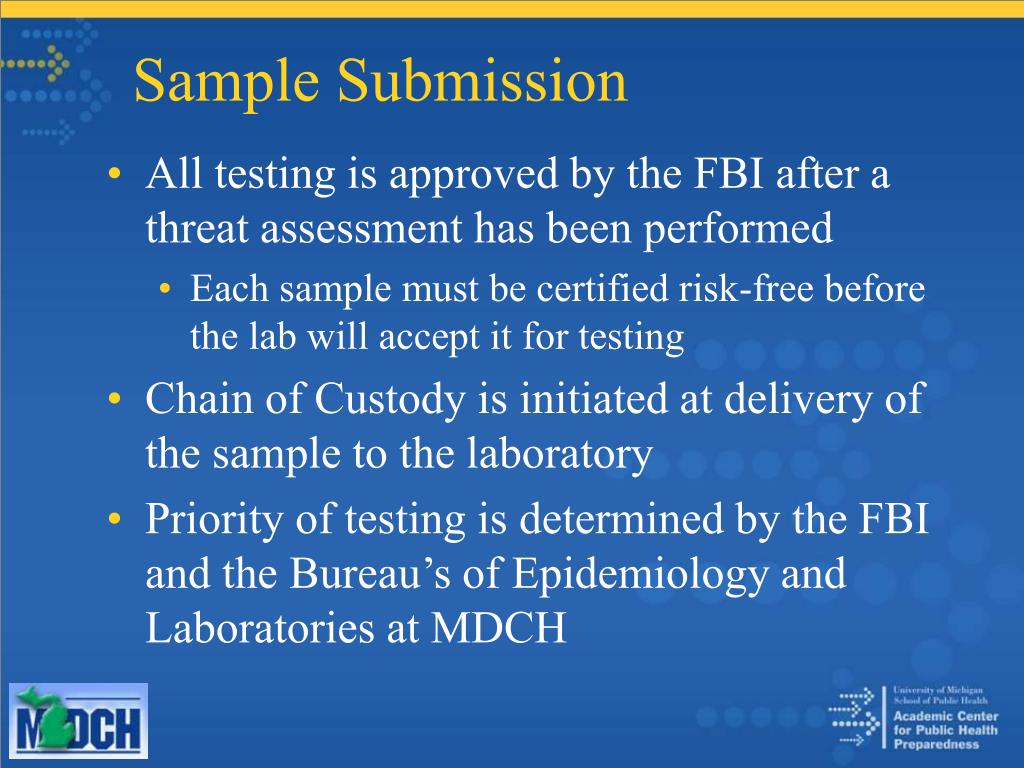

30. Sample Submission • All testing is approved by the FBI after a threat assessment has been performed • Each sample must be certified risk-free before the lab will accept it for testing • Chain of Custody is initiated at delivery of the sample to the laboratory • Priority of testing is determined by the FBI and the Bureau’s of Epidemiology and Laboratories at MDCH

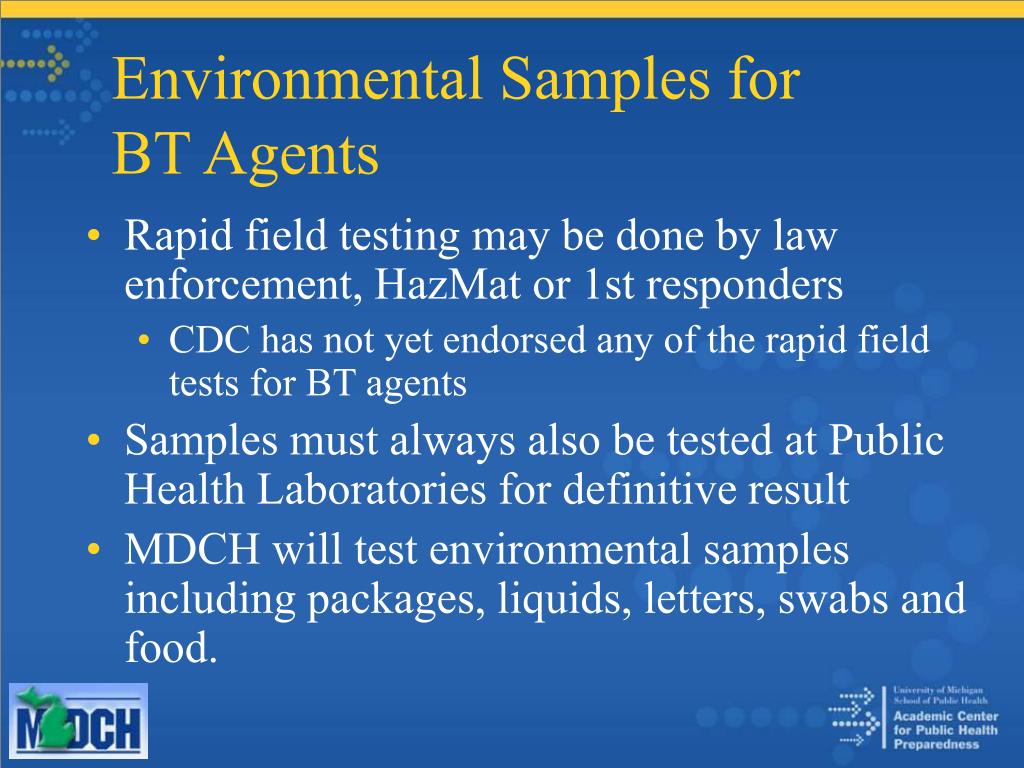

31. Environmental Samples for BT Agents • Rapid field testing may be done by law enforcement, HazMat or 1st responders • CDC has not yet endorsed any of the rapid field tests for BT agents • Samples must always also be tested at Public Health Laboratories for definitive result • MDCH will test environmental samples including packages, liquids, letters, swabs and food.

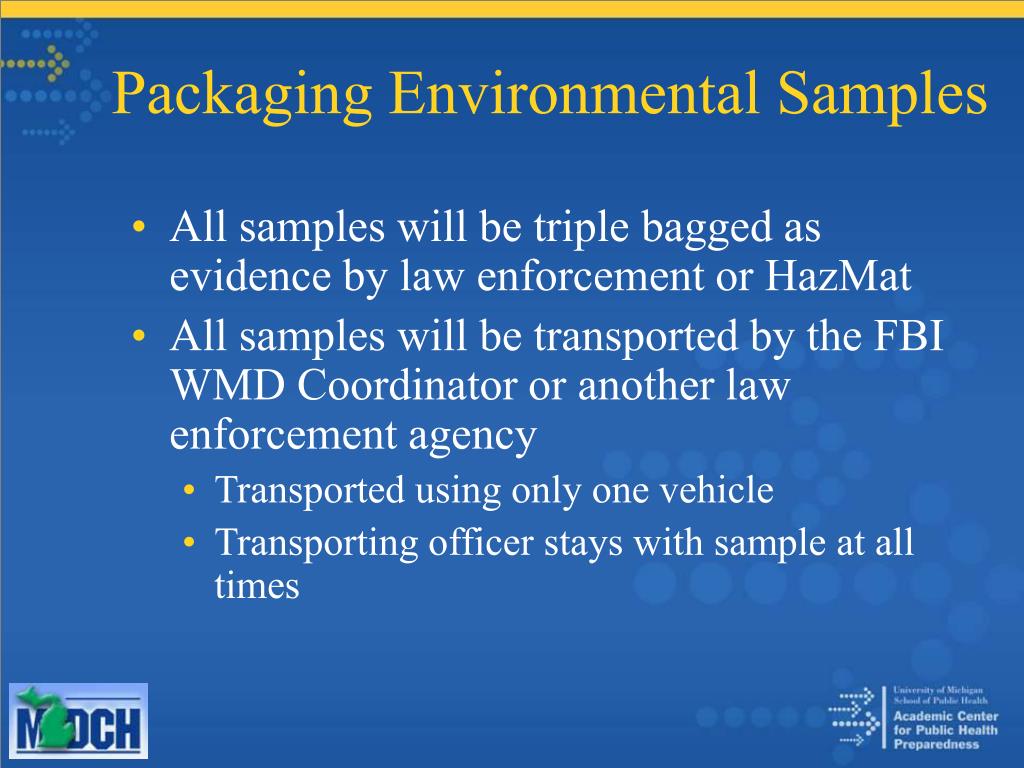

32. Packaging Environmental Samples • All samples will be triple bagged as evidence by law enforcement or HazMat • All samples will be transported by the FBI WMD Coordinator or another law enforcement agency • Transported using only one vehicle • Transporting officer stays with sample at all times

33. Environmental Laboratory Testing • Samples obtained in an investigation will go to the MDCH laboratory for testing • Samples submitted will be preserved as evidence • Samples will be retained at MDCH until a final negative report is issued • Samples are released to the FBI • If part of a law enforcement investigation, samples are sent to the MSP Forensic Laboratory or an FBI facility • If no law enforcement action is to be taken, samples are returned to the submitter or destroyed

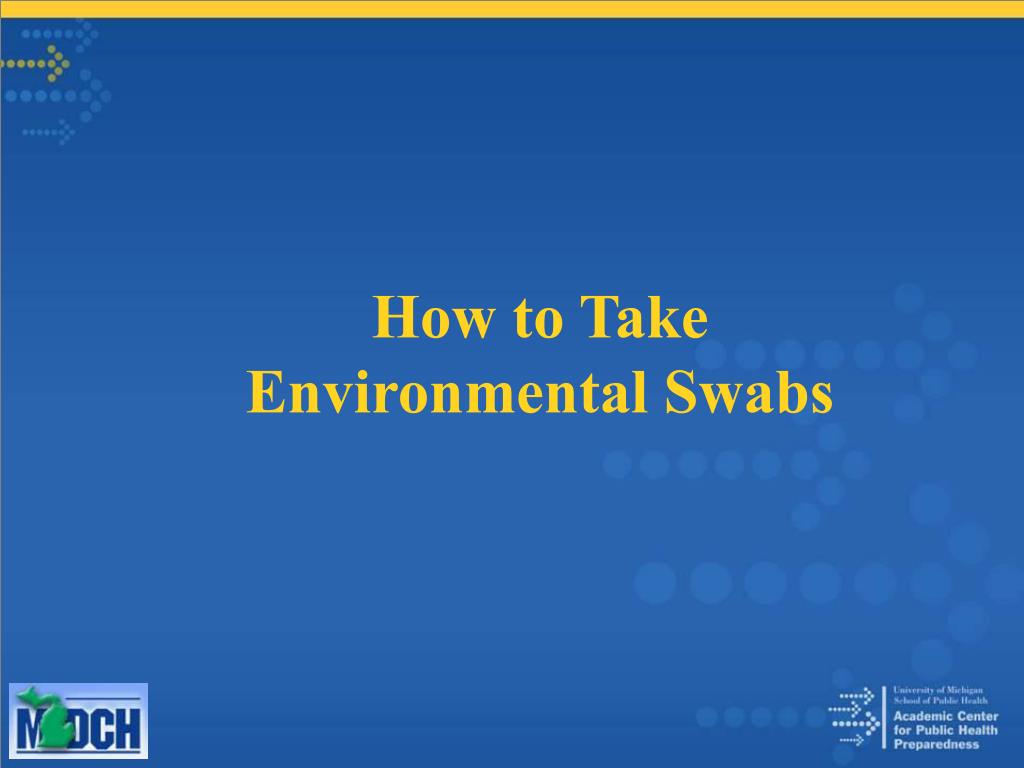

34. How to Take Environmental Swabs

42. Lab Results • Reports on environmental specimens submitted to MDCH go to: • FBI • Local Public Health Department • MDCH Bureau of Epidemiology

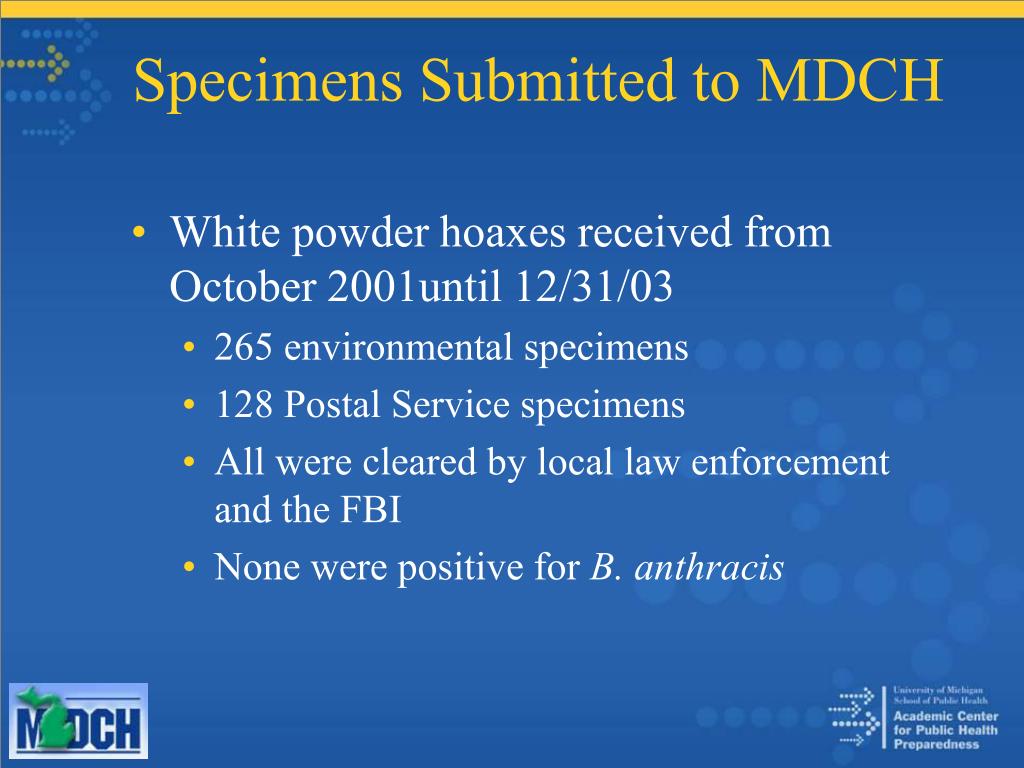

43. Specimens Submitted to MDCH • White powder hoaxes received from October 2001until 12/31/03 • 265 environmental specimens • 128 Postal Service specimens • All were cleared by local law enforcement and the FBI • None were positive for B. anthracis

44. Rapid Hand-Held Assays forBiological Specimens • HHS – does not recommend use • False positives • False negatives • Sensitivity/specificity • Requires confirmation

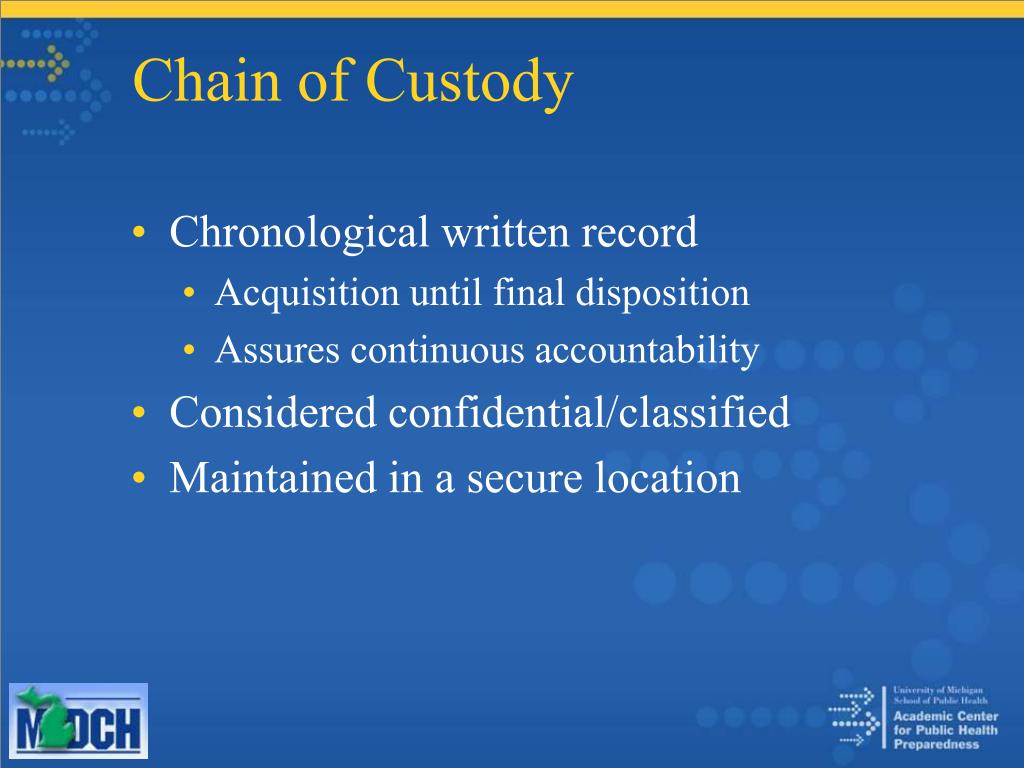

45. Chain of Custody • Chronological written record • Acquisition until final disposition • Assures continuous accountability • Considered confidential/classified • Maintained in a secure location

46. Chain of Custody • Each chain of custody form is agency specific • If a sample is transferred to a second agency that agency will start another chain of custody form for the time that the sample remains in its custody • Each agency is responsible for retaining records regarding sample

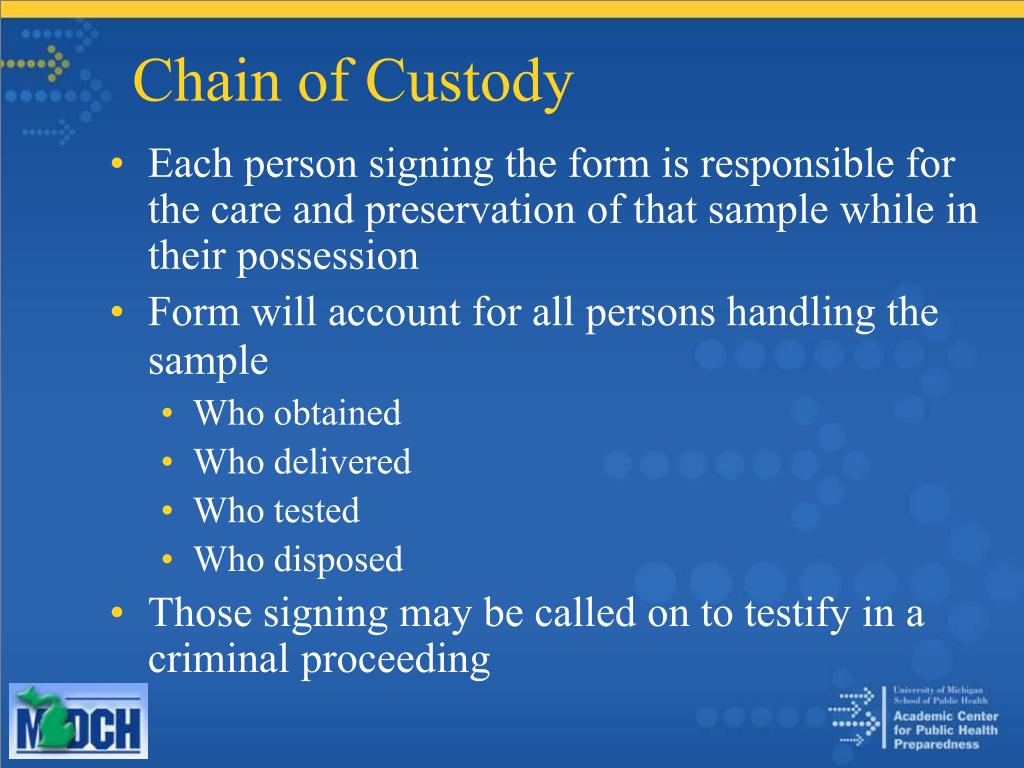

47. Chain of Custody • Each person signing the form is responsible for the care and preservation of that sample while in their possession • Form will account for all persons handling the sample • Who obtained • Who delivered • Who tested • Who disposed • Those signing may be called on to testify in a criminal proceeding

48. Chain of Custody • Form will include: • Sample information • Source • Condition • Collecting/Submitting agency information • Contact information • Internal and external transfer information • Transferred to whom, for what purpose • Destruction of sample information

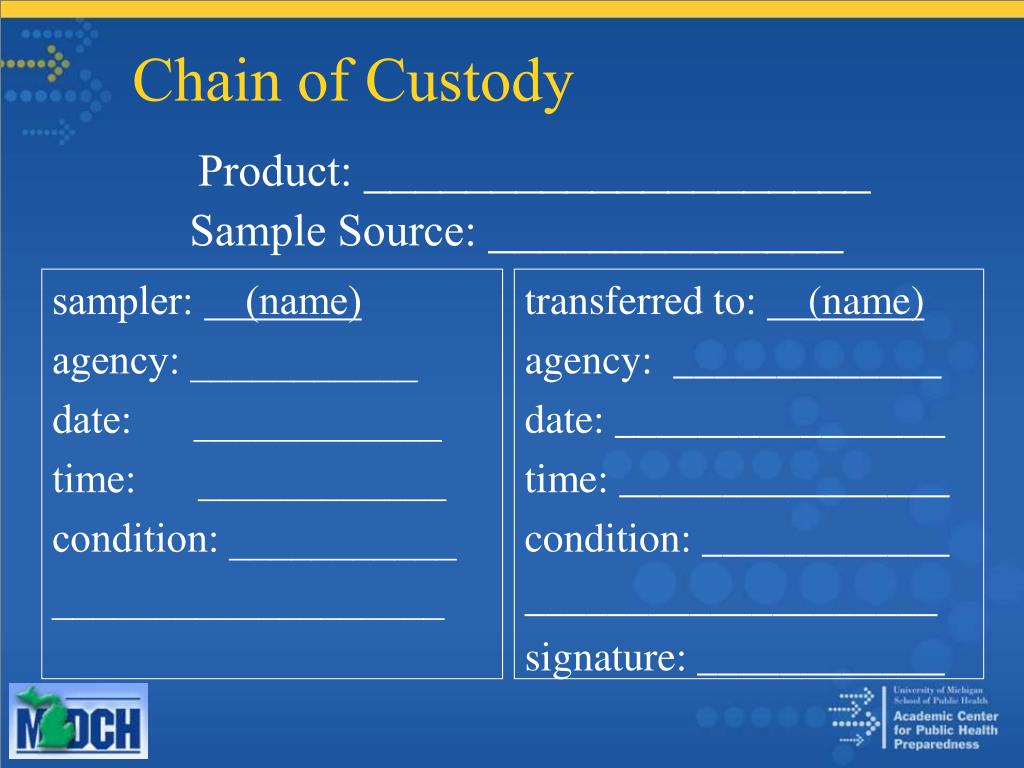

49. sampler: (name) agency: ___________ date: ____________ time: ____________ condition: ___________ ___________________ Chain of Custody Product: ____________________ Sample Source: ______________ transferred to: (name) agency: _____________ date: ________________ time: ________________ condition: ____________ ____________________ signature: ____________

50. Helpful Websites • www.bt.cdc.gov/ • www.dhs.cahwnet.gov/ps/deodc/ehlb/cabu • www.cbwinfo.com/Chemical/CWList.shtml • www.asm.org • www.upmc-biosecurity.org • www.mipreparedness.org
