  1. WP4: Instrumentation Tânia Melo Mendonça

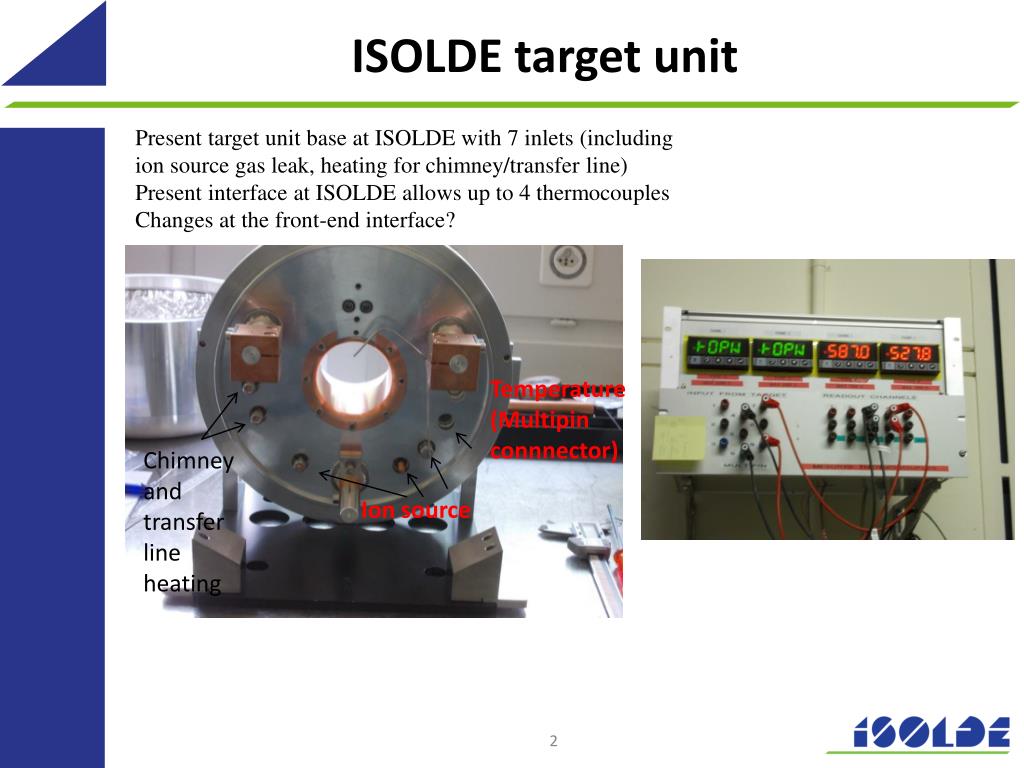

  2. ISOLDE target unit Present target unit base at ISOLDE with 7 inlets (including ion source gas leak, heating for chimney/transfer line) Present interface at ISOLDE allows up to 4 thermocouples Changes at the front-end interface? Temperature (Multipinconnnector) Chimneyandtransferlineheating Ionsource

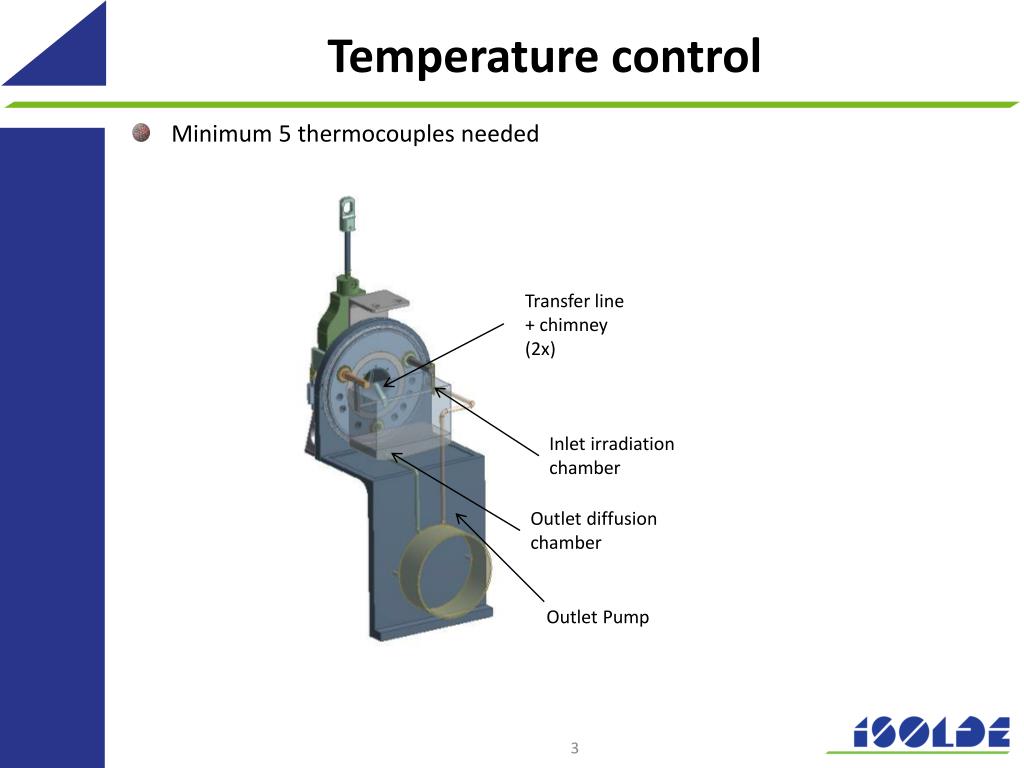

  3. Temperaturecontrol • Minimum 5 thermocouplesneeded Transferline + chimney (2x) Inletirradiationchamber Outletdiffusionchamber OutletPump

  4. Flowcontrol • - Flow rate measurement at entrance of irradiation chamber – flow meter (e.g. Venturi tube) • - Pressure in the pump • LBE level in the diffusion chamber – sensor • Leak detection Inletirradiationchamber Interlock to be included in case of flow failure – cut on proton beam Sensor atdiffusionchamber
