Understanding the Midsegment Theorem in Triangles

The Midsegment Theorem states that the segment connecting the midpoints of two sides of a triangle is parallel to the third side and half its length. This theorem is crucial for solving various geometric problems involving triangles. For instance, given two segments, UW = 4x - 1 and YZ = 5x + 4, we can determine their lengths using algebraic methods. By applying the theorem's properties, we can find relationships between the sides of the triangle and solve for unknown variables effectively.

urielle-jenkins
Télécharger la présentation

Understanding the Midsegment Theorem in Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 5.1 – MIDSEGMENT THEOREM

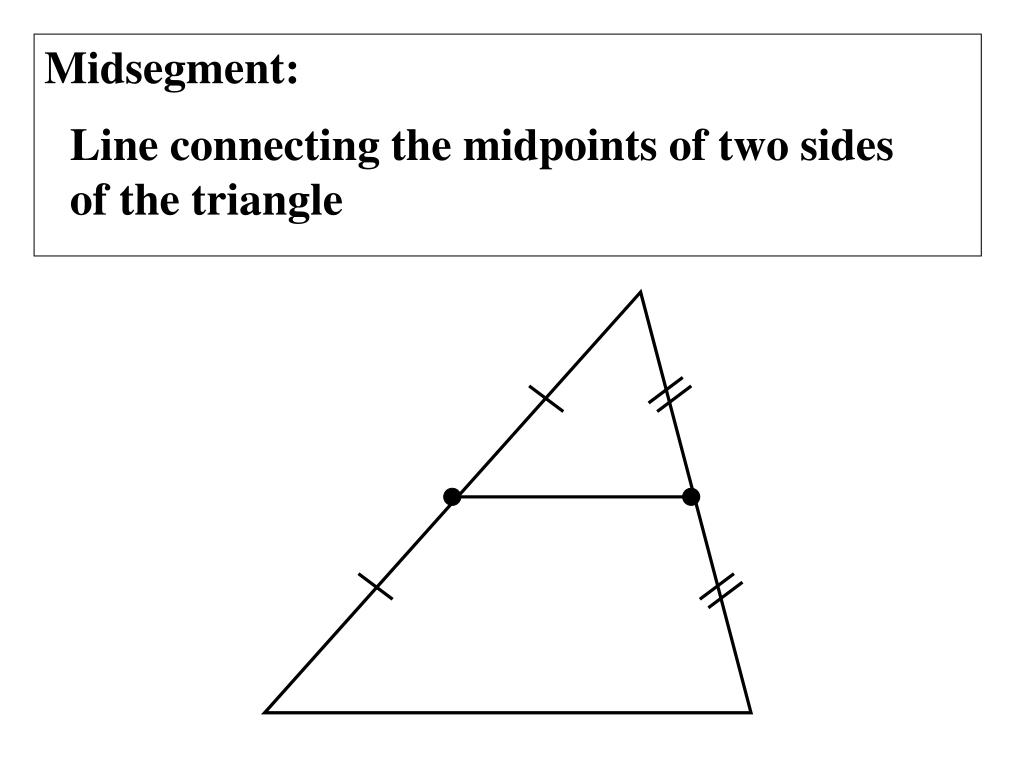

  2. Midsegment: Line connecting the midpoints of two sides of the triangle

  3. Midsegment Theorem: The segment connecting the midpoints of two sides of a triangle is parallel to the third side and half as long as that side. x 2x

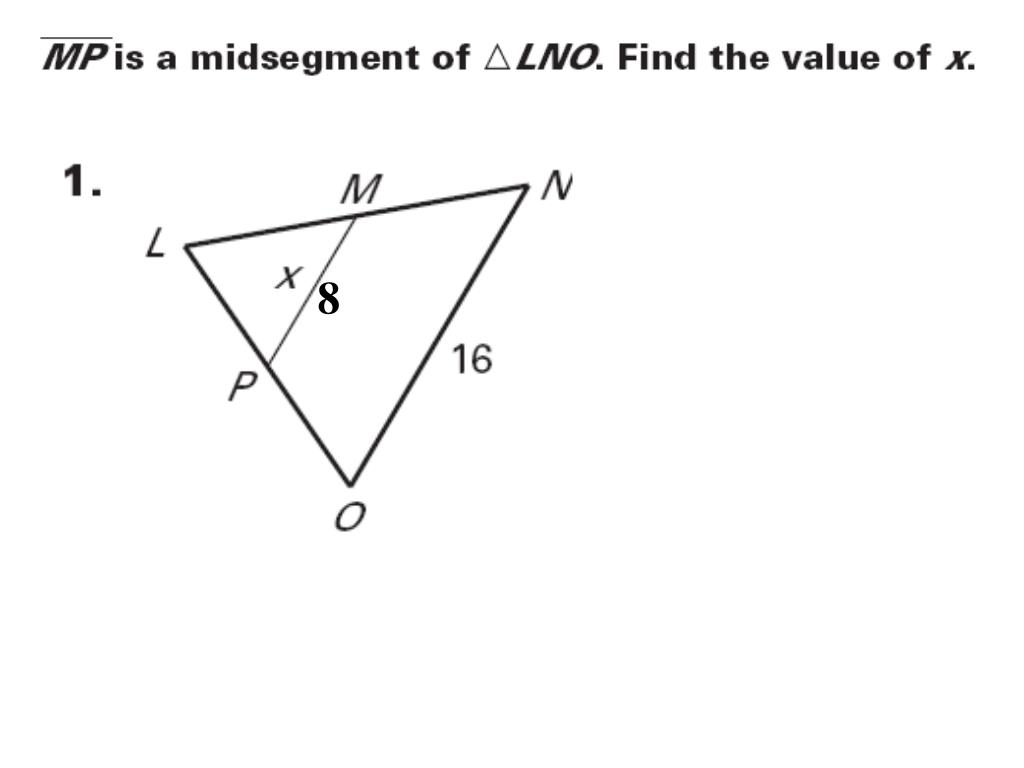

  4. 8

  5. 14

  6. 4

  7. If UW= 4x – 1 and YZ = 5x + 4, find UW and YZ. 2(4x – 1) 5x + 4 = 5x + 4 5x + 4 = 8x – 2 4 = 3x – 2 6 = 3x 4x – 1 2 = x 4(2)-1 = 7 UW = 5(2)+4 = 14 YZ =

  8. If YX= 8x – 2 and VW = 2x + 11, find YX and VW. 2(2x + 11) 8x – 2 = 8x – 2 = 4x + 22 4x – 2 = 22 8x – 2 4x = 24 2x + 11 x = 6 2(6)+11 = 23 VW = 46 8(6)-2 = YX =

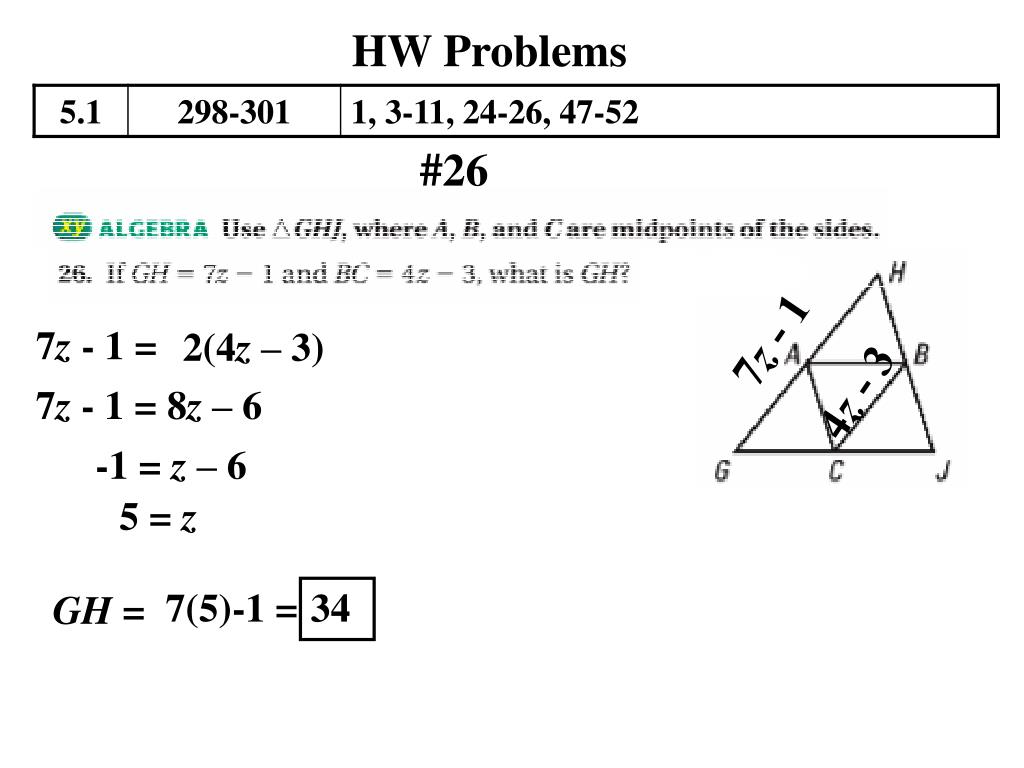

  9. HW Problems #26 7z - 1 7z - 1 = 2(4z – 3) 4z - 3 7z - 1 = 8z – 6 -1 = z – 6 5 = z 7(5)-1 = 34 GH =
