Jaw Relations

Jaw Relations. The relation between the two jaws are called JAW RELATIONS. Significance of recording jaw relation. When teeth are lost due to various reasons We can see that the space occupied by the teeth is empty. Jaw relations. Our aim is to restore the lost structure

urit
Télécharger la présentation

Jaw Relations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

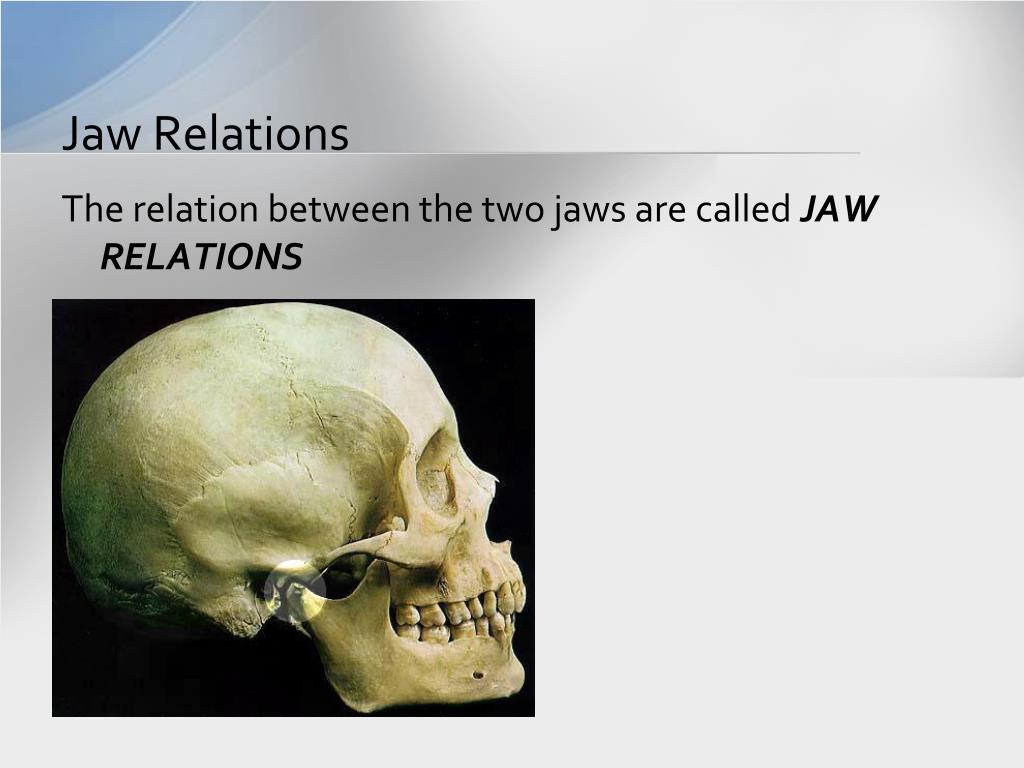

  1. Jaw Relations The relation between the two jaws are called JAW RELATIONS

  2. Significance of recording jaw relation When teeth are lost due to various reasons We can see that the space occupied by the teeth is empty

  3. Jaw relations

  4. Our aim is to restore the lost structure very close to what was present

  5. Pre-requisites for Jaw Relations in Edentulous Patients It is a clinical step. For it to be done we need to have Record Blocks for both upper and lower casts. They need to be prepared to the prescribed dimensions.

  6. Parts of a Record Block Record Block + Record Base Occlusion Rims

  7. Materials in record base construction • Temporary Record Bases • These are materials which will be replaced during the final processing. They WILL NOT be part of the finished denture. • E.g., Shellac, Light-cure acrylic resin, Self-cure acrylic resin • Permanent Record Bases • These are bases which WILL REMAIN as part of the final denture. • E.g., Heat-cure acrylic resin, Cast metal Bases.

  8. JAW RELATIONS There are 3 Jaw Relations Orientation Relation Vertical Relation Horizontal Relation

  9. ORIENTATION RELATION To record Orientation one must use a FACEBOW. To take advantage of the use of a facebow we need an articulator that accepts a facebow transfer (a SEMI-ADJUSTABLE ARTICULATOR).

  10. What is an Occlussal Plane? The Occlussal Plane is the plane where the Occlussal aspect of the teeth will be.

  11. How can I check parallelism of the Occlussal Plane? A device helps us to visualize this parallelism. It is called the Fox Plane

  12. Posterior occlussal plane: Parallel to the ala tragus line .

  13. VERTICAL RELATIONS

  14. Vertical Dimension of Occlusion The vertical dimension of the face when the teeth are in contact . This is what we do NOT know because there are NO teeth!!

  15. Effects of Improper Registration of Vertical Dimension of Occlusion A . High Vertical Dimension Of Occlusion leads to: • There excessive display of the teeth and denture base. • Difficulty in swallowing. • Muscular fatigue. • Interference with speech . • Clicking of teeth on mastication and speech . • Pain under the denture base and trauma to the supporting structures . • High Vertical Dimension accelerates bone resorption. • TMJ problems.

  16. Methods of measuring Vertical Dimension

  17. HORIZONTAL RELATION • Centric Relation • Eccentric Relations • Right Lateral and Left Lateral Relation • Protrusive Relation

  18. Significance of the Centric Relation The Centric Relation Position is important because - • Centric Relation is a functional position • Centric Relation is guided into by the muscles and ligaments and so is verifiable and repeatable. • Centric Relation for a given Vertical Dimension . • Centric Relation is the starting point for developing the occlusion.

  19. Methods Of Centric Relation Registration • Wax registration method . • Graphic tracing method . • Chew - in or functional method .

  20. Jaw relation record transferred to the articulator
