  1. Figures – Chapter 6

  2. Figure 6.1 The architecture of a packing robot control system

  3. Figure 6.2 The Model-View-Controller (MVC) pattern

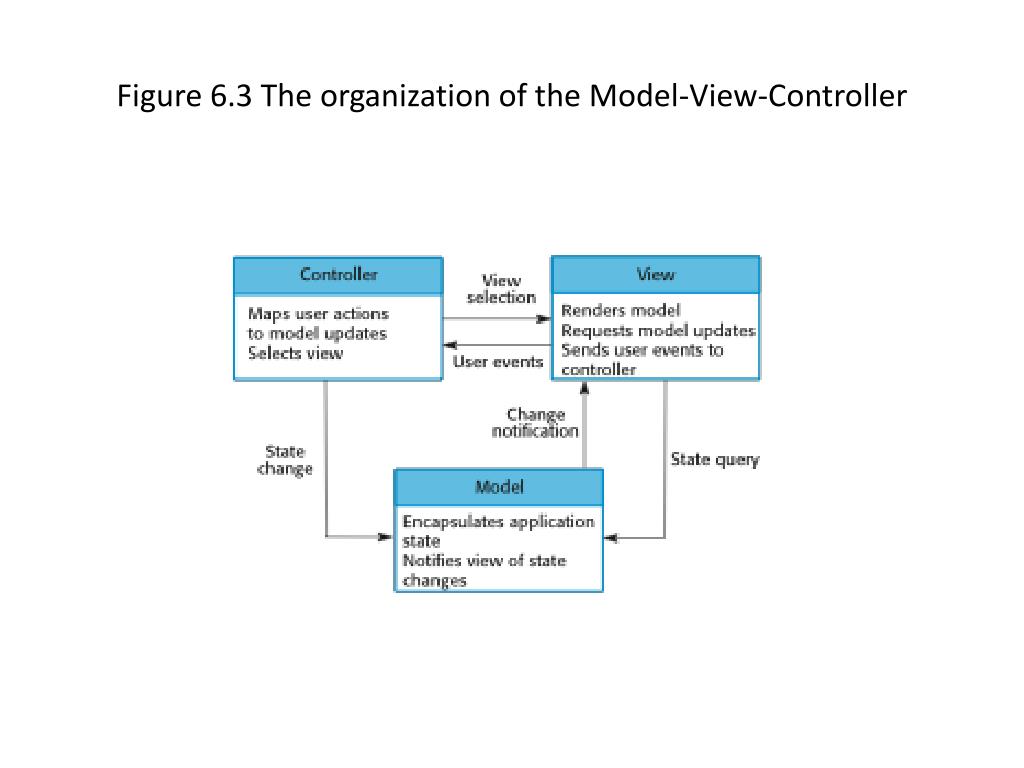

  4. Figure 6.3 The organization of the Model-View-Controller

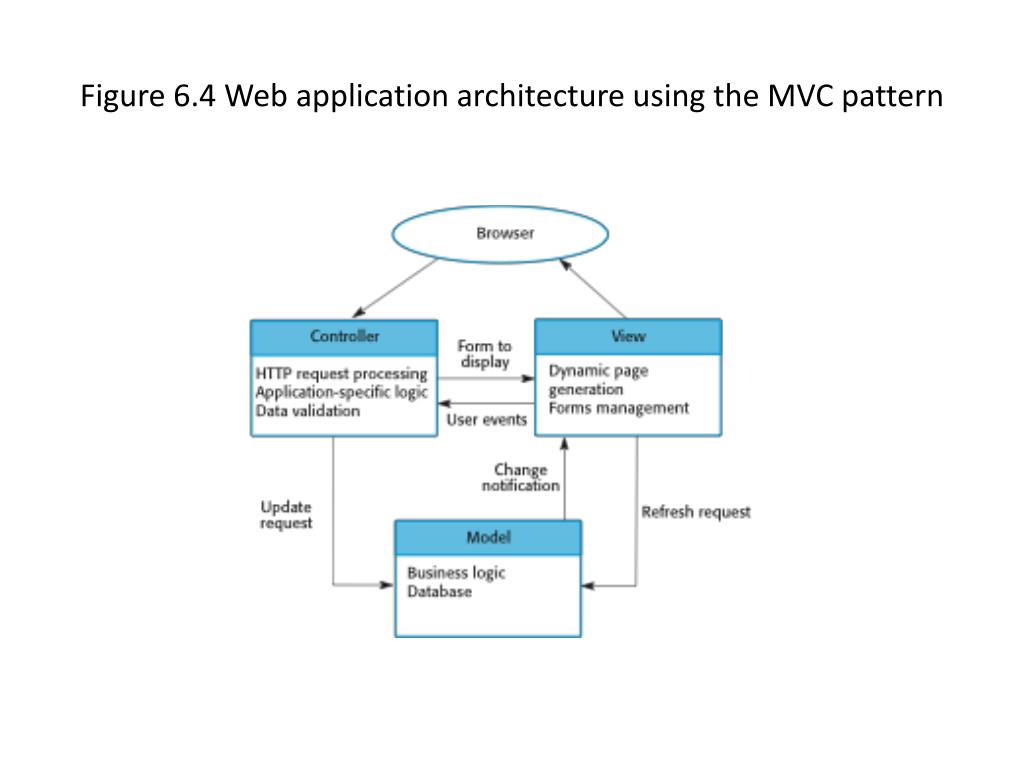

  5. Figure 6.4 Web application architecture using the MVC pattern

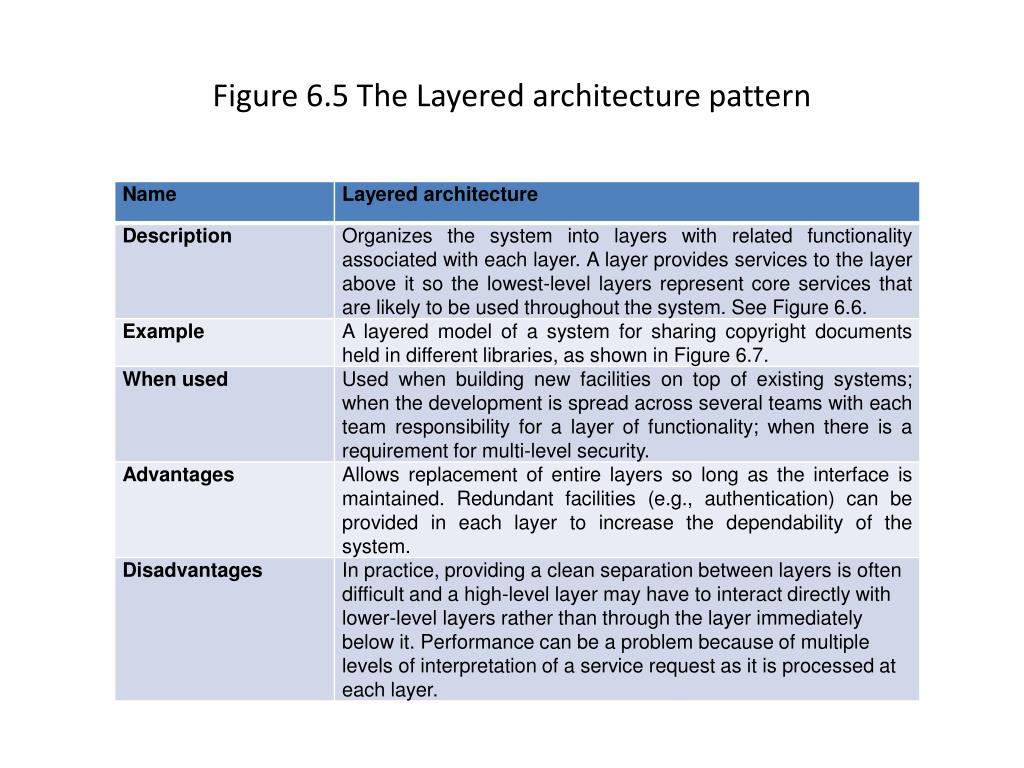

  6. Figure 6.5 The Layered architecture pattern

  7. Figure 6.6 A generic layered architecture

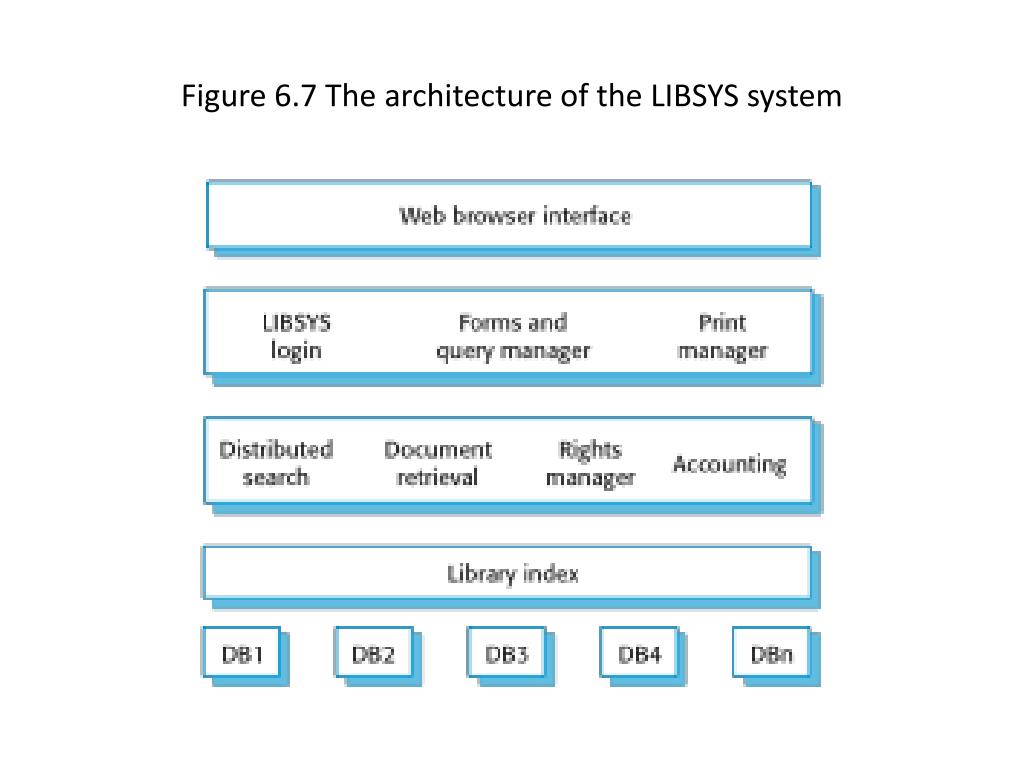

  8. Figure 6.7 The architecture of the LIBSYS system

  9. Figure 6.8 The Repository pattern

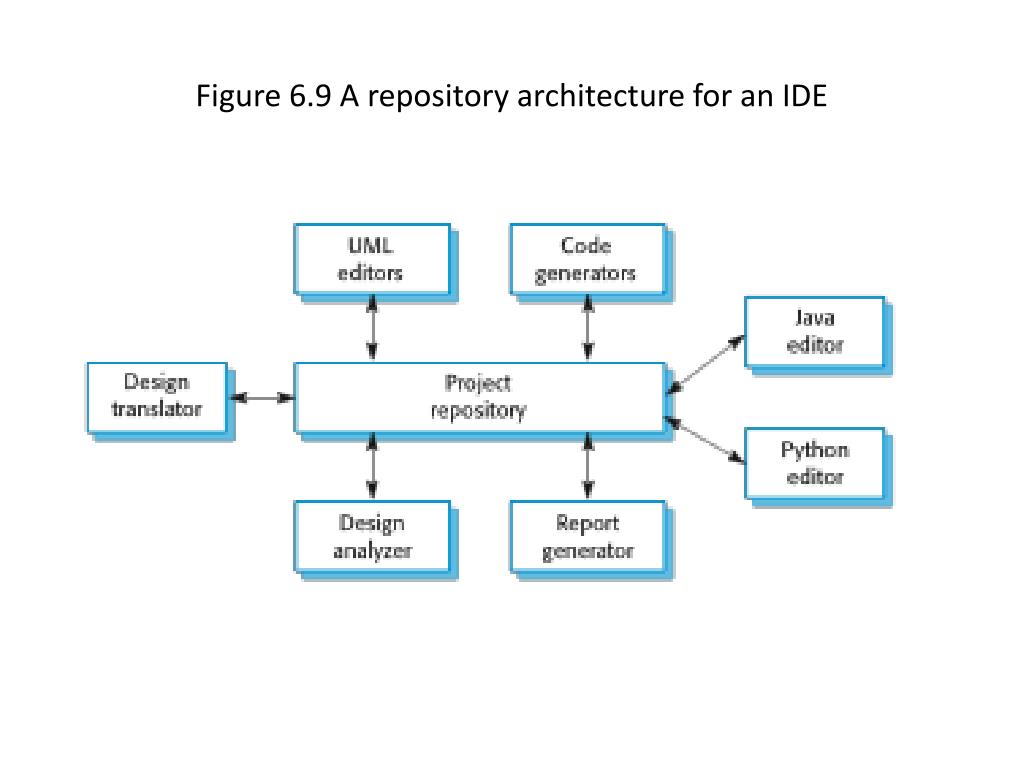

  10. Figure 6.9 A repository architecture for an IDE

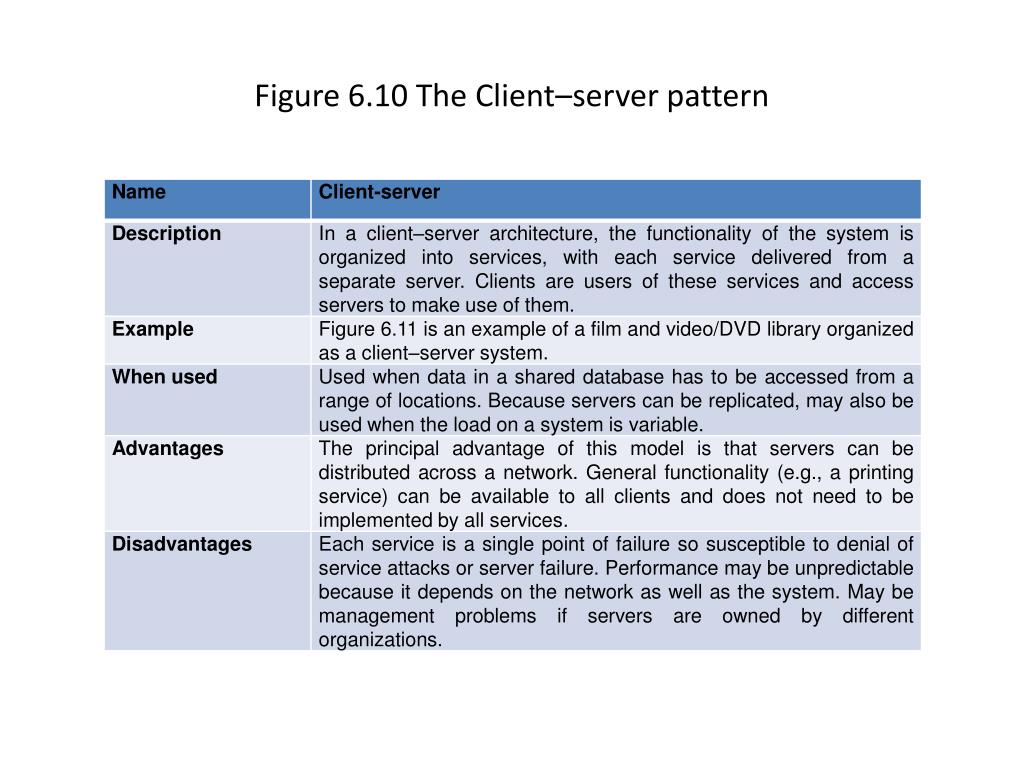

  11. Figure 6.10 The Client–server pattern

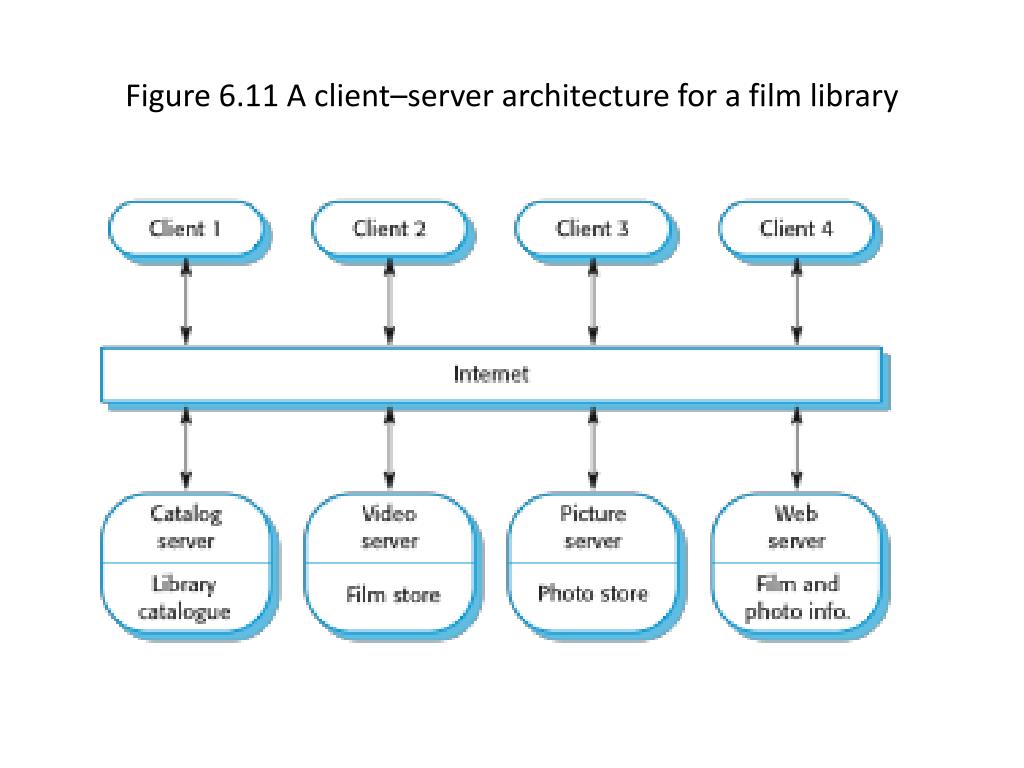

  12. Figure 6.11 A client–server architecture for a film library

  13. Figure 6.12 The pipe and filter pattern

  14. Figure 6.13 An example of the pipe and filter architecture

  15. Figure 6.14 The structure of transaction processing applications

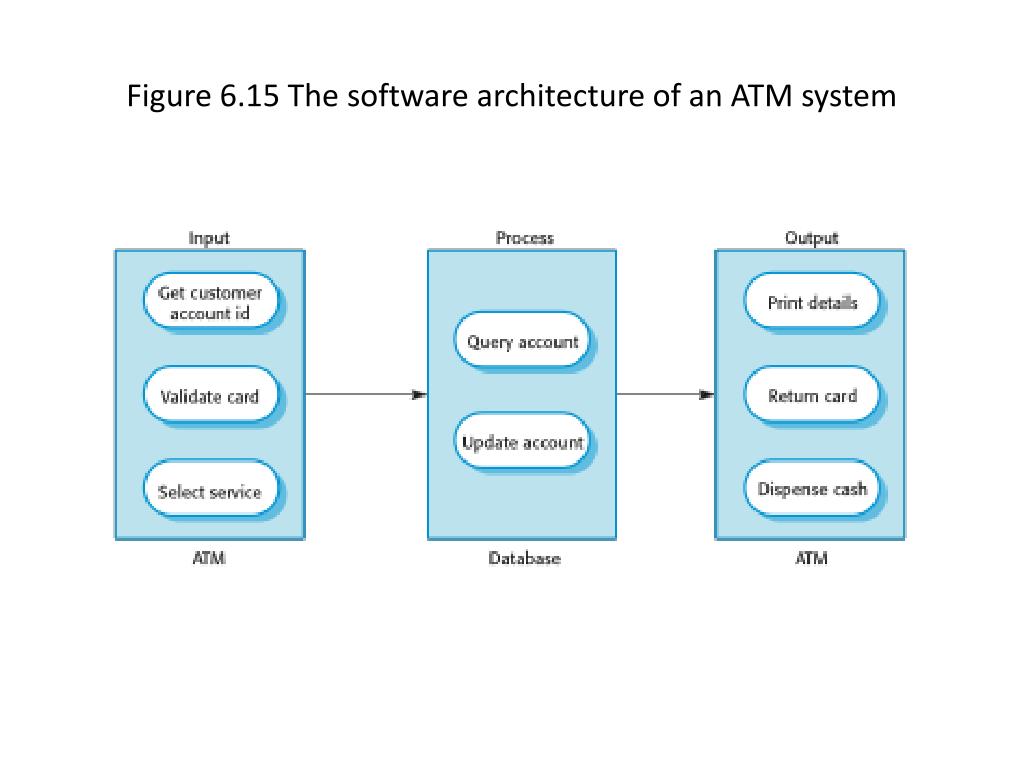

  16. Figure 6.15 The software architecture of an ATM system

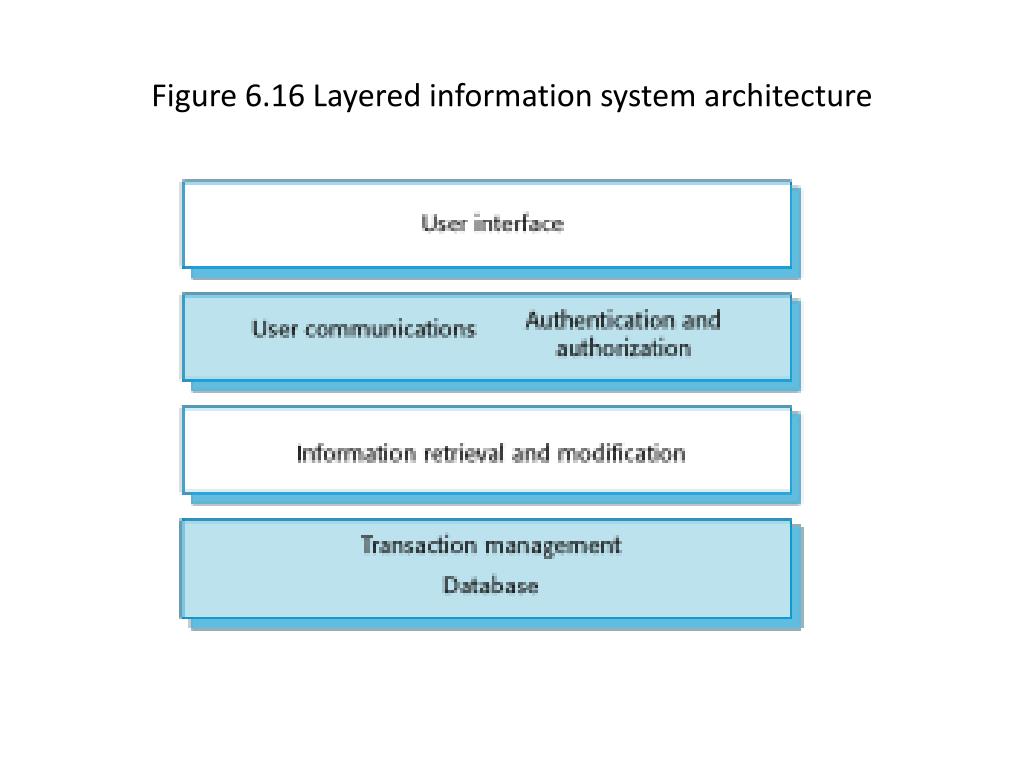

  17. Figure 6.16 Layered information system architecture

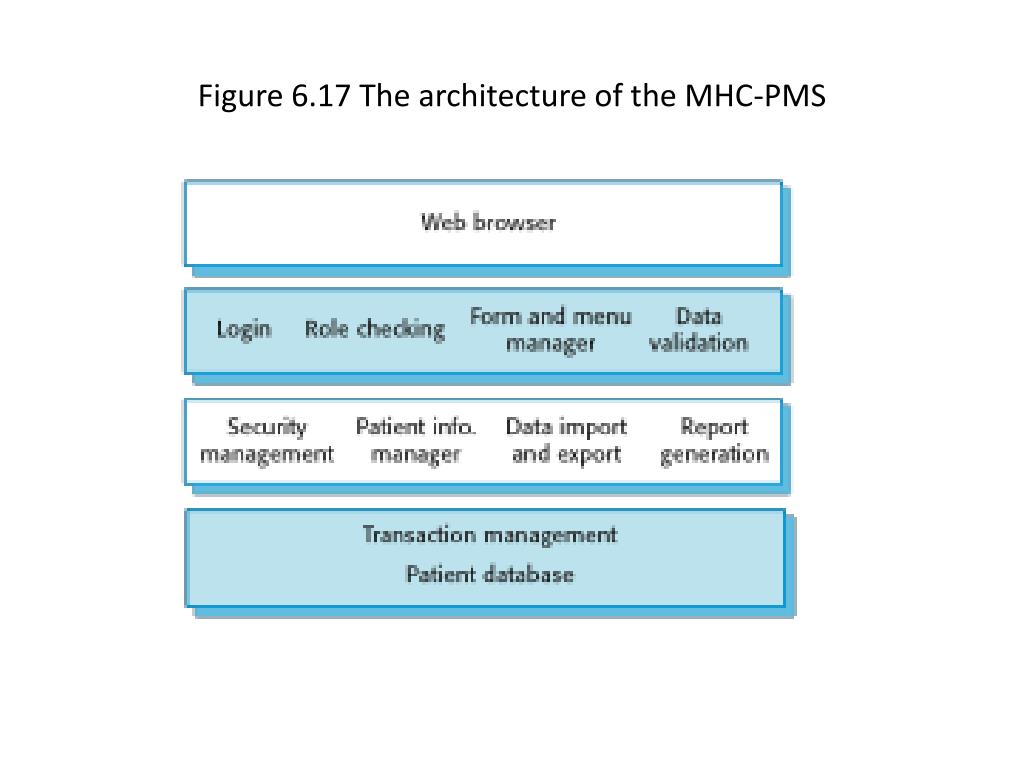

  18. Figure 6.17 The architecture of the MHC-PMS

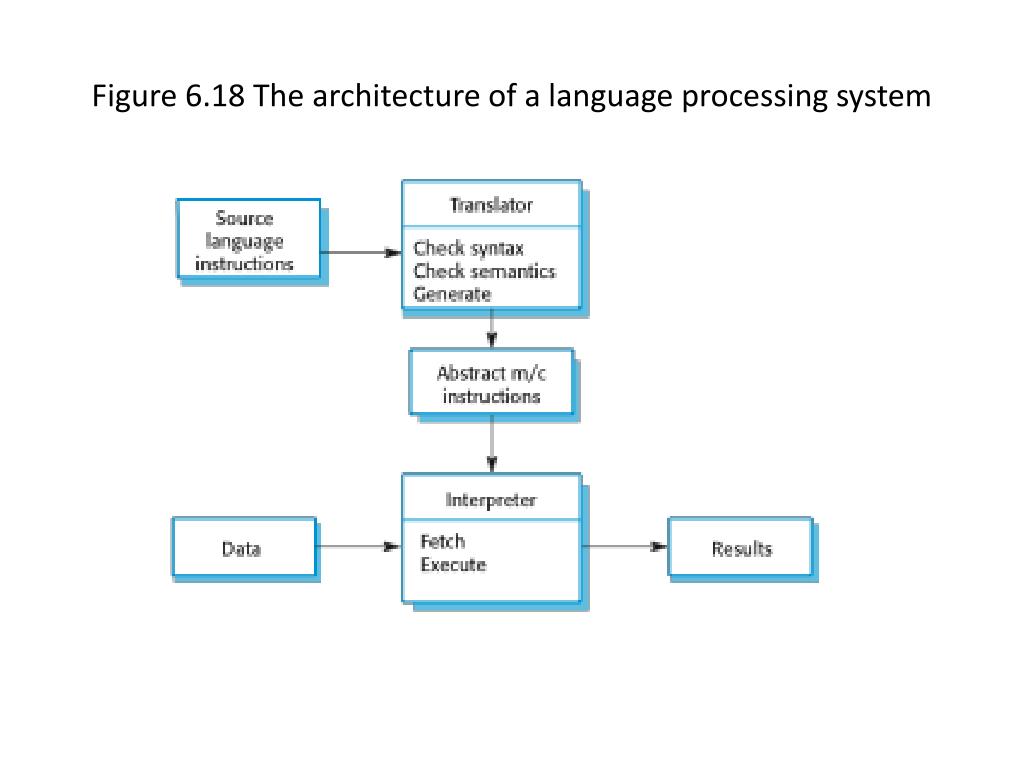

  19. Figure 6.18 The architecture of a language processing system

  20. Figure 6.19 A pipe and filter compiler architecture

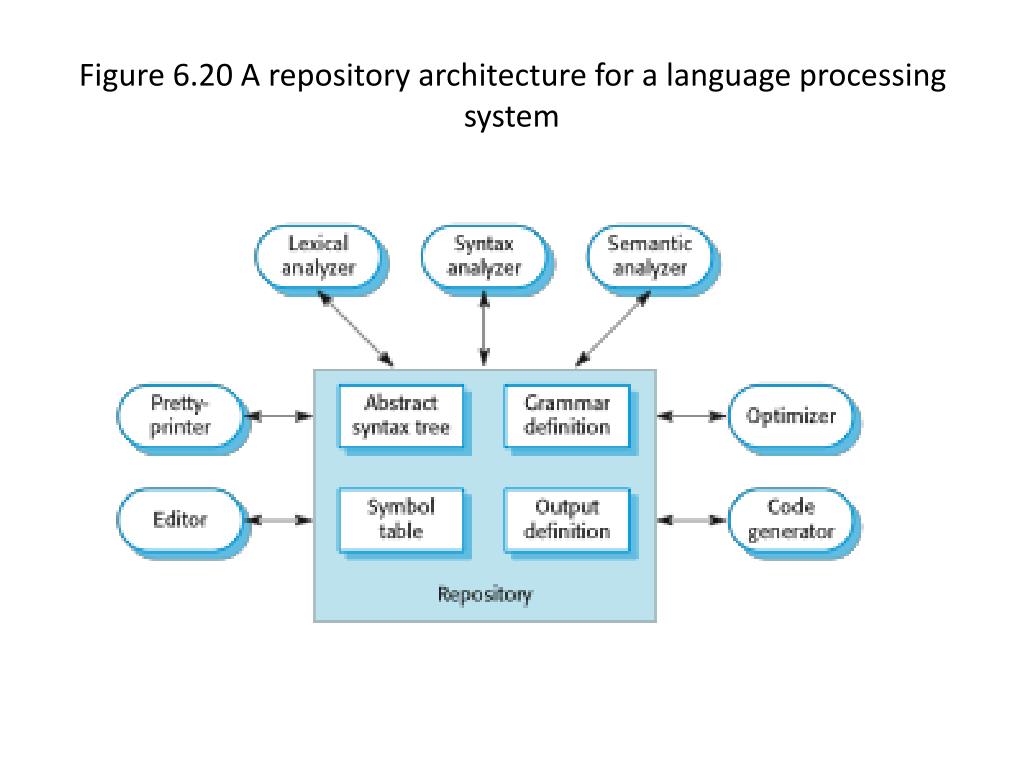

  21. Figure 6.20 A repository architecture for a language processing system
