1 / 33

5.1 Rate of Change and Slope

5.1 Rate of Change and Slope. Rate of Change: The relationship between two changing quantities. Rate of Change = Change in the dependent variable (y-axis) Change in the independent variable (x-axis). Slope: the ratio of the vertical change ( rise ) to the horizontal change ( run ).

vance
Télécharger la présentation

5.1 Rate of Change and Slope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

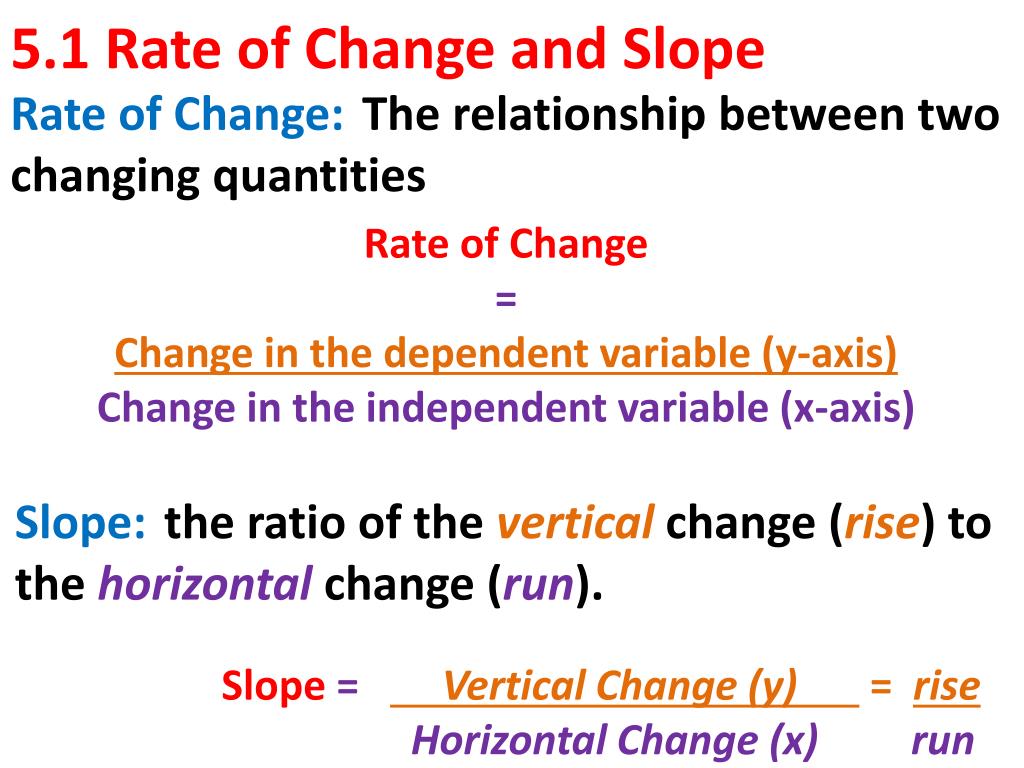

  1. 5.1 Rate of Change and Slope Rate of Change: The relationship between two changing quantities Rate of Change = Change in the dependent variable (y-axis)Change in the independent variable (x-axis) Slope: the ratio of the vertical change (rise) to thehorizontalchange (run). Slope= Vertical Change (y) = riseHorizontal Change (x) run

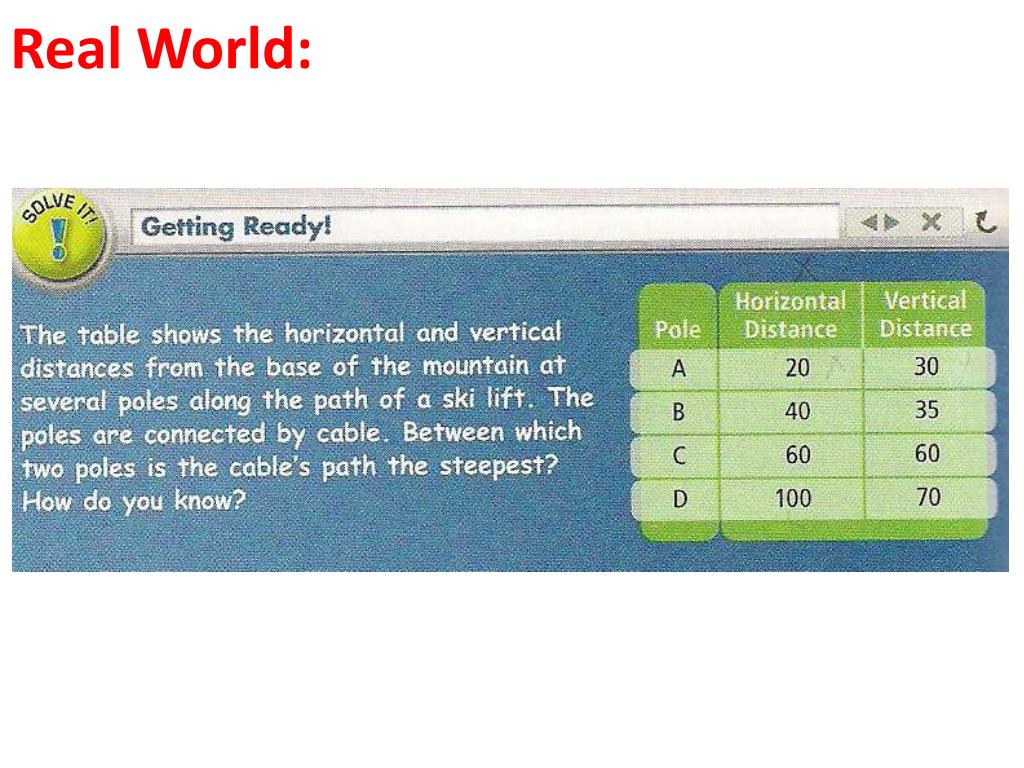

  2. Real World:

  3. Rate of Changecan be presented in many forms such as: = We can use the concept of change to solve the cable problem by using two sets of given data, for example: A band practices their march for the parade over time as follows:

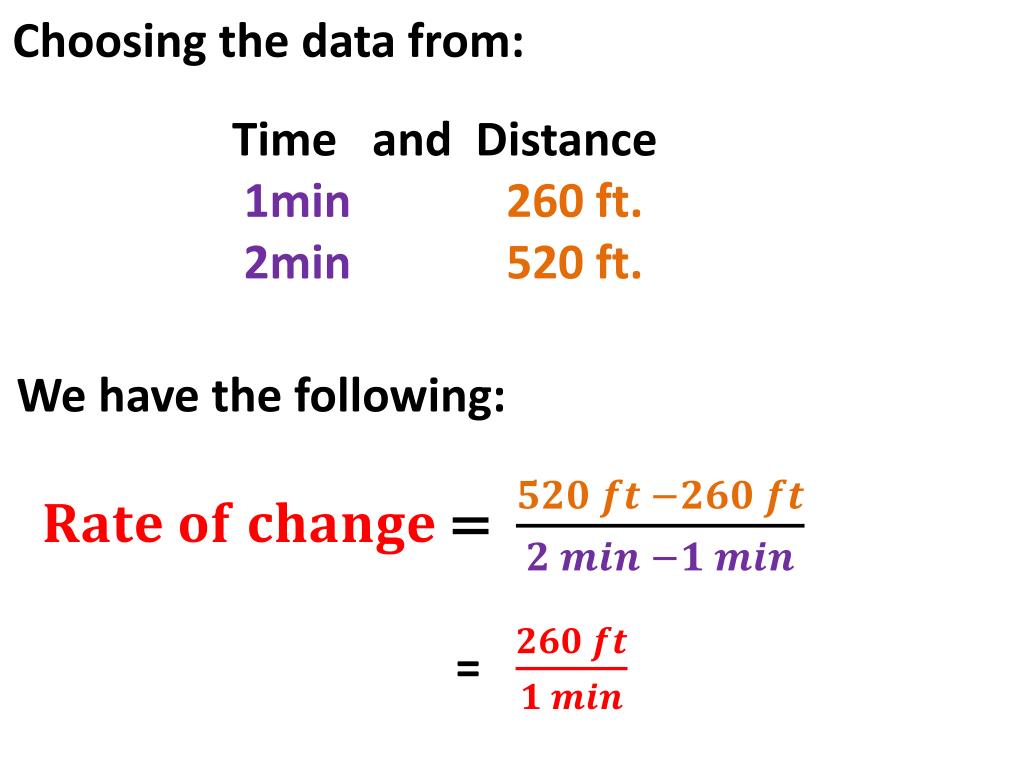

  4. Choosing the data from: Time and Distance 1min 260 ft. 2min 520 ft. We have the following: = =

  5. Choosing the data from: Time and Distance 1min 260 ft. 3min 780 ft. We have the following: = =

  6. Choosing the data from: Time and Distance 1min 260 ft. 4min 1040 ft. We have the following: = =

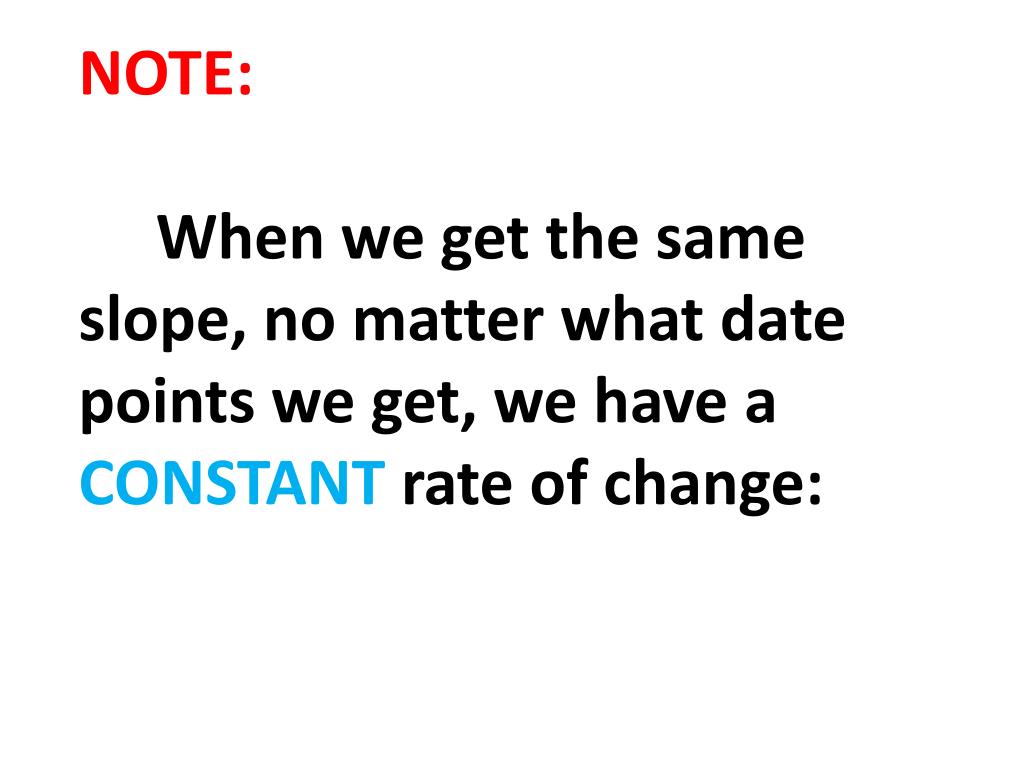

  7. NOTE: When we get the same slope, no matter what date points we get, we have a CONSTANT rate of change:

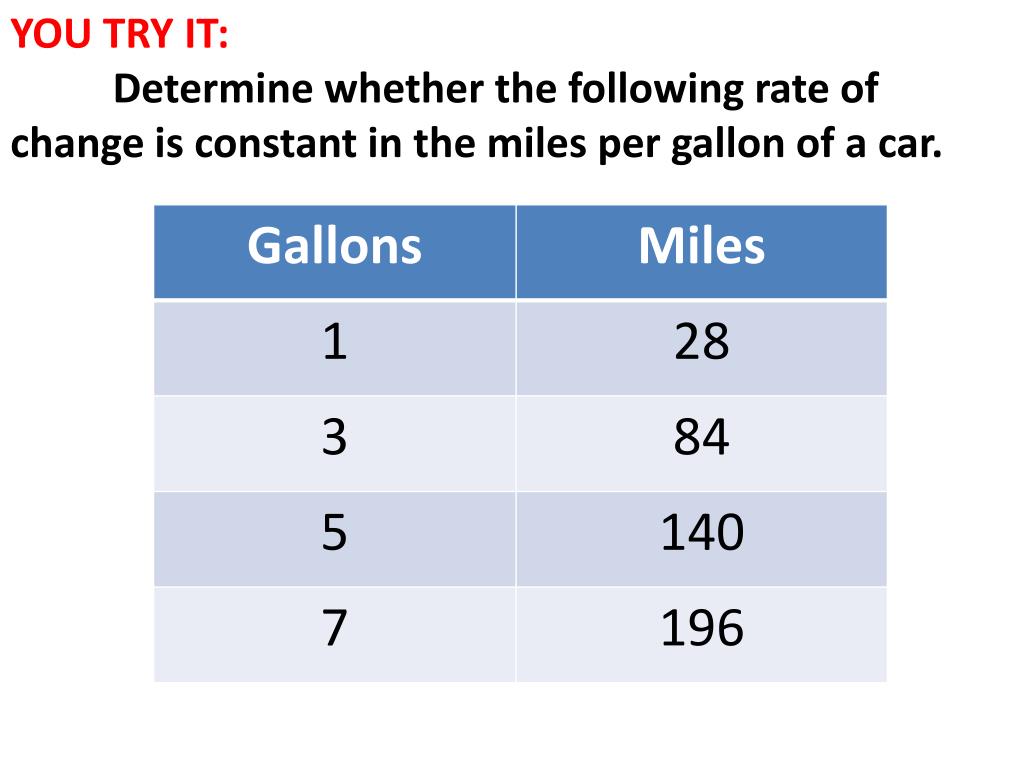

  8. YOU TRY IT:Determine whether the following rate of change is constant in the miles per gallon of a car.

  9. Choosing the data from: Gallons and Miles 1 g 28 m 3g 84 m We have the following: = =

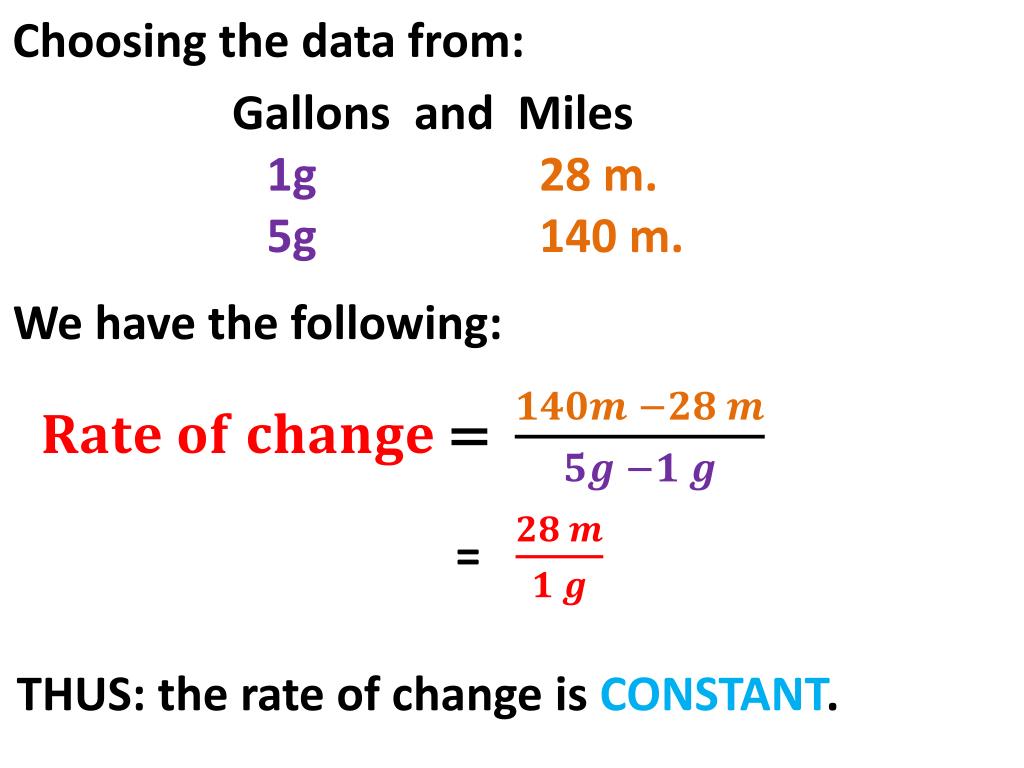

  10. Choosing the data from: Gallons and Miles 1g 28 m. 5g 140 m. We have the following: = = THUS: the rate of change is CONSTANT.

  11. Once Again: Real World

  12. Remember: Rate of Change can be presented in many forms: = We can use the concept of change to solve the cable problem by using two sets of given data: ( x , y ) A : Horizontal(x) = 20 Vertical(y) = 30 (20, 30)B : Horizontal(x) = 40 Vertical(y) = 35 (40, 35)

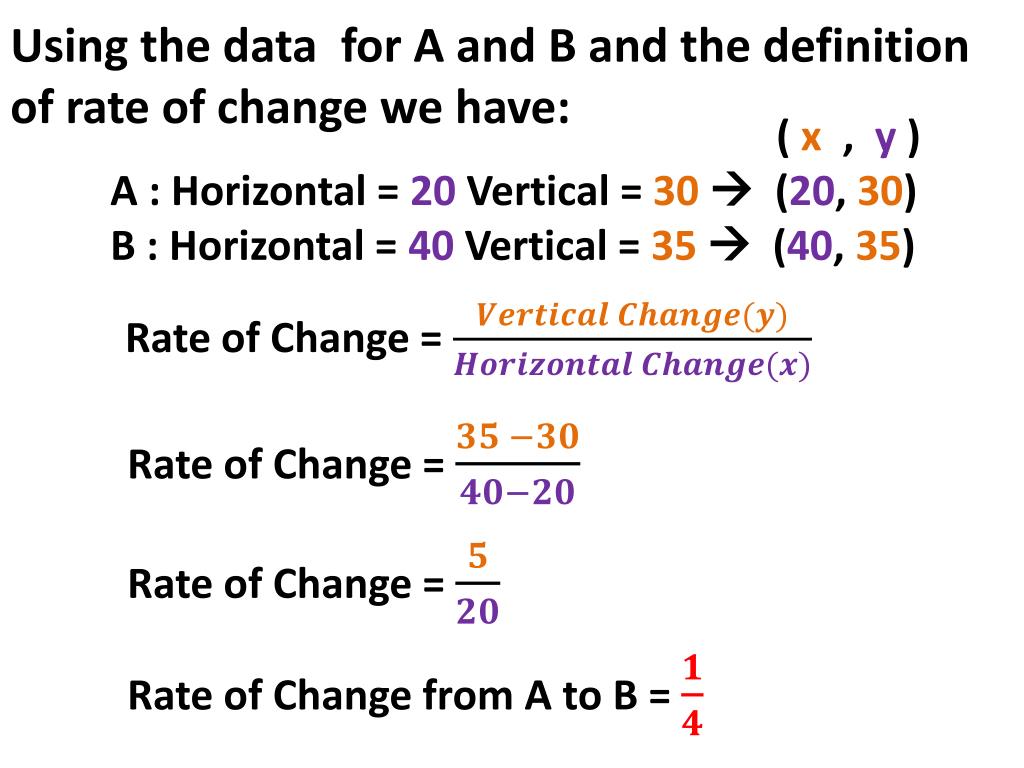

  13. Using the data for A and B and the definition of rate of change we have: ( x , y ) A : Horizontal = 20 Vertical = 30 (20, 30)B : Horizontal = 40 Vertical = 35  (40, 35) Rate of Change = Rate of Change = Rate of Change = Rate of Change from A to B =

  14. Using the data for B and C and the definition of rate of change we have: ( x , y ) B : Horizontal = 40 Vertical = 35 (40, 35)C : Horizontal = 60 Vertical = 60  (60, 60) Rate of Change = Rate of Change = Rate of Change = Rate of Change from B to C =

  15. Using the data for C and D and the definition of rate of change we have: (x, y ) C : Horizontal = 60 Vertical = 60 (60, 60)D : Horizontal = 100 Vertical =70  (100, 70) Rate of Change = Rate of Change = Rate of Change = Rate of Change from B to C =

  16. Comparing the slopes of the three: Rate of Change from A to B = Rate of Change from B to C = Rate of Change from C to D = As we can see right now the pole from B to C is the one with the biggest change of rate(steepest) = However, we must find all the combination that we can do. Try from A to C, from A to D and from B to C.

  17. Finally: A to B = B to C = A to C = C to D = A to D = B to D = Finally we can conclude that the poles with the steepest path are poles B to C with slope of 5/4.

  18. Class Work: Pages: 295-297 Problems: 1, 4, 8, 9,

  19. Remember: When we get the same slope, no matter what date points we get, we have a CONSTANT rate of change:

  20. When we get the same slope, no matter what date points we get, we have a CONSTANT rate of change: We further use the concept of CONSTANT slope when we are looking at the graph of a line:

  21. We further use the concept of rise/runto find the slope: rise Make a right triangleto get from one point to another, that is your slope. run = SLOPE=

  22. CONSTANT rate of change: due to the fact that a line is has no curves, we use the following formula to find the SLOPE: Slope = x2-x1 B(x2, y2) Slope = y2-y1 A = (1, -1) B = (2, 1) A(x1, y1) Slope = =

  23. YOU TRY:Find the slope of the line:

  24. YOU TRY(solution): Slope = = (0,4) Slope = Slope = -4 (2,0) Slope = 2 Slope = =

  25. YOU TRY IT: Provide the slope of the line that passes through the points A(1,3) and B(5,5):

  26. YOU TRY IT: (Solution)Using the given data A(1,3) and B(5,5) and the definition of rate of change we have: A( 1 , 3 ) B(5 , 5) (x1, y1) (x2, y2) Slope = Slope = Slope = Rate of Change from A to B is =

  27. YOU TRY:Find the slope of the line:

  28. YOU TRY IT: (Solution)Choosing two points say: A(-5,3) and B(1,5) and the definition of rate of change (slope) we have: A( -2 , 3 ) B(1 , 3) (x1, y1) (x2, y2) Slope = Slope = Slope = Rate of Change (slope) from A to B is =

  29. YOU TRY:Find the slope of the line:

  30. YOU TRY IT: (Solution)Choosing two points say: A(-1,2) and B(-1,-1) and the definition of rate of change (slope) we have: A( -1 , 2 ) B(-1 , -1) (x1, y1) (x2, y2) Slope = Slope = Slope = We can never divide by Zero thus our slope = UNDEFINED.

  31. THEREFORE: Horizontal ( ) lines have a slope of ZERO While vertical ( ) lines have an UNDEFINED slope.

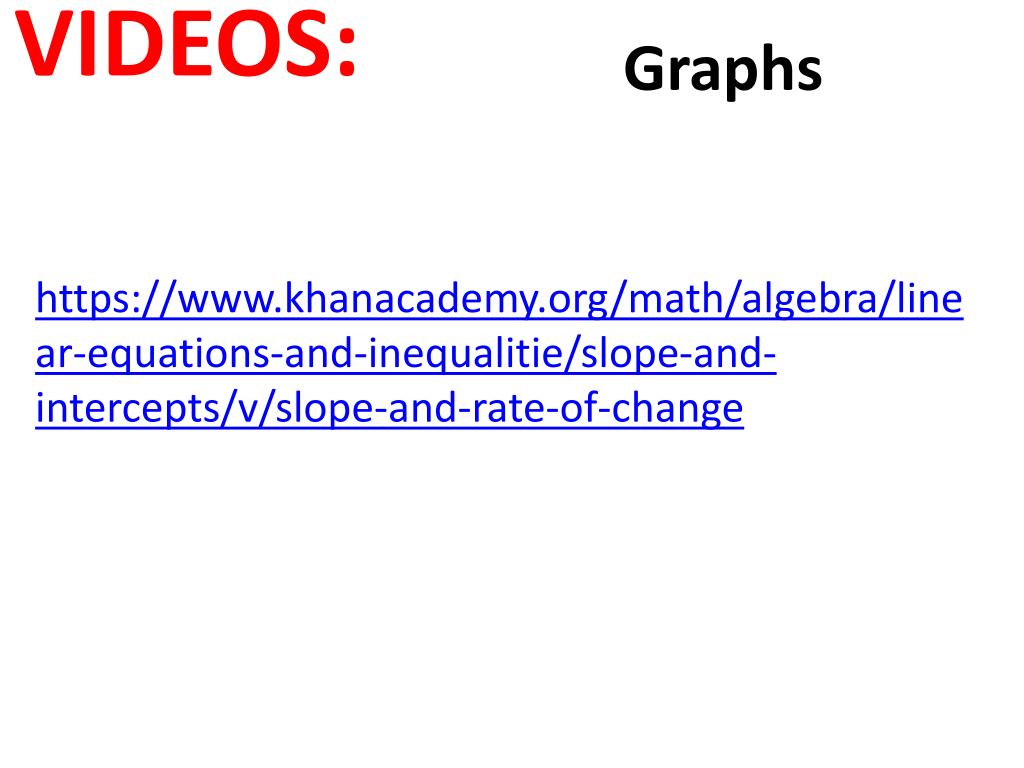

  32. VIDEOS: Graphs https://www.khanacademy.org/math/algebra/linear-equations-and-inequalitie/slope-and-intercepts/v/slope-and-rate-of-change

  33. Class Work: Pages: 295-297 Problems: As many as needed to master the concept
