Linux Programming – Process & Signal

Linux Programming – Process & Signal. Reporter: P-J L. 起始新程序 (1/2). #include <stdlib.h> int system(const char * string ); Example. 起始新程序 (2/2). 使用 system 函數在背景執行 Example. 程序的替換 (1/3). #include <unistd.h> extern char **environ;

vance
Télécharger la présentation

Linux Programming – Process & Signal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Linux Programming – Process & Signal Reporter: P-J L

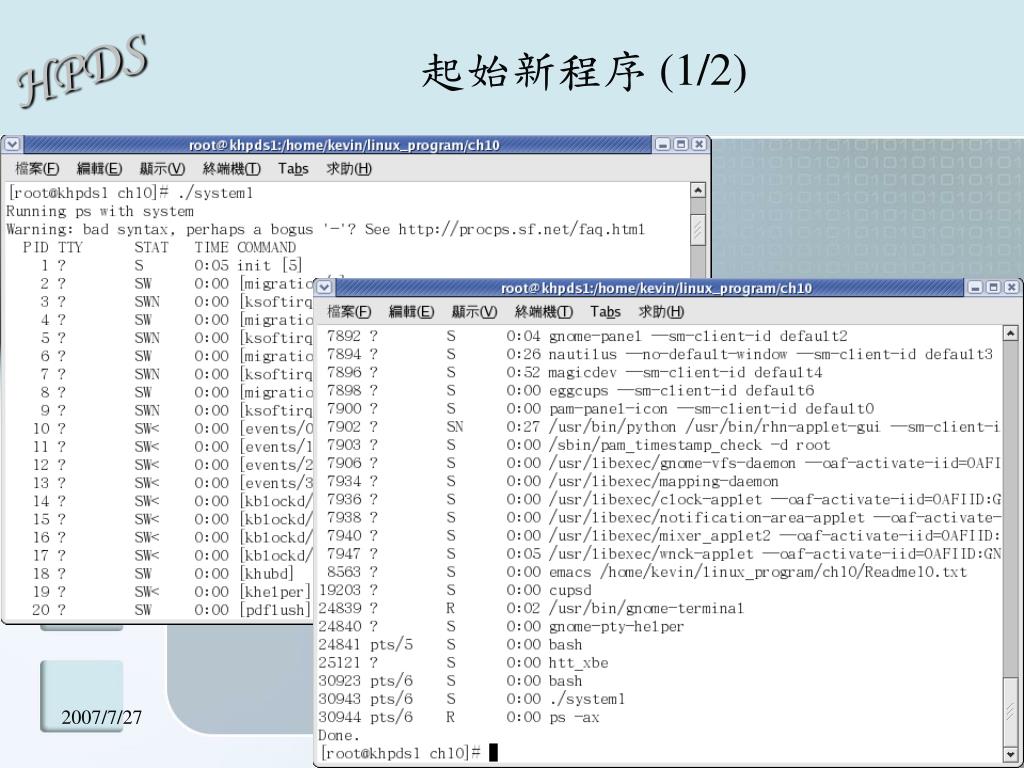

  2. 起始新程序 (1/2) • #include <stdlib.h> • int system(const char *string); • Example Po-Sen Wang

  3. 起始新程序 (2/2) • 使用 system 函數在背景執行 • Example Po-Sen Wang

  4. 程序的替換 (1/3) • #include <unistd.h> • extern char **environ; • int execl(const char *path, const char *arg0, ..., (char *) 0); • int execlp(const char *file, const char *arg0, ..., (char *) 0); • int execle(const char *path, const char *arg0, ..., (char *) 0, const char *envp[]); • int execv(const char *path, const char *argv[]); • int execvp(const char *file, const char *argv[]); • int execve(const char *path, const char *argv[], const char *envp[]); Po-Sen Wang

  5. 程序的替換 (2/3) • 使用 exec 函數來起始 ps 程式： • const char *ps_argv[]={“ps”, “-ax”, 0}; • const char *ps_envp[]= {“PATH=/bin:/usr/bin”, “TERM=console”, 0}; • execl(“/bin/ps”, “ps”, “-ax”, 0); • execlp(“ps”, “ps”, “-ax”, 0); • execle(“/bin/ps”, “ps”, “-ax”, 0, ps_envp); • execv(“/bin/ps”, ps_argv); • execvp(“ps”, ps_argv); • execve(“/bin/ps”, ps_argv, ps_evnp); Po-Sen Wang

  6. 程序的替換 (3/3) • Example Po-Sen Wang

  7. 複製程序 (1/2) • #include <sys/types.h> • #include <unistd.h> • pid_t fork(void); 起始程序 fork() 傳回子程序PID 傳回0 父始程序繼續執行 子程序 Po-Sen Wang

  8. 複製程序 (2/2) • Example Po-Sen Wang

  9. 等待程序 (1/2) • #include <sys/types.h> • #include <sys/wait.h> • pid_t wait(int *stat_val); • 巨集 Po-Sen Wang

  10. 等待程序 (2/2) Po-Sen Wang

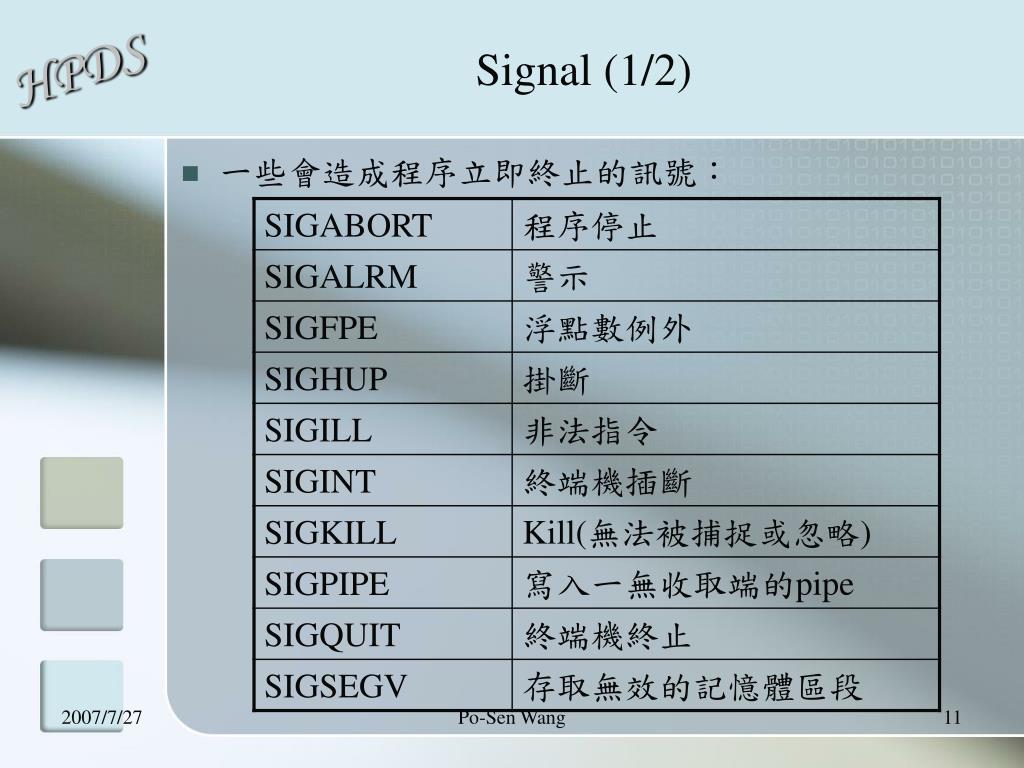

  11. Signal (1/2) • 一些會造成程序立即終止的訊號： Po-Sen Wang

  12. Signal (2/2) • #include <signal.h> • void (*signal(int sig, void (*func)(int)))(int); • func可以自定，或是SIG_IGN(忽略訊息)、SIG_DFL(恢復預設的行為) • Example Po-Sen Wang

  13. 傳送訊息 (1/2) • #include <sys/types.h> • #include <signal.h> • int kill(pid_t pid, int sig); • #include <unistd.h> • unsigned int alarm(unsigned int seconds); Po-Sen Wang

  14. 傳送訊息 (2/2) Po-Sen Wang

  15. Sigaction (1/2) • #include <signal.h> • int sigaction(int sig, const struct sigaction *act, struct sigaction *oact) • sigaction struct 的部分成員： void (*sa_handler)(int); //function, SIG_DFL, SIG_IGN sigset_t sa_mask; //signals to block in sa_handler int sa_flags; //signal action modifiers • sa_flags： Po-Sen Wang

  16. Sigaction (2/2) Po-Sen Wang

  17. 作業 • 請撰寫一程式產生一子程序。 • 父程序分別印出父程序及子程序的id，並等待子程序傳送SIGALRM訊號。接收到SIGALRM訊號後，在營幕上印出”Child process finish.”訊息。 • 子程序去執行另一個1加到100的程式，並傳送SIGALRM訊號給父程序。 Po-Sen Wang
