Presentation Transcript

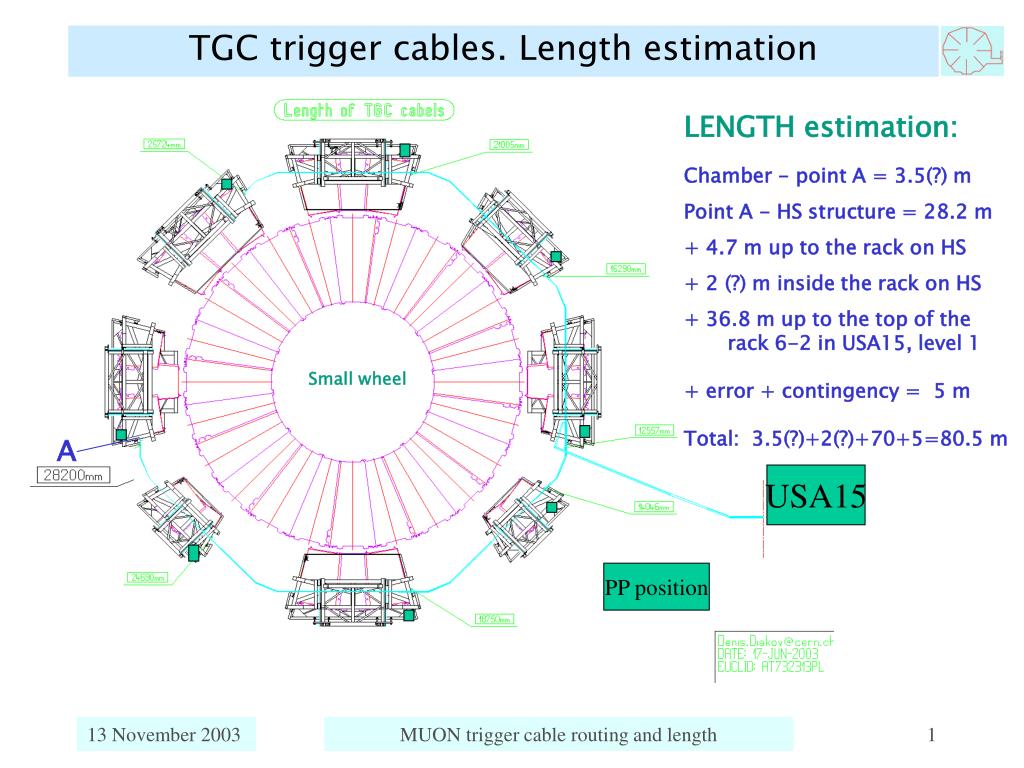

  1. TGC trigger cables. Length estimation LENGTH estimation: Chamber - point A = 3.5(?) m Point A - HS structure = 28.2 m + 4.7 m up to the rack on HS + 2 (?) m inside the rack on HS + 36.8 m up to the top of the rack 6-2 in USA15, level 1 + error + contingency = 5 m Total: 3.5(?)+2(?)+70+5=80.5 m Small wheel A USA15 PP position MUON trigger cable routing and length

  2. Looking from Side C towards the Interaction Previous transparency is for Side A from Int. USA15 MUON trigger cable routing and length

  3. Distance Small wheel – TGC rack on HS ~20m TGC trigger cables. Small Wheel. Routing MUON trigger cable routing and length

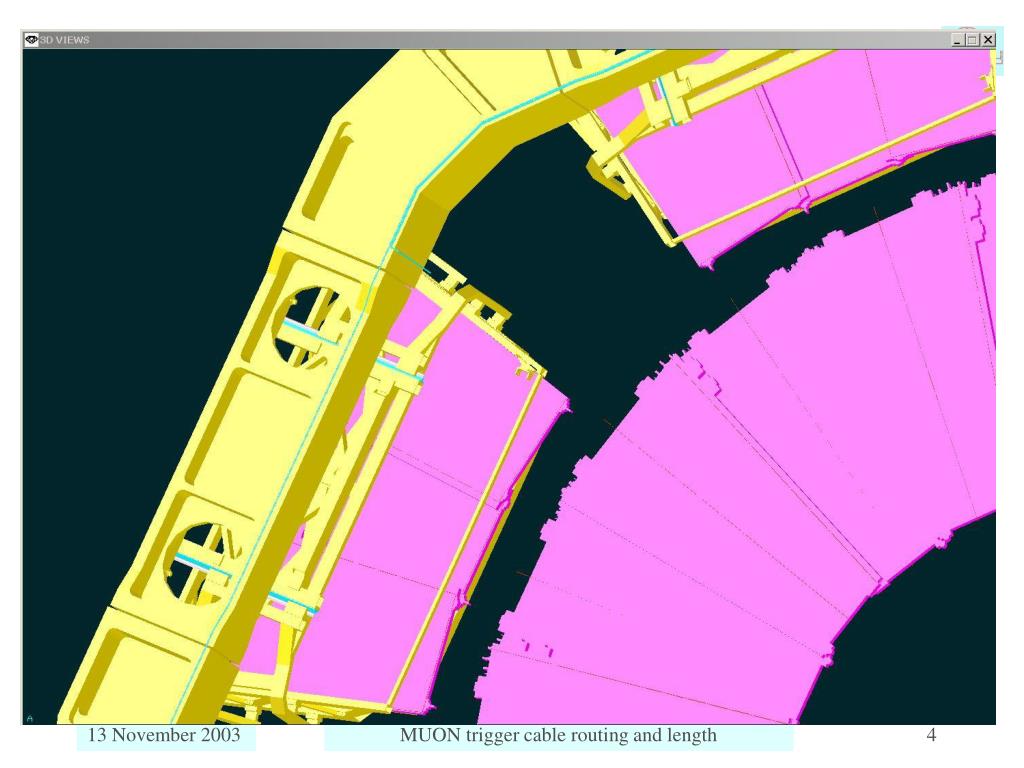

  4. MUON trigger cable routing and length
