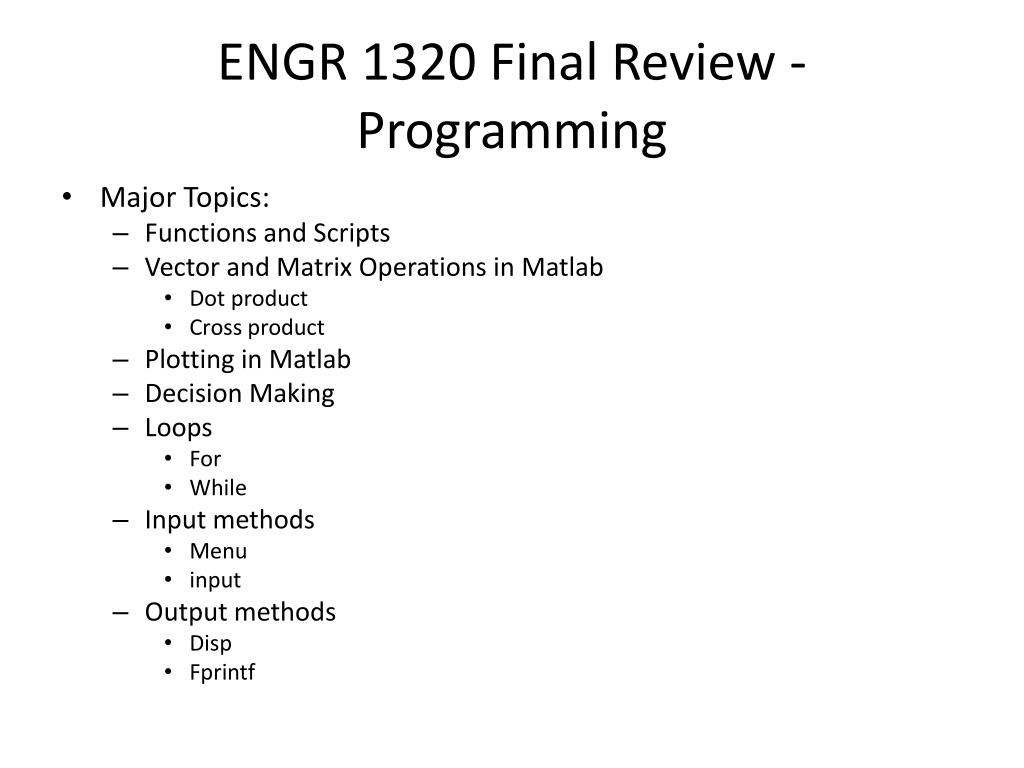

  1. ENGR 1320 Final Review - Programming • Major Topics: • Functions and Scripts • Vector and Matrix Operations in Matlab • Dot product • Cross product • Plotting in Matlab • Decision Making • Loops • For • While • Input methods • Menu • input • Output methods • Disp • Fprintf

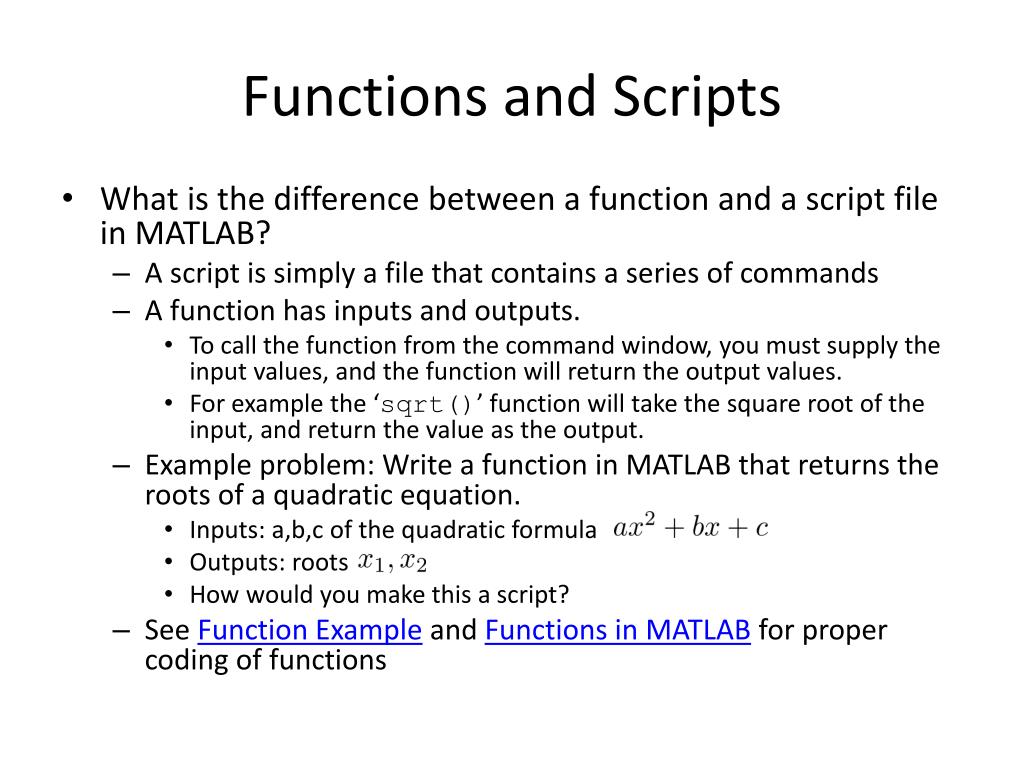

  2. Functions and Scripts • What is the difference between a function and a script file in MATLAB? • A script is simply a file that contains a series of commands • A function has inputs and outputs. • To call the function from the command window, you must supply the input values, and the function will return the output values. • For example the ‘sqrt()’ function will take the square root of the input, and return the value as the output. • Example problem: Write a function in MATLAB that returns the roots of a quadratic equation. • Inputs: a,b,c of the quadratic formula • Outputs: roots • How would you make this a script? • See Function Example and Functions in MATLAB for proper coding of functions

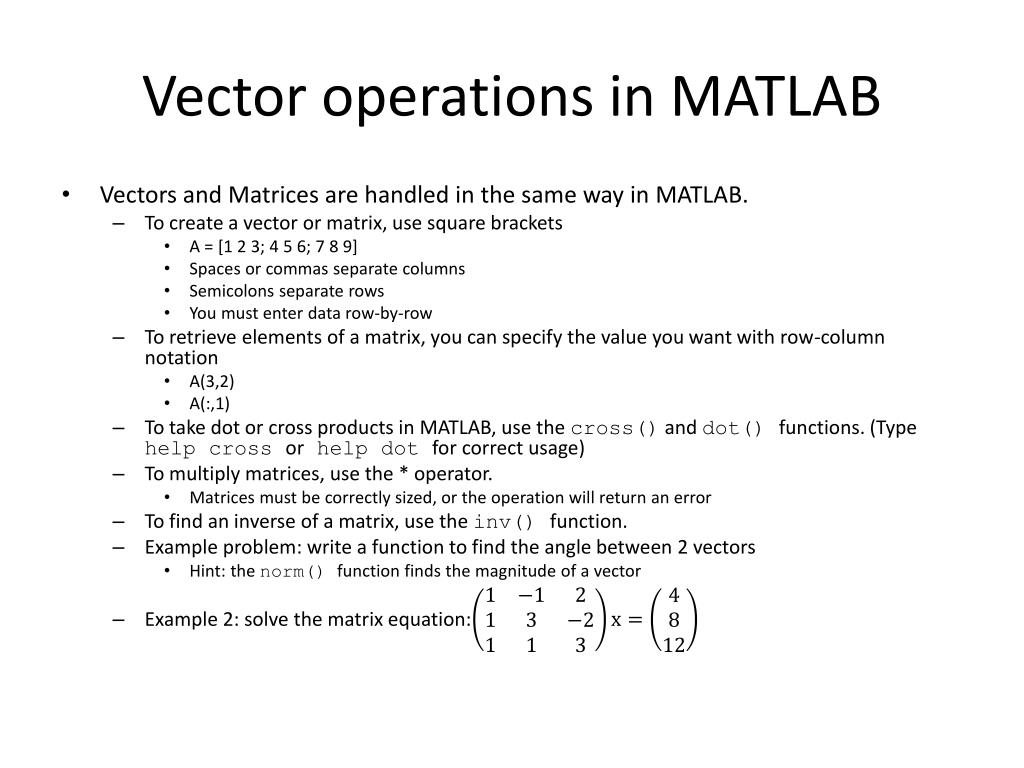

  3. Vector operations in MATLAB • Vectors and Matrices are handled in the same way in MATLAB. • To create a vector or matrix, use square brackets • A = [1 2 3; 4 5 6; 7 8 9] • Spaces or commas separate columns • Semicolons separate rows • You must enter data row-by-row • To retrieve elements of a matrix, you can specify the value you want with row-column notation • A(3,2) • A(:,1) • To take dot or cross products in MATLAB, use the cross() and dot() functions. (Type help cross or help dot for correct usage) • To multiply matrices, use the * operator. • Matrices must be correctly sized, or the operation will return an error • To find an inverse of a matrix, use the inv() function. • Example problem: write a function to find the angle between 2 vectors • Hint: the norm() function finds the magnitude of a vector • Example 2: solve the matrix equation:

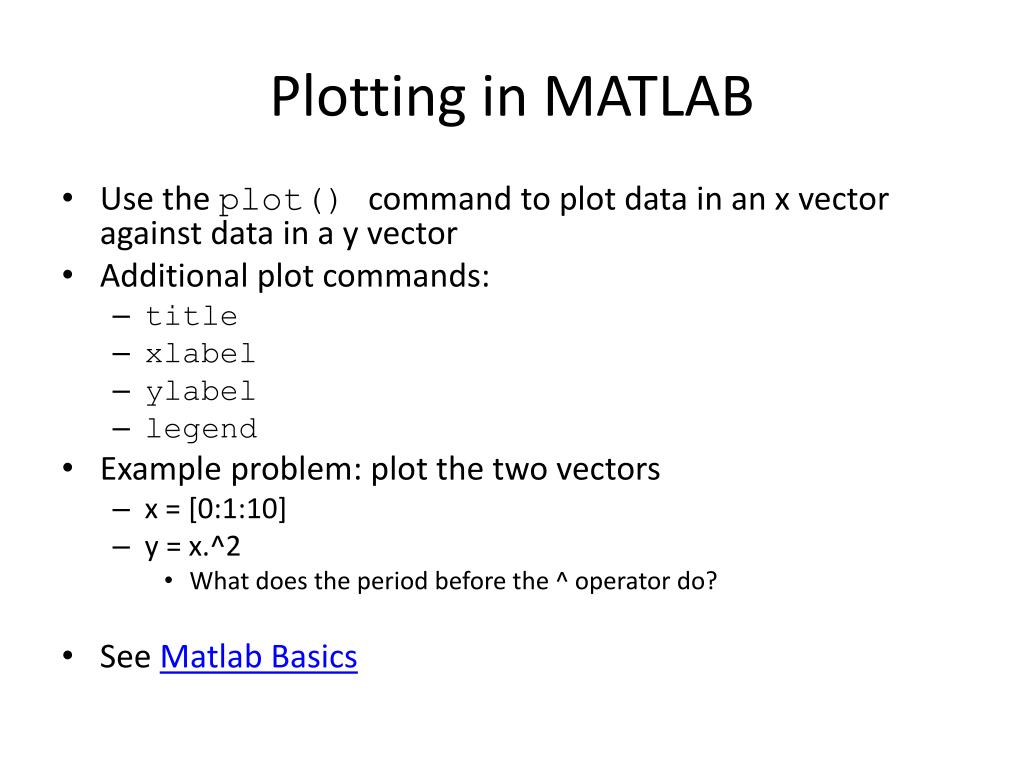

  4. Plotting in MATLAB • Use the plot() command to plot data in an x vector against data in a y vector • Additional plot commands: • title • xlabel • ylabel • legend • Example problem: plot the two vectors • x = [0:1:10] • y = x.^2 • What does the period before the ^ operator do? • See Matlab Basics

  5. User input and output • MATLAB has 2 main ways of prompting a user for information • input() • menu() • To output data, you will either plot results or display information to the command window • fprintf() • disp() • use fprintf() to display formatted results and numerical values • See input examples and output examples

  6. Decision Making • MATLAB has several logical operators • == • ~= • && • || • > • < • <= • >= • These operators compare two things and return either a ‘1’ if the statement is true or a ‘0’ if the statement is false • Examples: • a+b == b+a returns a ‘1’ • 3+3 == 4+3 returns a ‘0’ • a+b == b+a && 3+3 == 4+3 returns ? • MATLAB can make decisions based on the truth of an expression • If/then statement • Code will execute if the logical expression is true, or be skipped if the expression is false • Example problem: Write a code that has the user input a number between 1 and 10 and returns a statement to the screen that tells the user whether the number greater or less than 5. • See Decision Making Screencast

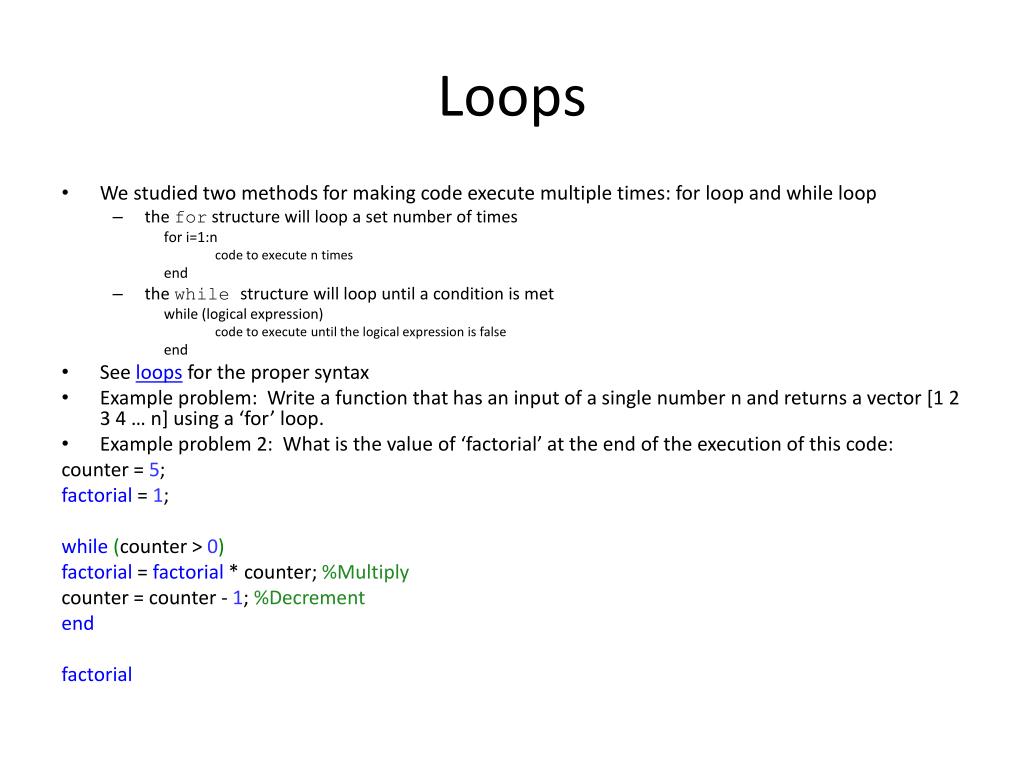

  7. Loops • We studied two methods for making code execute multiple times: for loop and while loop • the for structure will loop a set number of times for i=1:n code to execute n times end • the while structure will loop until a condition is met while (logical expression) code to execute until the logical expression is false end • See loops for the proper syntax • Example problem: Write a function that has an input of a single number n and returns a vector [1 2 3 4 … n] using a ‘for’ loop. • Example problem 2: What is the value of ‘factorial’ at the end of the execution of this code: counter = 5; factorial= 1; while(counter > 0) factorial= factorial * counter; %Multiply counter = counter - 1; %Decrement end factorial

  8. Study Strategy • Exam problems will be similar to homeworks • Several problems have been revisited in this class: • Electric circuits, truss equations, etc… • Look over the first 2 exams for representative problems (particularly the 2st for matlab-related problems) • Refer to the MATLAB book for help
