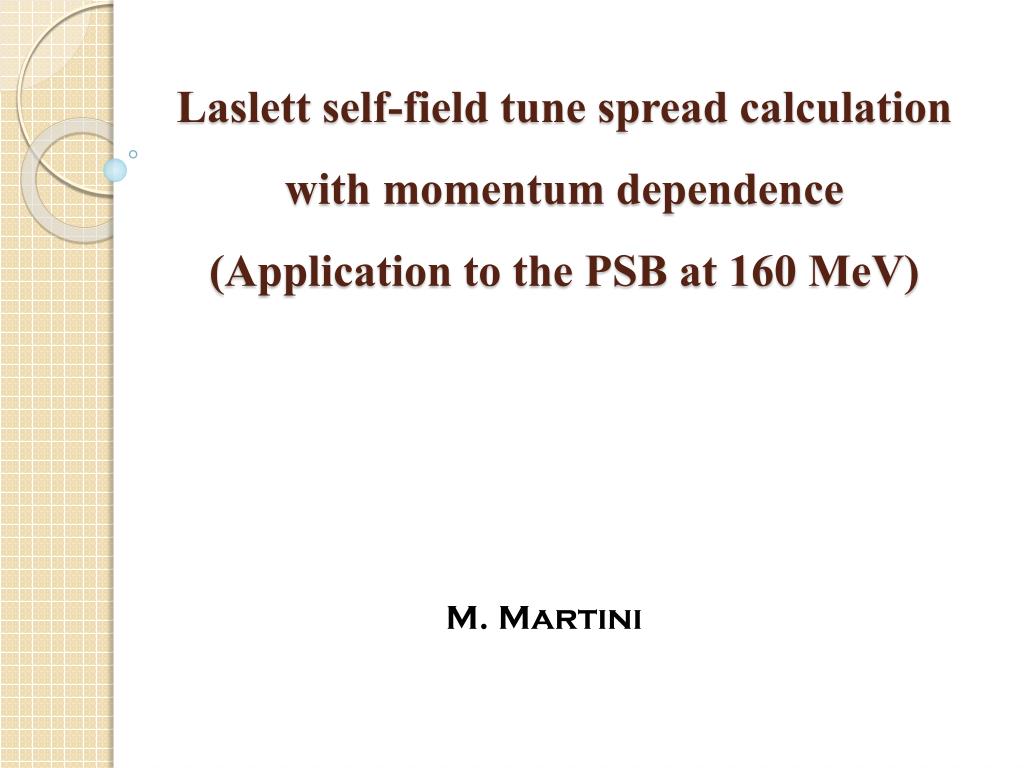

  1. Laslett self-field tune spread calculation with momentum dependence(Application to the PSB at 160 MeV) M. Martini

  2. Contents • Two-dimensional binomial distributions • Projected binomial distributions • Laslett space charge self-field tune shift • Laslett space charge tune spread with momentum • Application to the PSB M. Martini

  3. Two-dimensional binomial distributions • Binomial transverse beam distributions • The general case is characterized by a single parameter m > 0 and includes the waterbag distribution (uniform density inside a given ellipse), the parabolic distribution... (c.f. W. Joho, Representation of beam ellipses for transport calculations, SIN-Report, Tm-11-14, 1980. • The Kapchinsky-Vladimirsky distribution (K-V) and the Gaussian distribution are the limiting cases m  0 and m  . • For 0 < m <  there are no particle outside a given limiting ellipse characterized by the mean beam cross-sectional radii ax and ay. • Unlike a truncated Gaussian the binomial distribution beam profile have continuous derivatives for m  2. M. Martini

  4. Two-dimensional binomial distributions • Kapchinsky-Vladimirsky beam distributions (m  0) • Define the Kapchinsky-Vladimirsky distribution (K-V) as • Since the projections of B2D(m,ax,ay,x,y) for m  0 and KV2D(m,ax,ay,x,y) yield the same Kapchinsky-Vladimirsky beam profile • The 2-dimensional distribution KV2D(m,ax,ay,x,y) can be identified to a binomial limiting case m  0 M. Martini

  5. Two-dimensional binomial distributions M. Martini

  6. Two-dimensional binomial distributions M. Martini

  7. Two-dimensional binomial distributions M. Martini

  8. Two-dimensional binomial distributions • Gaussian transverse beam distributions (m ) • The 2-dimensional Gaussian distribution G2D(x,y,x,y)can be identified to a binomial limiting case m  since M. Martini

  9. Projected binomial distributions M. Martini

  10. Projected binomial distributions M. Martini

  11. Laslett space charge self-field tune shift • Space charge self-field tune shift (without image field) • For a uniform beam transverse distribution with elliptical cross section (i.e. binomial waterbagm=1) the Laslett space charge tune shift is (c.f. K.Y. Ng, Physics of intensity dependent beam instabilities, World Scientific Publishing, 2006; M. Reiser, Theory and design of charged particle beams,Wiley-VCH, 2008). • For bunched beam a bunching factor Bf is introduced as the ratio of the averaged beam current to the peak current the tune shift becomes • Considering binomial transverse beam distributions and using the rms beam sizes x,yinstead of the beam radii ax,y yields M. Martini

  12. Laslett space charge self-field tune shift • Space charge self-field tune shift (without image field) • The self-field tune shift can also be expressed in terms of the normalized rms beam emittances defined as • Nonetheless this expression is not really useful due to contributions of the dispersion Dx,y and relative momentum spread to the rms beam sizes M. Martini

  13. Laslett space charge self-field tune shift • For bunched beam with binomial or Gaussian longitudinal distribution the bunching factor Bf can be analytically expressed as (assuming the buckets are filled) m   M. Martini

  14. Laslett space charge tune spread with momentum • Space charge self-field tune spread (without image field) • Tune spread is computed based on the Keil formula (E. Keil, Non-linear space charge effects I, CERN ISR-TH/72-7), extended to a tri-Gaussian beam in the transverse and longitudinal planes to consider the synchrotron motion (M. Martini, An Exact Expression for the Momentum Dependence of the Space Charge Tune Shift in a Gaussian Bunch, PAC, Washington, DC, 1993). M. Martini

  15. Laslett space charge tune spread with momentum • Tune spread formula • In the above formula j1+j2+j3=n where n is the order of the series expansion. The function J(j1+j2+j3) is computed recursively as • It holds for bunched beams of ellipsoidal shape with radii defined as ax,y,z= 2x,y,zwith Gaussian charge density in the 3-dimensional ellipsoid. It remains valid for non Gaussian beams like Binomial distributions with ax,y,z= (2m+2)x,y,z (0  m < ). • x,y are the rms transverse beam sizes and z the rms longitudinal one, x, y, z are the synchro-betatron amplitudes.Qx,y,z are the nominal betatron and synchrotron tunes. • R is the machine radius, the other parameters Dx,y, , e, h, E0... are the usual ones. M. Martini

  16. Application to the PSB • All the space-charge tune spread have been computed to the 12th order but higher the expansion order better is the tune footprint (15th order is really fine but time consuming) • PSB MD: 22 May 2012 • Total particlenumber = 950 1010 • Full bunchlength = 627 ns • Qx0 = 4.10 (tr=4) • Qy0 = 4.21 • Ek = 160 MeV • xn (rms) = 15 m • yn (rms) = 7.5 m • p/p = 1.44 10-3 • Bunching factor (meas) = 0.473 • RF voltage= 8 kV h = 1 • RF voltage= 8 kV h = 2 in anti-phase • PSB radius = 25 m • Qx0 = -0.247 • Qy0 = -0.365 • 12th order run-time  11 h Tune diagram on a PSB 160 MeV plateau for the CNGS-type long bunch The smaller (blue points) tune spread footprint is computed using the Keil formula using a bi-Gaussian in the transverse planes while the larger footprint (orange points) considers a tri-Gaussian in the transverse and longitudinal planes. M. Martini

  17. Application to the PSB • PSB MD: 4 June 2012 • Total particlenumber = 160 1010 • Full bunchlength = 380 ns • Qx0 = 4.10 (tr=4) • Qy0 = 4.21 • Ek = 160 MeV • xn (rms) = 3.3 m • yn (rms) = 1.8 m • p/p = 2 10-3 • Bunching factor (meas) = 0.241 • RF voltage= 8 kV h = 1 • RF voltage= 8 kV h = 2 in phase • Qx0 = -0.221 • Qy0 = -0.425 Tune diagram on a PSB 160 MeV plateau for the LHC-type short bunch M. Martini

  18. Application to the PSB • PSB MD: 6 June 2012 • Total particlenumber = 160 1010 • Full bunchlength = 540 ns • Qx0 = 4.10 (tr=4) • Qy0 = 4.21 • Ek = 160 MeV • xn (rms) = 3.4 m • yn (rms) = 1.8 m • p/p = 1.33 10-3 • Bunching factor (meas) = 0.394 • RF voltage= 8 kV h = 1 • RF voltage= 4 kV h = 2 in anti-phase • Qx0 = -0.176 • Qy0 = -0.288 Tune diagram on a PSB 160 MeV plateau for the LHC-type long bunch M. Martini
