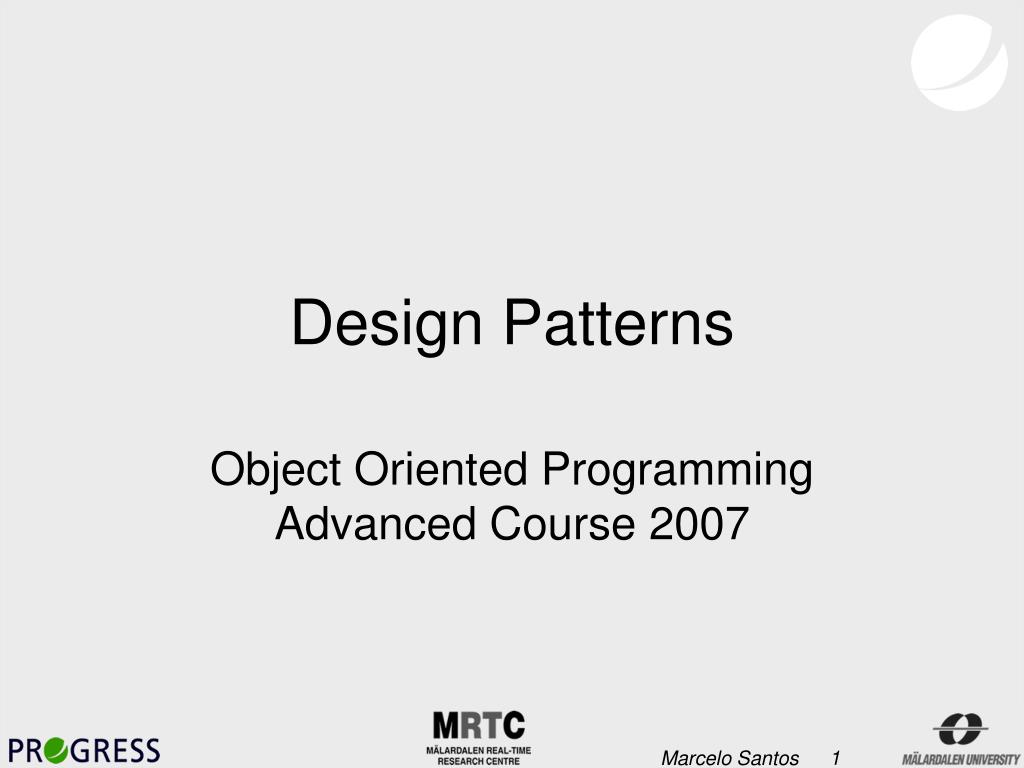

1. Design Patterns Object Oriented Programming Advanced Course 2007 Marcelo Santos

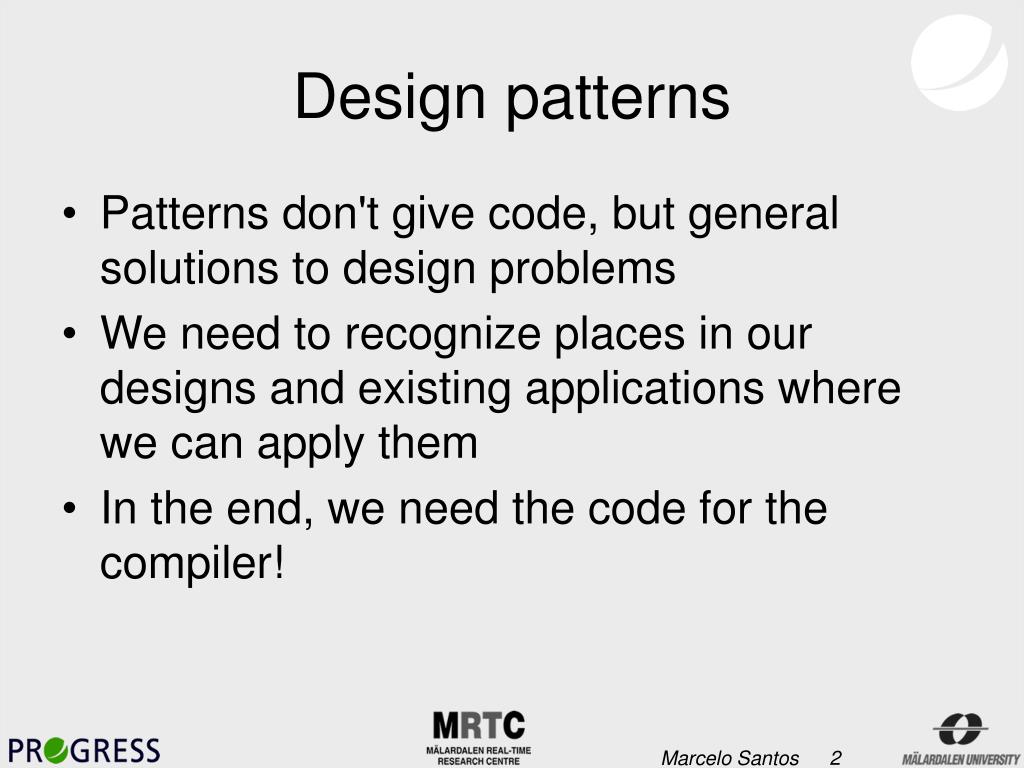

2. Design patterns • Patterns don't give code, but general solutions to design problems • We need to recognize places in our designs and existing applications where we can apply them • In the end, we need the code for the compiler! Marcelo Santos

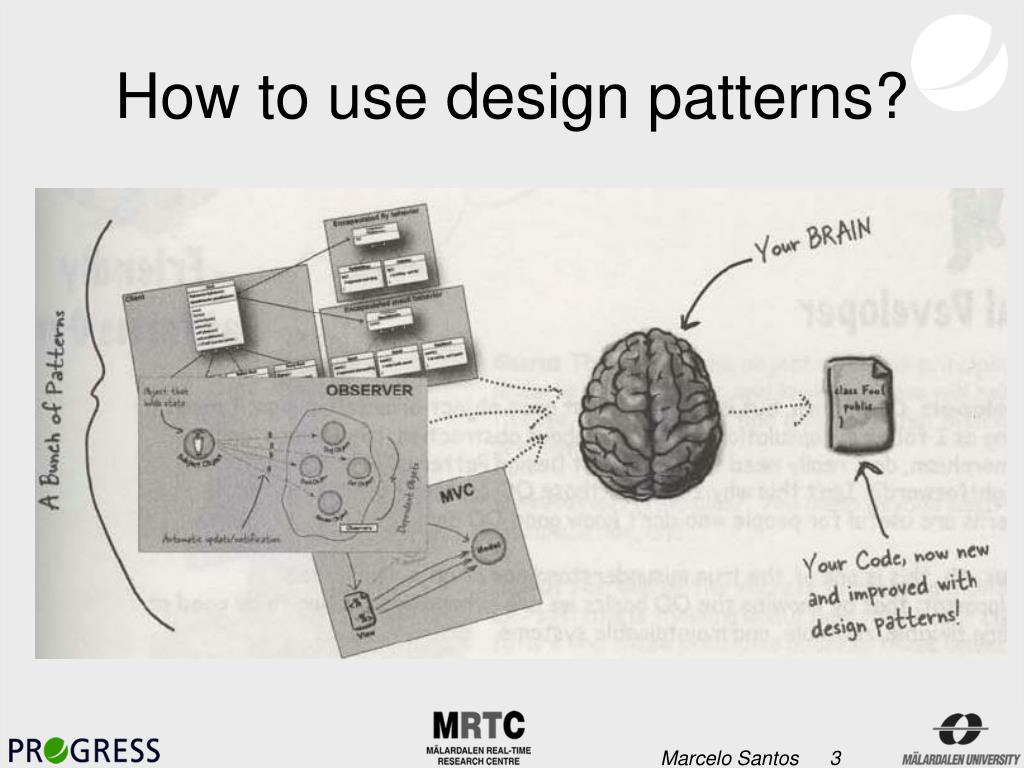

3. How to use design patterns? Marcelo Santos

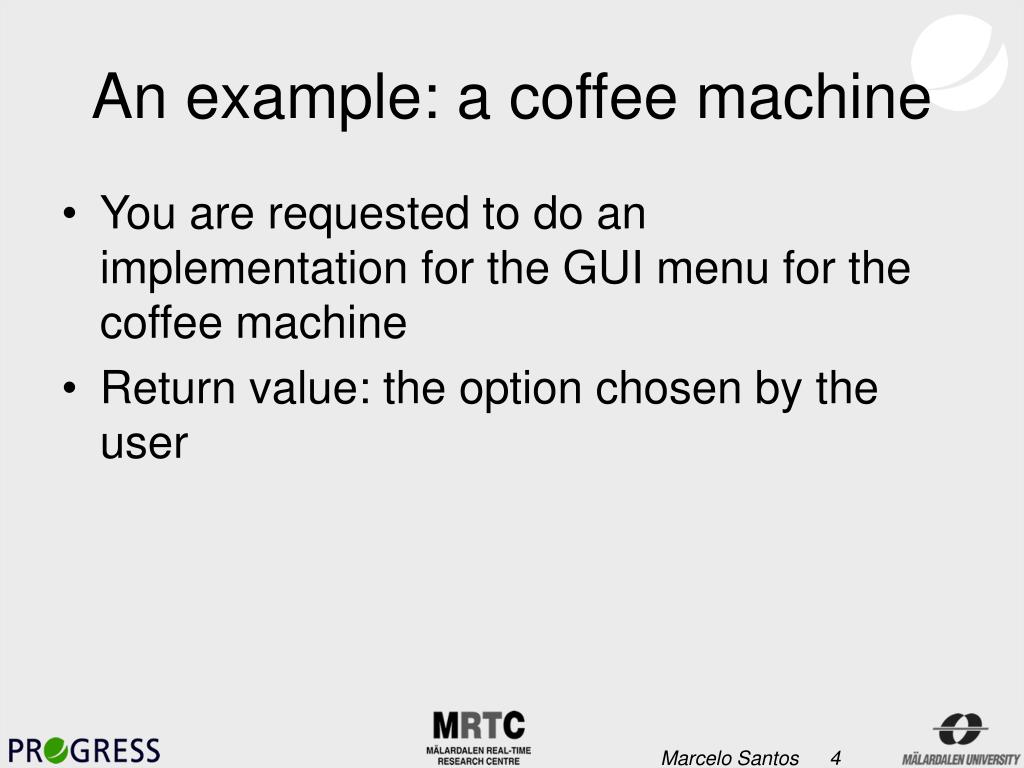

4. An example: a coffee machine • You are requested to do an implementation for the GUI menu for the coffee machine • Return value: the option chosen by the user Marcelo Santos

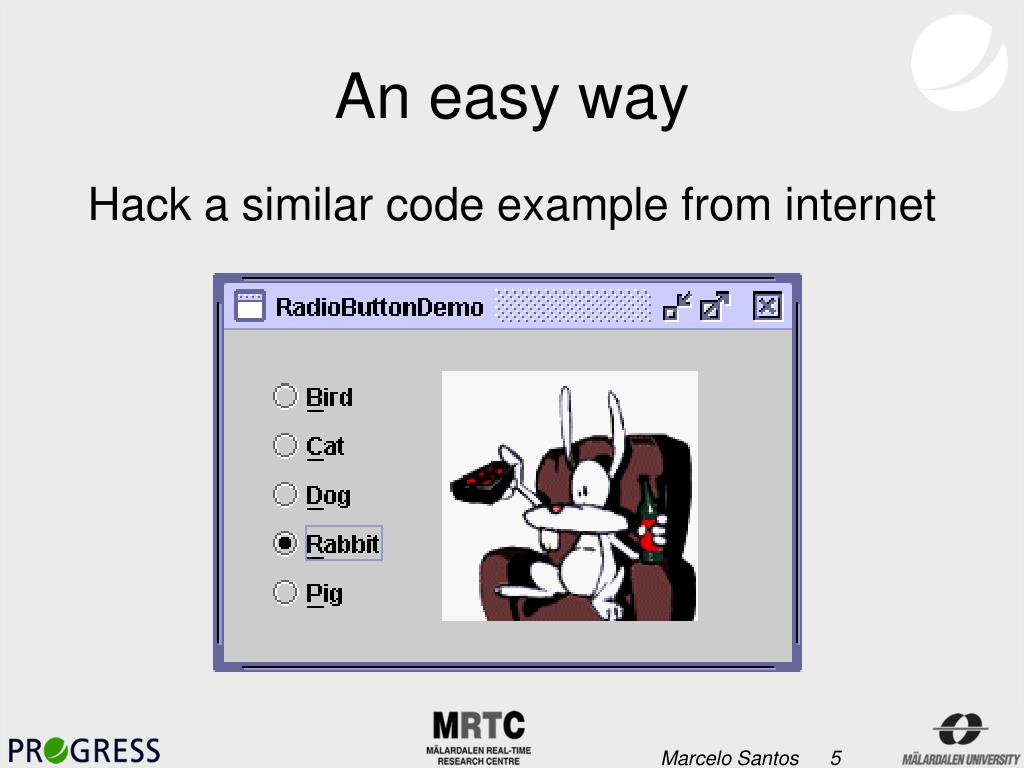

5. An easy way Hack a similar code example from internet Marcelo Santos

6. Java example • Run modified hacked Java example in NetBins Marcelo Santos

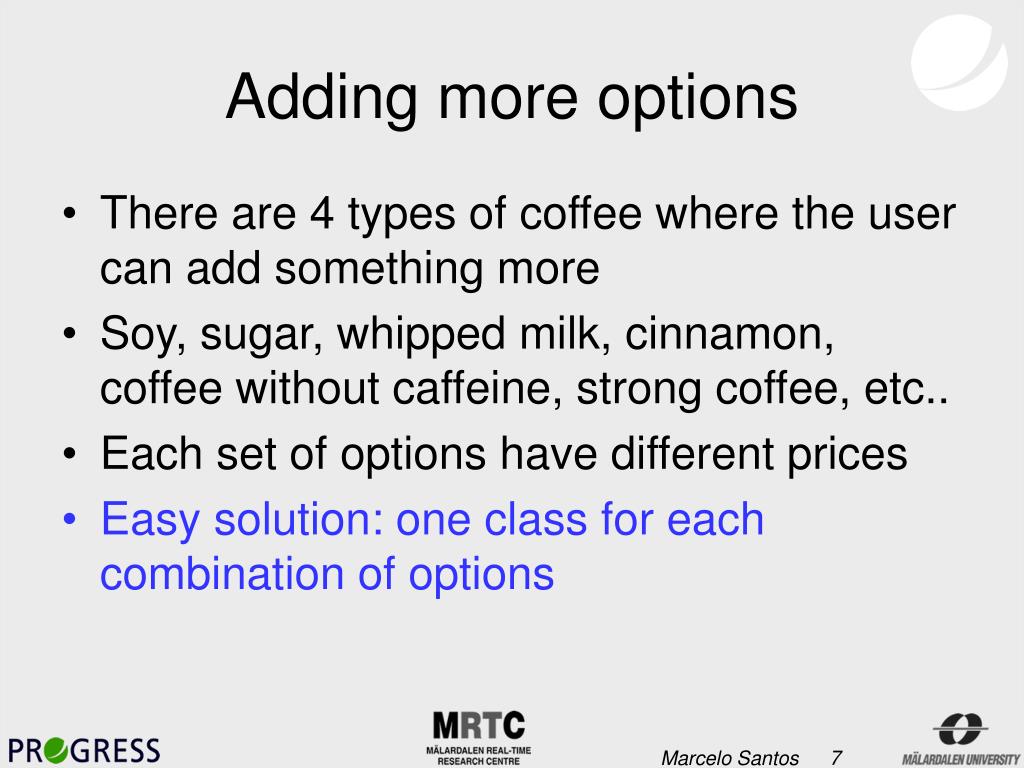

7. Adding more options • There are 4 types of coffee where the user can add something more • Soy, sugar, whipped milk, cinnamon, coffee without caffeine, strong coffee, etc.. • Each set of options have different prices • Easy solution: one class for each combination of options Marcelo Santos

8. Marcelo Santos

9. Maintenance • In the design, you should predict the future: what if the client want to add more options or change the price? • Maintenance: how easy will it be to do a change? Marcelo Santos

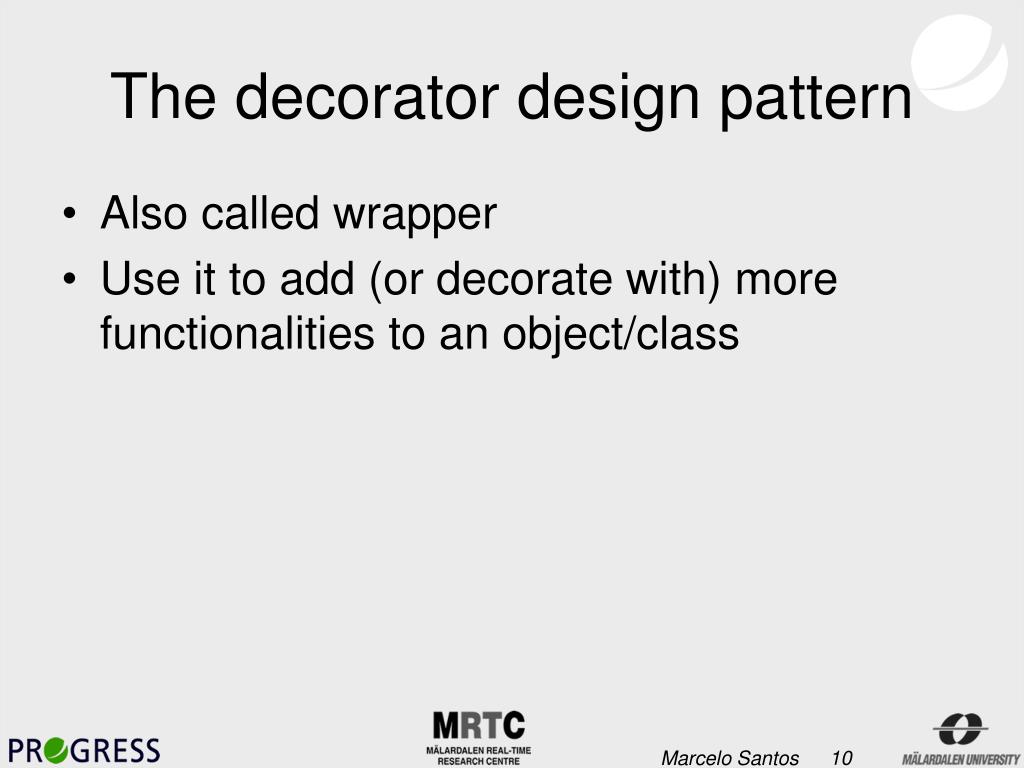

10. The decorator design pattern • Also called wrapper • Use it to add (or decorate with) more functionalities to an object/class Marcelo Santos

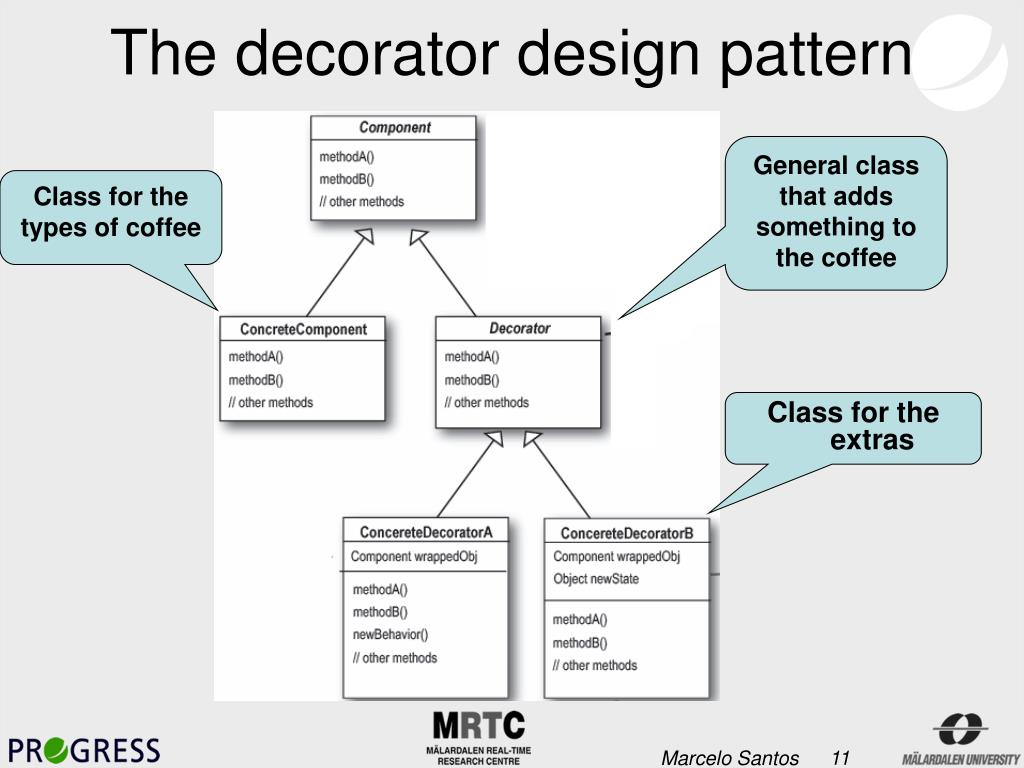

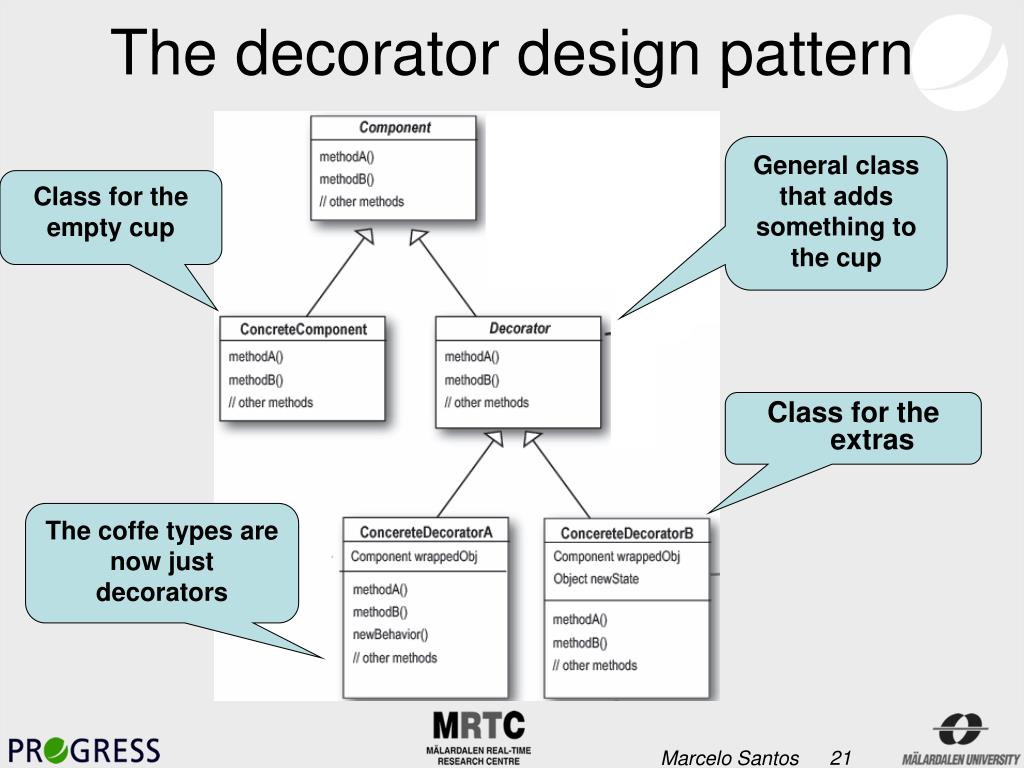

11. The decorator design pattern General class that adds something to the coffee Class for the types of coffee Class for the extras Marcelo Santos

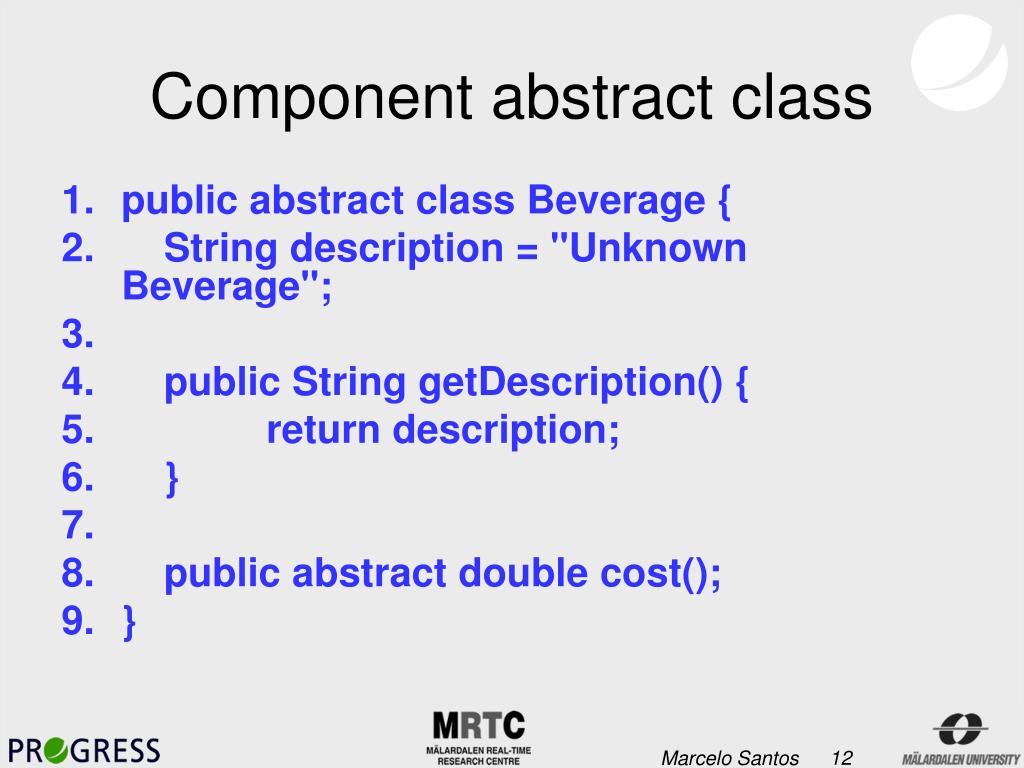

12. Component abstract class • public abstract class Beverage { • String description = "Unknown Beverage"; • public String getDescription() { • return description; • } • public abstract double cost(); • } Marcelo Santos

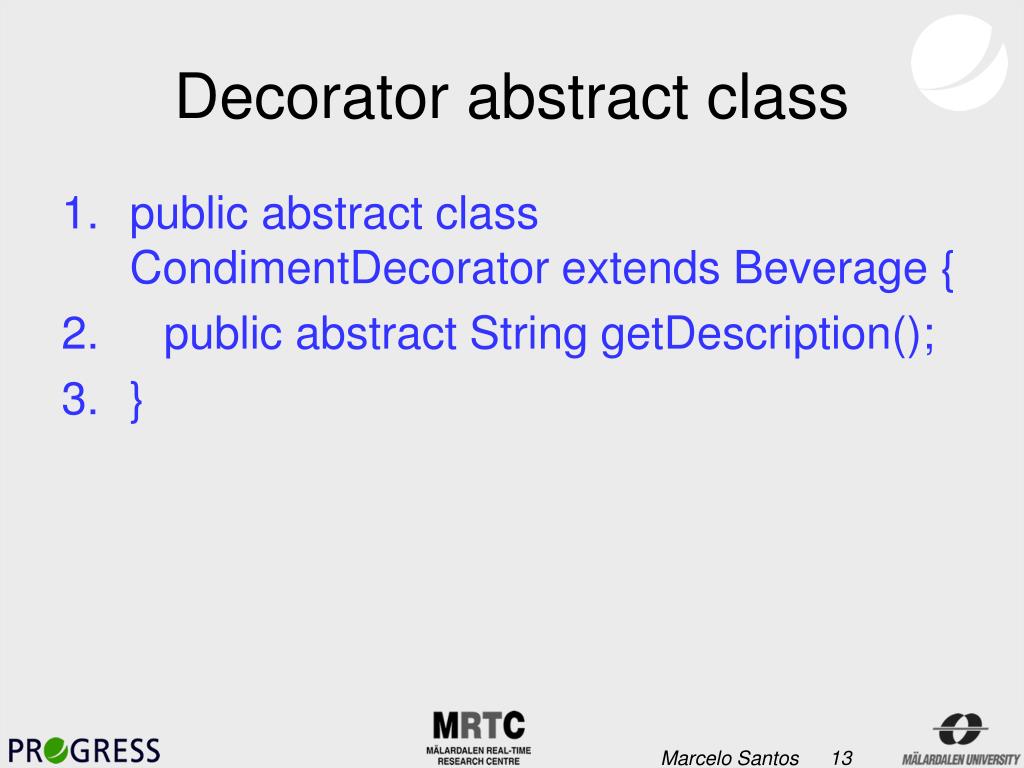

13. Decorator abstract class • public abstract class CondimentDecorator extends Beverage { • public abstract String getDescription(); • } Marcelo Santos

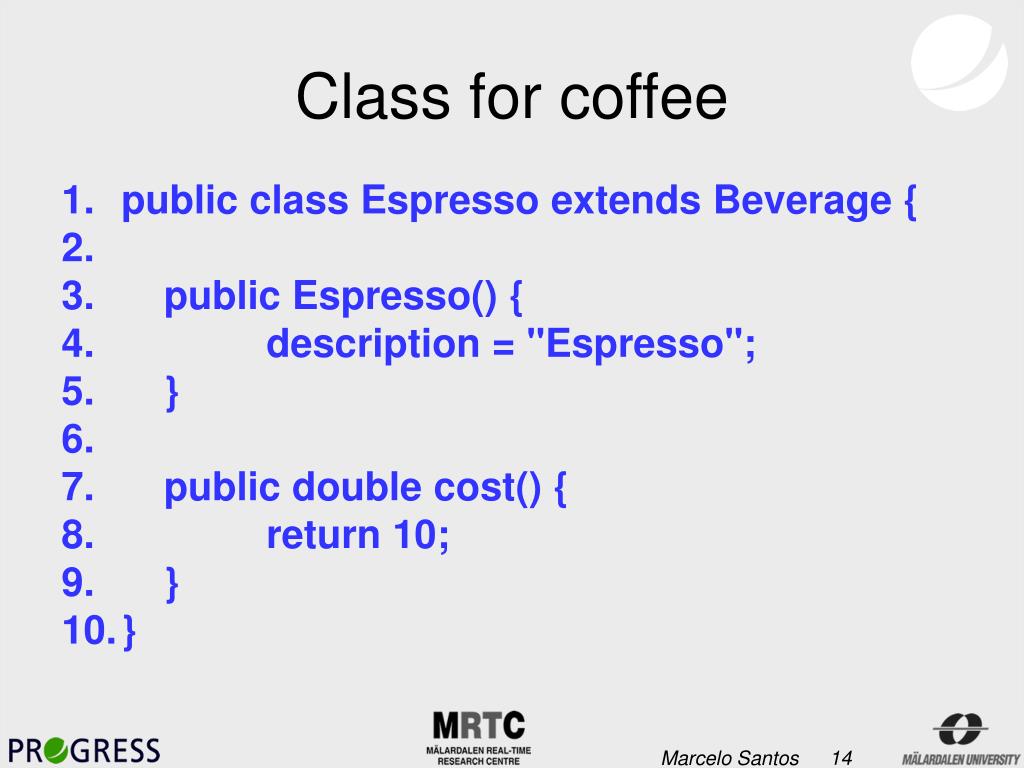

14. Class for coffee • public class Espresso extends Beverage { • public Espresso() { • description = "Espresso"; • } • public double cost() { • return 10; • } • } Marcelo Santos

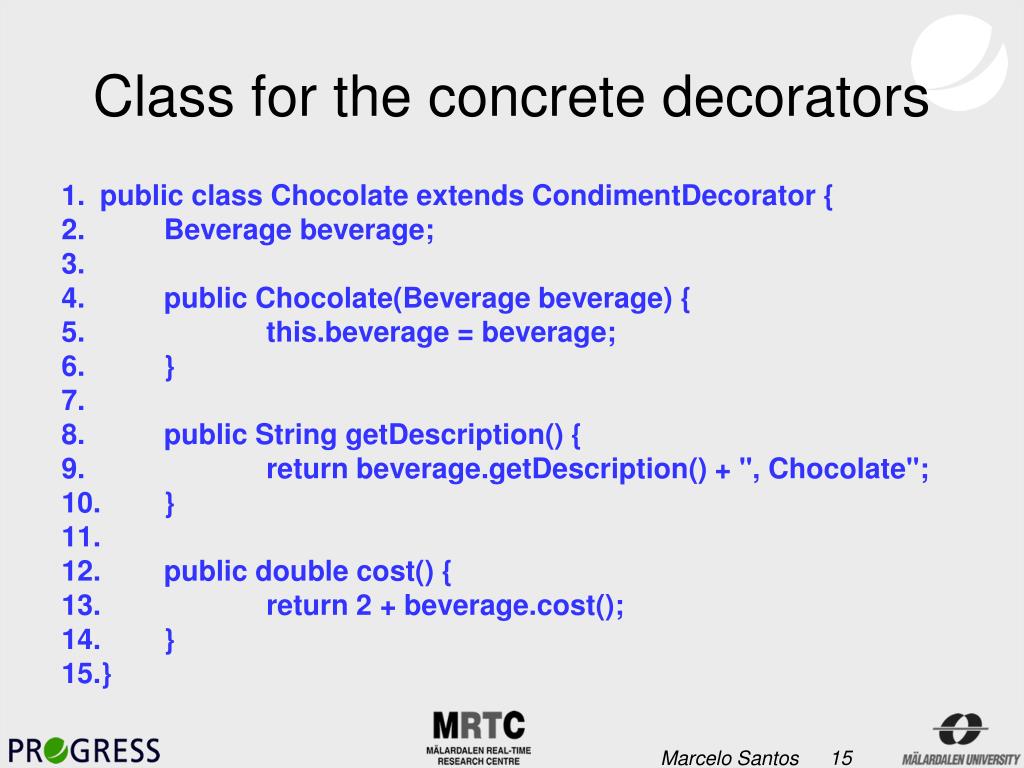

15. Class for the concrete decorators • public class Chocolate extends CondimentDecorator { • Beverage beverage; • public Chocolate(Beverage beverage) { • this.beverage = beverage; • } • public String getDescription() { • return beverage.getDescription() + ", Chocolate"; • } • public double cost() { • return 2 + beverage.cost(); • } • } Marcelo Santos

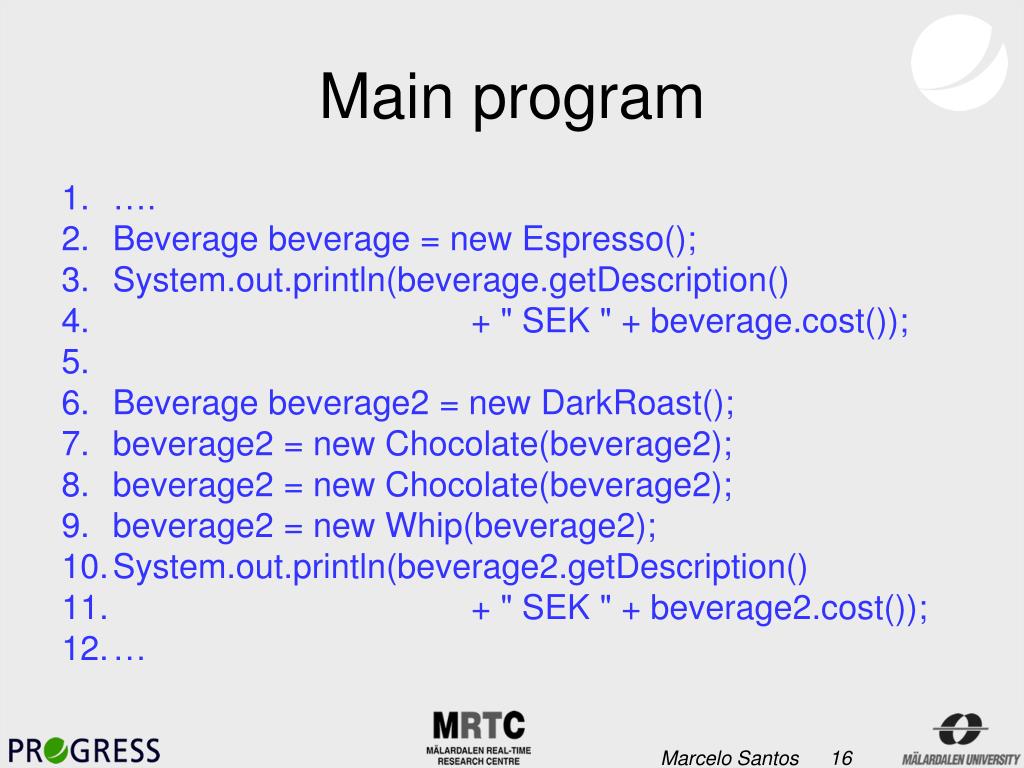

16. Main program • …. • Beverage beverage = new Espresso(); • System.out.println(beverage.getDescription() • + " SEK " + beverage.cost()); • Beverage beverage2 = new DarkRoast(); • beverage2 = new Chocolate(beverage2); • beverage2 = new Chocolate(beverage2); • beverage2 = new Whip(beverage2); • System.out.println(beverage2.getDescription() • + " SEK " + beverage2.cost()); • … Marcelo Santos

17. Sample output • Espresso SEK 14.0 • Dark Roast Coffee, Chocolate, Chocolate, Whip SEK 17.0 • House Blend Coffee, Soy, Chocolate, Whip SEK 13.0 Marcelo Santos

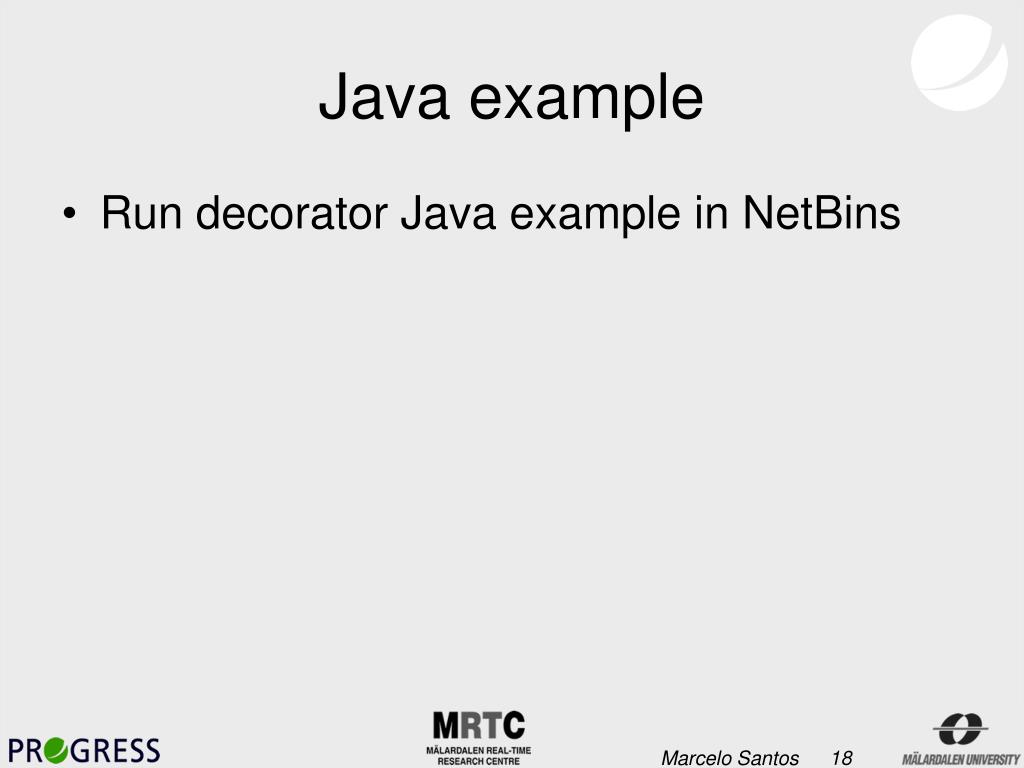

18. Java example • Run decorator Java example in NetBins Marcelo Santos

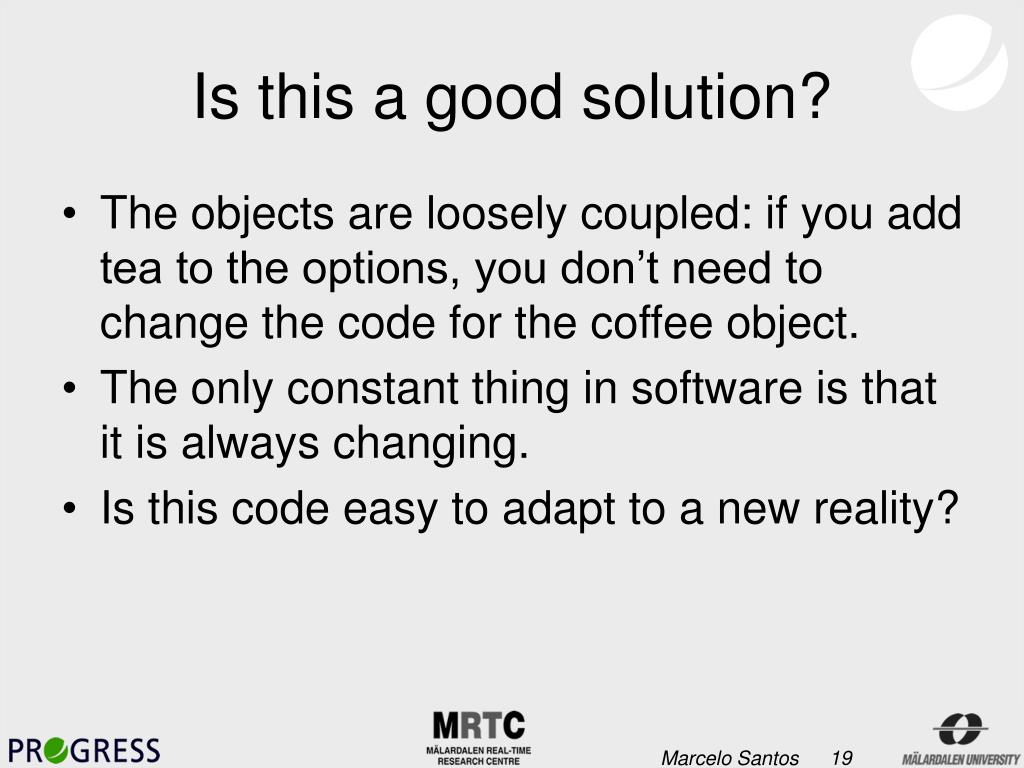

19. Is this a good solution? • The objects are loosely coupled: if you add tea to the options, you don’t need to change the code for the coffee object. • The only constant thing in software is that it is always changing. • Is this code easy to adapt to a new reality? Marcelo Santos

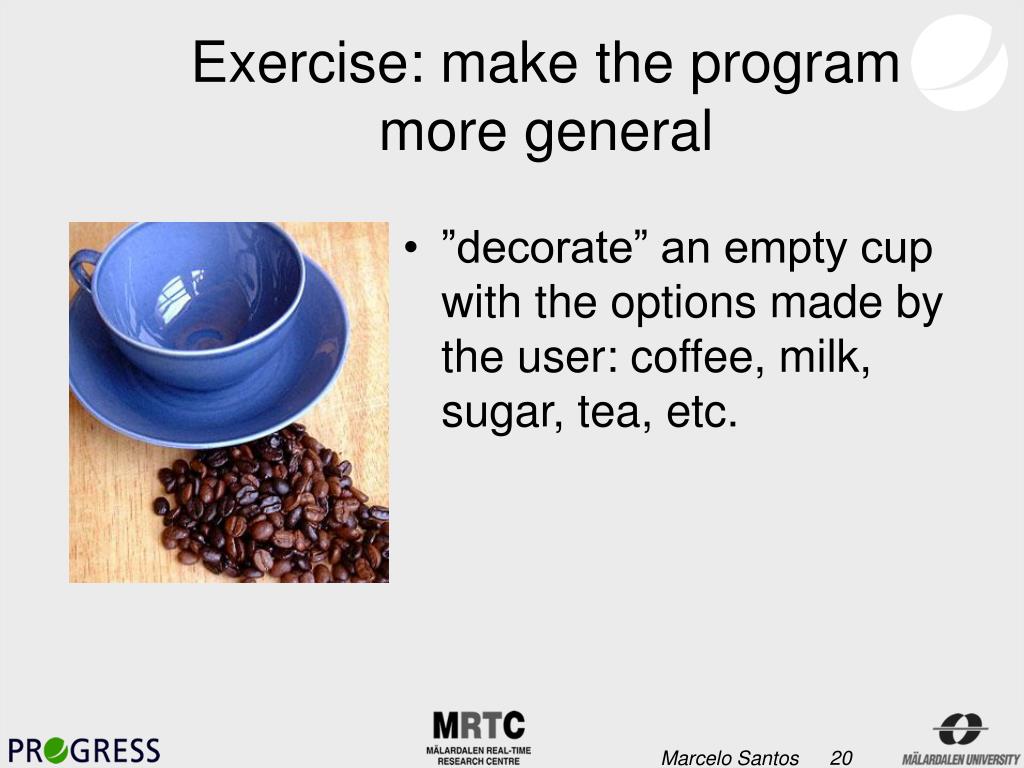

20. Exercise: make the program more general • ”decorate” an empty cup with the options made by the user: coffee, milk, sugar, tea, etc. Marcelo Santos

21. The decorator design pattern General class that adds something to the cup Class for the empty cup Class for the extras The coffe types are now just decorators Marcelo Santos

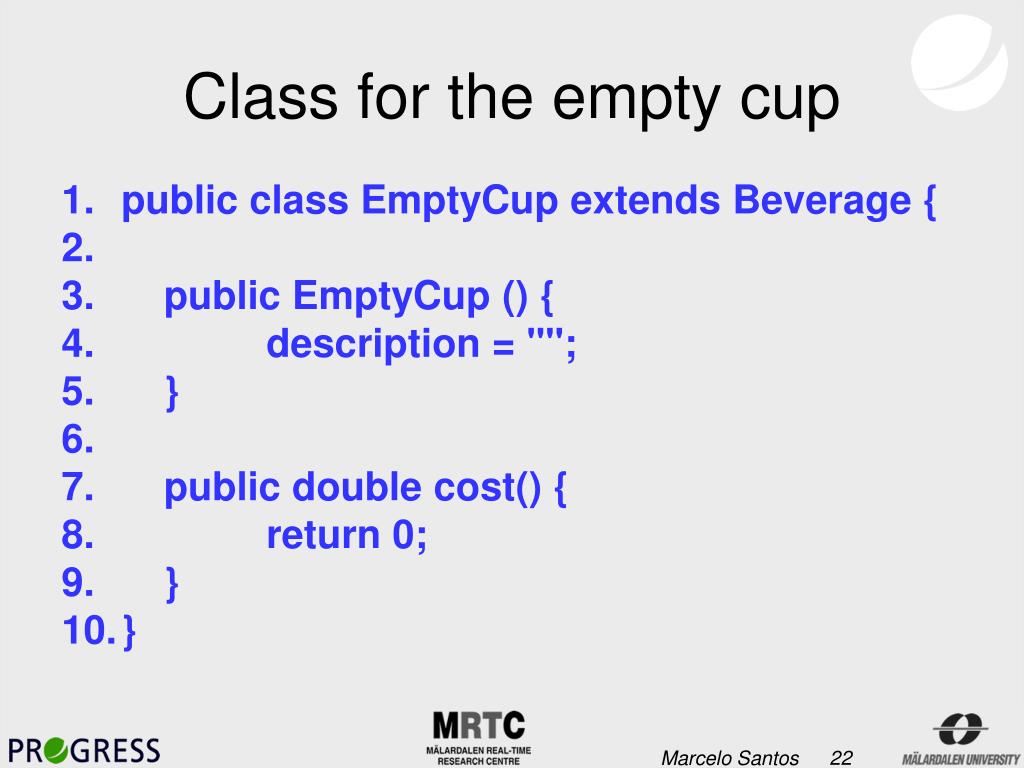

22. Class for the empty cup • public class EmptyCup extends Beverage { • public EmptyCup () { • description = ""; • } • public double cost() { • return 0; • } • } Marcelo Santos

23. The GUI Code with strong coupling!!! • super(new BorderLayout()); • //Create the check boxes. • coffeeButton = new JCheckBox("Coffee"); • coffeeButton.setMnemonic(KeyEvent.VK_C); • coffeeButton.setSelected(false); • milkButton = new JCheckBox("Milk"); • milkButton.setMnemonic(KeyEvent.VK_M); • milkButton.setSelected(false); • chocolateButton = new JCheckBox("Chocolate"); • chocolateButton.setMnemonic(KeyEvent.VK_H); • chocolateButton.setSelected(false); • cappuccinoButton = new JCheckBox("Cappuccino"); • cappuccinoButton.setMnemonic(KeyEvent.VK_P); • cappuccinoButton.setSelected(false); • ….. Can you think of a design pattern for the GUI? Marcelo Santos

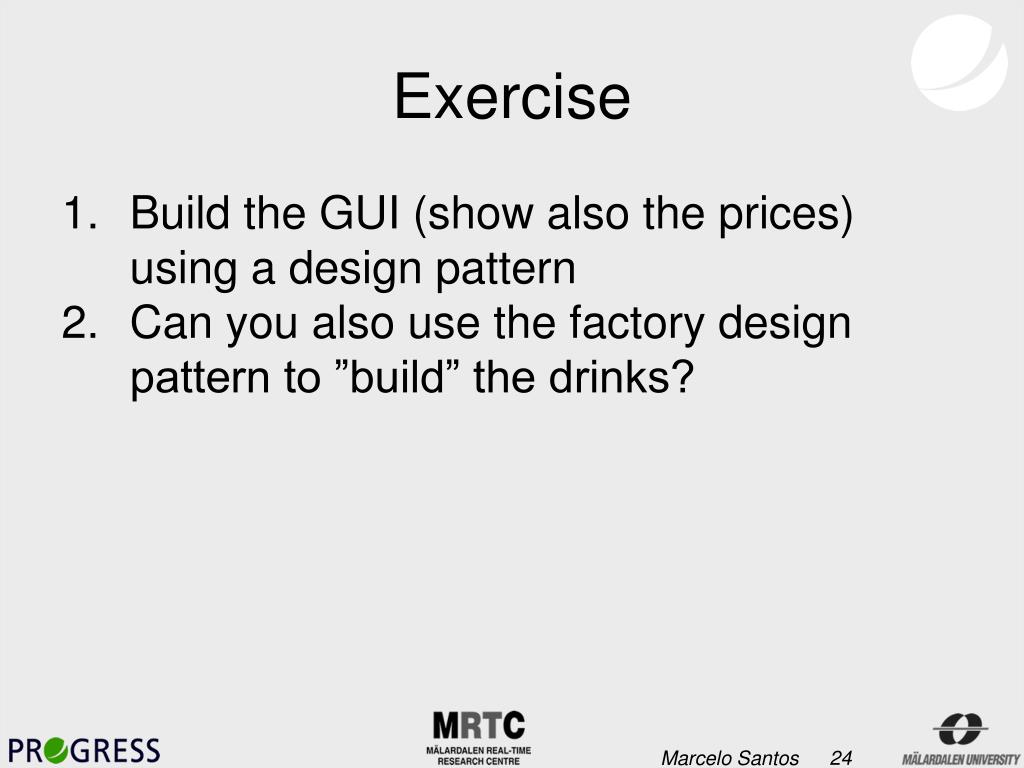

24. Exercise • Build the GUI (show also the prices) using a design pattern • Can you also use the factory design pattern to ”build” the drinks? Marcelo Santos
