FC5A-SIF4 RS485 Communication Module

FC5A-SIF4 RS485 Communication Module. Key Features. Protocols Supported Modbus RTU/ASCII Master and Slave IDEC Datalink Maintenance User Communications Configure up to 5 FC5A-SIF4 modules on Slim CPU Configure up to 3 FC5A-SIF4 modules on All-in-One CPU

veata
Télécharger la présentation

FC5A-SIF4 RS485 Communication Module

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FC5A-SIF4 RS485Communication Module

  2. Key Features • Protocols Supported • Modbus RTU/ASCII Master and Slave • IDEC Datalink • Maintenance • User Communications • Configure up to 5 FC5A-SIF4 modules on Slim CPU • Configure up to 3 FC5A-SIF4 modules on All-in-One CPU • Network up to 95,000 I/O points using Modbus protocol Datalink Modbus User Comm. Bar code scanner Maintenance Communication Maintenance Communication User’s Program Down/Upload Simulation

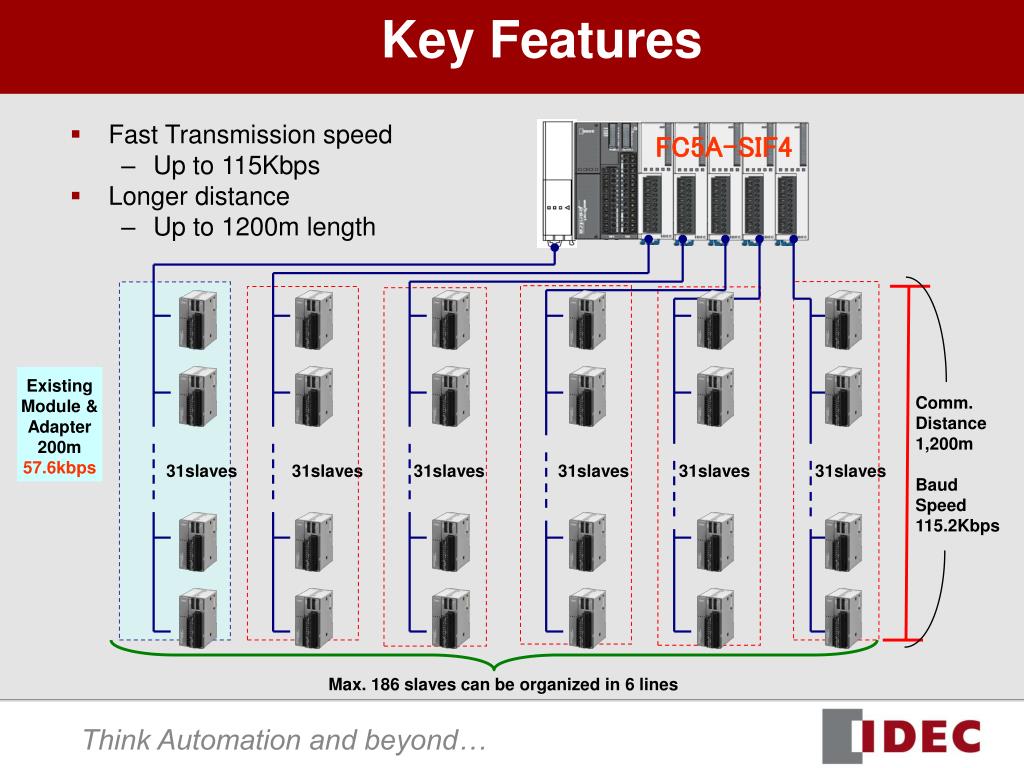

  3. Key Features FC5A-SIF4 • Fast Transmission speed • Up to 115Kbps • Longer distance • Up to 1200m length Existing Module & Adapter 200m 57.6kbps Comm. Distance 1,200m Baud Speed 115.2Kbps 31slaves 31slaves 31slaves 31slaves 31slaves 31slaves Max. 186 slaves can be organized in 6 lines

  4. Specifications

  5. Sample Applications
