Kinetic Particle Theory

Kinetic Particle Theory. Learning Outcomes. At the end of the lesson, the students should be able to: describe the solid, liquid and gaseous states of matter and explain their interconversion in terms of the kinetic particle theory and of the energy changes involved. States of Matter.

veata
Télécharger la présentation

Kinetic Particle Theory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Kinetic Particle Theory

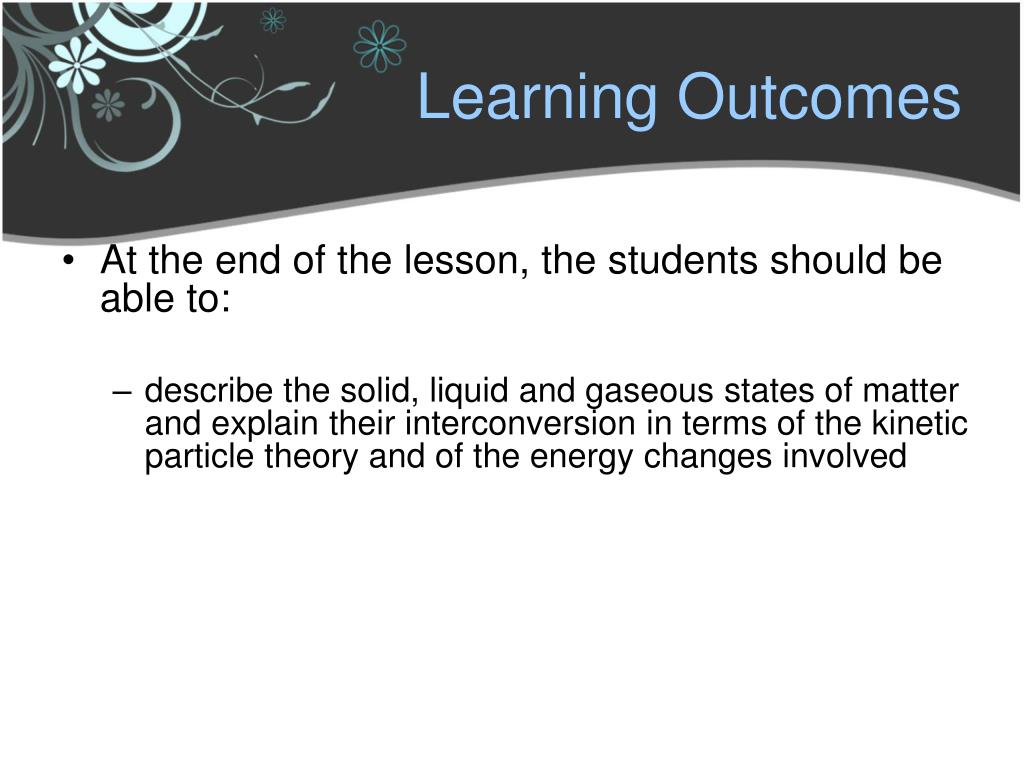

  2. Learning Outcomes • At the end of the lesson, the students should be able to: • describe the solid, liquid and gaseous states of matter and explain their interconversion in terms of the kinetic particle theory and of the energy changes involved

  3. States of Matter • Matter can exist as a solid, a liquid or a gas. • Kinetic particle theory states that • all matter is made up of tiny particles and • that these particles are in constant random motion.

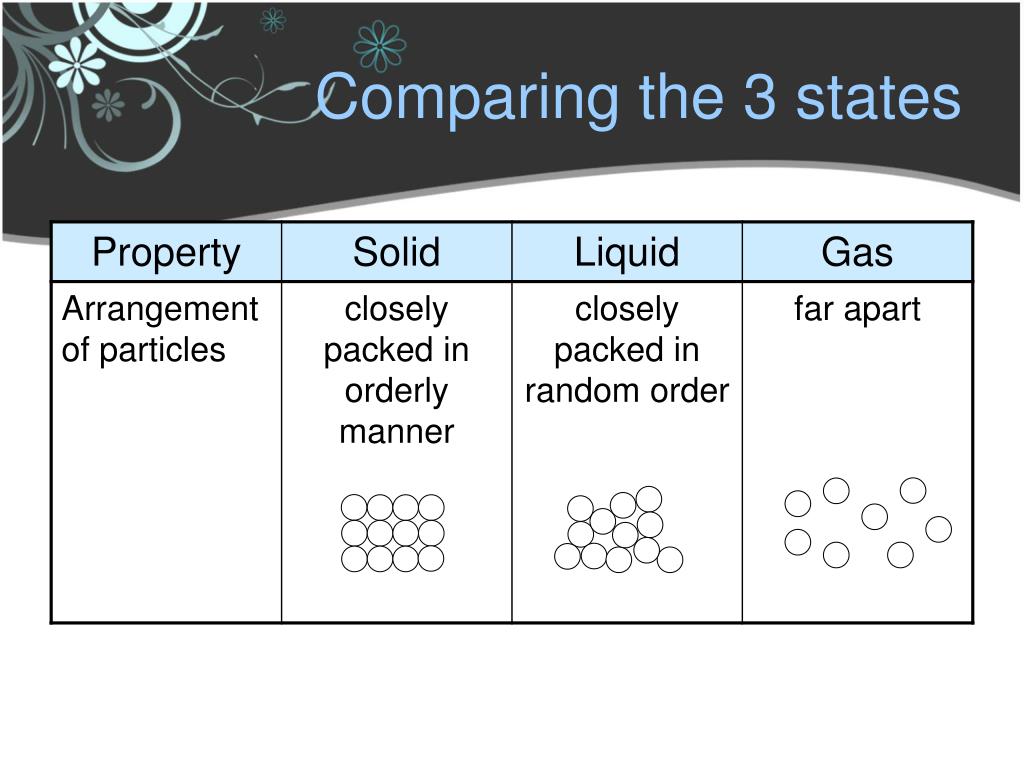

  4. Comparing the 3 states

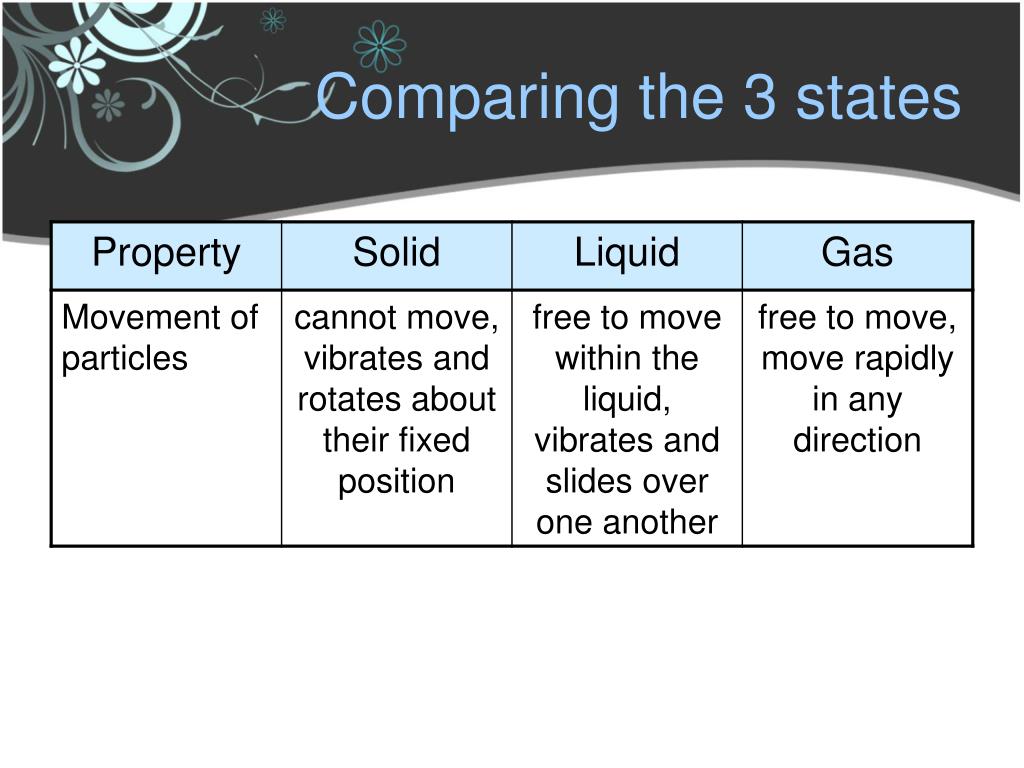

  5. Comparing the 3 states

  6. Comparing the 3 states

  7. Changes in States of Matter • The physical state of a substance depends on the temperature and pressure of the surroundings. • For example • At room temperature (25 oC), water is in the liquid state. • At -10 oC, water is in the solid state.

  8. Changes in State • Heat is a form of energy. • When matter is heated, the particles absorb energy. • When matter is cooled, the particles lose energy. • the heat taken in or given out causes the kinetic energy of the particles to change. • Hence, the substance changes it state.

  9. Changes in States of Matter condense melt boil condense freeze sublime

  10. Changes in States of Matter

  11. Changes in States of Matter • What happens during melting • particles gain energy, • particles vibrate faster, • particles overcome attractive forces between them, • particles break away from their fixed positions

  12. Changes in States of Matter • What happens during boiling • particles gain kinetic energy, • particles move faster, • particles overcome forces holding them together, • particles spread far apart, • particles move rapidly in all directions

  13. Changes in States of Matter • What happens during freezing • particles lose kinetic energy, • particles move more slowly until they no longer have enough energy to move about freely, • particles settle into fixed position

  14. Changes in States of Matter • What happens during condensation • particles lose energy, • particles move more slowly, • becomes a liquid

  15. Sublimation • Particles at the surface of the solid have enough energy to break away from the solid and escape as a gas

  16. Changes in States of Matter

  17. Wake Up Call 1 • When water vapour condenses to water, the particles in the vapour Agains energy. B decrease in density C move closer to each other D mover further apart from each other. Answer: C

  18. Wake Up Call 1 • Three substances have the following properties: X: melts at -180 oC and boils at -167 oC Y: has shiny crystalline surface at r.t.p Z: can flow and take the shape of container at rtp; has boiling point of 160 oC What is the state of each substance at room temperature and pressure? Answer: A

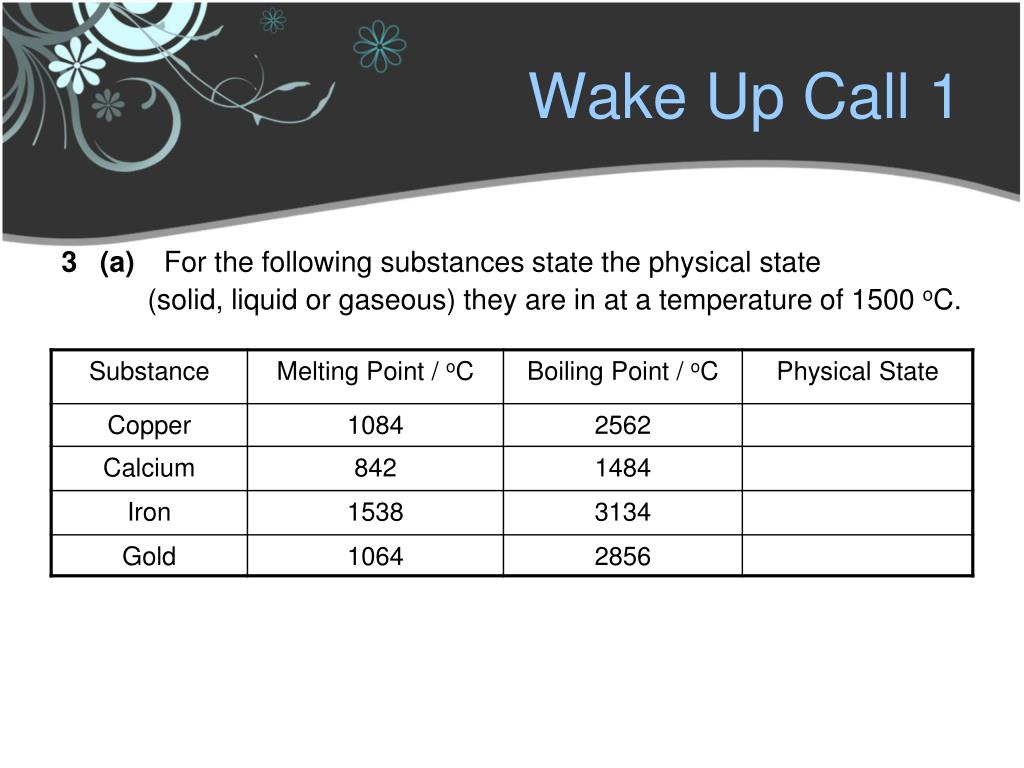

  19. Wake Up Call 1 3 (a) For the following substances state the physical state (solid, liquid or gaseous) they are in at a temperature of 1500 oC.

  20. Wake Up Call 1 • Hence draw and describe the arrangement and movement of particles of copper, calcium and iron at the temperature of 1000 oC. • (i) Copper • Arrangement: • closely packed in orderly manner • Movement: • cannot move, vibrates and rotates about their fixed position • (ii) Calcium • Arrangement • closely packed in random order • Movement • free to move within the liquid, vibrates and slides over one another

  21. Temperature Changes • When matter is heated energy causes temperature to increase. • Temperature stops increasing at melting / boiling points. • Particles absorb the heat energy to vibrate faster and move further apart. • Matter changes state. Figure showing the heating curve of water
