  1. Program Control Carlos Campos Vache Agazaryan

  2. Program Control • Iteration and Recursion • Functions and Procedures • Exception Handlers • Communication and Synchronization

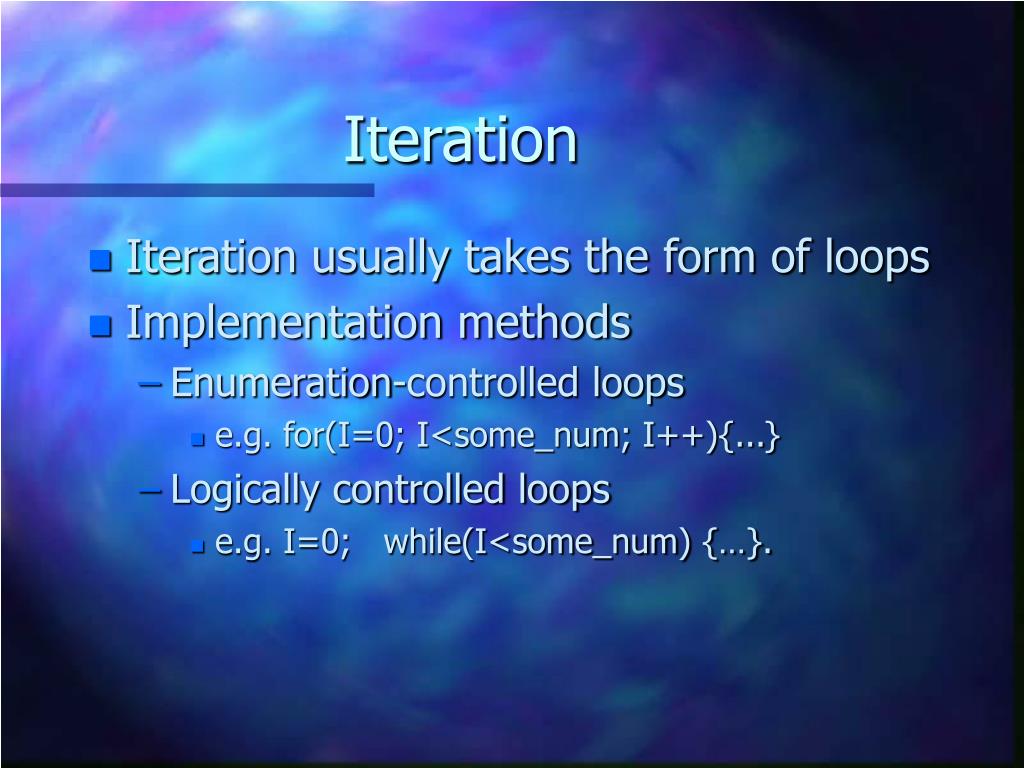

  3. Iteration • Iteration usually takes the form of loops • Implementation methods • Enumeration-controlled loops • e.g. for(I=0; I<some_num; I++){...} • Logically controlled loops • e.g. I=0; while(I<some_num) {…}.

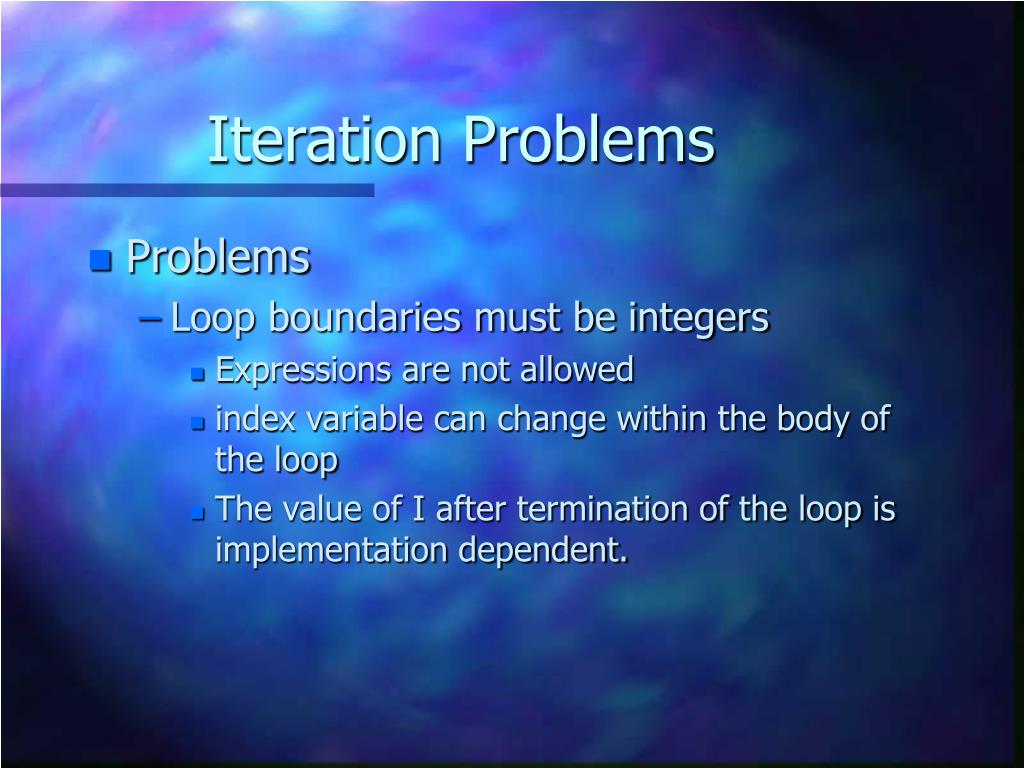

  4. Iteration Problems • Problems • Loop boundaries must be integers • Expressions are not allowed • index variable can change within the body of the loop • The value of I after termination of the loop is implementation dependent.

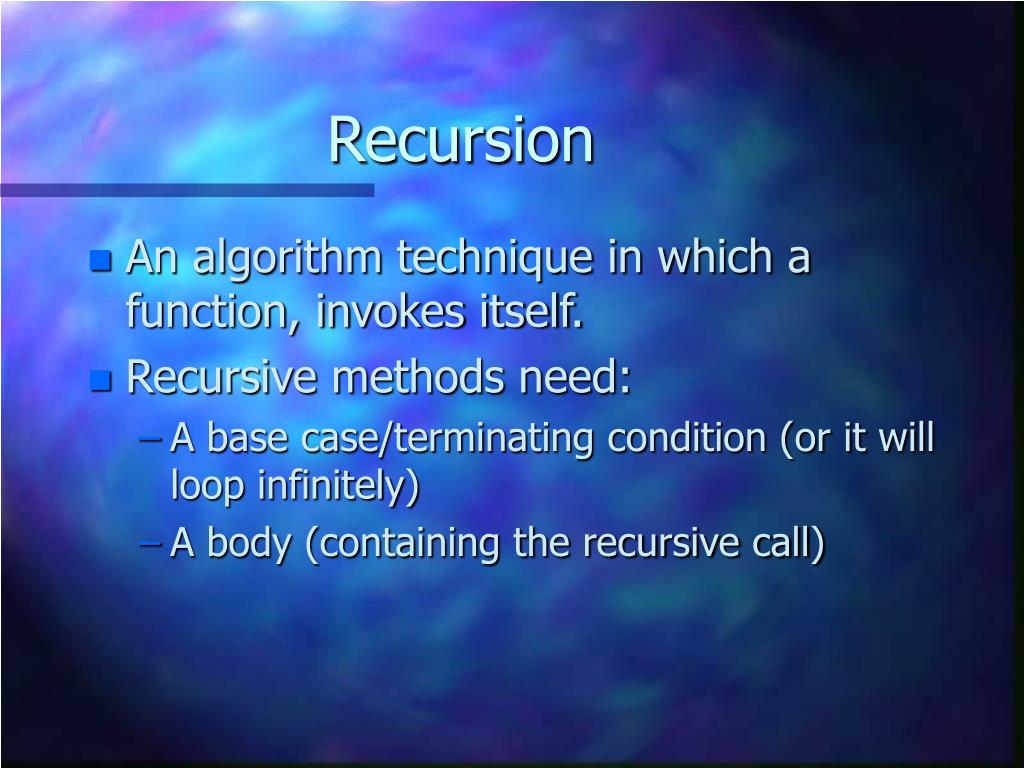

  5. Recursion • An algorithm technique in which a function, invokes itself. • Recursive methods need: • A base case/terminating condition (or it will loop infinitely) • A body (containing the recursive call)

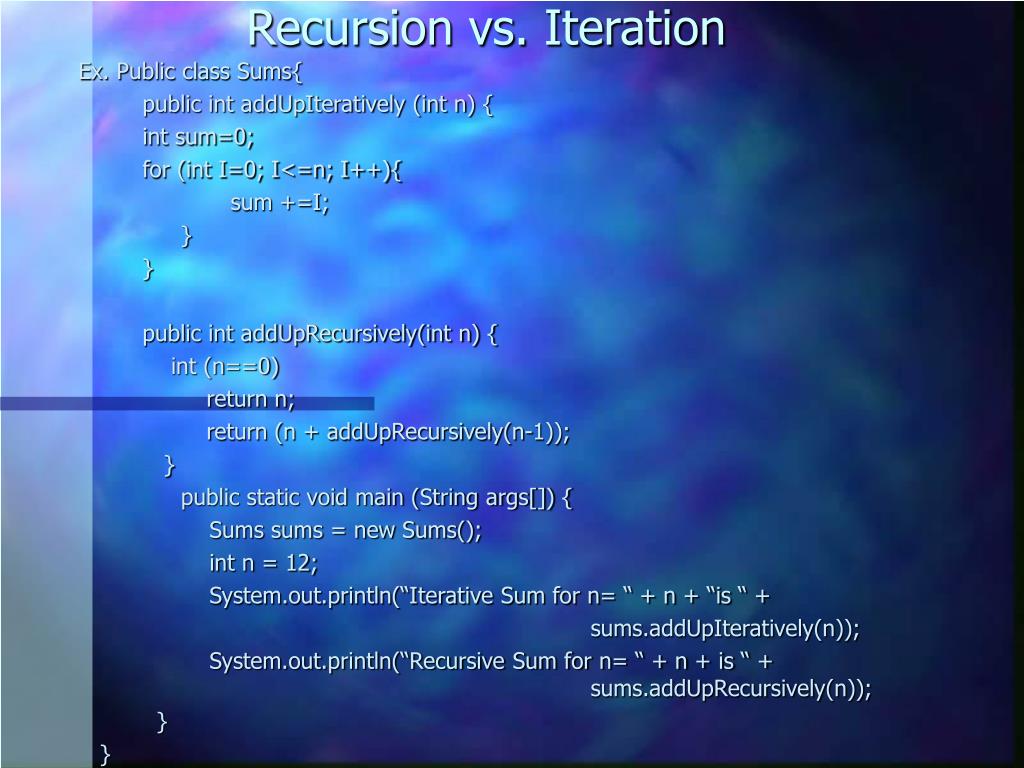

  6. Recursion vs. Iteration Ex. Public class Sums{ public int addUpIteratively (int n) { int sum=0; for (int I=0; I<=n; I++){ sum +=I; } } public int addUpRecursively(int n) { int (n==0) return n; return (n + addUpRecursively(n-1)); } public static void main (String args[]) { Sums sums = new Sums(); int n = 12; System.out.println(“Iterative Sum for n= “ + n + “is “ + sums.addUpIteratively(n)); System.out.println(“Recursive Sum for n= “ + n + is “ + sums.addUpRecursively(n)); } }

  7. Procedures & Functions • Procedures • Generally perform a complete operation • They generally do not return a value

  8. Function • A group of computer instructions that performs a well-defined task inside a computer program. • Are one of the primary building blocks of an application. • Functions provide a way to break up a large program into more managable parts

  9. Function Cont’d • At the same time, functions make it possible to perform the same task at various point within the program without repeating the code. • Every code has at-least one function, and it is called main. It is called by the Operating System when you application starts.

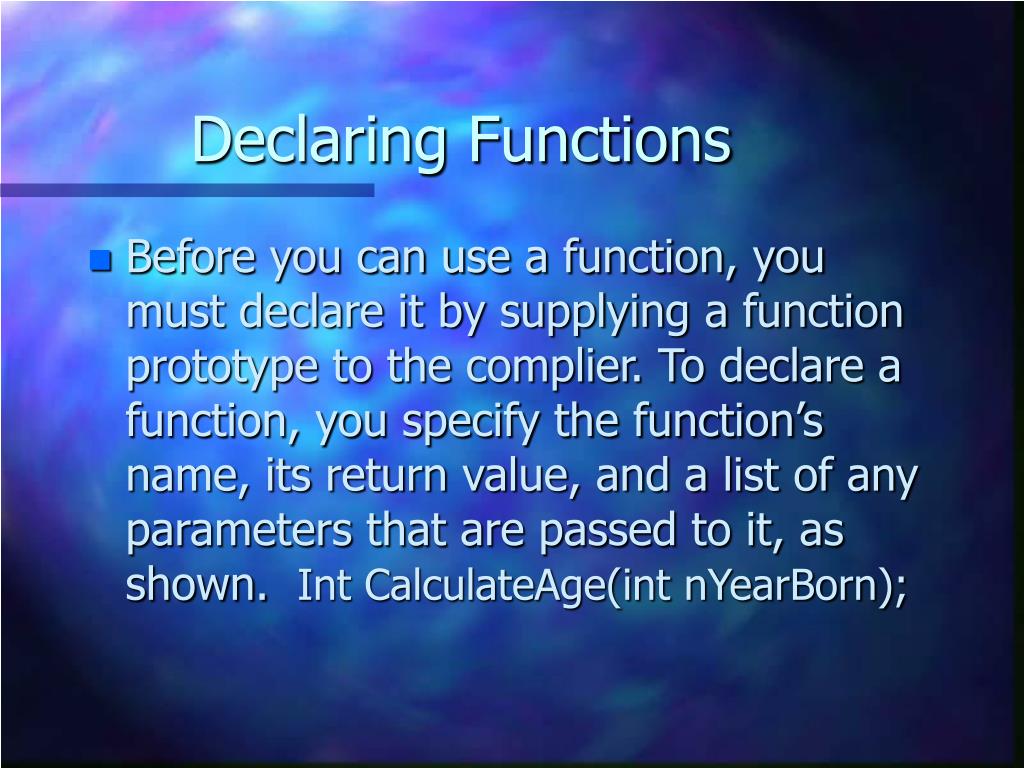

  10. Declaring Functions • Before you can use a function, you must declare it by supplying a function prototype to the complier. To declare a function, you specify the function’s name, its return value, and a list of any parameters that are passed to it, as shown. Int CalculateAge(int nYearBorn);

  11. Defining Functions: • Function definition always consist of the following • The function’s return value • The function’s name • The function’s parameter list • The actual function body, enclosed in curly braces.

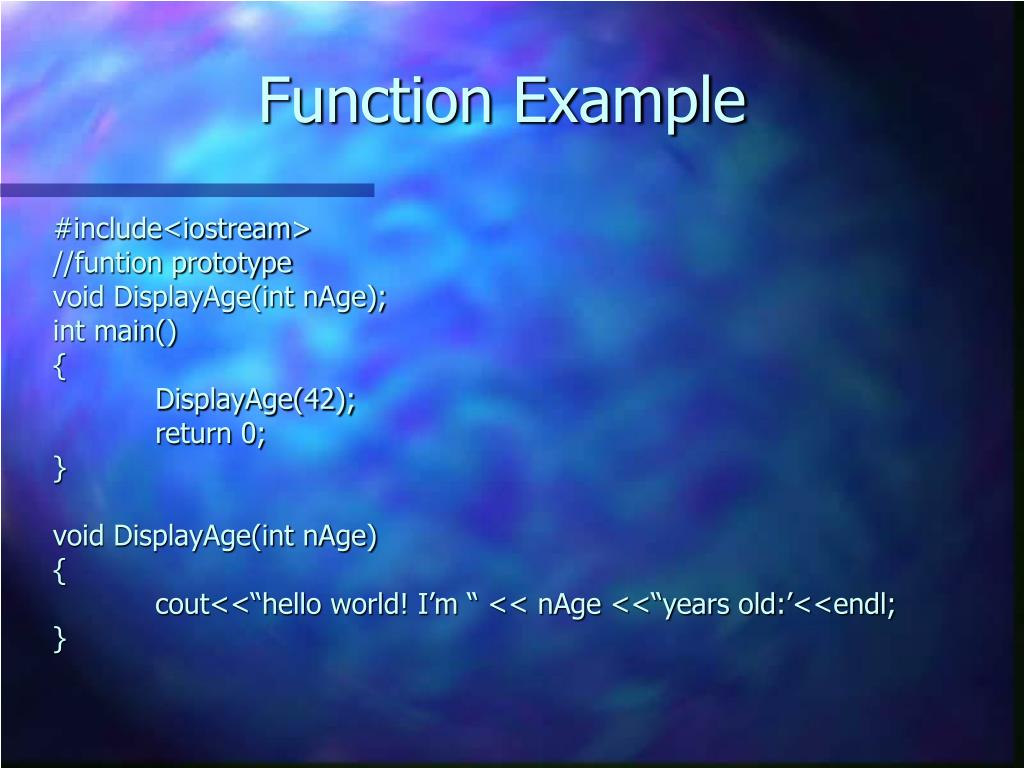

  12. Function Example#include<iostream>//funtion prototypevoid DisplayAge(int nAge);int main(){ DisplayAge(42); return 0;}void DisplayAge(int nAge){ cout<<“hello world! I’m “ << nAge <<“years old:’<<endl;}

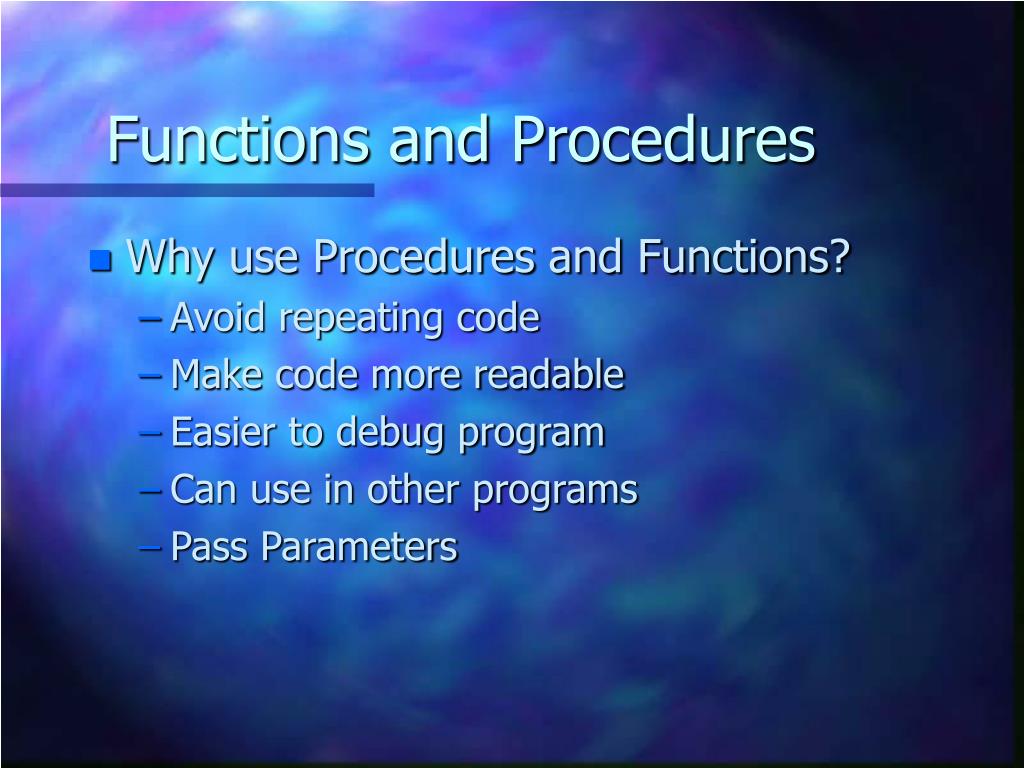

  13. Functions and Procedures • Why use Procedures and Functions? • Avoid repeating code • Make code more readable • Easier to debug program • Can use in other programs • Pass Parameters

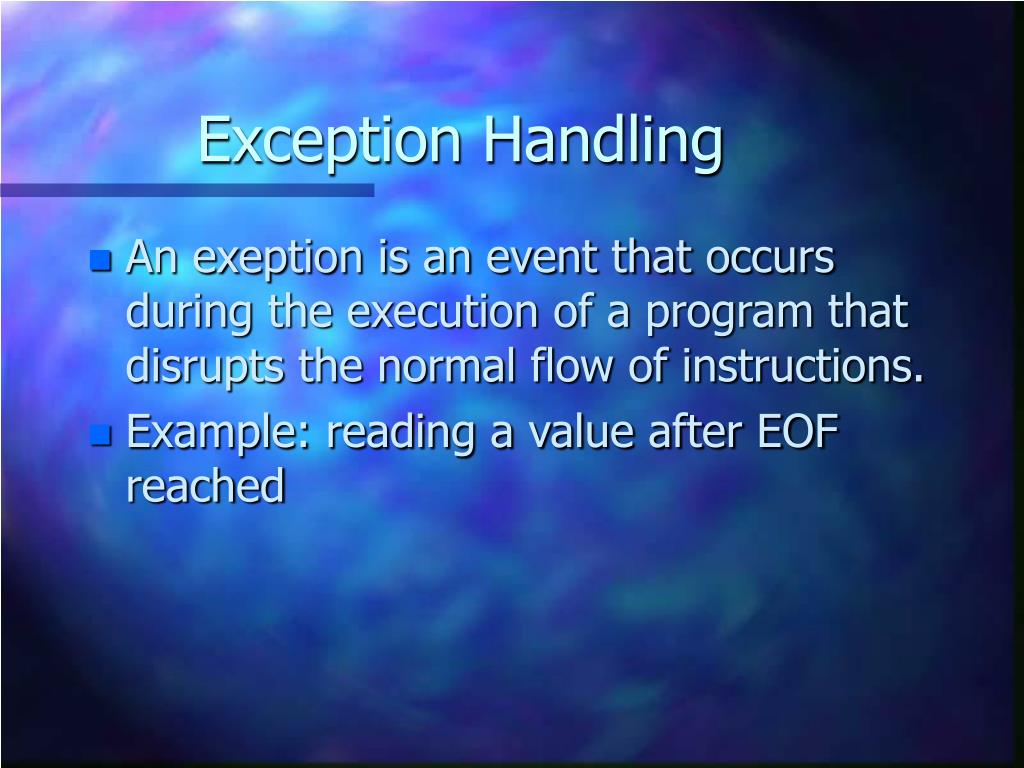

  14. Exception Handling • An exeption is an event that occurs during the execution of a program that disrupts the normal flow of instructions. • Example: reading a value after EOF reached

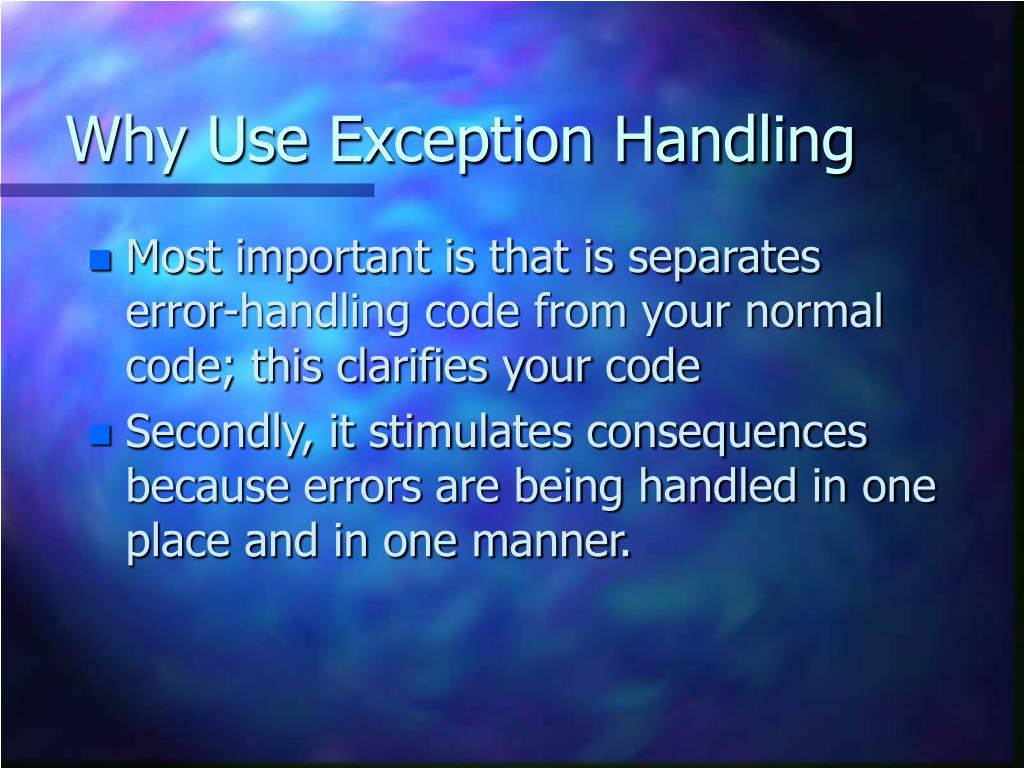

  15. Why Use Exception Handling • Most important is that is separates error-handling code from your normal code; this clarifies your code • Secondly, it stimulates consequences because errors are being handled in one place and in one manner.

  16. Exception Handling Exampletry{ //code trying to execute. }catch(IOException e) { System.out.print(e.getMessage()); }

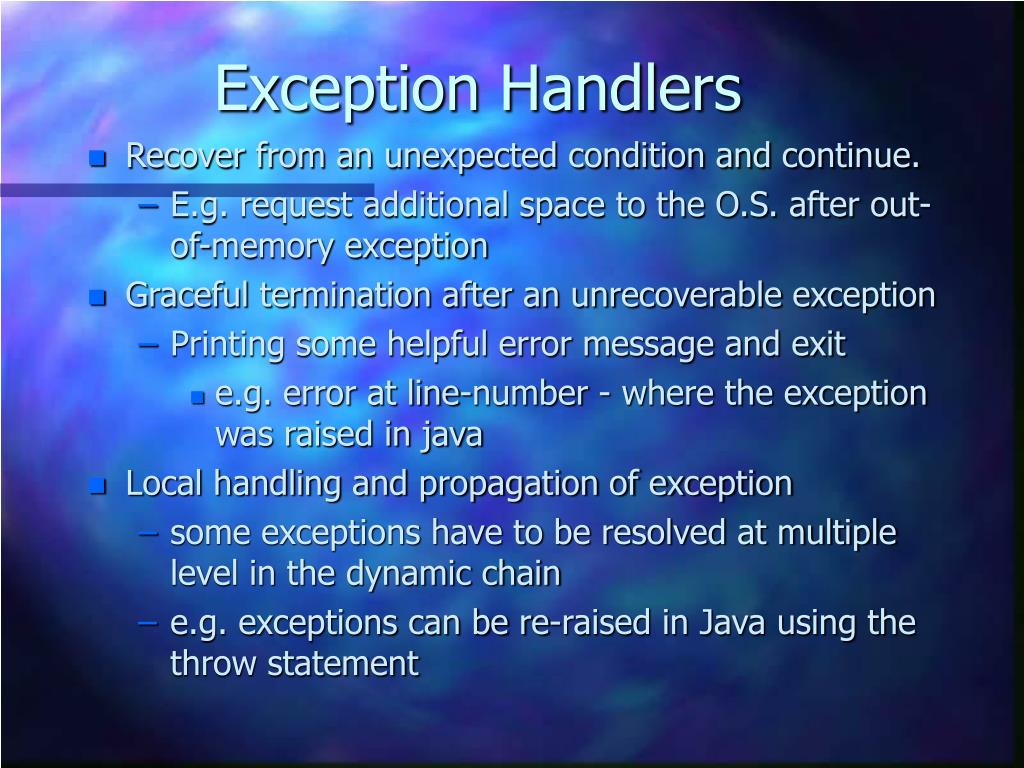

  17. Exception Handlers • Recover from an unexpected condition and continue. • E.g. request additional space to the O.S. after out-of-memory exception • Graceful termination after an unrecoverable exception • Printing some helpful error message and exit • e.g. error at line-number - where the exception was raised in java • Local handling and propagation of exception • some exceptions have to be resolved at multiple level in the dynamic chain • e.g. exceptions can be re-raised in Java using the throw statement

  18. Exception Handling Overhead • The extra overhead associated with the java or c++ exception handling may increase the size of the executable files and slow program execution time. • Because of the nature of exception handling and the extra overhead involved, exceptions should be used only to single the occurrence of unusual or unanticipated program events.

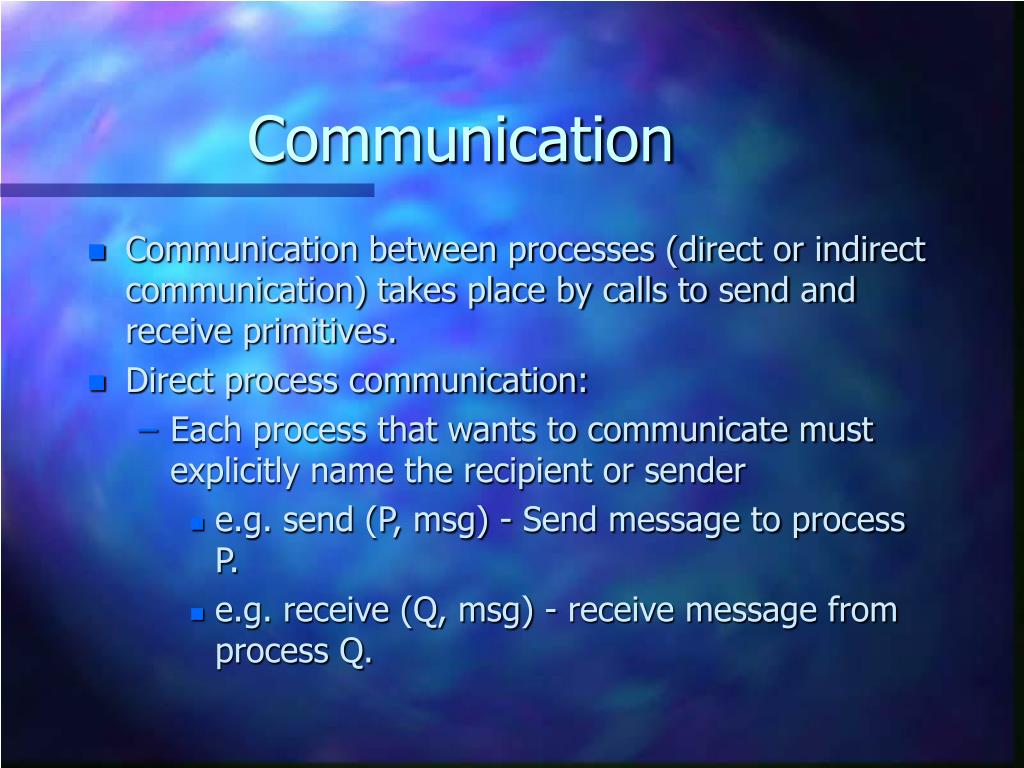

  19. Communication • Communication between processes (direct or indirect communication) takes place by calls to send and receive primitives. • Direct process communication: • Each process that wants to communicate must explicitly name the recipient or sender • e.g. send (P, msg) - Send message to process P. • e.g. receive (Q, msg) - receive message from process Q.

  20. Communication • Steps of Direct-Communication: • A link is established automatically between processes that want to communicate - they need to know however, each other’s id. • A link is associated with exactly two processes. • Exactly one link exists between two processes.

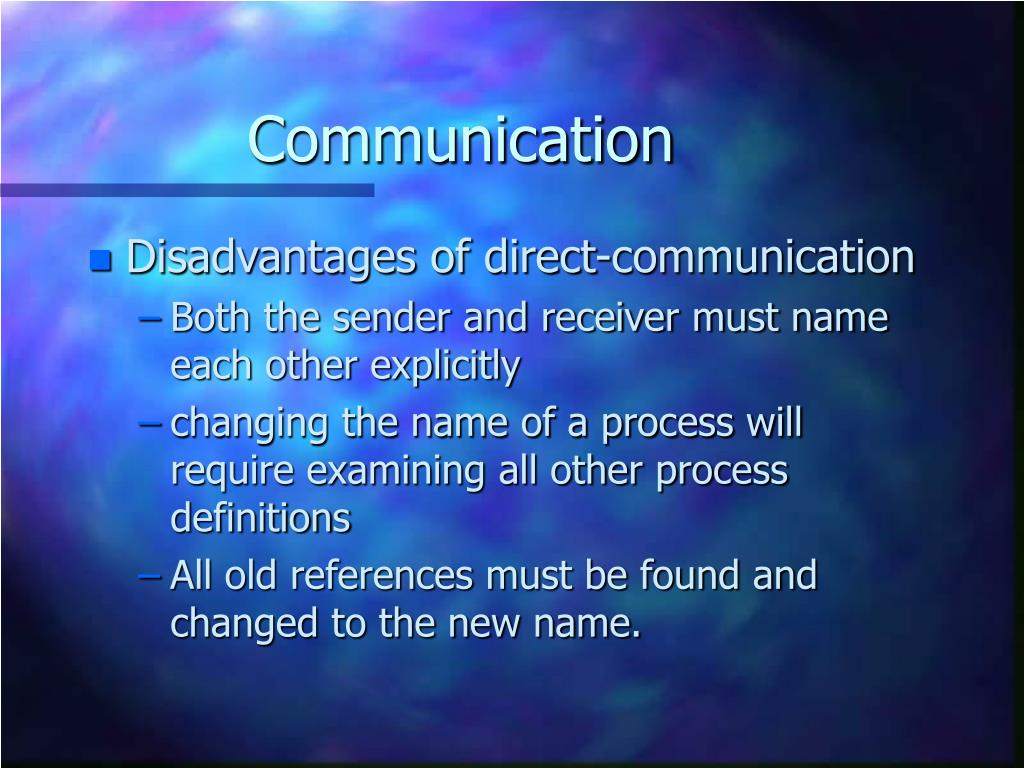

  21. Communication • Disadvantages of direct-communication • Both the sender and receiver must name each other explicitly • changing the name of a process will require examining all other process definitions • All old references must be found and changed to the new name.

  22. Communication • Indirect Communication • Messages are sent to and received from mailboxes, or ports. • Each mailbox has a unique id. • A process can communicate via a number of different mailboxes. • Two processes can communicate only if they share a mailbox.

  23. Communicaton • Send (A, msg) - Send message to mailbox A. • Receive (A, msg) - Receive messge from mailbox A. • Steps of indirect communication • A link is established between two process only if they share a common mailbox • A link may be associated with many processes.

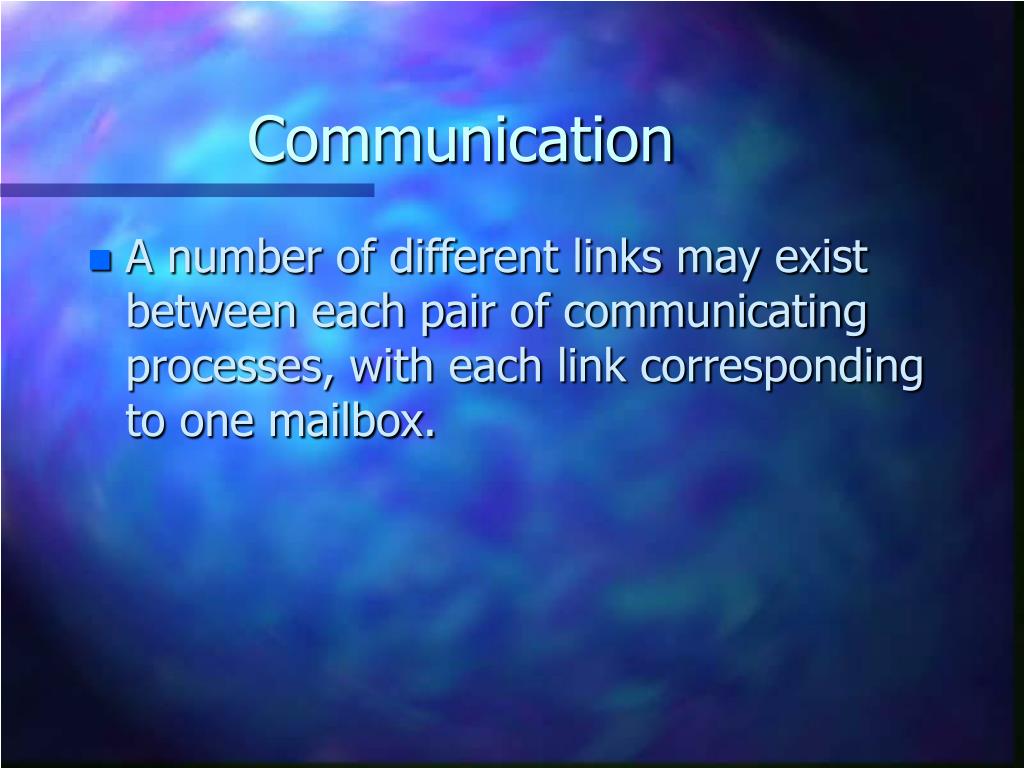

  24. Communication • A number of different links may exist between each pair of communicating processes, with each link corresponding to one mailbox.

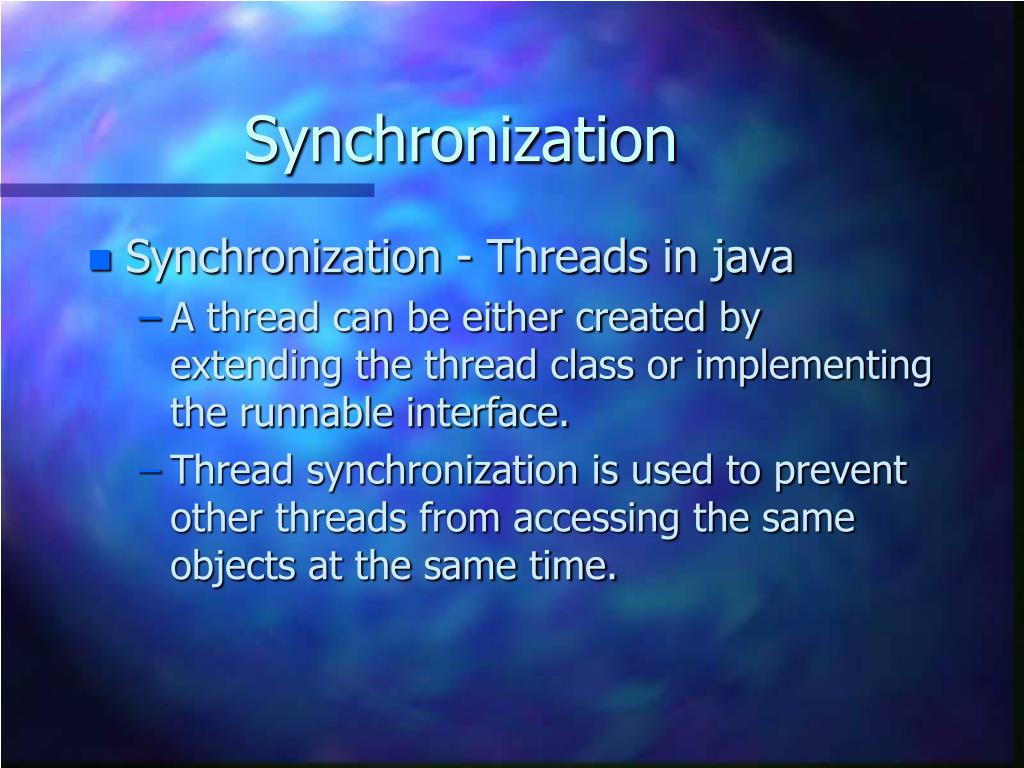

  25. Synchronization • Synchronization - Threads in java • A thread can be either created by extending the thread class or implementing the runnable interface. • Thread synchronization is used to prevent other threads from accessing the same objects at the same time.

  26. Synchronization • A Thread must obtain a lock on an object before it can modify. • If another thread t1 already has a lock on that object, than t2 must wait (block) until it has been released by t1. • If a thread is executing one of it’s synchronized methods, then no other thread can execute any other synchronized method at the same time.

  27. References • Sam’s Teach Yourself • Visual C++ 6 (Mickey Williams) • Operating Systems Concepts • 6th edition (Galvin, Gagne). • Java In A Nutshell (O’reilly) • 3rd edition • Sam’s Teach Yourself Java • 3rd edition (Candenhead & Lemay) • http://www.sims.berkeley.edu/courses/is255/f02/lectures/lecture14.ppt • http://www.infm.ulst.ac.uk/~anthony/com009/lectures/Lecture7_8.ppt
