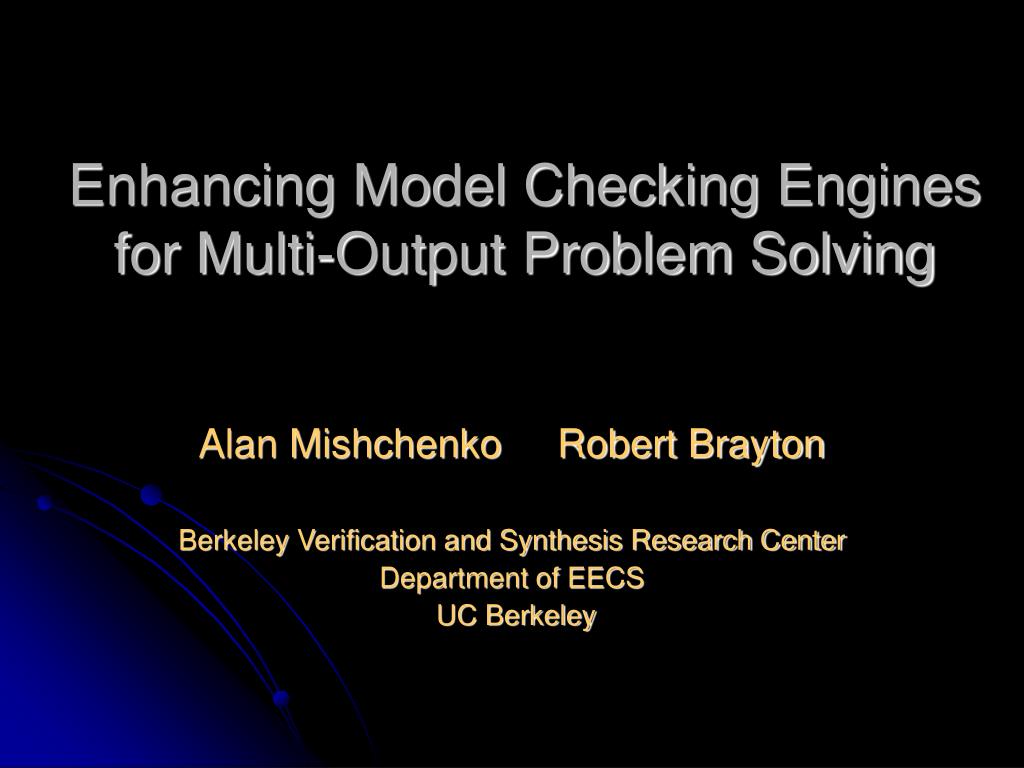

  1. Enhancing Model Checking Engines for Multi-Output Problem Solving Alan Mishchenko Robert Brayton Berkeley Verification and Synthesis Research Center Department of EECS UC Berkeley

  2. Motivation • Multi-output miters arise in practical applications • Solving one output at a time is not efficient • A new multi-output solver is being developed • Motivated by industrial benchmarks • Also, HWMCC added a multi-output track in 2012

  3. Contributions • Enhancing formal engines to keep running even if some properties have failed • New switches added to several ABC commands (bmc3, sim3, and pdr) • Memory reduction in BMC engines (bmc2, bmc3) • Constant-memory unfolding manager is developed • Improving scalability of ABC command &iso used for structural isomorphism detection • Too slow for AIGs with 1M nodes and 1K properties

  4. Enhancing ABC Commands • By default, all model checking engines stop as soon as a bug (property failure) is found • Switch ‘-a’ was added to prevent the following commands from stopping • Bounded model checking (“bmc3”) • Rarity-based random simulation (“sim3”) • Property directed reachability (“pdr”) • A vector of counter-examples is available when an engine terminates

  5. Reducing BMC Memory Footprint • Memory footprint of BMC includes • Initial AIG • Unfolded AIG • Mapping from initial AIG into unfolded AIG • SAT solver • Typically, memory is dominated by the SAT solver • However, the mapping can also be a bottleneck if • The design is large • The initial state propagates far into the unfolding • As a result, the unfolding is performed for many timeframes before SAT solving kicks in

  6. Mapping Between The Two AIGs • The mapping contains, for each initial AIG object in each time frame, a literal of the unfolded AIG • A literal is node ID + complemented attribute • When naïve implementation is used, the mapping memory requirements grow linearly with the unfolding depth • An “unfolding manager” has been implemented that uses constant memory footprint for unfolding of any depth

  7. New Unfolding Manager • The manager maintains the mapping from a pair (node, timeframe) into a literal of the unfolded AIG, as long as some of its fanouts are not yet constructed • As soon as the last fanout is constructed, the memory is recycled • This is similar to efficient memory management in bit-parallel simulation of a sequential AIG (or in wavefront mapping)

  8. Experiment: Original BMC UC Berkeley, ABC 1.01 (compiled Apr 2 2013 22:23:17) abc 01> ex1.aig; ps; bmc3 -v ex1 : i/o =10315/ 1 lat =112625 and =1271690 lev =408 Running "bmc3". PI/PO/Reg = 10315/1/112625. And =1271690. Lev = 408. ObjNums =791333. Sect = 31. Params: FramesMax = 0. Start = 0. ConfLimit = 0. TimeOut = 0. SolveAll = 0. 0 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 3 MB 0 MB 2.20 sec 1 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 6 MB 0 MB 2.20 sec 2 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 9 MB 0 MB 2.20 sec 3 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 12 MB 0 MB 2.20 sec 4 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 15 MB 0 MB 2.20 sec 5 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 18 MB 0 MB 2.21 sec 6 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 21 MB 0 MB 2.21 sec ... 1410 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4259 MB 0 MB 65.62 sec 1411 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4262 MB 0 MB 65.66 sec 1412 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4265 MB 0 MB 65.70 sec 1413 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4268 MB 0 MB 65.74 sec 1414 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4271 MB 0 MB 65.80 sec 1415 + : Var = 1. Cla = 0. Cnf = 0. Uni = 0. 4274 MB 0 MB 65.84 sec 1416 + : Var = 979410. Cla = 1257619. Cnf = 0. Uni = 0. 4277 MB 111 MB 66.61 sec 1417 + : Var = 979580. Cla = 1258180. Cnf = 0. Uni = 1. 4281 MB 111 MB 66.66 sec 1418 + : Var = 979616. Cla = 1258229. Cnf =2619245. Uni = 1. 4551 MB 132 MB 337.29 sec Runtime: CNF = 62.2 sec (18.5 %) UNSAT = 0.0 sec (0.0 %) SAT = 270.5 sec (80.2 %) UNDEC = 0.0 sec (0.0 %) Buffs = 1572789. Dups = 0. Hash hits = 738390. Hash misses = 254997. Hash overs = 38495. UniProps = 0. Output 0 of miter "ex1" was asserted in frame 1418. Time = 337.98 sec

  9. Experiment: Unfolding Manager abc 01> &r ex1.aig; &ps; &test ex1 : i/o = 10315/ 1 ff = 112625 and = 1271690 lev = 408 mem =18.40 MB 0 : 1370514 ( 90.93 %) 1 : 119763 ( 7.95 %) 2 : 2781 ( 0.18 %) 3 : 5189 ( 0.34 %) 4 : 4649 ( 0.31 %) 5 : 1221 ( 0.08 %) 6 : 945 ( 0.06 %) 7 : 341 ( 0.02 %) 8 : 643 ( 0.04 %) 9 : 406 ( 0.03 %) 10 : 461 ( 0.03 %) 11 : 115 ( 0.01 %) 12 : 122 ( 0.01 %) 13 : 45 ( 0.00 %) 14 : 17 ( 0.00 %) 15 : 16 ( 0.00 %) 16 : 4 ( 0.00 %) 17 : 3 ( 0.00 %) 18 : 0 ( 0.00 %) 19 : 10 ( 0.00 %) 20 : 1 ( 0.00 %) 21 : 0 ( 0.00 %) 22 : 1 ( 0.00 %) 23 : 0 ( 0.00 %) 24 : 0 ( 0.00 %) 25 : 1 ( 0.00 %) 26 : 0 ( 0.00 %) 27 : 2 ( 0.00 %) 28 : 2 ( 0.00 %) 29 : 4 ( 0.00 %) 30 : 1 ( 0.00 %) Extra space = 191478 ( 12.70 %) Memory usage = 28.24 MB Time = 1.01 sec

  10. Improving Scalability of ISO • Command &iso detects and removes structurally isomorphic properties • Currently, this command is slow because • It computes unique structural signatures by repeatedly iterating over the circuit • Incremental approach is needed • It performs structural analysis of sequential bounded COI independently for each output • Processing output groups could be useful

  11. Faster Signature Computation • When refinement begins, there are many changes • Makes sense to update signatures of the whole AIG • In the later stages, there are few changes • Helpful to switch to incremental signature computation • Incrementality is achieved by maintaining a record of nodes that recently acquired unique signatures • Sequential TFI and TFO cones of these nodes are traversed to updated structural signatures of nodes • New nodes with unique signatures are detected and added to the record

  12. Analyzing Property Groups • Forward signature computation is performed for all properties at once • Because a node depends on all of its fanins • Backward signature computation requires isolating the COI of each property • Because a node may have spurious fanouts (that is, fanouts not in the COI of the property) • A tradeoff between accuracy and speed should be investigated

  13. Conclusions • Presented several recent developments geared to solving multi-output properties (some of them still in the works) • Added non-stop solving to individual engines • Improved memory footprint of BMC engine • Currently work on improving scalability of structural isomorphism detection
