Troubleshooting Modern Web-Based Control Systems in HVAC

verda avatar
verda
22 diapositives · 387 Views · Jul 11, 2014

Join Ron Auvil, a seasoned expert in HVAC control systems, for an enlightening session on troubleshooting web-based control systems. Explore the impact of technological advances in HVAC, networking, and collaboration between IT and HVAC professionals. This presentation will cover networking basics, software essentials, server functions, wireless networking, and diagnostic tools. Learn practical troubleshooting scenarios that highlight common issues technicians face, equipping you with the knowledge to tackle challenges in both new and legacy systems.

#troubleshooting modern web-based control systems in hvac #troubleshooting modern web-based control systems in hvac ppt #powerpoint #presentation
Troubleshooting Modern Web-Based Control Systems in HVAC - slide 1
01 / 22Troubleshooting Modern Web-Based Control Systems in HVAC
1 / 17

Télécharger la présentation

Troubleshooting Modern Web-Based Control Systems in HVAC
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

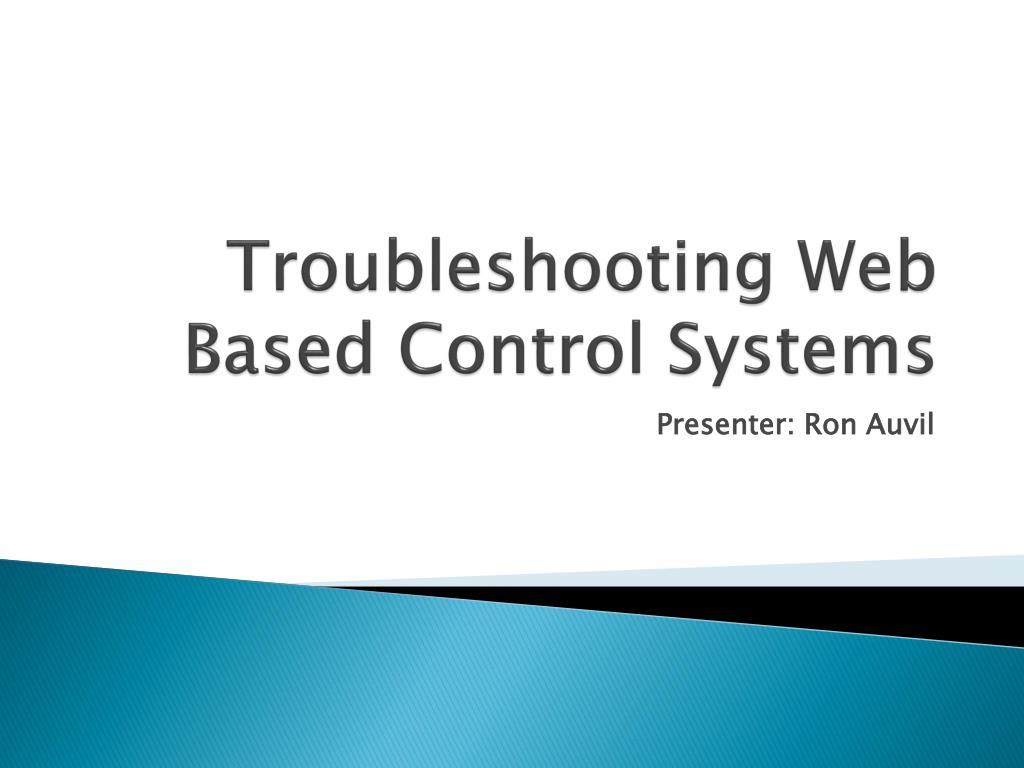

  1. Troubleshooting Web Based Control Systems Presenter: Ron Auvil

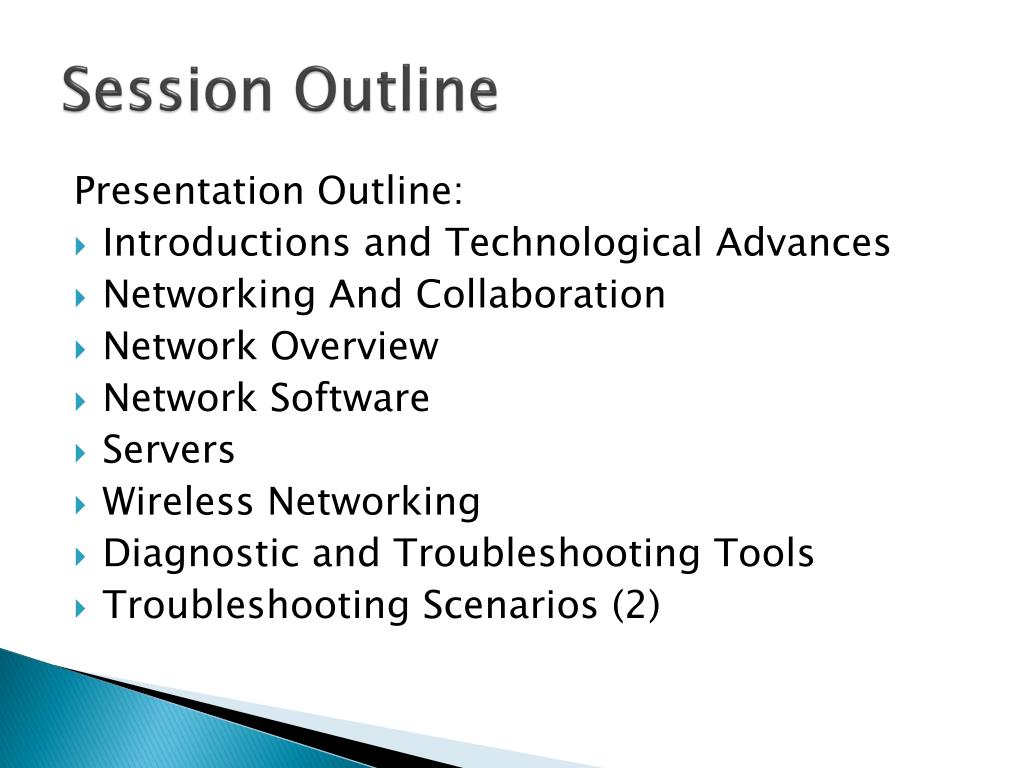

  2. Session Outline Presentation Outline: • Introductions and Technological Advances • Networking And Collaboration • Network Overview • Network Software • Servers • Wireless Networking • Diagnostic and Troubleshooting Tools • Troubleshooting Scenarios (2)

  3. Introductions • Graduate of West Side Institute of Technology in Cleveland Ohio • In HVAC Industry over 37 years • Licensed 3rd Class Stationary Engineer • 33 Years Part and Full Time Training Experience, including 16 yrs on Faculty of Community College • Author, ‘HVAC Control Systems’, ‘HVAC and Refrigeration Systems’, ‘IT for HVAC Technicians’ American Technical Publishers. • Owner, High Performance Mechanical Training • Technical Contributor Fluke Corporation. • Currently Senior Technician/Trainer with Johnson Controls, Charlotte, NC • 17 Years with JCI as Lead Instructor HVAC and Controls

  4. Technological Advances • Mechanical and control systems are becoming increasingly more sophisticated. • As a matter of fact, the rate of change technologically is increasing. • Mechanical systems changes include refrigerants, motor designs, variable speed drives, magnetic bearings, etc. • Control systems changes include advanced PC/server applications, impact of web and web enabled devices. • Combined with lack of training the result is………… • Products introduced with no one able to install or service them? i.e. 750 page server software installation instructions? • Service both NEW and OLD challenges

  5. Networking And Collaboration • Today, Most Commercial HVAC Control Systems are put on a customer computer network. • What is a Network? A network is a system of nodes and other devices that are joined using connecting media that provides the means of data communication between the nodes. (ITH P#1) • Facility IT and HVAC Technician Collaboration. (ITH P#4) • Understanding the facility IT Staff Role and the HVAC Technician Role. • Knowledge of terminology, use of tools and troubleshooting are paramount.

  6. Teaching Advanced Technology in our Classrooms • So, how does this impact our classrooms and what can we do about it? • Programs, technology, equipment quickly go out of date. • Instructors easily caught behind an increasingly steep technological curve. • Introduction of basic Information Technology (IT) training into HVAC programs, especially Controls training classes. • Equipment and computer updates, 3 year cycles at most. • Materials, books, training aids, etc. up to date • Big Task!

  7. Network Overview • Network Types: LAN/WAN (ITH P#5) • Network Topologies; Star, Bus, Daisy Chain, etc. • Data Packets, Bandwidth and Throughput. • MAC Addressing; NIC Cards • Media/Cable UTP; Cat 5, 5e, 6. (ITH P#11) • Switches, Routers. • IP Addressing: (ITH P#4)

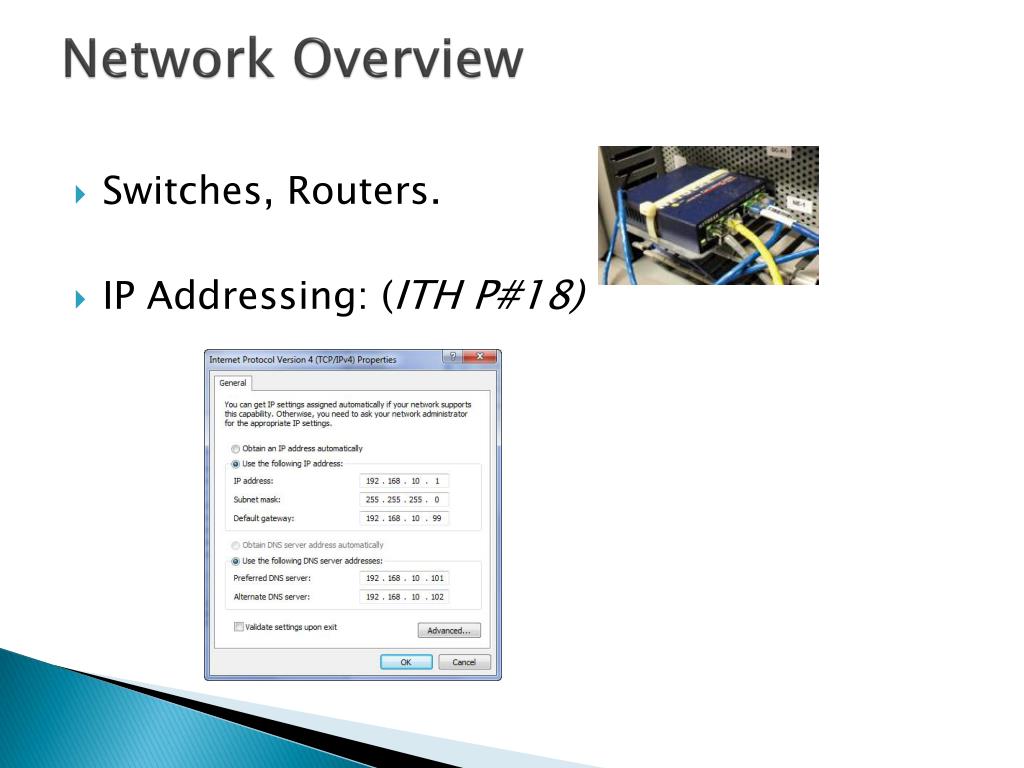

  8. Network Overview • Switches, Routers. • IP Addressing: (ITH P#18)

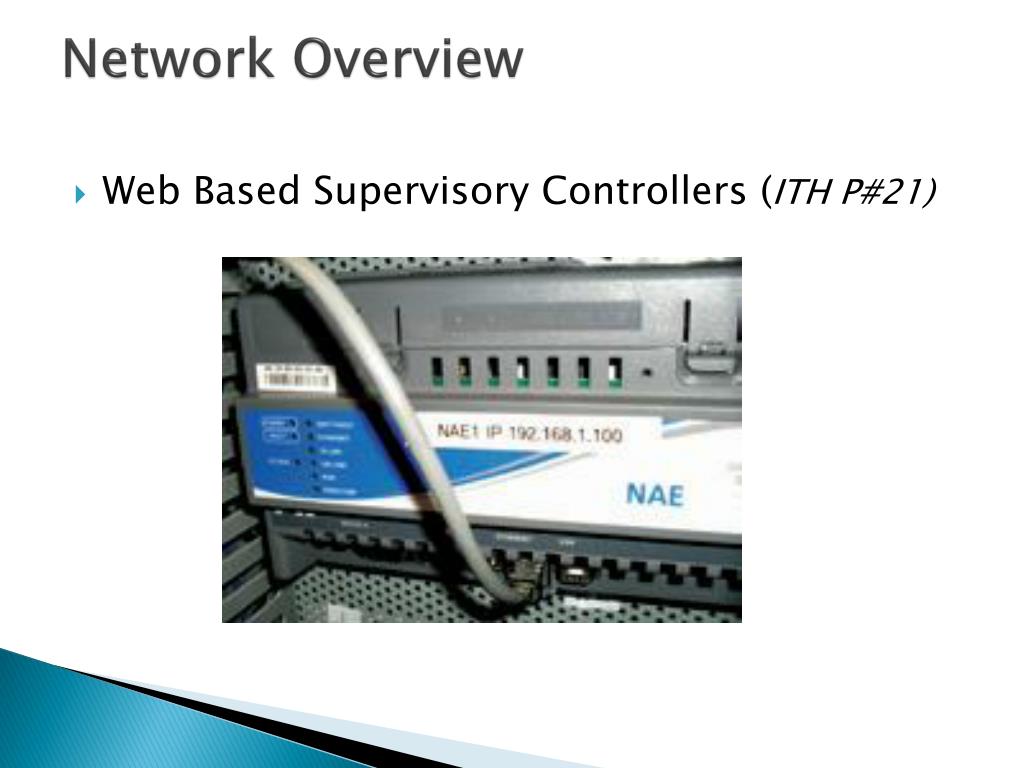

  9. Network Overview • Web Based Supervisory Controllers (ITH P#21)

  10. Network Overview

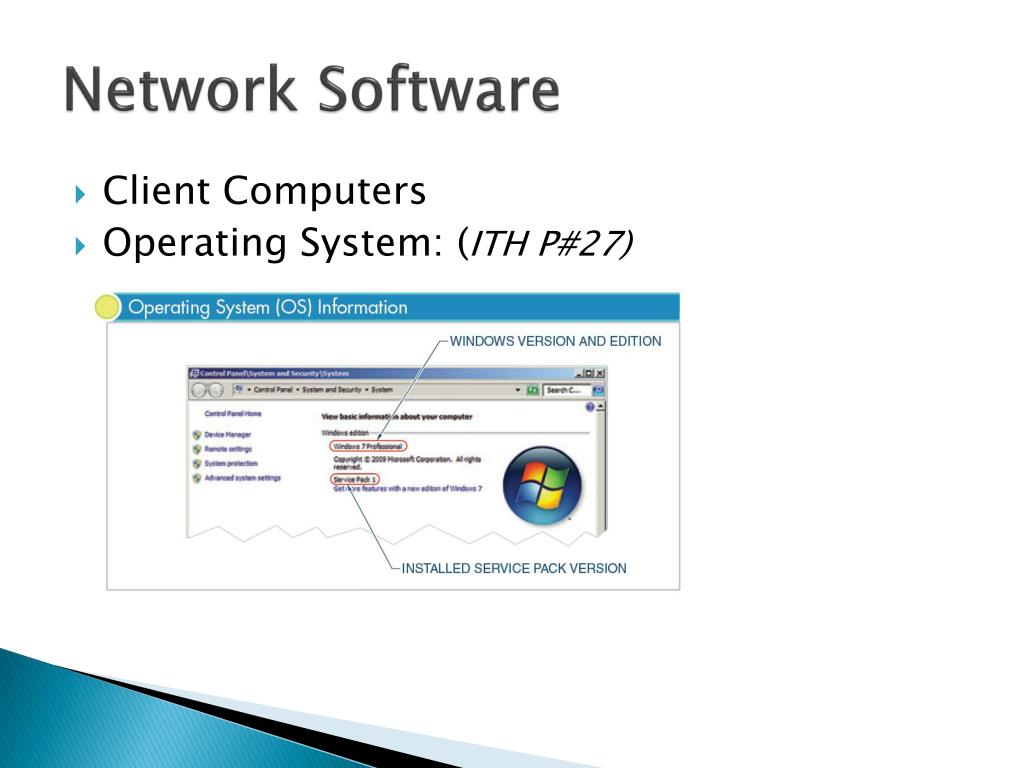

  11. Network Software • Client Computers • Operating System: (ITH P#27)

  12. Network Software • Other Software: • Java, Windows Dependencies, Browsers; System Security, Firewalls • Software Troubleshooting Skills

  13. Servers • Server Functions and Sizes (ITH P#36) • Functions: Passwords, Controller Tools, Long Term Data Storage, Email, Alarms, Printer, Smartphone/Tablet interface, SQL. • Sizes: Small/Large/Virtual

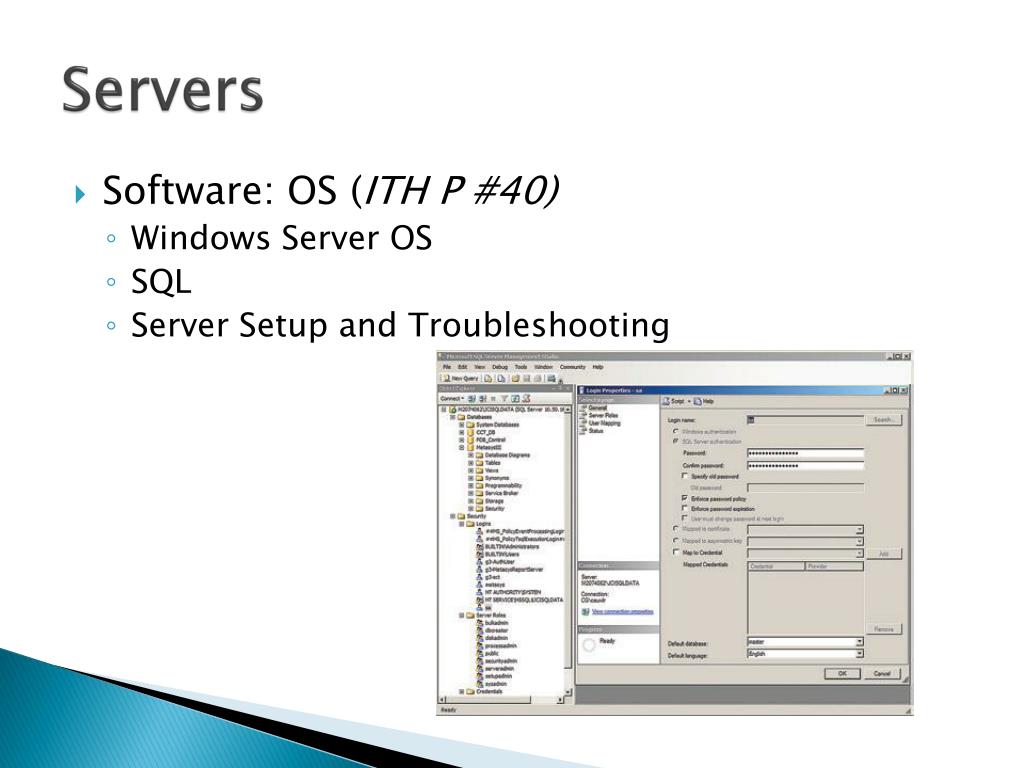

  14. Servers • Software: OS (ITH P #40) • Windows Server OS • SQL • Server Setup and Troubleshooting

  15. Wireless Networking • Wireless Router Infrastructure • Wireless Residential Thermostats • Wireless Passwords/Security:

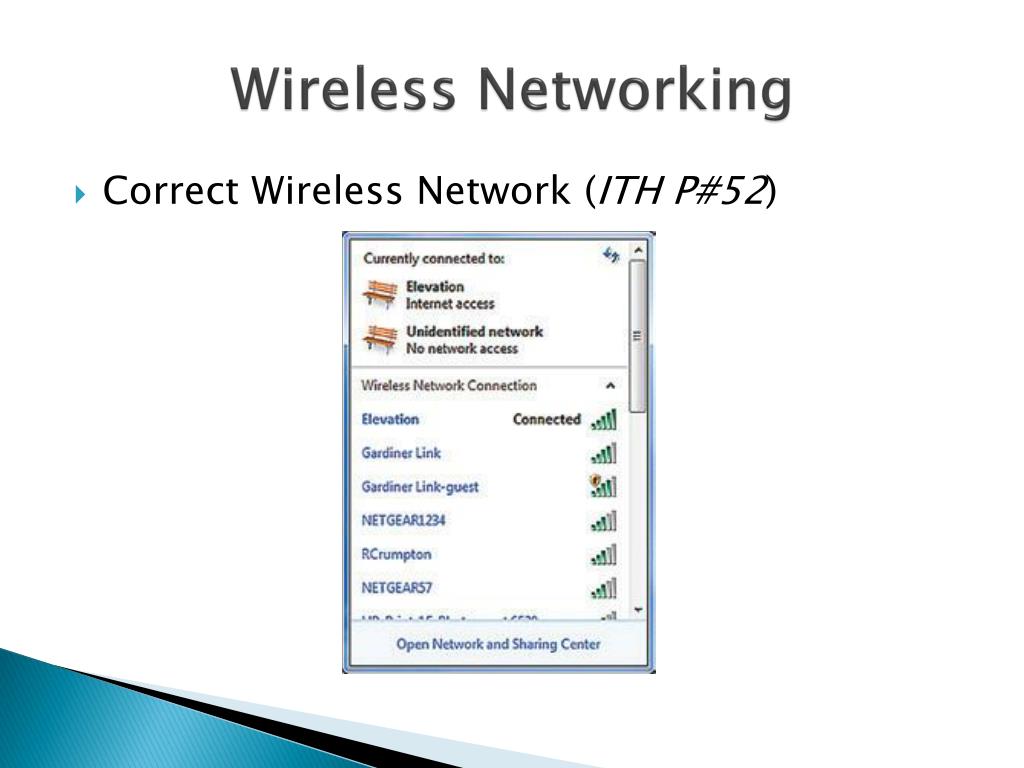

  16. Wireless Networking • Correct Wireless Network (ITH P#52)

  17. Diagnostic and Troubleshooting Tools • Hardware; LED’s on Web Controllers and Devices (ITH P#56)

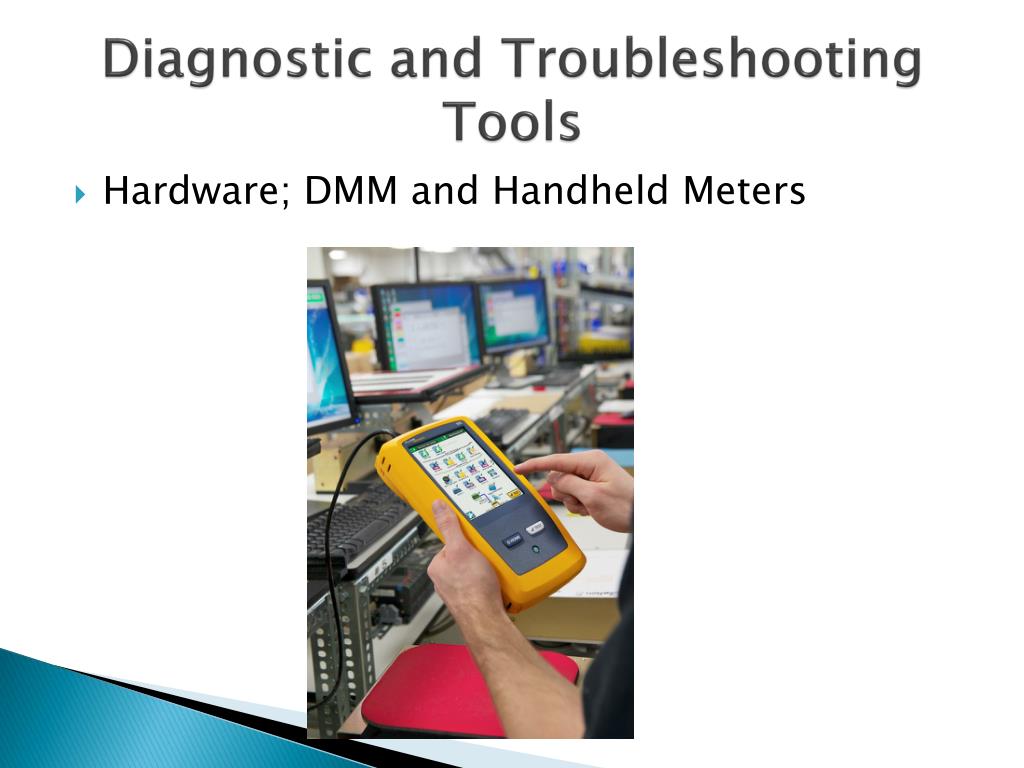

  18. Diagnostic and Troubleshooting Tools • Hardware; DMM and Handheld Meters

  19. Network Diagnostic and Troubleshooting Tools • Software: Command Prompt ‘Ping Command’ • Other: Tracert, Ipconfig, Netstat, 3rd Party and vendor Tools (ITH P#60)

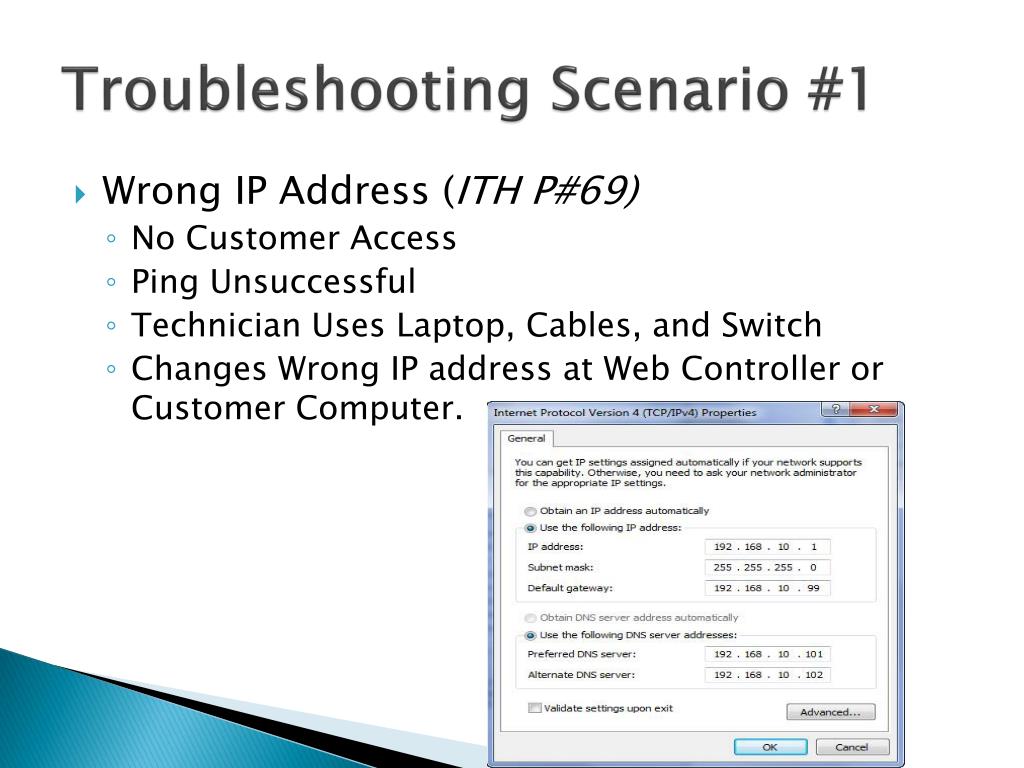

  20. Troubleshooting Scenario #1 • Wrong IP Address (ITH P#69) • No Customer Access • Ping Unsuccessful • Technician Uses Laptop, Cables, and Switch • Changes Wrong IP address at Web Controller or Customer Computer.

  21. Troubleshooting Scenario #2 • No communications between web based controller and server. • Check server IP Address at Web-Based Controller. • Login and Look for ‘Network’ or ‘Focus’ Tab.

  22. That’s It! • Any Questions? • Contact Information: Ron Auvil • Email: ron.auvil@gmail.com • Cell: (803) 367.3033
