  1. Trig Functions of Any Angle Section 4.4

  2. θ • In first section, we calculated trig functions for acute angles. • In this section, we are going to extend these basic definitions to cover any angle. θ

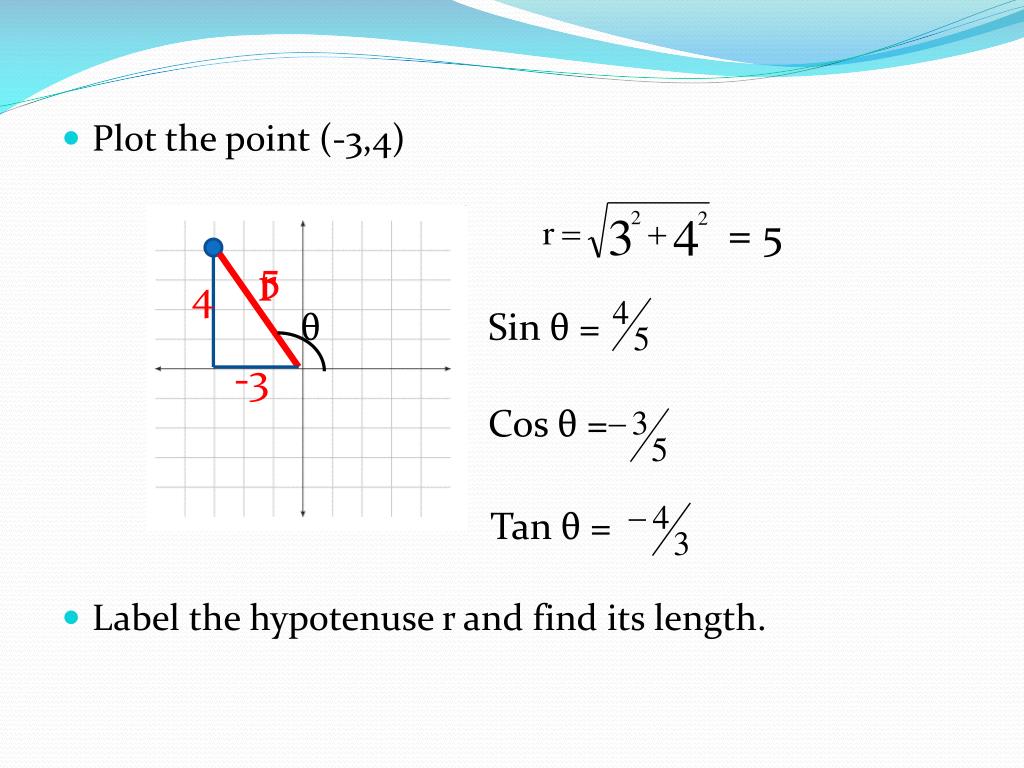

  3. = 5 • Plot the point (-3,4) • Label the hypotenuse r and find its length. 5 r 4 θ Sin θ = -3 Cos θ = Tan θ =

  4. Definitions of Trig Functions of Any Angle • Let θ be an angle in standard position with (x,y) a point on the terminal side. Then: Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ =

  5. Find the 6 trig functions of θ given that the ray ends at the point (-15, -8) Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ = -15 -8 17

  6. Find the 6 trig functions of θ given that the ray ends at the point (12, -5) Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ = 12 -5 13

  7. Quadrants • In which quadrants was the Sine positive? • I and II • In which quadrants was the Cosine positive? • I and IV • In which quadrants was the Tangent positive? • I and III

  8. Quadrants Sine is positive All Trig Functions are positive Students All Tangent is positive Cosine is positive Take Calculus

  9. → II • What quadrant is θ in if: • Sin θ > 0 and Cos θ < 0 • Tan θ > 0 and Cos θ < 0 • Sin θ < 0 and Tan θ < 0 • Cos θ > 0 and Tan θ > 0 → III → IV → I

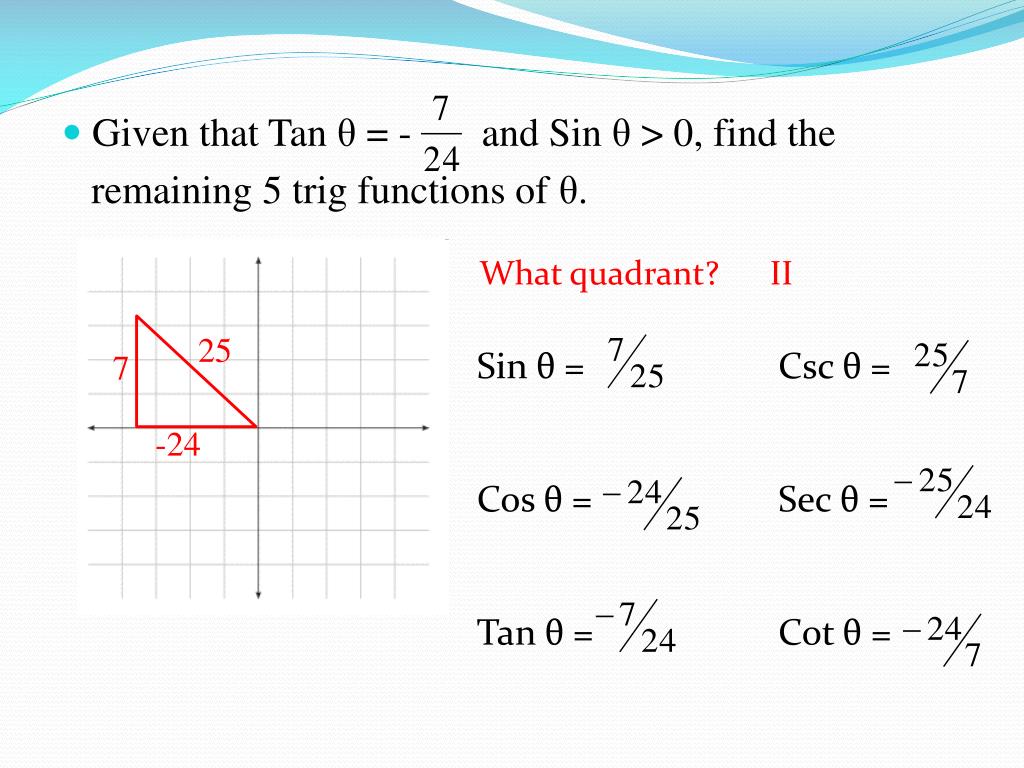

  10. Given that Tan θ = - and Sin θ > 0, find the remaining 5 trig functions of θ. What quadrant? II 25 Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ = 7 -24

  11. Given that Cos θ = - and Sin θ < 0, find the remaining 5 trig functions of θ. What quadrant? III Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ = -4 -3 5

  12. Given that Sin θ = - and Tan θ < 0, find the remaining 5 trig functions of θ. What quadrant? IV Sin θ = Cos θ = Tan θ = Cscθ = Sec θ = Cot θ = 8 -15 17

  13. What did we learn • How to find the trig functions of an angle given a point on its terminal side • How to determine the quadrant of an angle based on trig functions • How to find the trig functions based on one function and criteria • Homework: Page 297, 1-24 odd

  14. Find the Sin, Cos, and Tan trig functions of θ given that the ray ends at the point (5,0) Sin θ = Cos θ = Tan θ = y = 0 5

  15. Quadrant Angles • On our Cartesian plane, we have 5 critical points: Find the Sine of these 5 angles -1 0 Sin = Sin 0 = Sin = 1 0 Sin 2π = 0 Sin π =

  16. Graph of the Sine Curve • Using these 5 points, we can create the Sine Curve 0

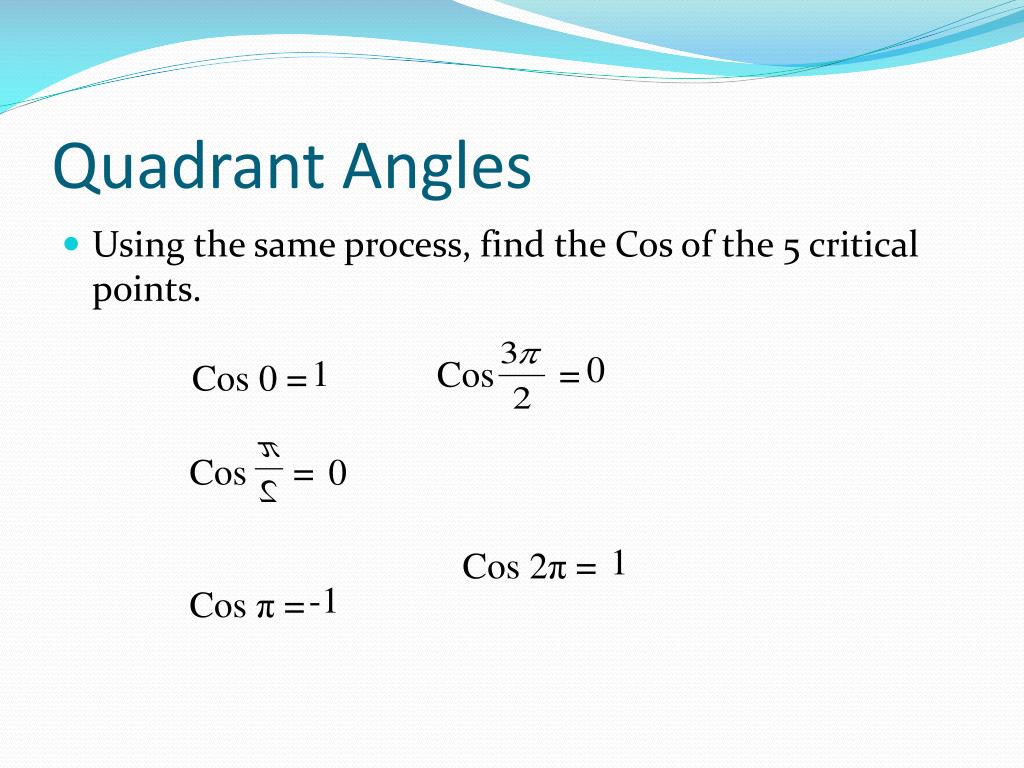

  17. Quadrant Angles • Using the same process, find the Cos of the 5 critical points. 0 1 Cos = Cos 0 = Cos = 0 1 Cos 2π = -1 Cos π =

  18. Graph of the Cosine Curve • Using these 5 points, we can create the Sine Curve 0

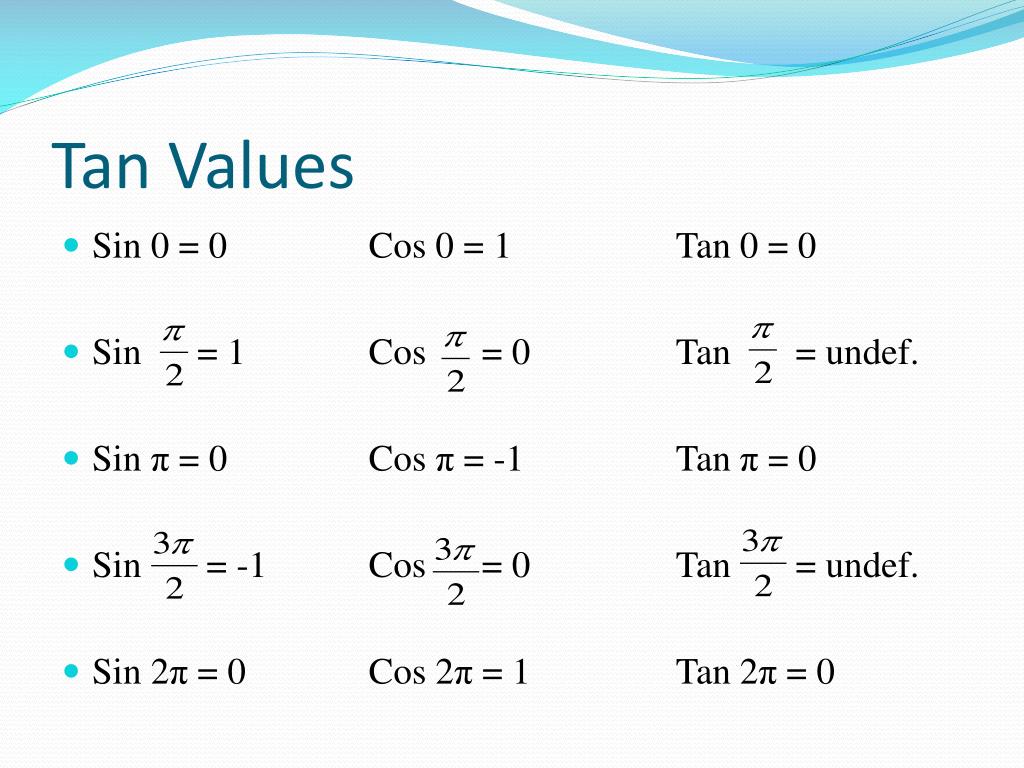

  19. Tan Values • Sin 0 = 0 Cos 0 = 1 Tan 0 = 0 • Sin = 1 Cos = 0 Tan = undef. • Sin π = 0 Cos π = -1 Tan π = 0 • Sin = -1 Cos = 0 Tan = undef. • Sin 2π = 0 Cos 2π = 1 Tan 2π = 0

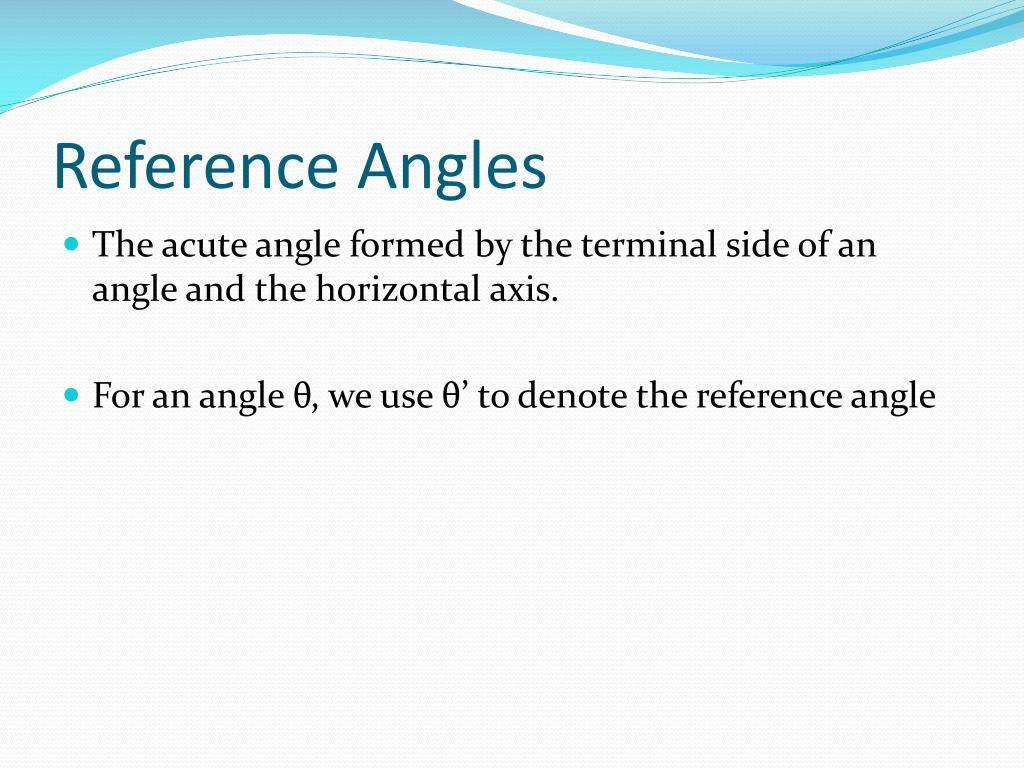

  20. Reference Angles • The acute angle formed by the terminal side of an angle and the horizontal axis. • For an angle θ, we use θ’ to denote the reference angle

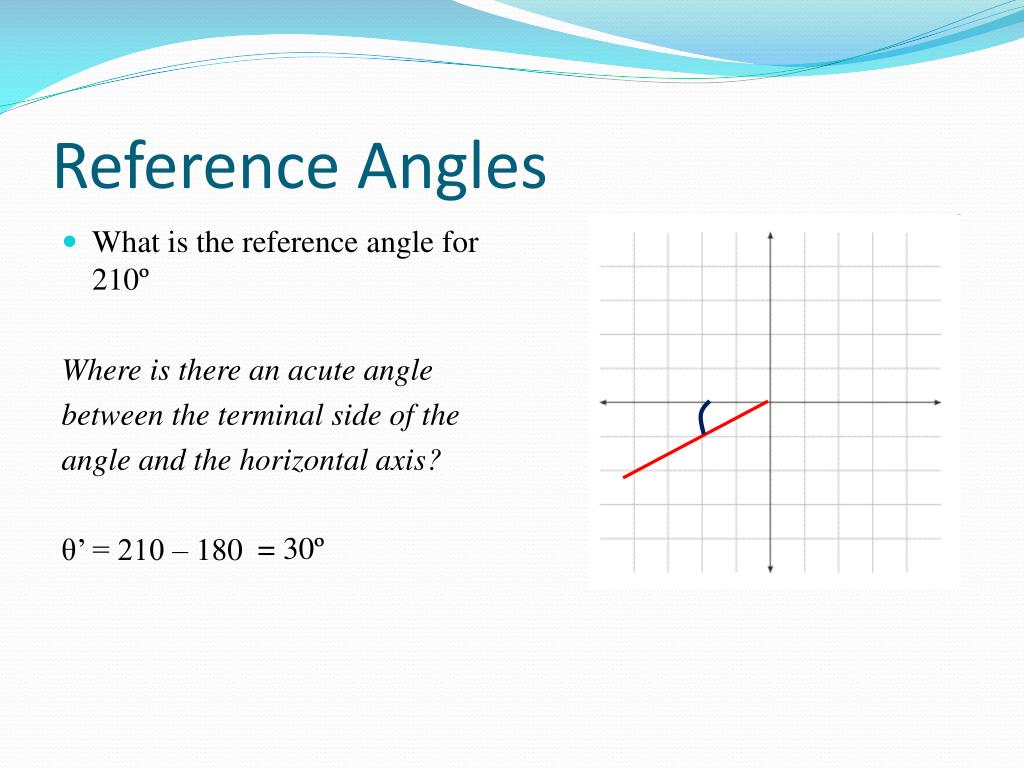

  21. Reference Angles • What is the reference angle for 210º Where is there an acute angle between the terminal side of the angle and the horizontal axis? θ’ = 210 – 180 = 30º

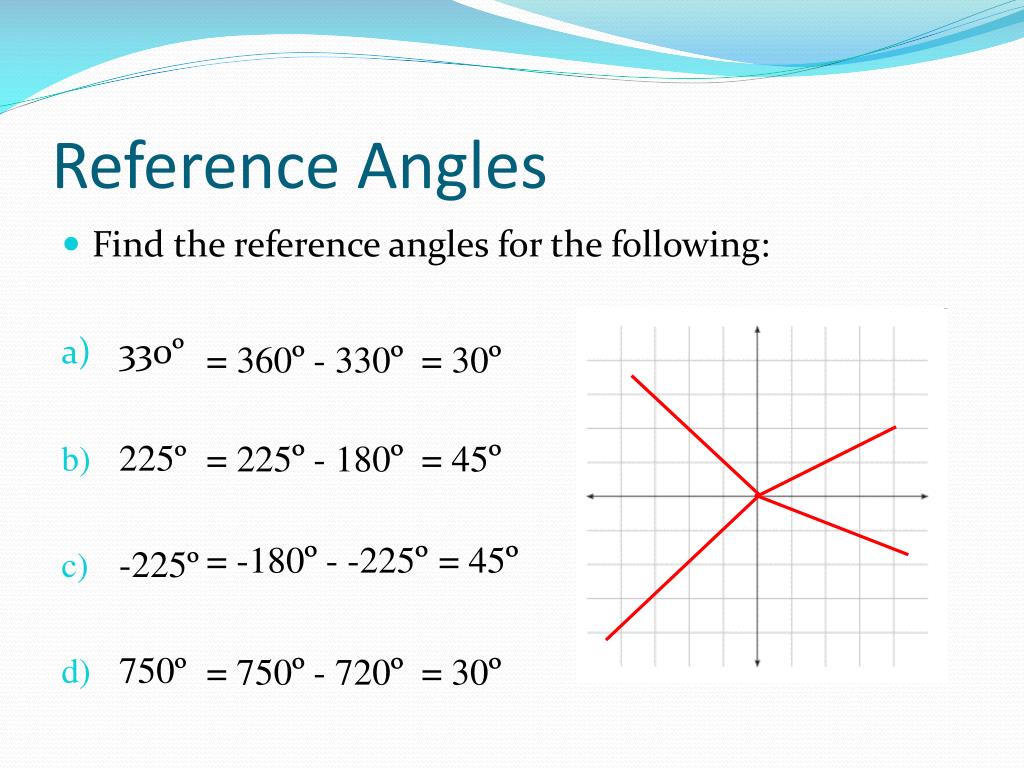

  22. Reference Angles • Find the reference angles for the following: • 330º • 225º • -225º • 750º = 360º - 330º = 30º = 225º - 180º = 45º = -180º - -225º = 45º = 750º - 720º = 30º

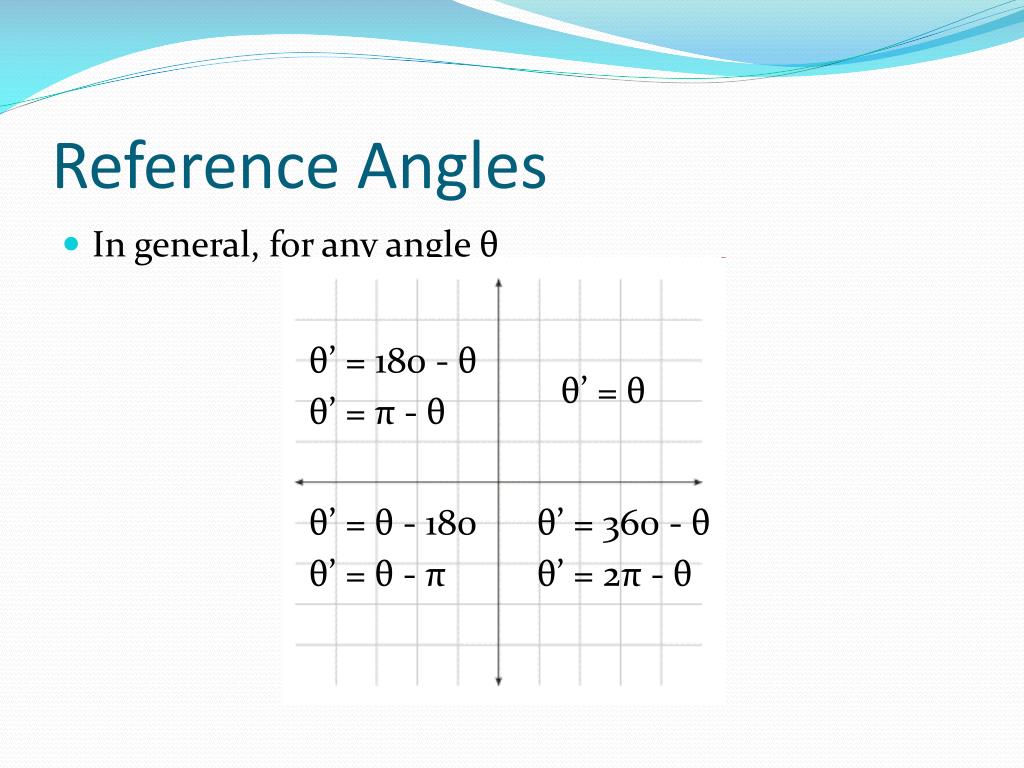

  23. Reference Angles • In general, for any angle θ θ’ = 180 - θ θ’ = θ θ’ = π - θ θ’ = θ - 180 θ’ = 360 - θ θ’ = θ - π θ’ = 2π - θ

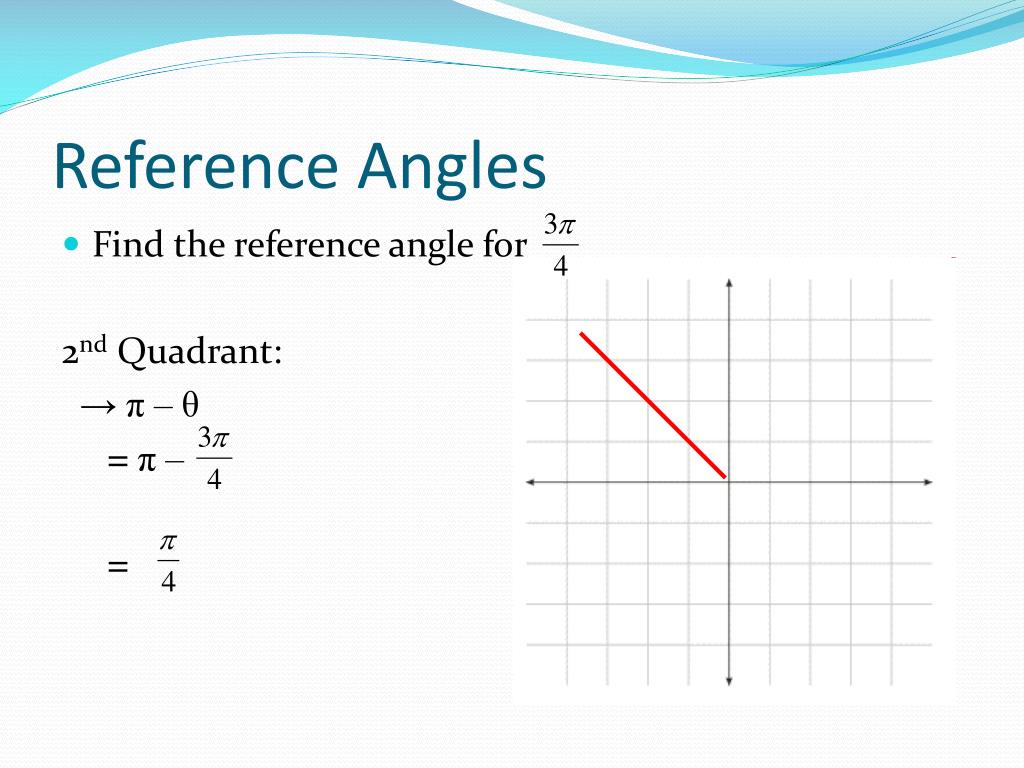

  24. Reference Angles • Find the reference angle for 2nd Quadrant: → π – θ = π – =

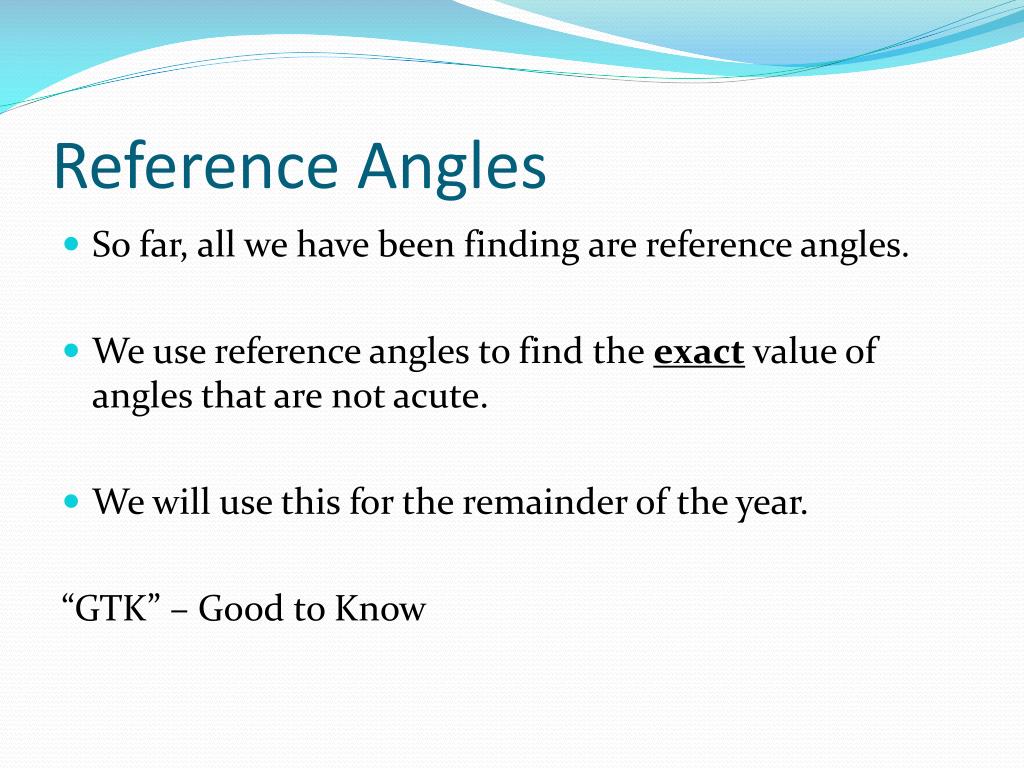

  25. Reference Angles • So far, all we have been finding are reference angles. • We use reference angles to find the exact value of angles that are not acute. • We will use this for the remainder of the year. “GTK” – Good to Know

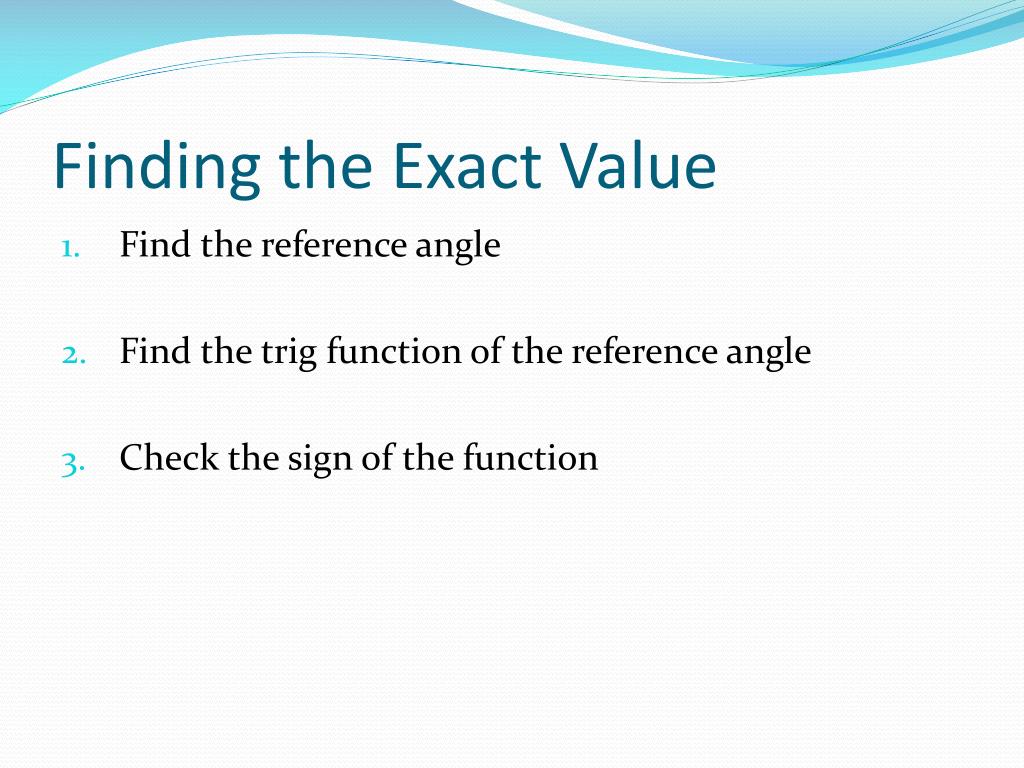

  26. Finding the Exact Value • Find the reference angle • Find the trig function of the reference angle • Check the sign of the function

  27. Sin 210º = - ½ 1. Find the reference angle Quadrant III 200º - 180º = 30º 2. Find the Sin of the reference angle Sin 30º = 3. Is it positive or negative? Negative ½

  28. Cos 330º 1. Find the reference angle Quadrant IV 360º - 330º = 30º 2. Find the Sin of the reference angle Cos 30º = 3. Is it positive or negative? Positive

  29. Find the Sin, Cos, and Tan of 135º 45º • Reference Angle = • Quadrant = • Sin 135º = • Cos 135º = • Tan 135º = II -1

  30. Find the Sin, Cos, and Tan of -240º 60º • Reference Angle = • Quadrant = • Sin -240º = • Cos -240º = • Tan -240º = II

  31. Find the Sin, Cos, and Tan of • Reference Angle = • Quadrant = • Sin = • Cos = • Tan = IV

  32. Find the: • Sin • Csc • Tan • Csc • Cot
