Process Synchronization Deadlock

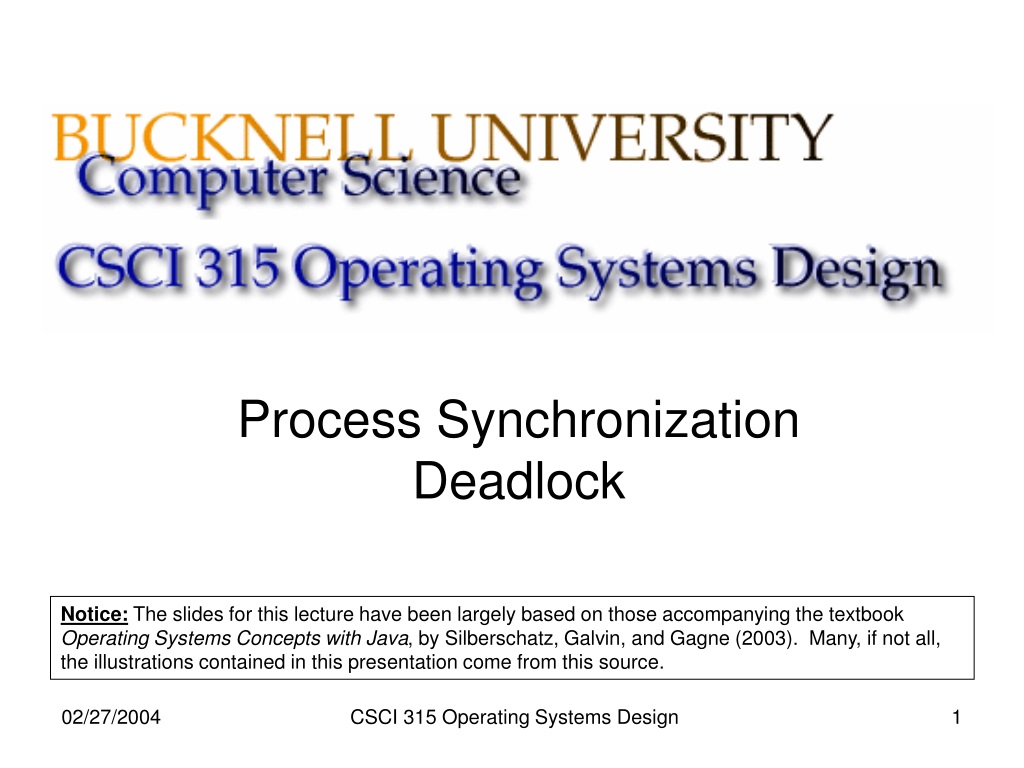

1. Process SynchronizationDeadlock Notice: The slides for this lecture have been largely based on those accompanying the textbook Operating Systems Concepts with Java, by Silberschatz, Galvin, and Gagne (2003). Many, if not all, the illustrations contained in this presentation come from this source. CSCI 315 Operating Systems Design

2. Monitor Definition: High-level synchronization construct that allows the safe sharing of an abstract data type among concurrent processes. monitor monitor-name { shared variables procedure bodyP1(…) { . . . } procedure bodyP2 (…) { . . . } procedure bodyPn(…) { . . . } { initialization code } } A procedure within a monitor can access only local variables defined within the monitor. There cannot be concurrent access to procedures within the monitor (only one thread can be active inthe monitor at any given time). Condition variables:queues are associated with variables. Primitives for synchronization are wait and signal. CSCI 315 Operating Systems Design

3. Monitor • To allow a process to wait within the monitor, a condition variable must be declared, as condition x, y; • Condition variable can only be used with the operations wait and signal. • The operation x.wait();means that the process invoking this operation is suspended until another process invokes x.signal(); • The x.signal operation resumes exactly one suspended process. If no process is suspended, then the signal operation has no effect. CSCI 315 Operating Systems Design

4. Monitor and Condition Variables CSCI 315 Operating Systems Design

5. Dining Philosophers with Monitor monitor dp { enum {thinking, hungry, eating} state[5]; condition self[5]; void pickup(int i); void putdown(int i); void test(int i); void init() { for (int i = 0; i < 5; i++) state[i] = thinking; } } CSCI 315 Operating Systems Design

6. Dining Philosophers void pickup(int i) { state[i] = hungry; test[i]; if (state[i] != eating) self[i].wait(); } void putdown(int i) { state[i] = thinking; /* test left and right neighbors */ test((i+4) % 5); test((i+1) % 5); } void test(int i) { if ( (state[(I + 4) % 5] != eating) && (state[i] == hungry) && (state[(i + 1) % 5] != eating)) { state[i] = eating; self[i].signal(); } } CSCI 315 Operating Systems Design

7. Monitor via Semaphores For each condition variable x: semaphore x-sem; // (initially = 0) int x-count = 0; Operation x.wait: x-count++; if (next-count > 0) signal(next); else signal(mutex); wait(x-sem); x-count--; Operation x.signal: if (x-count > 0) { next-count++; signal(x-sem); wait(next); next-count--; } • Variables semaphore mutex; // (initially = 1) semaphore next; // (initially = 0) int next-count = 0; • Each external procedure F will be replaced by wait(mutex); … body of F; … if (next-count > 0) signal(next) else signal(mutex); CSCI 315 Operating Systems Design

8. Concepts to discuss Deadlock Livelock Spinlock vs. Blocking CSCI 315 Operating Systems Design

9. Deadlock: Bridge Crossing Example • Traffic only in one direction. • Each section of a bridge can be viewed as a resource. • If a deadlock occurs, it can be resolved if one car backs up (preempt resources and rollback). • Several cars may have to be backed up if a deadlock occurs. • Starvation is possible. CSCI 315 Operating Systems Design

10. Deadlock: Dining-Philosophers Example Imagine all philosophers start out hungry and that they all pick up their left chopstick at the same time. Assume that when a philosopher manages to get a chopstick, it is not released until a second chopstick is acquired and the philosopher has eaten his share. Question: Why did deadlock happen? Try to enumerate all the conditions that have to be satisfied for deadlock to occur. Question: How could be done to guarantee deadlock won’t happen? CSCI 315 Operating Systems Design

11. A System Model • Resource types R1, R2, . . ., Rm CPU cycles, memory space, I/O devices • Each resource type Ri has Wi instances. • Each process utilizes a resource as follows: • request • use • release CSCI 315 Operating Systems Design

12. Deadlock Characterization Deadlock can arise if four conditions hold simultaneously: • Mutual exclusion: only one process at a time can use a resource. • Hold and wait: a process holding at least one resource is waiting to acquire additional resources held by other processes. • No preemption: a resource can be released only voluntarily by the process holding it, after that process has completed its task. • Circular wait: there exists a set {P0, P1, …, P0} of waiting processes such that P0 is waiting for a resource that is held by P1, P1 is waiting for a resource that is held by P2, …, Pn–1 is waiting for a resource that is held by Pn, and P0 is waiting for a resource that is held by P0. CSCI 315 Operating Systems Design

13. Resource Allocation Graph Graph: G=(V,E) • The nodes in V can be of two types (partitions): • P = {P1, P2, …, Pn}, the set consisting of all the processes in the system. • R = {R1, R2, …, Rm}, the set consisting of all resource types in the system. • request edge – directed edge P1  Rj • assignment edge – directed edge Rj Pi CSCI 315 Operating Systems Design

14. Resource Allocation Graph • Process • Resource Type with 4 instances • Pirequests instance of Rj • Pi is holding an instance of Rj Pi Rj Pi Rj CSCI 315 Operating Systems Design

15. Example of a Resource Allocation Graph CSCI 315 Operating Systems Design

16. Resource Allocation Graph With A Deadlock CSCI 315 Operating Systems Design

17. Resource Allocation Graph With A Cycle But No Deadlock CSCI 315 Operating Systems Design

18. Basic Facts • If graph contains no cycles no deadlock. • If graph contains a cycle  • if only one instance per resource type, then deadlock. • if several instances per resource type, possibility of deadlock. CSCI 315 Operating Systems Design

19. Methods for Handling Deadlocks • Ensure that the system will never enter a deadlock state. • Allow the system to enter a deadlock state and then recover. • Ignore the problem and pretend that deadlocks never occur in the system; used by most operating systems, including UNIX. CSCI 315 Operating Systems Design

20. Deadlock Prevention Restrain the ways request can be made. • Mutual Exclusion – not required for sharable resources; must hold for nonsharable resources. • Hold and Wait – must guarantee that whenever a process requests a resource, it does not hold any other resources. • Require process to request and be allocated all its resources before it begins execution, or allow process to request resources only when the process has none. • Low resource utilization; starvation possible. CSCI 315 Operating Systems Design

21. Deadlock Prevention Restrain the ways request can be made. • No Preemption – • If a process that is holding some resources requests another resource that cannot be immediately allocated to it, then all resources currently being held are released. • Preempted resources are added to the list of resources for which the process is waiting. • Process will be restarted only when it can regain its old resources, as well as the new ones that it is requesting. • Circular Wait – impose a total ordering of all resource types, and require that each process requests resources in an increasing order of enumeration. CSCI 315 Operating Systems Design
