Networks of Queues: Myth and Reality

Networks of Queues: Myth and Reality Guang-Liang Li and Victor O.K. Li The University of Hong Kong glli,vli@eee.hku.hk  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Outline • “How Networks of Queues Came About” • Jackson Networks of Queues and Jackson’s Theorem • Unsolved Mysteries • Counterexample 1: M/M/1 Queue with Feedback • Counterexample 2: Two M/M/1 queues in Tandem • Possible Behavior of Networks of Queues • Conclusion  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

1. “How Networks of Queues Came About” • 2002, J. Jackson, “How networks of queues came about,” Operations Research, vol. 50, no. 1, pp. 112-113. • 1957, J. Jackson, “Networks of waiting lines,” Operations Research, vol. 5, no. 4, pp. 518-521. • 1963, J. Jackson, “Jobshop-like queueing systems,” Management Science, vol. 10, no. 1, pp. 131-142. • After 1963, various generalizations and variations by others.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

2. Jackson Networks of Queues and Jackson’s Theorem • Jackson Network of Queues • independent Poisson arrivals from outside • independent exponential service times, also independent of arrivals • first-come-first-served • once served at a queue, customer may either leave network, or go to the same or another queue in the network  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

 2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Jackson’s Theorem • Assumption: Network state (k1, k2, …, km) is a stationary Markov process • Theorem: In steady state, every queue in a Jackson network behaves as if it was an M/M/m queue in isolation, independent of all other queues in the network.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

3. Unsolved Mysteries • “product form solution” • tandem network • waiting times are dependent, cf., P.J. Burke, “The dependence of delays in tandem queues,” Ann. Math. Statist., vol. 35, no. 2, June, 1964, pp. 874-875. • but sojourn times are mutually independent, cf., E Reich, “Note on queues in tandem,” Ann. Math. Statist., 34 338-341, 1963. • M/M/1 with feedback behaves as if it was without feedback, but • with feedback: transition is impossible in small time interval if feedback occurs • without feedback: transition is always possible in any time interval  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

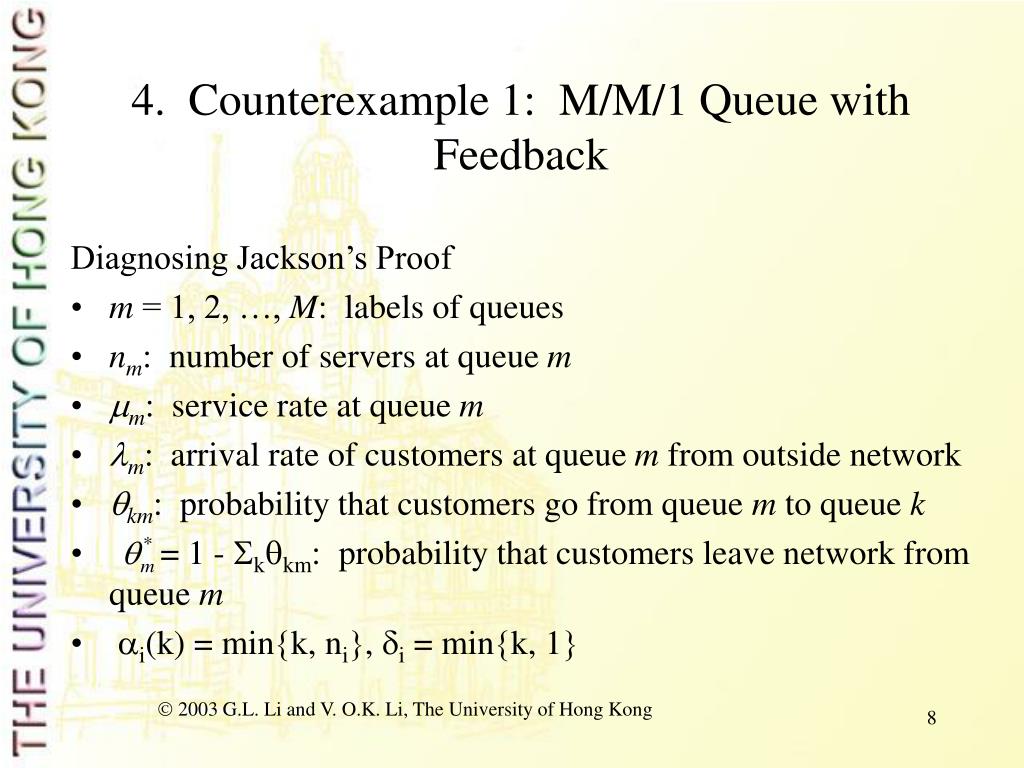

4. Counterexample 1: M/M/1 Queue with Feedback Diagnosing Jackson’s Proof • m = 1, 2, …, M: labels of queues • nm: number of servers at queue m • m: service rate at queue m • m: arrival rate of customers at queue m from outside network • km: probability that customers go from queue m to queue k • = 1 - kkm: probability that customers leave network from queue m • i(k) = mink, ni, i = mink, 1  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

First Equation in Jackson’s Proof Pk1, …,kM(t+h) = 1-(i)h – [i(ki)i]hPk1,…, kM(t) +i(ki+1)ihPk1, …,ki+1, …, kM(t) +iihPk1, …,ki-1, …, kM(t) +j(kj+1)jijhPk1, …, kj+1, …, ki-1, …, kM(t)+o(h)  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

M=1, n1=1, k1=k, 1=>0, 1=>0, 11=>0 • For k>1 Pk(t+h) = (1-h-h)Pk(t)+(1-)hPk+1(t)+hPk-1(t) +o(h). (1) • X(t): number of customers waiting and being served in the single-server queue at time t. • Equation (1) is actually P{X(t+h) = k} = P{X(t+h) = k|X(t) = k}P{X(t) = k} +P{X(t+h) = kX(t) = k+1}P{X(t) = k+1} +P{X(t+h) = k|X(t) = k-1}P{X(t) = k-1}+o(h) (2)  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Compare (1) with (2) PX(t+h) = kX(t) = k = 1-h-h • Replace k by k-1 in (1) and (2), and compare the obtained equations. PX(t+h) = k-1X(t) = k = (1-)h • Replace k by k+1 in (1) and (2), and compare the obtained equations. P{X(t+h) = k+1|X(t) = k} = h • Contradiction: the sum of the above probabilities is not equal to one. • X(t) is not a Markov process. Jackson’s theorem does not hold.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Without Diagnosing Jackson’s Proof • (2): time spent by X(t) in state k=2 until a transition to k=1. • (2) is not exponential (to be shown) implies X(t) is not a Markov process. • actual service time of a customer: initial service time plus any extra service time due to feedback • (2) = d+p • d>0: the (residual) actual service time of the departing customer • p>0: part of the actual service time of the other customer • v(x): probability density function of p • S: the (residual) exponential service time first expired in (2)  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

P{(2)<t = P(2)<tp = x}v(x)dx (3) P{p = 0 = 1 implies v(x) = (x) (Dirac delta function), (2) = S, (3) becomes P(2)<t} = P{S<t|p = x(x)dx = P{S<tp = 0} = PS<t} If 0<P{p = 0<1 P{(2)<t = P{(2)<t|p = 0P{p = 0 + P{(2)<tp = x}v(x)dx = P{S<t}P{p= 0}+P{(2)<t|p>0}P{p>0} For any 0<t<, P{S<t}>P{(2)<t|p>0} So (2) cannot be exponential.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

5. Counterexample 2: Two M/M/1 queues in Tandem • All customers arrive at the first queue, go to the second queue after service, and leave the network form there. • Jackson’s theorem in this case: corollary of Burke’s theorem: The output of the first queue is a Poisson Process at the same rate as that of the arrival process. The second queue is also an M/M/1 system.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Outline of Our Argument • The output of the first queue has both a marginal version, and a non-marginal version (shall be demonstrated). • The non-marginal version is neither a Poisson process nor a stationary process. • If the two queues are considered jointly as a network, the arrival process at the second queue is the non-marginal, non-stationary version. • The second queue is not an M/M/1 queue and is unstable. • The state of this network is not stationary. • So Jackson’s theorem does not hold.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Output of M/M/1 Queue Simulation (thought experiment) of stable M/M/1 queue in steady state • Inter-departure time (t-s) is sampled in either case below • Case (a): server is busy at time s - (t-s) is distributed as a service time - color a line segment of length (t-s) red - use “R” to represent the segment  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

case (b): server is idle at time s (t-s) is distributed as the sum of an idle time of the server and a service time color a segment of length (t-s) blue use “B” to represent the segment • sample path of the inter-departure time sequence corresponds to a sequence of colored segments  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Observation and Fact • sequence of colored segments RRRBRRRRBBBRRRBBBBBRR…. • segments of two colors: inter-departure times follow two different distributions • tendency for segments with the same color to aggregate: Markov dependence  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

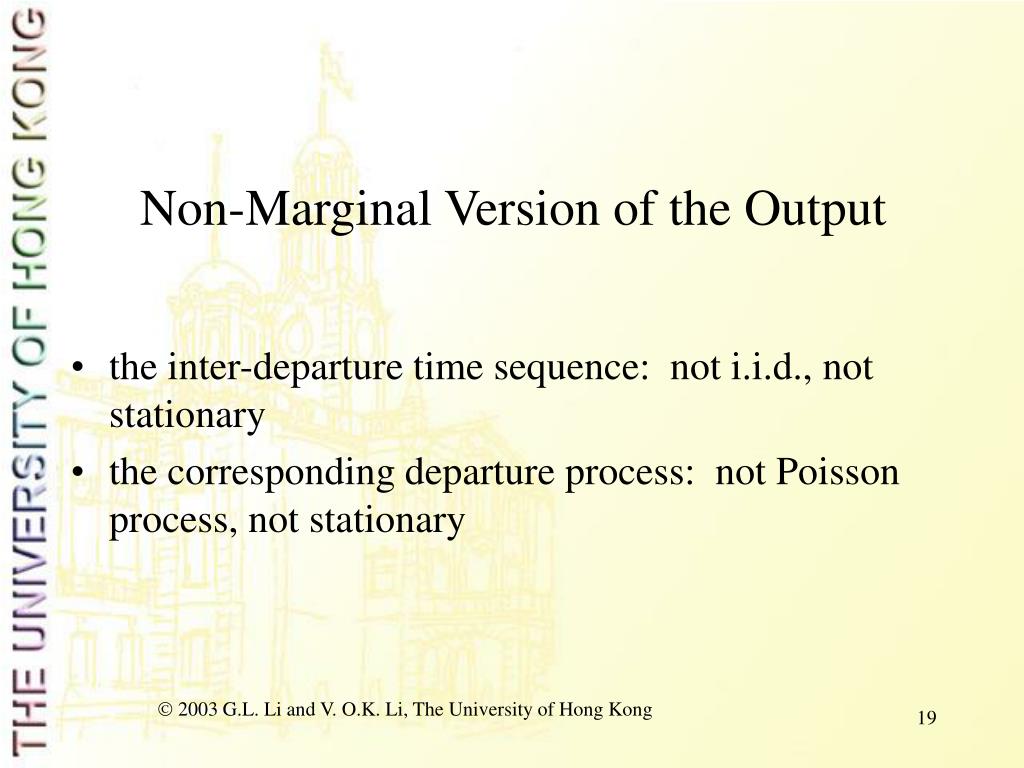

Non-Marginal Version of the Output • the inter-departure time sequence: not i.i.d., not stationary • the corresponding departure process: not Poisson process, not stationary  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Marginal Version of the Output • obtained by averaging out the impact of the state of the queue • Experimental construction divide interval (0, H) into N (H) consecutive, disjoint subintervals of equal length for all segments with length less than H, calculate the frequencies that the lengths of the segments are in the small intervals, regardless of their colors. As H  , an exponential pdf with parameter equal to the arrival rate is found  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Marginal Version of the output (cont’d.) • experimental construction (continued) sample random variables independently, regardless of the state of the queue, from the constructed pdf sampled random variables form an i.i.d. exponential sequence marginal version: the Poisson process corresponding to the exponential sequence  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

What Does Burke’s Theorem Really Mean Separate queues in tandem based on the marginal version so as to treat them individually rather than jointly. “It is intuitively clear that, in tandem queuing processes of the type mentioned above, if the output distribution of each stage was of such character that the queuing system formed by the second stage was amenable to analysis, then the tandem queue could be analyzed stage-by-stage insofar as the separate delay and queue-length distributions are concerned. Such a stage-by-stage analysis can be expected to be considerably simpler than the simultaneous analysis heretofore necessary. Fortunately, under the conditions stated below, it is true that the output has the required simplicity for treating each stage individually.” P.J. Burke, “The output of a queueing system,” Operations Research, vol. 4, pp. 699-714, 1956.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

What if two queues in tandem are considered jointly? • the output of the first queue is the non-marginal, non-stationary version • the second queue is not M/M/1, and is not stable • The state of the network is not a stationary process • Jackson’s theorem does not hold  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

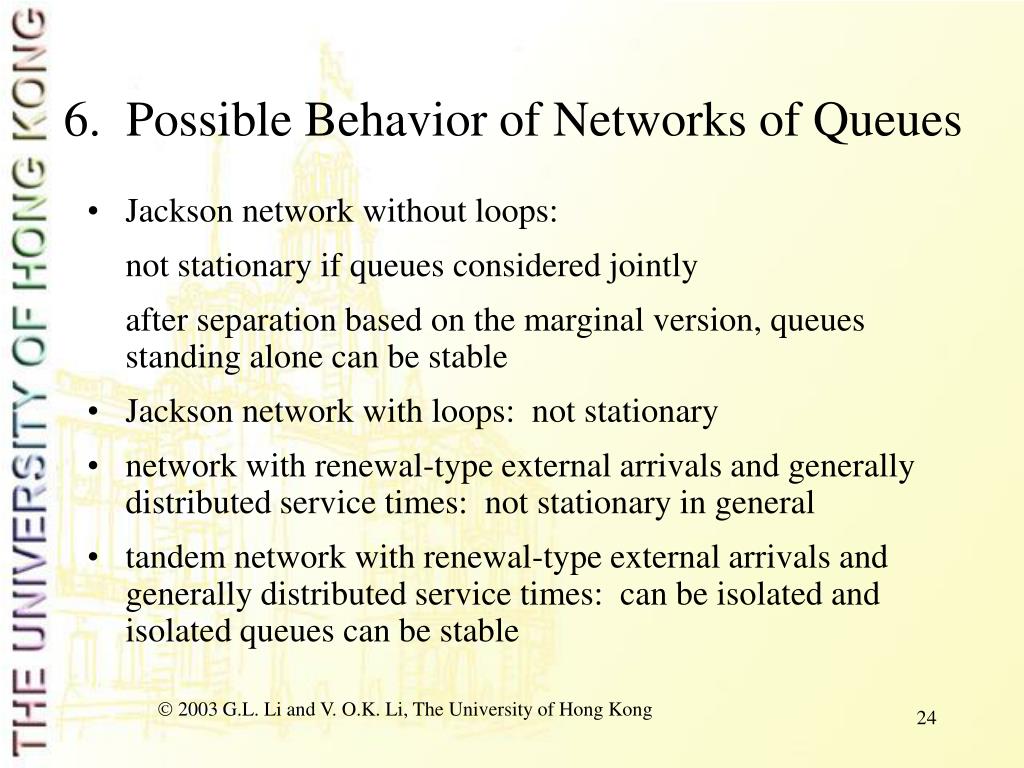

6. Possible Behavior of Networks of Queues • Jackson network without loops: not stationary if queues considered jointly after separation based on the marginal version, queues standing alone can be stable • Jackson network with loops: not stationary • network with renewal-type external arrivals and generally distributed service times: not stationary in general • tandem network with renewal-type external arrivals and generally distributed service times: can be isolated and isolated queues can be stable  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

7. Conclusion • Jackson’s theorem does not hold, as shown by the counterexamples. • The assumption (i.e., network state is a stationary Markov process) made by Jackson is invalid. • All known “proofs” are based on this invalid assumption. • Jackson network is not stationary, unless queues can be isolated. • Generalizations and variations of Jackson networks are questionable. • Re-investigation of related issues is necessary.  2003 G.L. Li and V. O.K. Li, The University of Hong Kong

Networks of Queues: Myth and Reality
