Customizable Heat Loss Model & Insulation Calculator for Human Body Apparel Design

This project aims to create a customizable heat loss model of the human body to compute insulation thickness for various textiles. The calculator will translate insulation thicknesses into user-friendly information, considering that 30% of heat loss occurs from the head, with the remaining 70% distributed evenly across other body parts. The model decomposes the body into five cylindrical parts and one spherical head, applying biometric data. It will also support multiple clothing layers and feature a standalone GUI for ease of use.

vicki
Télécharger la présentation

Customizable Heat Loss Model & Insulation Calculator for Human Body Apparel Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Apparel Calculator Joey Nielsen Derek Jensen Robb Hays

  2. Create customizable heat loss model of the human body • Create calculator that computes insulation thicknesses for various textiles • Translate insulation thicknesses into usable information for the user Project Objectives

  3. Radiation is negligible • Heat transfer between body parts is negligible • Wind speed is normal to the surface of body parts • Thermal conductivities and other textile properties are uniform • 30% of heat loss is from head • Other 70% is divided among other body parts equally Assumptions

  4. Model of the Human Body Decompose body into system of 5 cylinders (arms, legs, torso) and 1 sphere (head) and find sizes of each using biometrics from Drillis and Contini

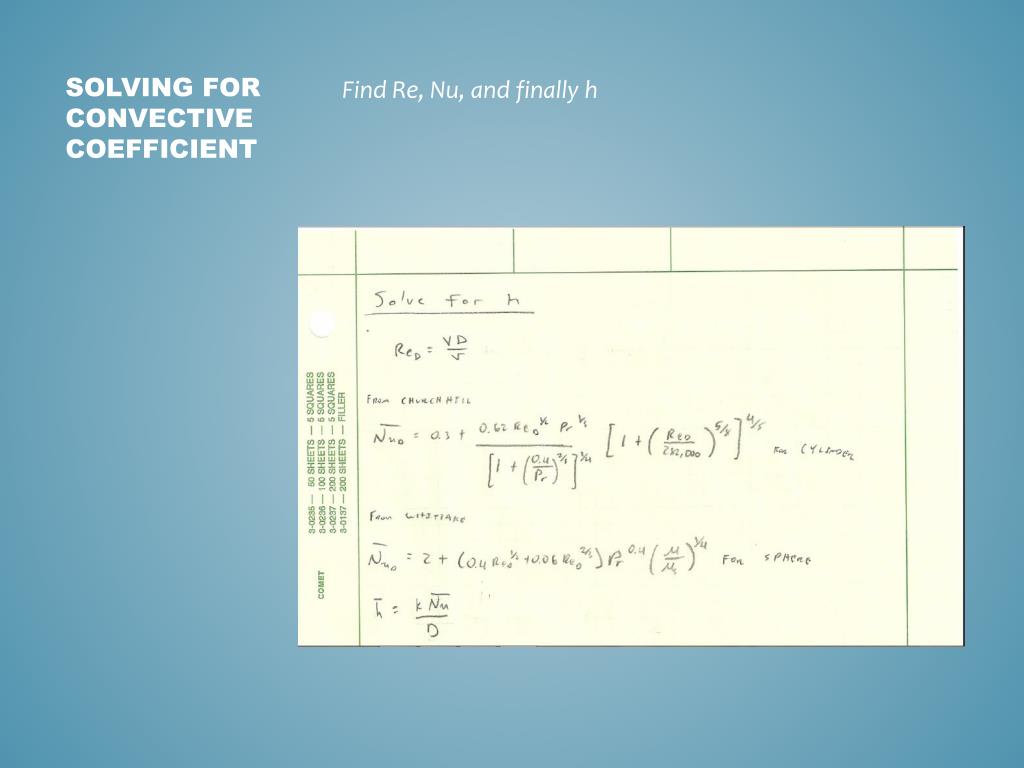

  5. Solving for Convective coefficient Find Re, Nu, and finally h

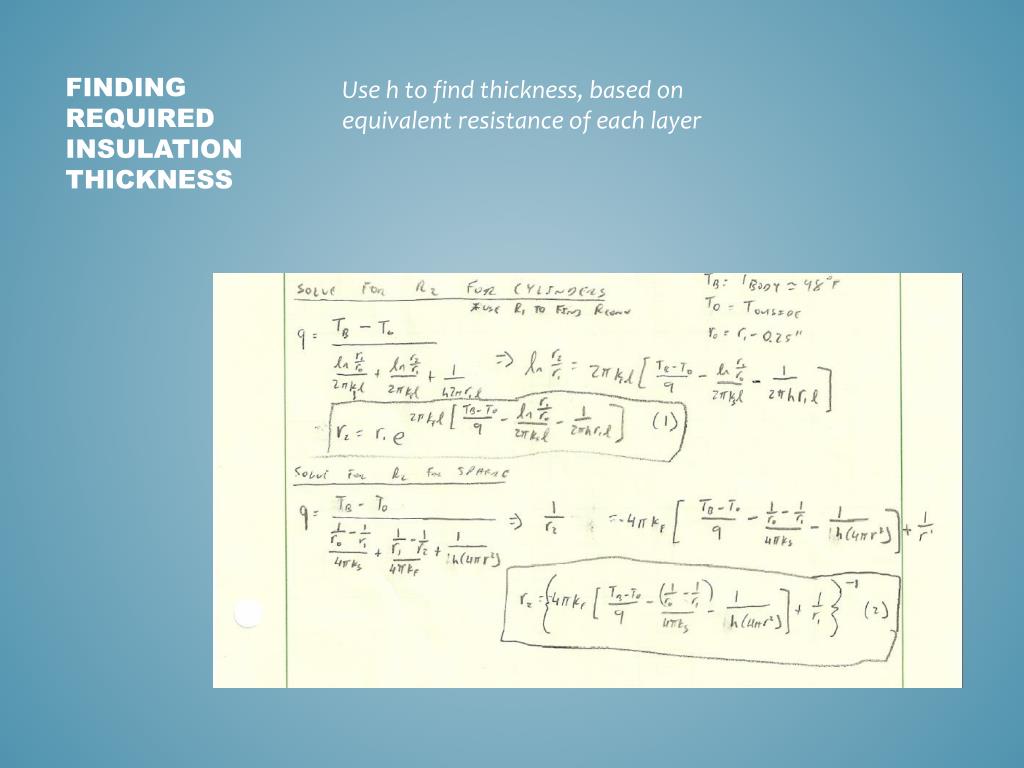

  6. Finding required insulation thickness Use h to find thickness, based on equivalent resistance of each layer

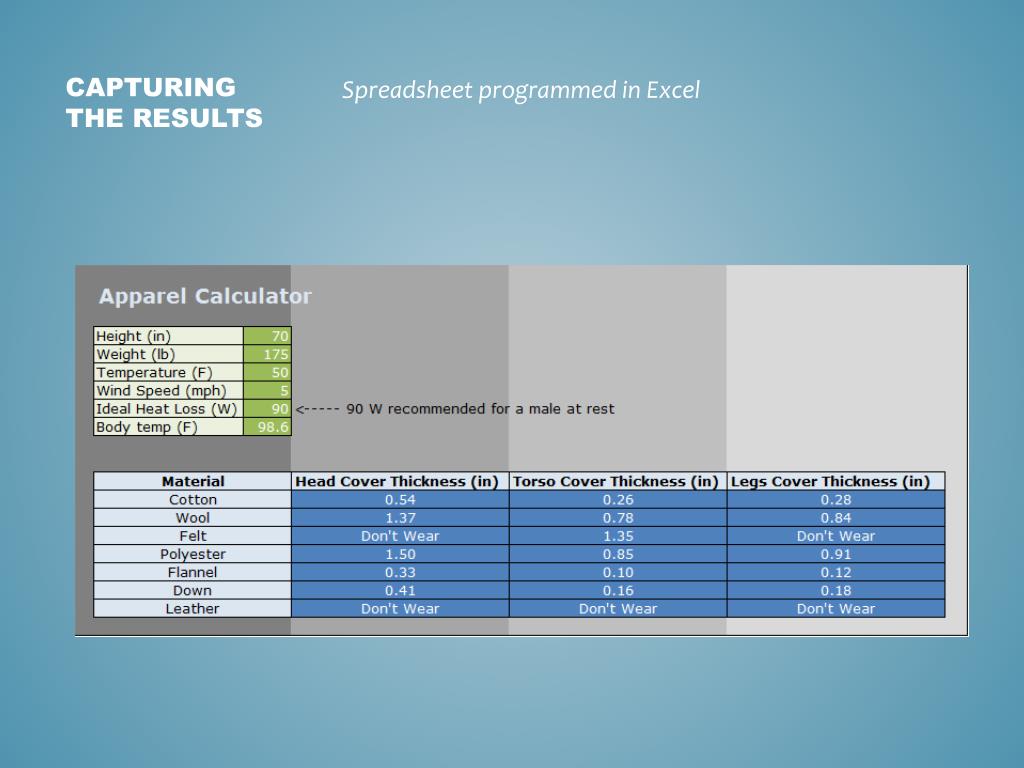

  7. Capturing the results Spreadsheet programmed in Excel

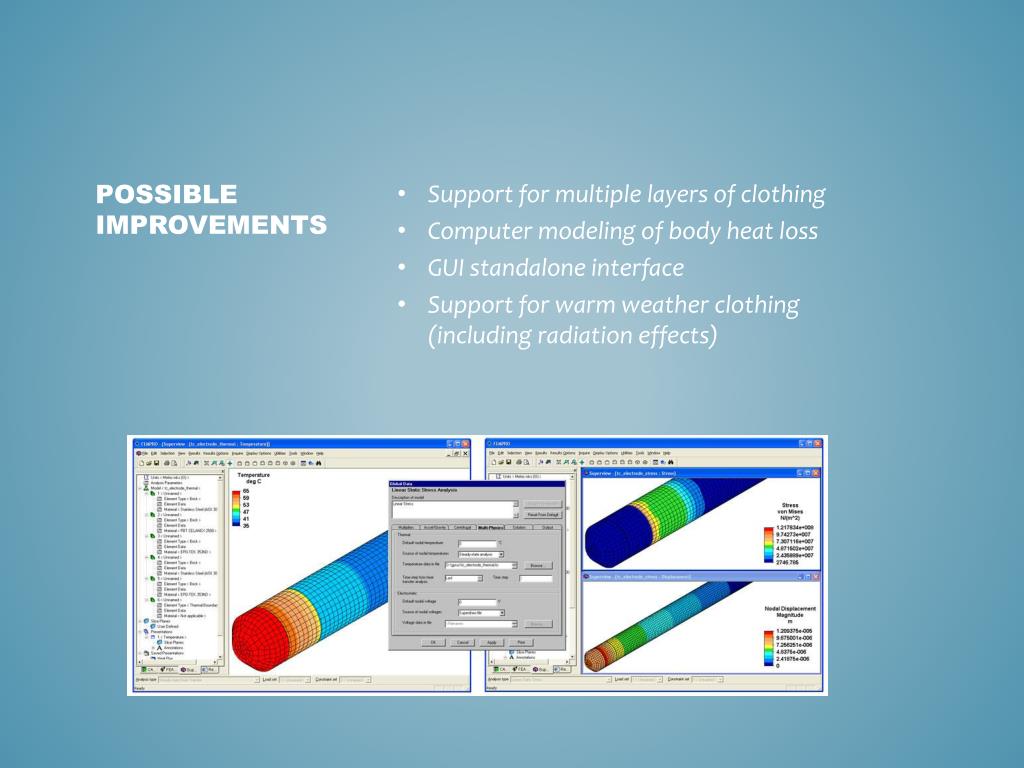

  8. Support for multiple layers of clothing • Computer modeling of body heat loss • GUI standalone interface • Support for warm weather clothing (including radiation effects) Possible improvements

  9. APPENDIX Derivation of solution
