Presentation Transcript

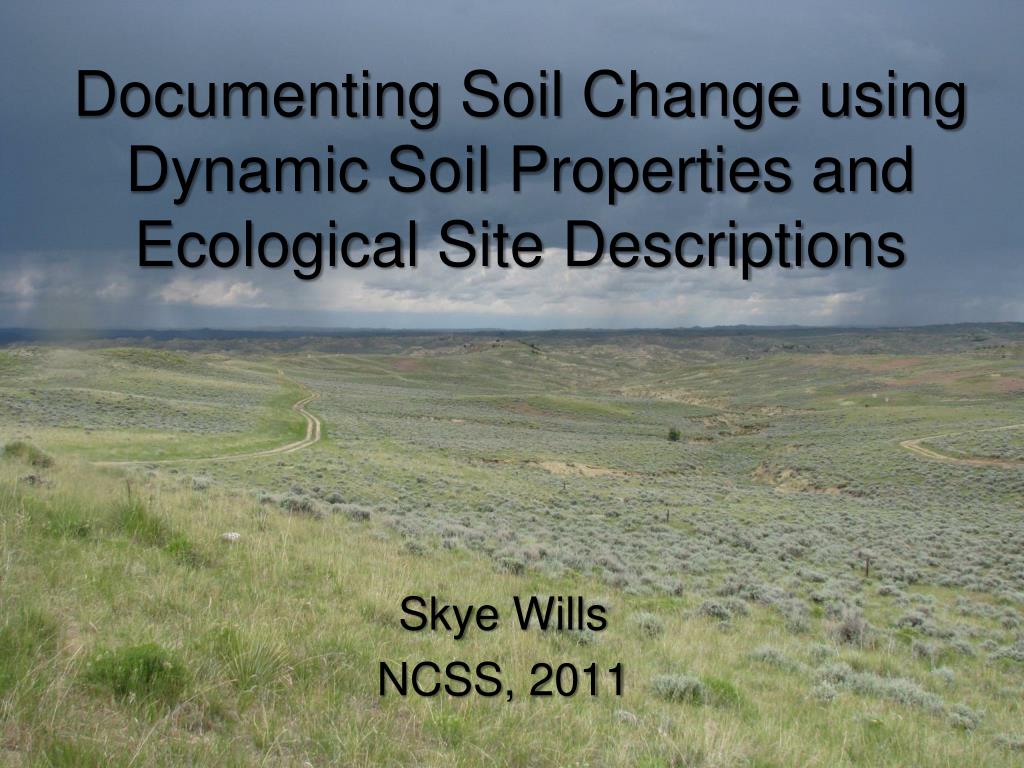

  1. Documenting Soil Change using Dynamic Soil Properties and Ecological Site Descriptions Skye Wills NCSS, 2011

  2. Soil and Ecosystem Change • Soil Change Guide • Document change in soil function applicable over the entire extent of a soil series or component phase • When possible, Ecological Sites and associated State and Transition Models inform study design and interpretation • Dynamic soil properties collected concurrently with vegetation properties

  3. Space and Time • Some conceptual model is needed to separate the soil component being evaluated into conditions that can be compared in space • Space for time substitution allows us to interpret change over time or caused by management system • Statistical inference: where can results be applied

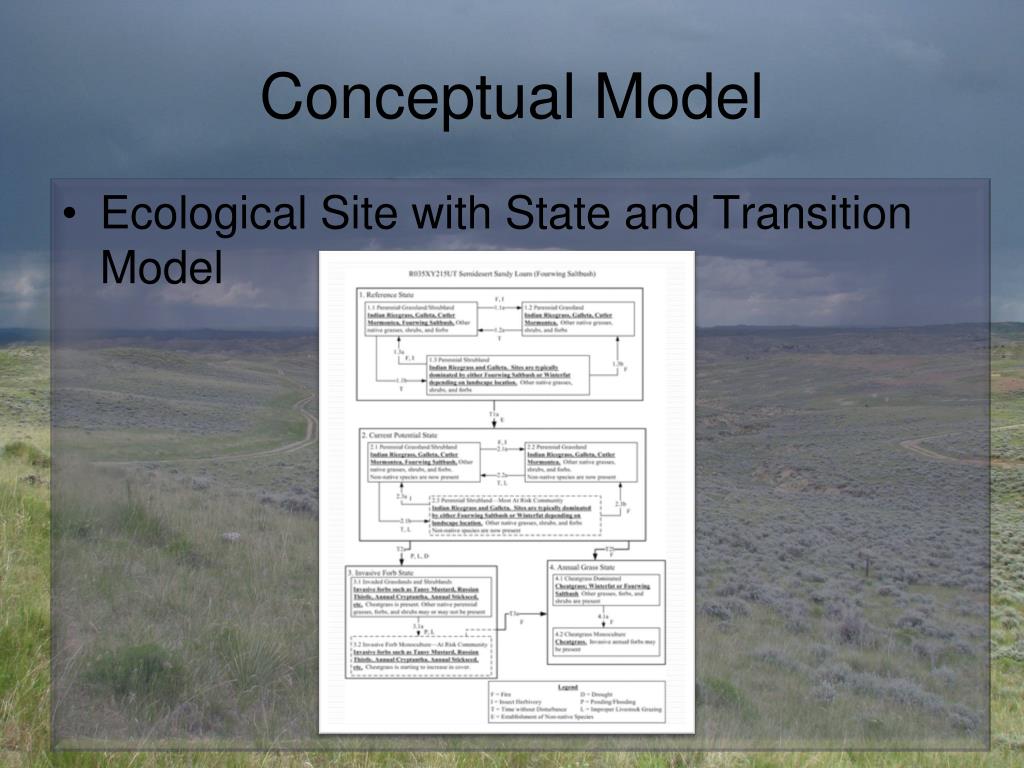

  4. Conceptual Model • Ecological Site with State and Transition Model

  5. Begay DSP Project (Utah) • Used STM to separate ecological site (R035XY215UT) and the correlated soil map component phases into conditions for comparison • Reference State -Community Phase • 1.1 Perennial grassland/shrubland • Alternative State -Community Phase • 4.1 and 4.2 Cheatgrass Dominated/Monoculture

  6. Organic carbon % Bulk density 0-2 cm High and low values of reference state 2 cm to base of A B to 25 cm PG-S = perennial grass-shrub; AG = Annual grass (cheat grass) n=4

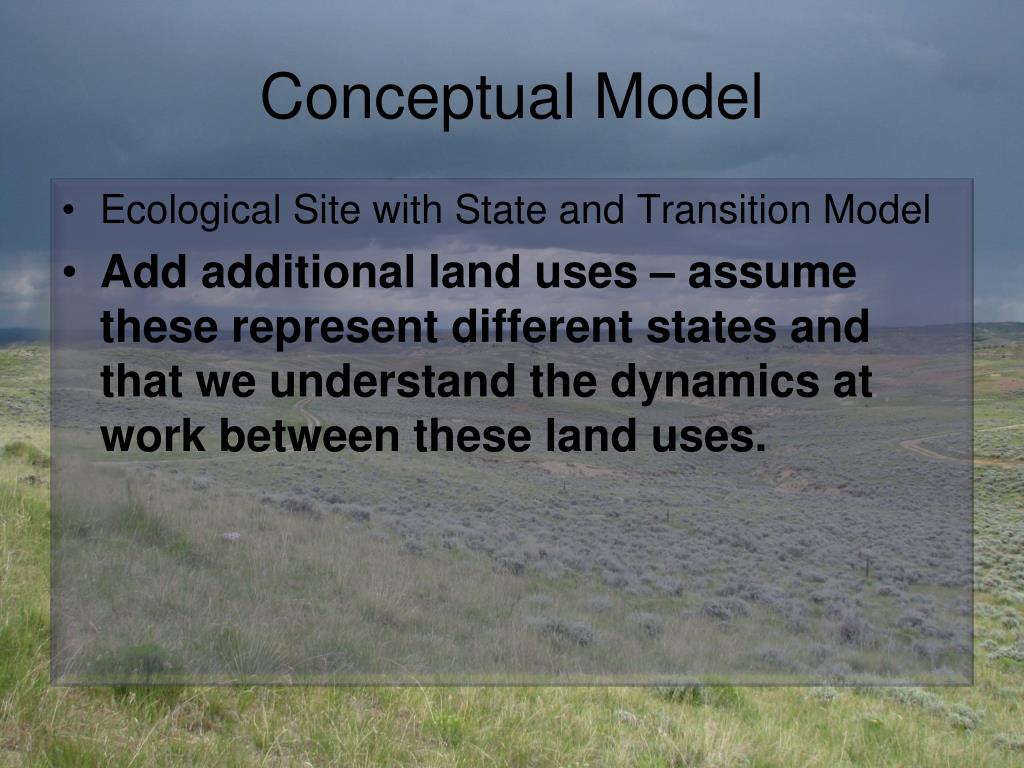

  7. Conceptual Model • Ecological Site with State and Transition Model • Add additional land uses – assume these represent different states and that we understand the dynamics at work between these land uses.

  8. MLRA 77C (TX)Amarillo DSP Project • Chose conditions for study based on past and current land use • Rangeland – ‘Degraded’ shortgass, shrub invaded (R077CY034TX; Shrub Dominant Community 3.1) • Conservation Reserve Program – previously cropped, currently dominated by ungrazed introduced grasses • Cropland –Irrigated conventionally tilled cotton

  9. CRP – variable conditions and past management difficult to fit within STM concepts Cropland – could conceivably be considered a separate state. However, the large energy inputs available could overwhelm any subtle ecological dynamics in the site.

  10. Amarillo: Wet Aggregate Stability * Means with same letter are not significantly different (P=0.05) Ted Zobeck, personal communication 4/20/11

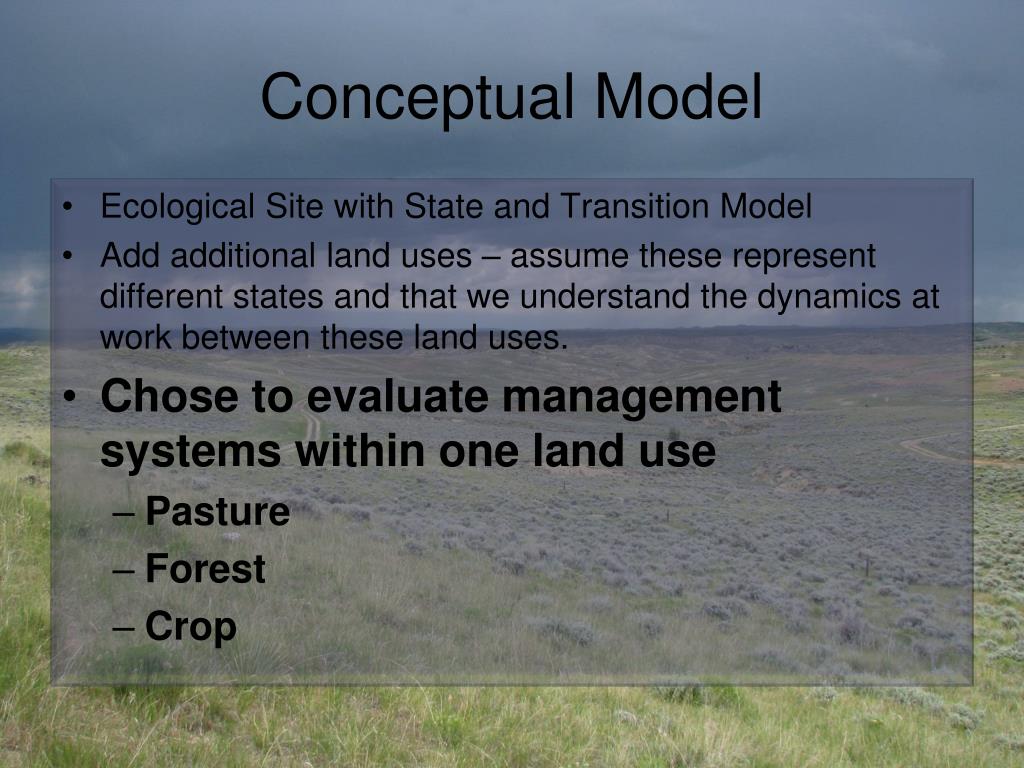

  11. Conceptual Model • Ecological Site with State and Transition Model • Add additional land uses – assume these represent different states and that we understand the dynamics at work between these land uses. • Chose to evaluate management systems within one land use • Pasture • Forest • Crop

  12. Idaho Threebear project • Chose to evaluate management conditions in forest land • Mature forest • Clear-cut and planted forest

  13. Threebear Results

  14. MLRA 106 (NE and KS): Kennebec Soil • Chose to evaluate management systems within cropland • Generally, corn/soybean rotation with • Conventional tillage system • No-till system • “organic” system • While this sounds like a straightforward comparison there are many variations of each of these management systems. Deciding what to compare and what to include in each was a major difficulty.

  15. Kennebec Results Total C stocks (Mg ha-1 to 40cm) % WAS

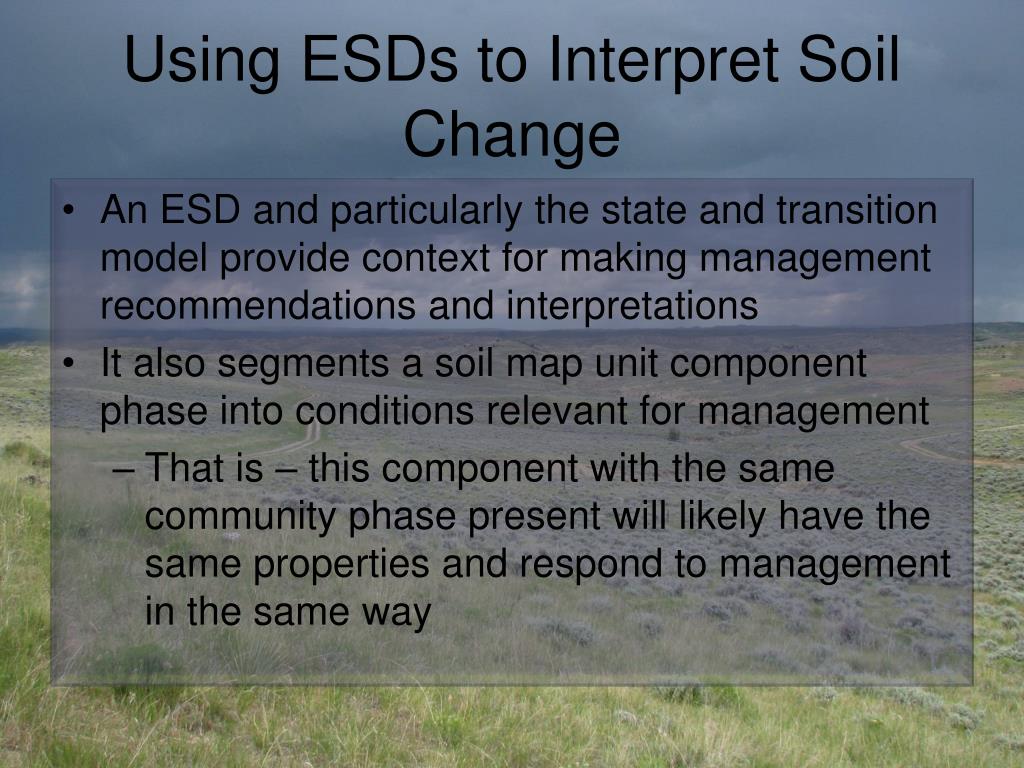

  16. Using ESDs to Interpret Soil Change • An ESD and particularly the state and transition model provide context for making management recommendations and interpretations • It also segments a soil map unit component phase into conditions relevant for management • That is – this component with the same community phase present will likely have the same properties and respond to management in the same way

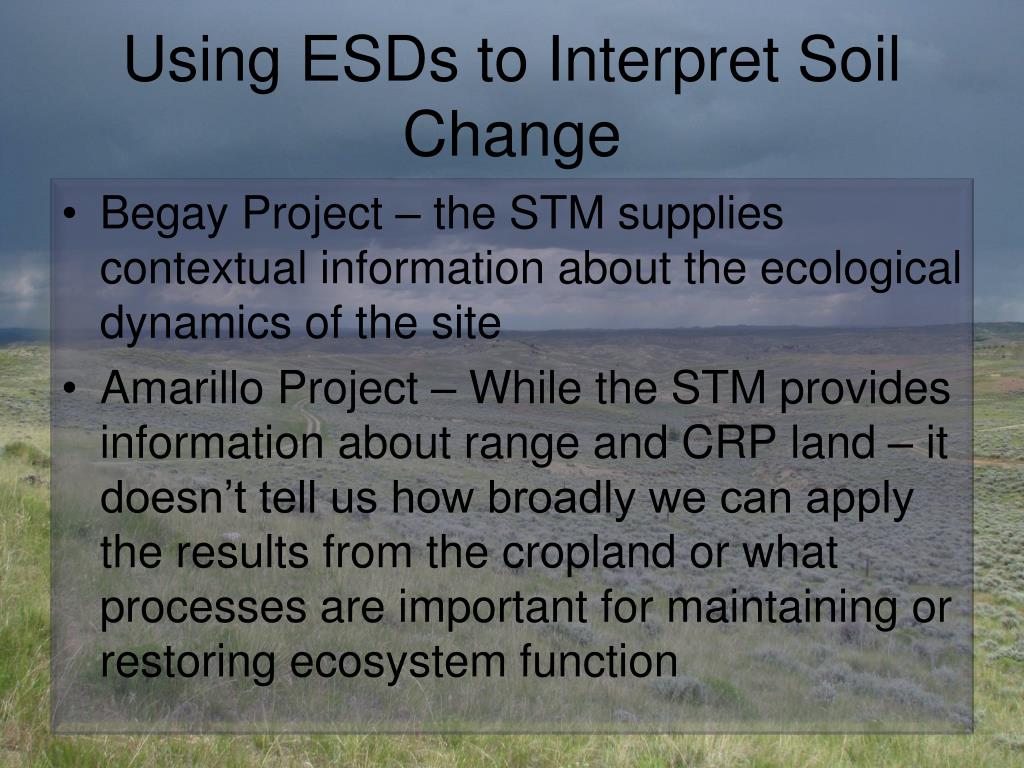

  17. Using ESDs to Interpret Soil Change • BegayProject – the STM supplies contextual information about the ecological dynamics of the site • Amarillo Project – While the STM provides information about range and CRP land – it doesn’t tell us how broadly we can apply the results from the cropland or what processes are important for maintaining or restoring ecosystem function

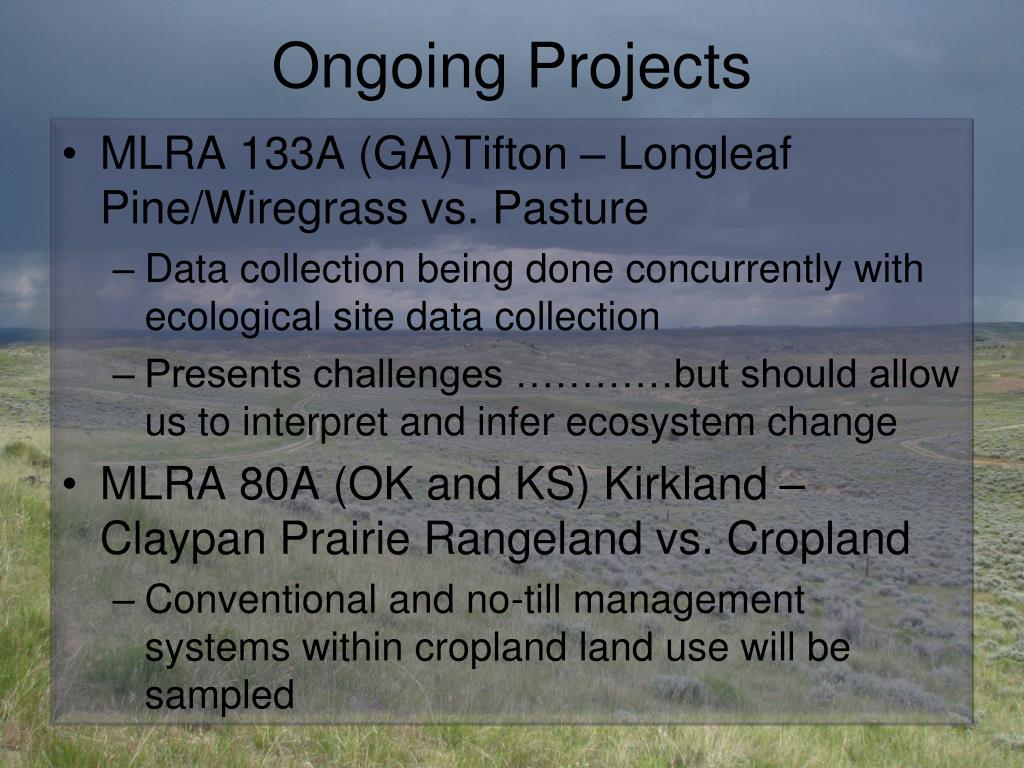

  18. Ongoing Projects • MLRA 133A (GA)Tifton – Longleaf Pine/Wiregrass vs. Pasture • Data collection being done concurrently with ecological site data collection • Presents challenges …………but should allow us to interpret and infer ecosystem change • MLRA 80A (OK and KS) Kirkland – Claypan Prairie Rangeland vs. Cropland • Conventional and no-till management systems within cropland land use will be sampled

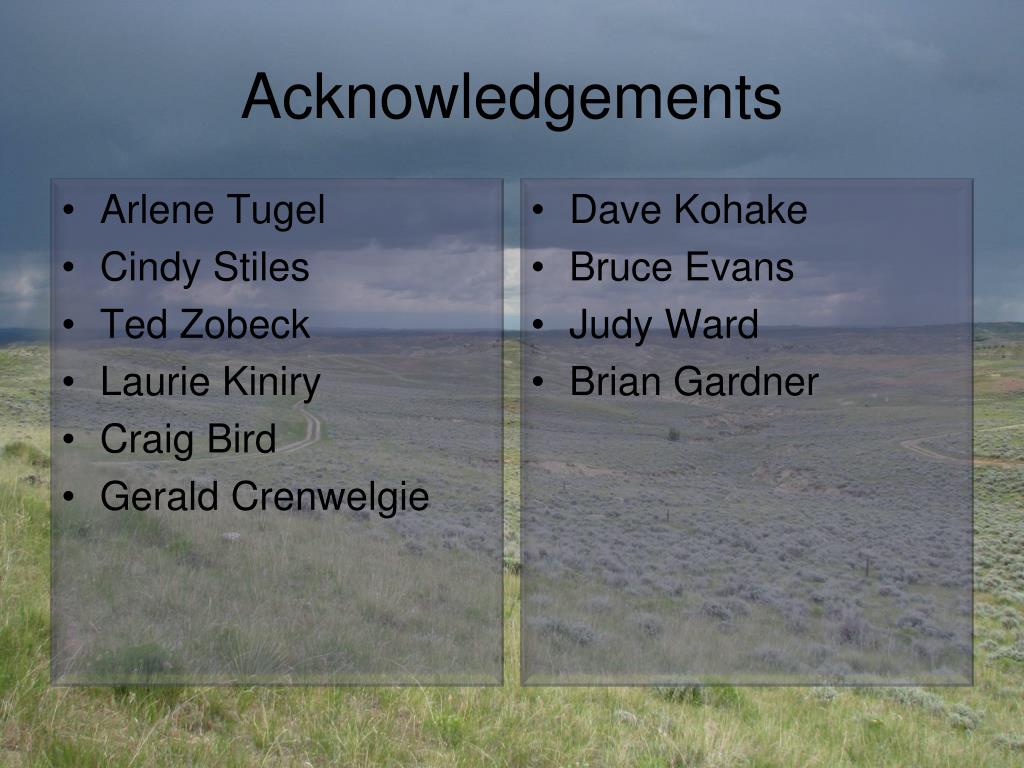

  19. Acknowledgements • Arlene Tugel • Cindy Stiles • Ted Zobeck • Laurie Kiniry • Craig Bird • Gerald Crenwelgie • Dave Kohake • Bruce Evans • Judy Ward • Brian Gardner
