  1. -

  2. Features and Benefits • Reducer sizes 114 up to 320 • Low profile and OVP (slanthole) models available • Lowest cost, highest efficiency solution for any application requiring low profile • Naturally compact, low height • High well clearance • High efficiency geometry • Low internal structural stresses • Folding roller post

  3. Naturally CompactLow Height Solves the clearance problems that conventional beam units have with farmers’ sprinkler irrigation systems. Not a cut-down adaptation of a beam style unit that sacrifices efficiency and capacity for low height.

  4. High Well Clearance Much more clearance than other low profile units. Can eliminate deep cellars.

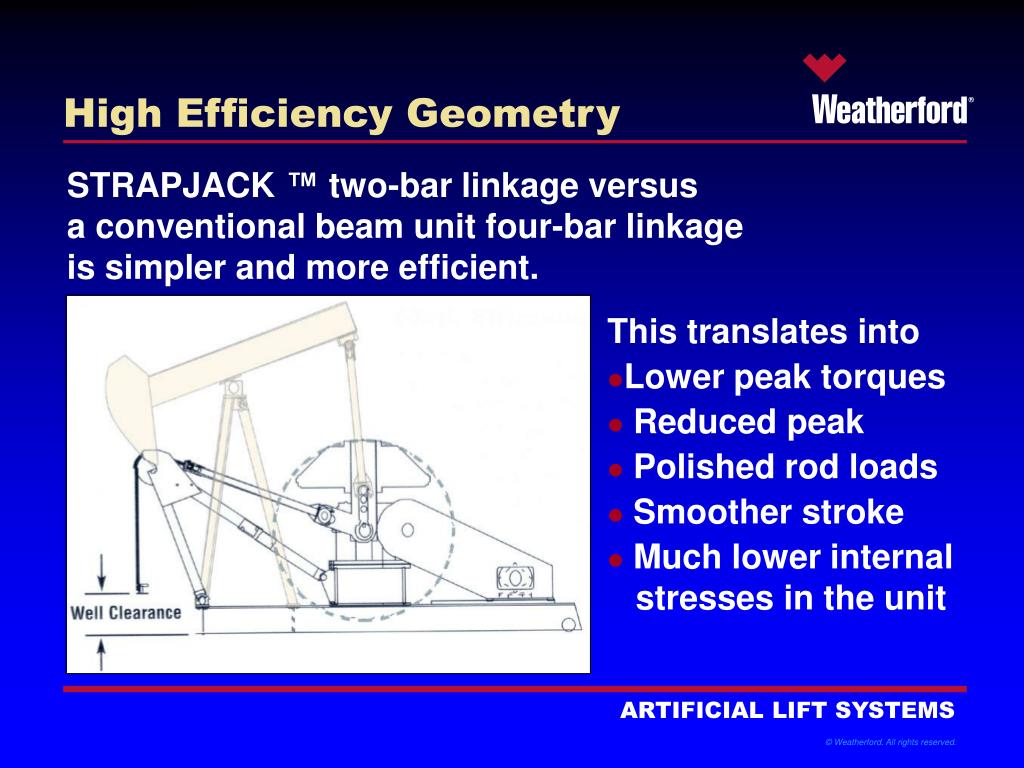

  5. High Efficiency Geometry STRAPJACK ™ two-bar linkage versusa conventional beam unit four-bar linkageis simpler and more efficient. This translates into • Lower peak torques • Reduced peak • Polished rod loads • Smoother stroke • Much lower internal stresses in the unit

  6. Low Internal Structural Stresses • No reversed frame bending as seen in beam units. • Eliminates frame cracking problems • Allows for two-point suspension if desired. • Does not require a concrete pad with holddown bolts. • Lower setting costs, longer life, and less maintenance.

  7. Folding Roller Post The head quickly and easily folds back completely out of the way for safer well servicing because of the large block clearance.
