  1. CS 155, Programming ParadigmsFall 2014, SJSULueker’s method Jeff Smith

  2. Solving additional recurrence relations • Many recurrence relations that cannot be solved by the Master Theorem may be solved by a technique described by Lueker • http://cis.csuohio.edu/~mcintyre/cis606/Lueker_George_S.pdf • if you read this, start toward the end of p. 424 • Section 2.17 in my text covers these topics • Recall that the function T(n) may be thought of as an infinite sequence <t> = <tn>

  3. Lueker’s technique • The technique uses the notion of an operator E that removes the first term of a sequence. • Other operators correspond to numbers • and have the effect of multiplying each term of the sequence by the number. • Operators may be added or subtracted like other functions • by adding or subtracting elements pointwise.

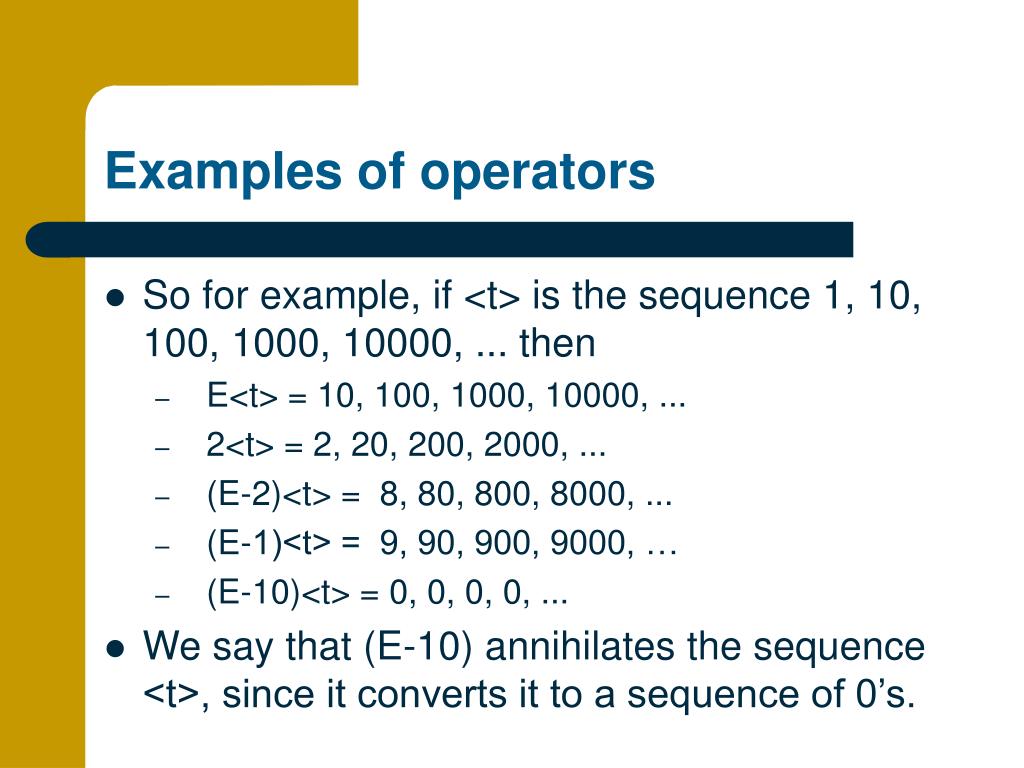

  4. Examples of operators • So for example, if <t> is the sequence 1, 10, 100, 1000, 10000, ... then • E<t> = 10, 100, 1000, 10000, ... • 2<t> = 2, 20, 200, 2000, ... • (E-2)<t> = 8, 80, 800, 8000, ... • (E-1)<t> = 9, 90, 900, 9000, … • (E-10)<t> = 0, 0, 0, 0, ... • We say that (E-10) annihilates the sequence <t>, since it converts it to a sequence of 0’s.

  5. Annihilators • In Lueker's technique, it's important to know what annihilates what. It turns out that • (E-b) annihilates precisely those sequences of the form <cbn> • (E-1)m annihilates precisely those sequences that are polynomials of degree less than m • (E-b)m annihilates precisely those sequences of the form <bnp(n)>, where p is a polynomial of degree less than m

  6. An example of an annihilator • Also, F annihilates <s> and G annihilates <t> iff FG annihilates <s+t>. So for example, • (E-2)(E-1) annihilates <-1+2n> = 0, 1, 3, 7, 15, ... • We can check by observing that • (E-1)<-1+2n> = 1, 2, 4, 8, ... • and that (E-2) annihilates this resulting sequence • Exercise (zero-credit): • show that (E-1)(E-2) annihilates <-1+2n>

  7. The use of annihilators • If we find an annihilator for a sequence, then we can often determine the general form of the sequence. • We can then find an exact formula for terms of the sequence • if we have enough initial conditions. • It helps to know that our operators satisfy the commutative and associative laws • so that we can manipulate expressions that contain them just like expressions that don’t.

  8. Example: internal path length • Let L(h) be the internal path length of a complete tree of height h (cf. CLRS, p. 1179). • Since there are 2h nodes at level h, the relevant recurrence is L(h) = L(h-1) + h2h. • so L(h) - L(h-1) + h2h, or • (E-1)<L(h)> = <h2h> • Since the RHS is annihilated by (E-2)2, we can apply this operator to both sides to get • (E-2)2(E-1)<L(h) > = <0>, and thus • L(h) = a + 2h(b + ch)

  9. Closed-form expression for internal path length • We evaluate the constants in a + 2h(b + ch) by using the initial condition L(0) = 0, • and using the recurrence to get as many values of L as there are arbitrary constants. • The recurrence gives us L(1) = 2; L(2) = 10 • So plugging 0, 1, 2 into the expression gives • 0 = L(0) = a + b • 2 = L(1) = a + 2(b + c) • 10 = L(2) = a + 4(b + 2c) • Then a little algebra gives a=2, b = -2, c=2

  10. Plausibility of the closed-form expression for internal path length • Our final result: L(h) = 2 + 2h(-2 + 2h) • or 2 + 2h+1(h-1) • This should make sense intuitively • since there are very nearly n = 2h+1 nodes • and the average distance to the root is nearly h

  11. The height of an AVL tree • An AVL tree is a balanced search tree as described in Exercise 13-3 of CLRS. • We want AVL tree heights to be O(log n) • so that insertion, search, deletion are O(log n) • It’s easiest to first find the smallest number N(h) of nodes in an AVL tree of height h • Here N(h) = 1 + N(h-1) + N(h-2) • so N(h) - N(h-1) - N(h-2) = 1

  12. Verifying the height of an AVL tree • From N(h) – N(h-1) – N(h-2) = 1, we get • (E2 - E - 1)<N> = <1> • By the quadratic formula, the leftmost operator factors as (E- α)(E - β) • where α = (1+√5)/2 and β = (1- √5)/2 • Since (E-1) annihilates <1>, we have • (E-1)(E2 - E - 1)<N> = <0>, or • (E-1)(E- α)(E - β)<N> = <0> • So N = a + bαh + cβh, which is Θ(αh)

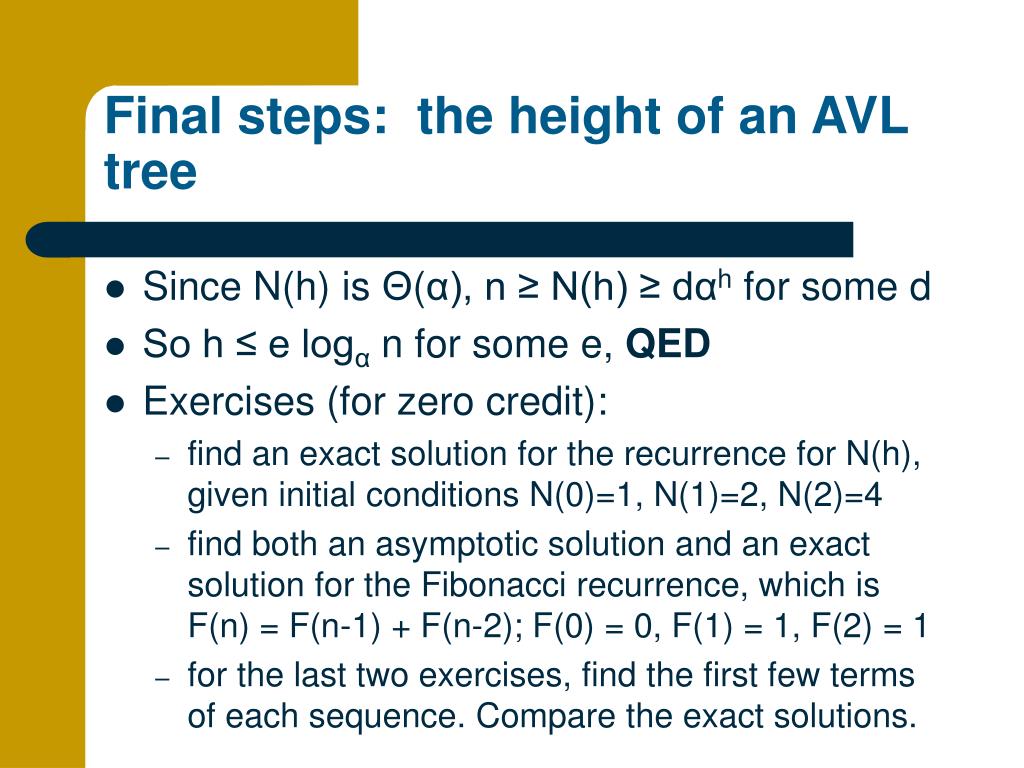

  13. Final steps: the height of an AVL tree • Since N(h) is Θ(α), n ≥ N(h) ≥ dαh for some d • So h ≤ e logα n for some e, QED • Exercises (for zero credit): • find an exact solution for the recurrence for N(h), given initial conditions N(0)=1, N(1)=2, N(2)=4 • find both an asymptotic solution and an exact solution for the Fibonacci recurrence, which is F(n) = F(n-1) + F(n-2); F(0) = 0, F(1) = 1, F(2) = 1 • for the last two exercises, find the first few terms of each sequence. Compare the exact solutions.

  14. Domain transformations • Recurrences like those of the Master Theorem can be solved (and solved exactly) by observing that we only really care about powers of its b value. • In the mergesort recurrence, b=2, and T(n) = 2T(n/2) + cn becomes • T(k) = 2T(k-1) + c2k • by using the substitution n = 2k

  15. Analyzing mergesort using annihilators • Our recurrence T(k) = 2T(k-1) + c2k gives • (E-2)<T> = <c2k> • So we have • (E-2)2<T> = <0> • and thus T(k) = 2k(a+bk) • Expressing this in terms of n, we get • T(n) = n(a + b lg n), which is Θ(n log n) • Note that we’ve found a lower-order linear term that the Master Theorem doesn't find.

  16. Annihilators and matrix multiplication • Recall the recurrence for naive array multiplication: T(n) = 8T(n/2) + cn2; T(1) = 1 • Using the substitution n = 2k gives • T(k) = 8T(k-1) + c22k = 8T(k-1) + c4k • so (E-8)<T> = <c4k> • Finding and applying the annihilator of the RHS gives (E-8)(E-4)<T> = <0> • so T(k) = a8k + b4k • and rewriting in terms of n gives T(n) = an3 + bn2

  17. Matrix multiplication: conclusion • From our formula T(n) = an3 + bn2, we may use the recurrence to compute T(2) = 8 + 4c • And then we can use a little algebra to get T(n) = (1+c)n3 - cn2 • Again, we get a lower-order term that the Master Theorem hides from us • but recall that T(n) is an upper bound on the actual time required

  18. Analysis of the divide-and-conquer max/min algorithm • The recurrence for the divide-and-conquer algorithm for the simultaneous max/min problem • is T(n) = T(2) + T(n-2) + 2; T(1) = 0; T(2) = 1 • which simplifies to T(n) = T(n-2) + 3 • which has a solution of T(n) = a + bn • The initial conditions give values for T(n) of: • 3n/2 – 2 (for even n); or 3n/2 - 3/2 (for odd n) • An adversary argumentshows this is optimal • we’ll look at this argument in class if time permits
