  1. BP3IP - JAKARTA BRIDGE TEAM MANAGEMENT EXERCISE - I

  2. BP3IP - JAKARTA BRIDGE TEAM MANAGEMENT PASSAGE PLANNING

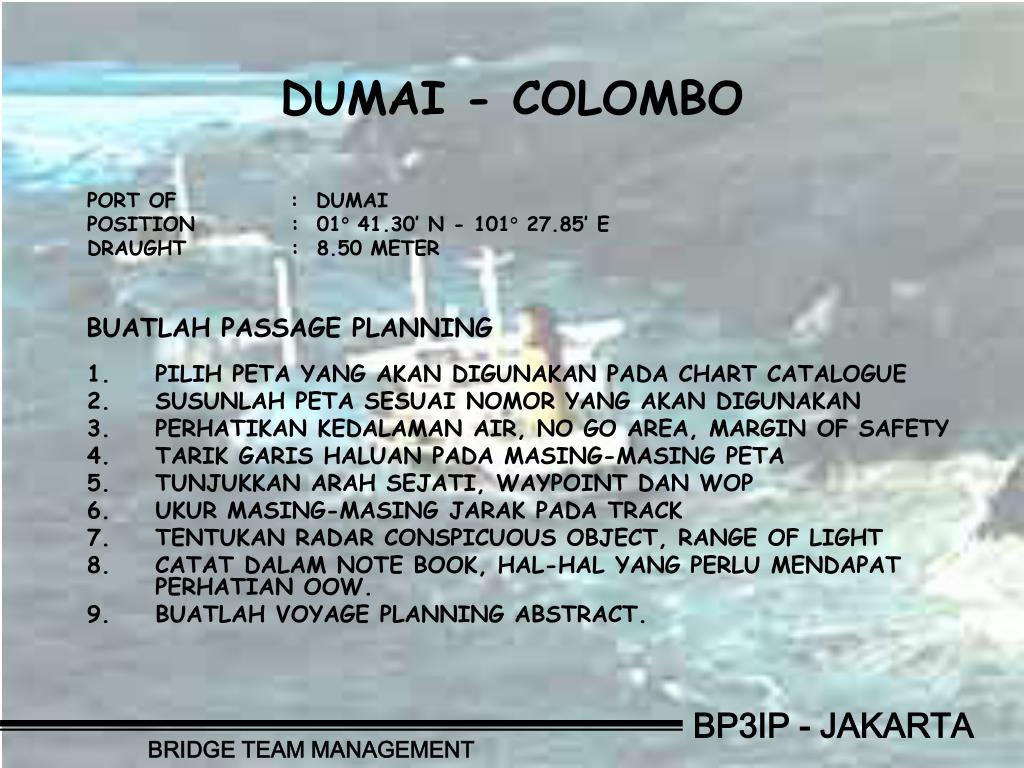

  3. BP3IP - JAKARTA BRIDGE TEAM MANAGEMENT DUMAI - COLOMBO PORT OF : DUMAI POSITION : 01 41.30’ N - 101 27.85’ E DRAUGHT : 8.50 METER BUATLAH PASSAGE PLANNING • PILIH PETA YANG AKAN DIGUNAKAN PADA CHART CATALOGUE • SUSUNLAH PETA SESUAI NOMOR YANG AKAN DIGUNAKAN • PERHATIKAN KEDALAMAN AIR, NO GO AREA, MARGIN OF SAFETY • TARIK GARIS HALUAN PADA MASING-MASING PETA • TUNJUKKAN ARAH SEJATI, WAYPOINT DAN WOP • UKUR MASING-MASING JARAK PADA TRACK • TENTUKAN RADAR CONSPICUOUS OBJECT, RANGE OF LIGHT • CATAT DALAM NOTE BOOK, HAL-HAL YANG PERLU MENDAPAT PERHATIAN OOW. • BUATLAH VOYAGE PLANNING ABSTRACT.

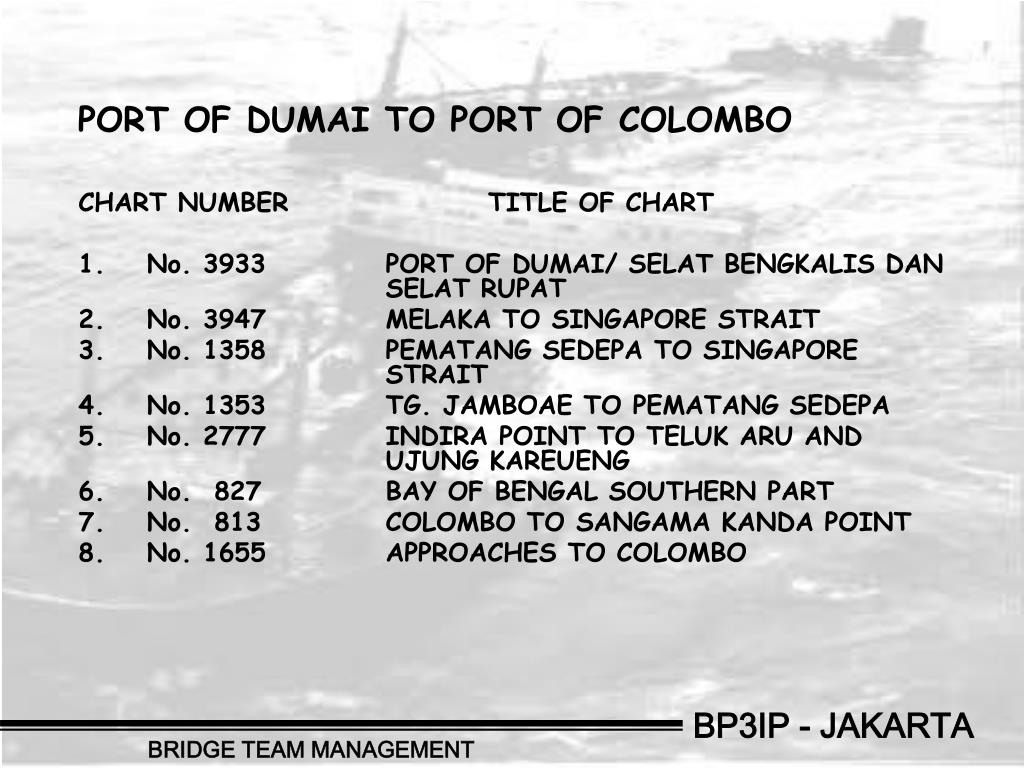

  4. BP3IP - JAKARTA BRIDGE TEAM MANAGEMENT PORT OF DUMAI TO PORT OF COLOMBO CHART NUMBER TITLE OF CHART • No. 3933 PORT OF DUMAI/ SELAT BENGKALIS DAN SELAT RUPAT • No. 3947 MELAKA TO SINGAPORE STRAIT • No. 1358 PEMATANG SEDEPA TO SINGAPORE STRAIT • No. 1353 TG. JAMBOAE TO PEMATANG SEDEPA • No. 2777 INDIRA POINT TO TELUK ARU AND UJUNG KAREUENG • No. 827 BAY OF BENGAL SOUTHERN PART • No. 813 COLOMBO TO SANGAMA KANDA POINT • No. 1655 APPROACHES TO COLOMBO

  5. BP3IP - JAKARTA BRIDGE TEAM MANAGEMENT TOTAL DISTANCE ON TRACK : NM MANOUVERING DISTANCE ( DUMAI ) : NM MANOUVERING DISTANCE ( COLOMBO ) : NM TOTAL DISTANCE : NM
