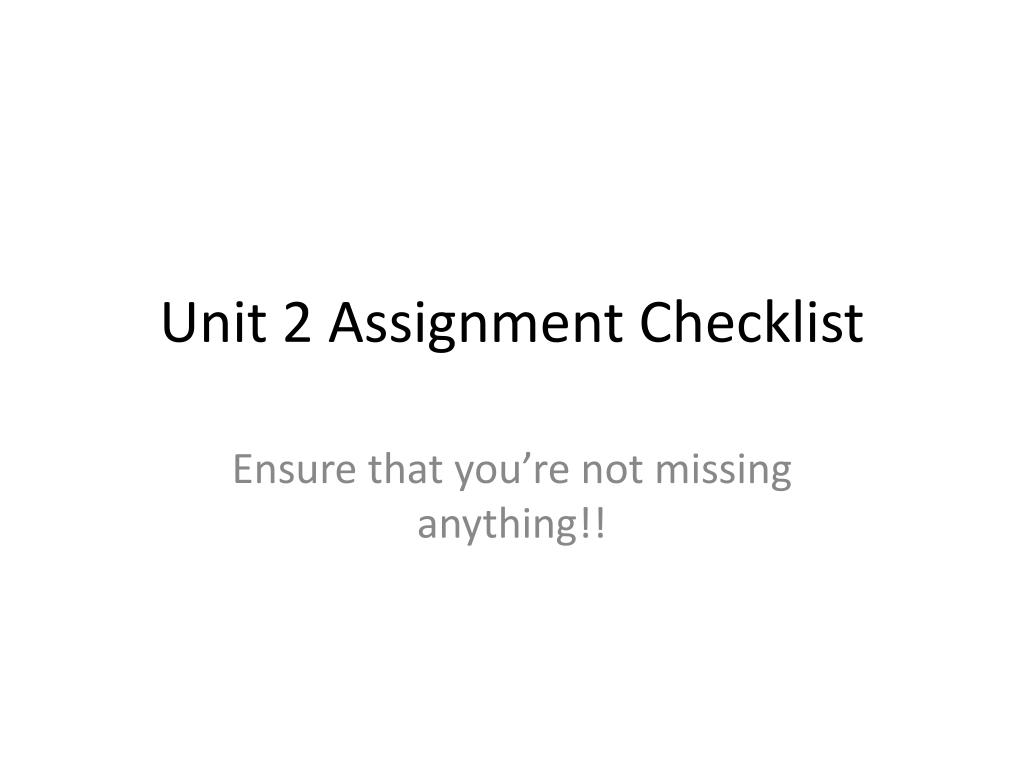

  1. Unit 2 Assignment Checklist Ensure that you’re not missing anything!!

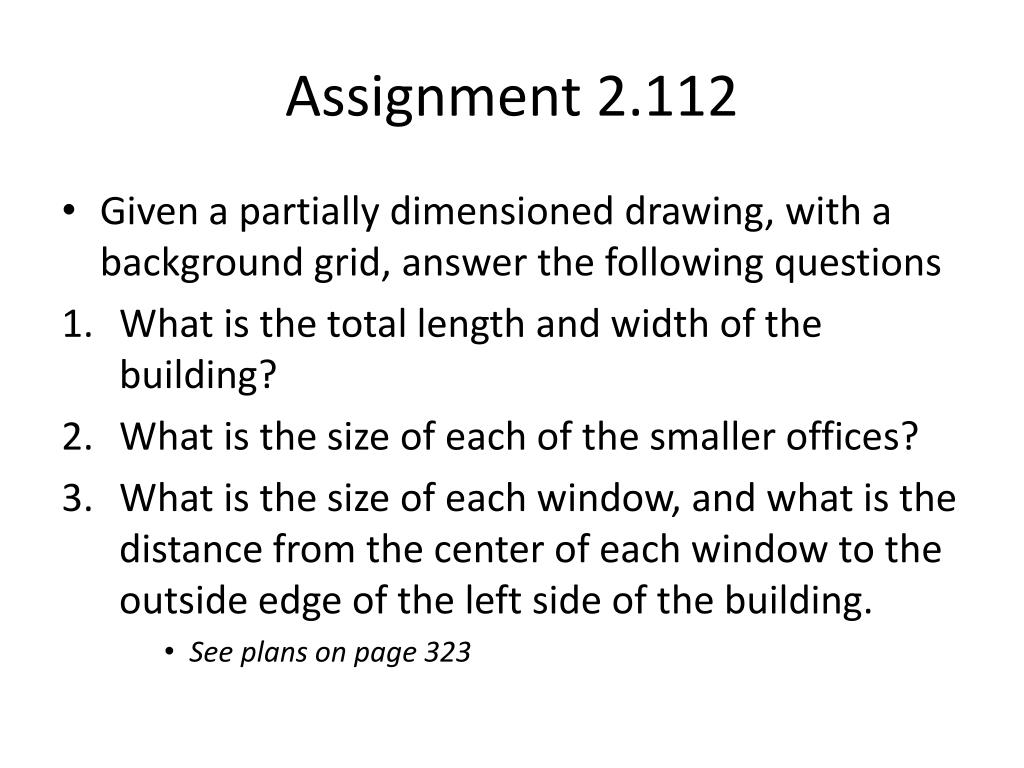

  2. Assignment 2.112 • Given a partially dimensioned drawing, with a background grid, answer the following questions • What is the total length and width of the building? • What is the size of each of the smaller offices? • What is the size of each window, and what is the distance from the center of each window to the outside edge of the left side of the building. • See plans on page 323

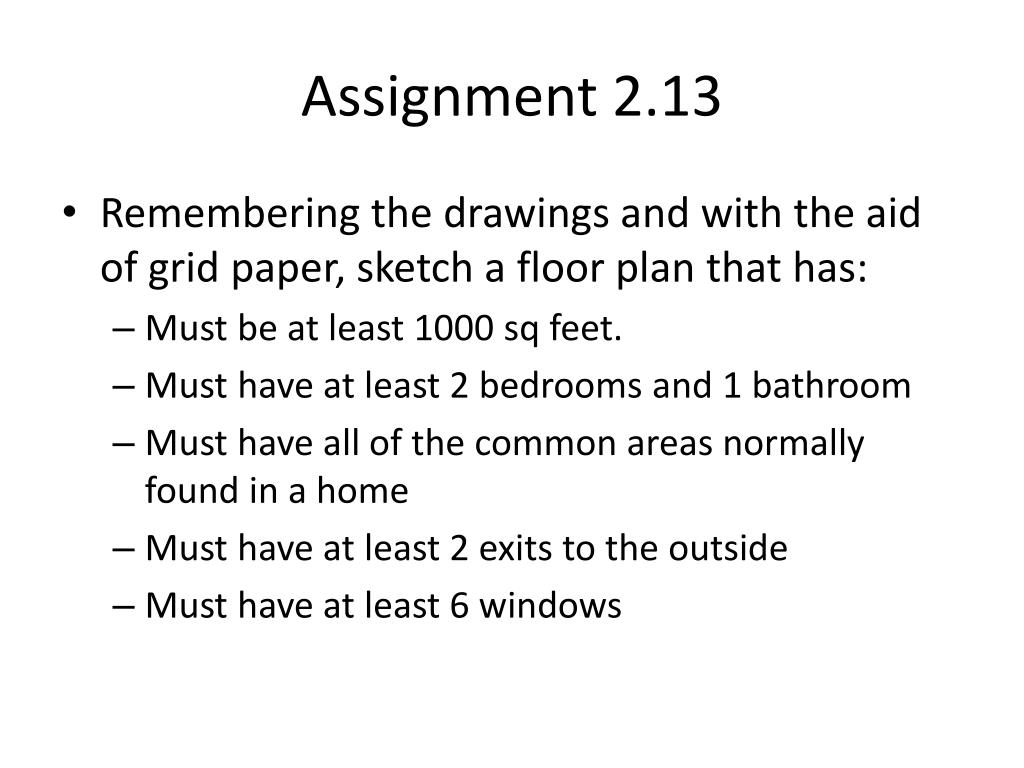

  3. Assignment 2.13 • Remembering the drawings and with the aid of grid paper, sketch a floor plan that has: • Must be at least 1000 sq feet. • Must have at least 2 bedrooms and 1 bathroom • Must have all of the common areas normally found in a home • Must have at least 2 exits to the outside • Must have at least 6 windows

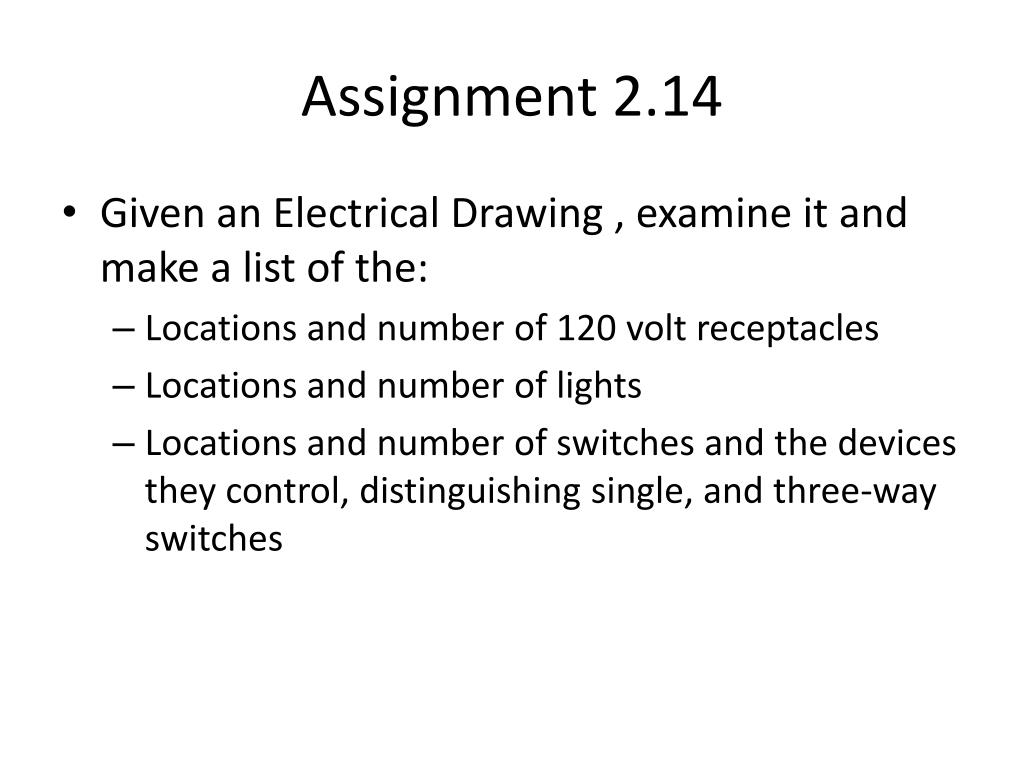

  4. Assignment 2.14 • Given an Electrical Drawing , examine it and make a list of the: • Locations and number of 120 volt receptacles • Locations and number of lights • Locations and number of switches and the devices they control, distinguishing single, and three-way switches

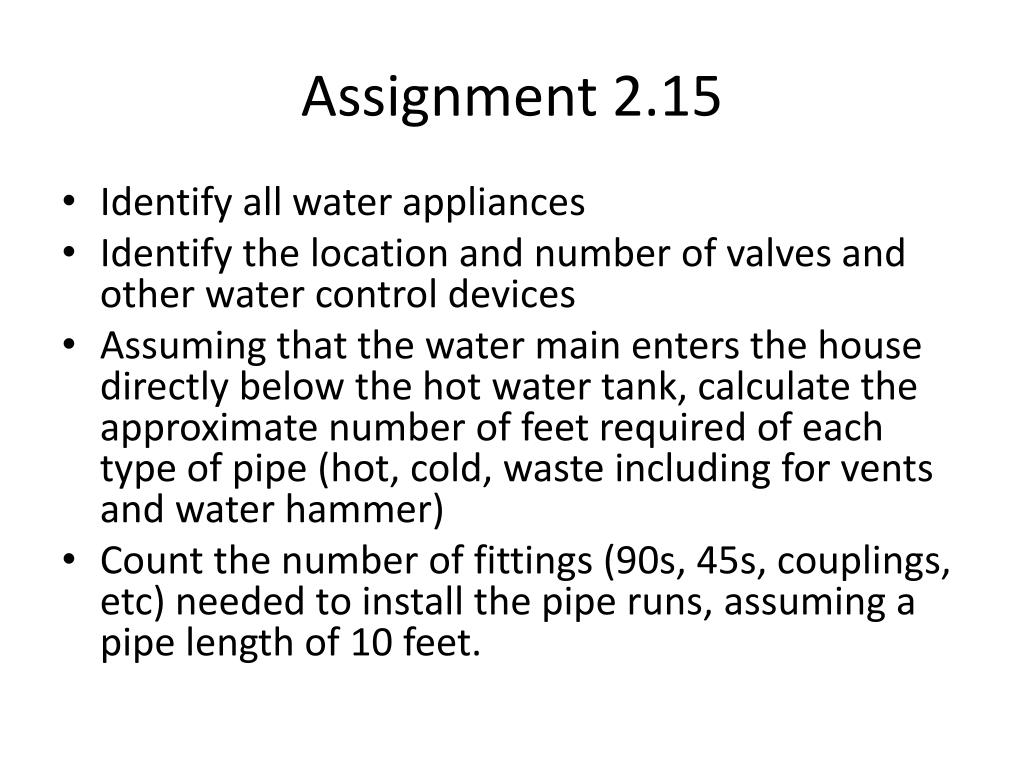

  5. Assignment 2.15 • Identify all water appliances • Identify the location and number of valves and other water control devices • Assuming that the water main enters the house directly below the hot water tank, calculate the approximate number of feet required of each type of pipe (hot, cold, waste including for vents and water hammer) • Count the number of fittings (90s, 45s, couplings, etc) needed to install the pipe runs, assuming a pipe length of 10 feet.

  6. Assignment 2.16 • sketch electrical and plumbing systems on floor plans • Receptacles need to be spaced about every 12 feet • All lights need to be controlled by a switch. It is customary to connect each switch to the device it controls on the plan using a dashed line • 220 receptacles are all on independent circuits • A maximum of 12 devices may be on a branch circuit • Plan the electrical layout by sketching the devices in the correct location on the plan. Show which switches control which devices. • Plan the plumbing layout by sketching the devices in the correct location on the plan

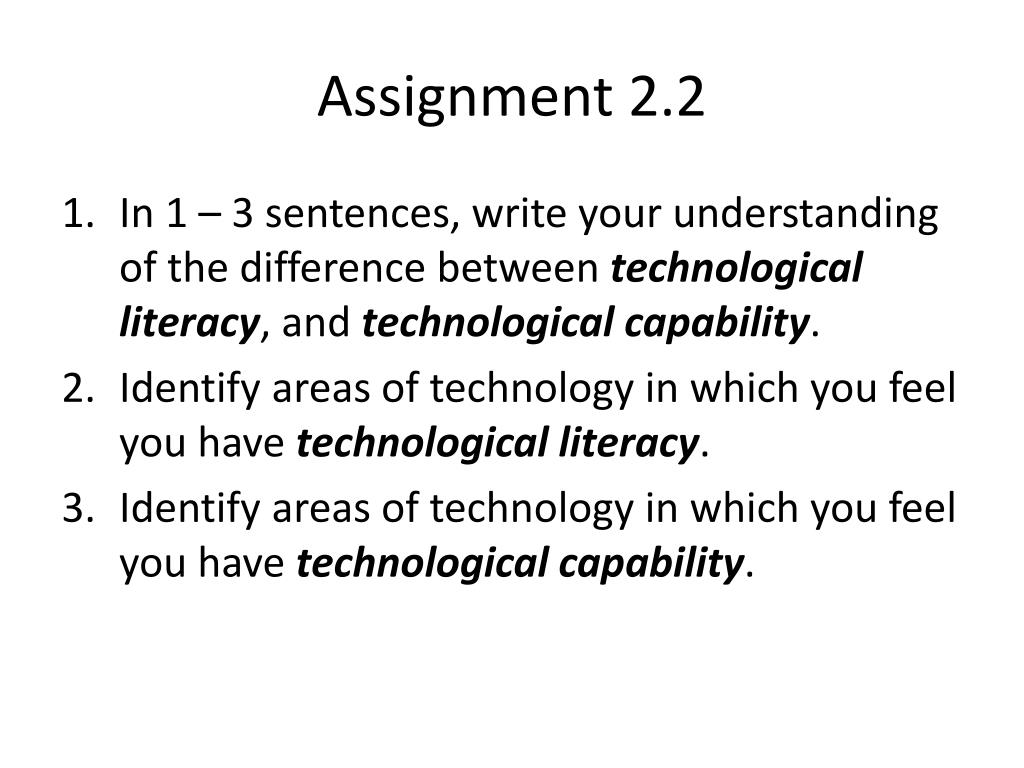

  7. Assignment 2.2 • In 1 – 3 sentences, write your understanding of the difference between technological literacy, and technological capability. • Identify areas of technology in which you feel you have technological literacy. • Identify areas of technology in which you feel you have technological capability.

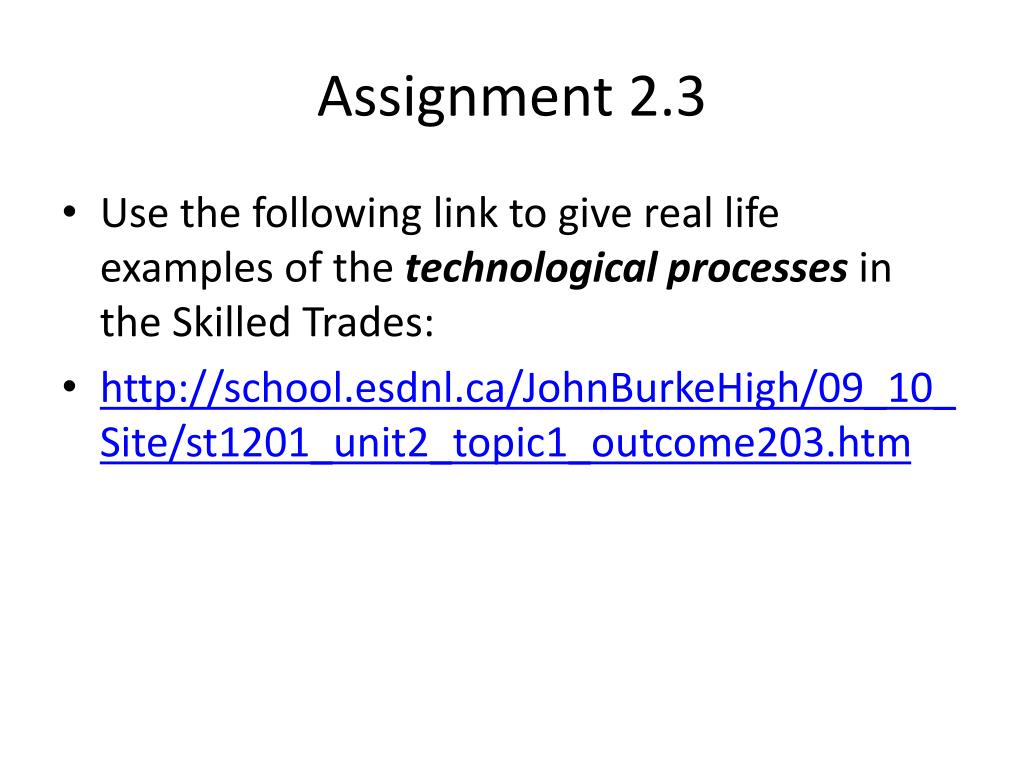

  8. Assignment 2.3 • Use the following link to give real life examples of the technological processes in the Skilled Trades: • http://school.esdnl.ca/JohnBurkeHigh/09_10_Site/st1201_unit2_topic1_outcome203.htm

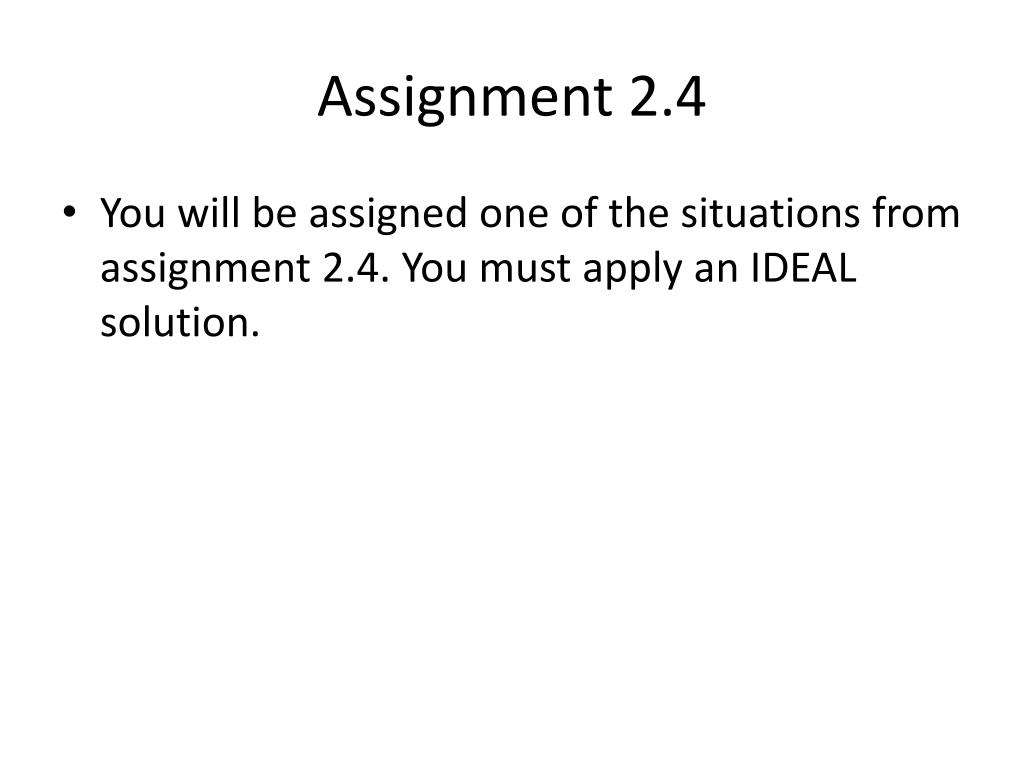

  9. Assignment 2.4 • You will be assigned one of the situations from assignment 2.4. You must apply an IDEAL solution.

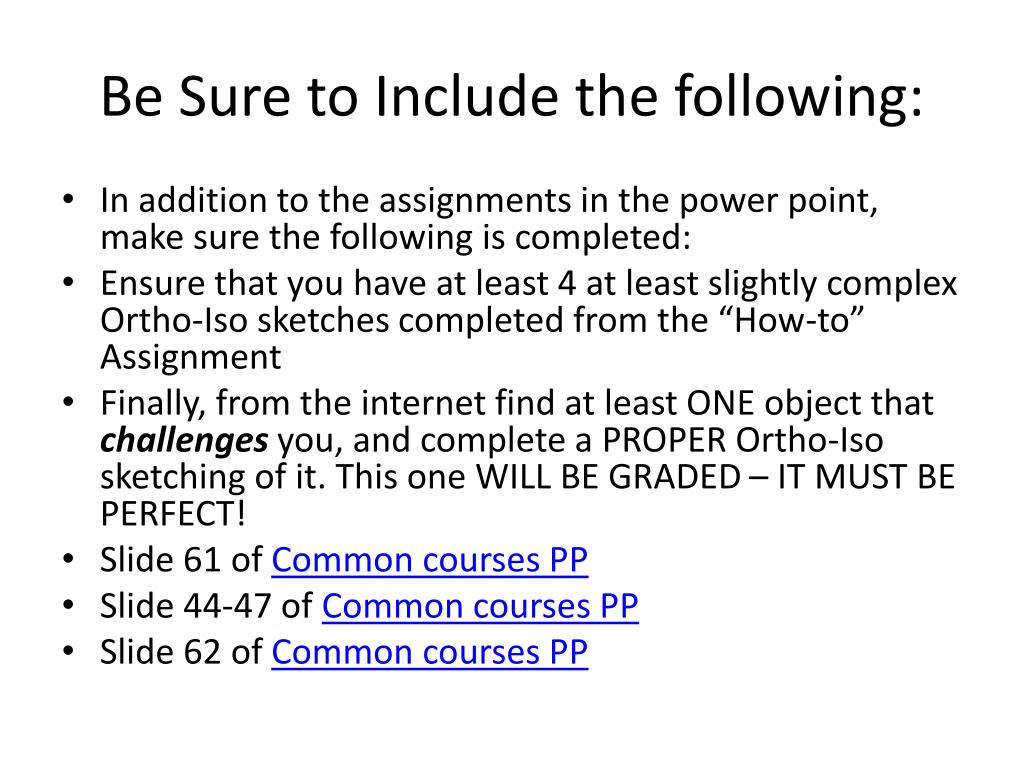

  10. Be Sure to Include the following: • In addition to the assignments in the power point, make sure the following is completed: • Ensure that you have at least 4 at least slightly complex Ortho-Iso sketches completed from the “How-to” Assignment • Finally, from the internet find at least ONE object that challenges you, and complete a PROPER Ortho-Iso sketching of it. This one WILL BE GRADED – IT MUST BE PERFECT! • Slide 61 of Common courses PP • Slide 44-47 of Common courses PP • Slide 62 of Common courses PP

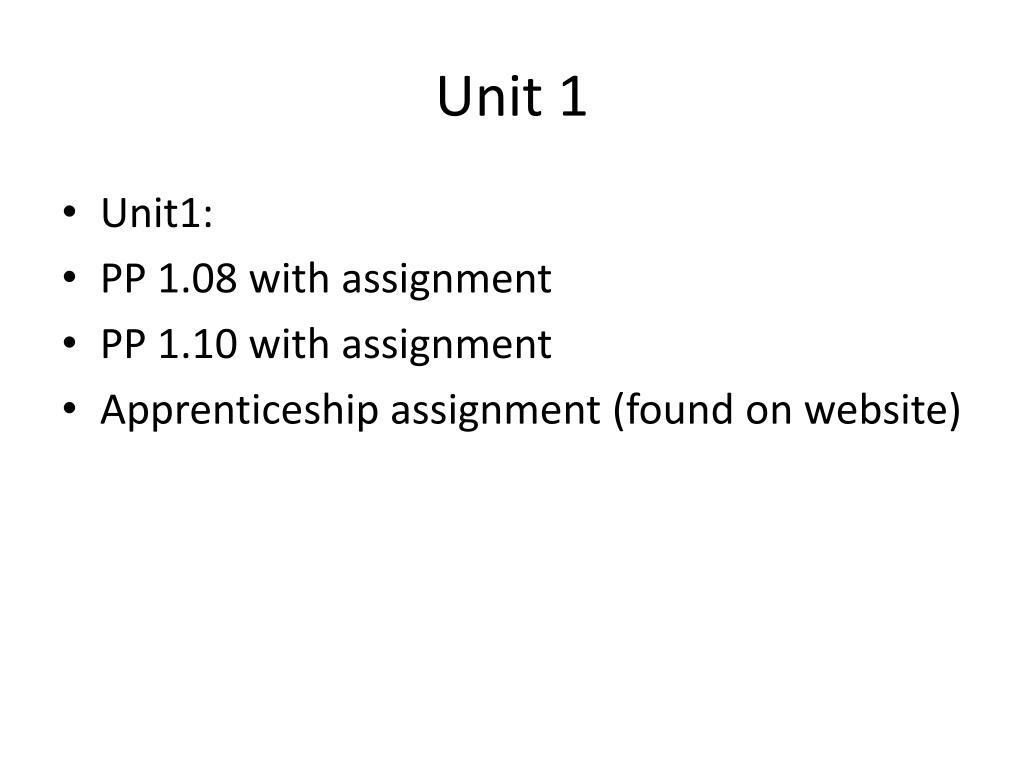

  11. Unit 1 • Unit1: • PP 1.08 with assignment • PP 1.10 with assignment • Apprenticeship assignment (found on website)
