  1. Introduction to Nanotechnology July 23, 2007 bnl manchester

  2. Introduction to Nanotechnology Some things we will discuss: July 23, 2007 • How big are nanostructures Scaling down to the nanoscale • How are nanostructures made? Fabrication, synthesis, manufacturing • How do we see them? Imaging and property characterization (measurement) • Why do we care? Applications to science, technology and society

  3. Why do we want to make things at the nanoscale? • To make better products: smaller, cheaper, faster and more effective. (Electronics, catalysts, water purification, solar cells, coatings, medical diagnostics & therapy, etc) • To introduce completely new physical phenomena to science and technology. (Quantum behavior and other effects.)

  4. Nanotechnology Nanotechnology is the understanding and control of matter at dimensions of roughly 1 to 100 nanometers, where unique phenomena enable novel applications. 1 nanometer = 1 x 10-9 m = 1 billionth of a meter nano.gov

  5. Single Hair Width = 0.1 mm How small are nanostructures? = 100 micrometers = 100,000 nanometers ! 1 nanometer = one billionth (10-9) meter

  6. DNA 6,000 nanometers Red blood cell 3 nanometers Smaller still Hair .

  7. Down to the Nanoscale

  8. From DOE

  9. A Few Nanostructures Made at UMass 100 nm dots 70 nm nanowires 200 nm rings 150 nm holes 18 nm pores 12 nm pores 14 nm dots 13 nm rings 25 nm honeycomb 14 nm nanowires

  10. "Nano" • Nanoscale - at the 1-100 nm scale, roughly • Nanostructure - an object that has nanoscale features • Nanoscience - the behavior and properties of nanostructures • Nanotechnology - the techniques for making and characterizing nanostructures and putting them to use • Nanomanufacturing - methods for producing nanostructures in reliable and commercially viable ways

  11. Nanotechnology R&D is interdisciplinary and impacts many industries • Electronics • Materials • Health/Biotech • Chemical • Environmental • Energy • Aerospace • Automotive • Security • Forest products • And others • Physics • Chemistry • Biology • Materials Science • Polymer Science • Electrical Engineering • Chemical Engineering • Mechanical Engineering • Medicine • And others

  12. An application example:Nanoelectronics

  13. Making Small SmallerAn Example: Electronics-Microprocessors microscale nanoscale macroscale ibm.com

  14. Electronics Keep On Getting Better Moore's "Law": Number of Transistors per Microprocessor Chip intel.com

  15. Since the 1980's electronics has been a leading commercial driver for nanotechnology R&D, but other areas (materials, biotech, energy, etc) are of significant and growing importance. Some have been around for a very long time: • Stained glass windows (Venice, Italy) - gold nanoparticles • Photographic film - silver nanoparticles • Tires - carbon black nanoparticles • Catalytic converters - nanoscale coatings of platinum and palladium

  16. nano.gov "Biggest science initiative since the Apollo program"

  17. National Nanotechnology Initiative Research Areas (2007 Federal Budget) • Fundamental Nanoscale Phenomena and Processes • Nanomaterials • Nanoscale Devices and Systems • Instrumentation Research, Metrology and Standards for Nanotechnology • Nanomanufacturing • Major Research Facilities and Instrumentation Acquisition • Societal Dimensions

  18. nanomanufacturing.org A National Science Foundation Nano Center

  19. Nanostructures

  20. Nanostructures nanofilm, or nanolayer (2D) macroscale (3D) object height depth width nanoparticle, nanodot, quantum dot (0D) nanowire, nanorod, or nanocylinder (1D)

  21. Lithography • Deposition • Etching • Machining • Chemical • Self-Assembly Making Nanostructures: Nanofabrication • Top down versus bottom up methods

  22. Nanofilms(making an object thin)

  23. An example of a FILM A monolayerNANOFILM (single layer of molecules) ~1 nm thick Langmuir film This is an example of SELF-ASSEMBLY

  24. 2 cm3 = 20,000,000 cm2 ~ 2 cm3 V = 1 teaspoonful A = 0.5 acre ~ 2,000 m2 ... the Oil tho' not more than a Tea Spoonful ... ... perhaps half an Acre CHALLENGE: How thick was the film of oil? Volume = (Area)(Thickness) V = A t t = V/A = 0.0000001 cm = 1 x 10-7 cm = 1 x 10-9 m = 1 nanometer (nm) 20,000,000 cm2

  25. hydrophobic end e.g., oleic acid pressure LangmuirFilm of an amphiphilic molecule monolayer film water hydrophilic end

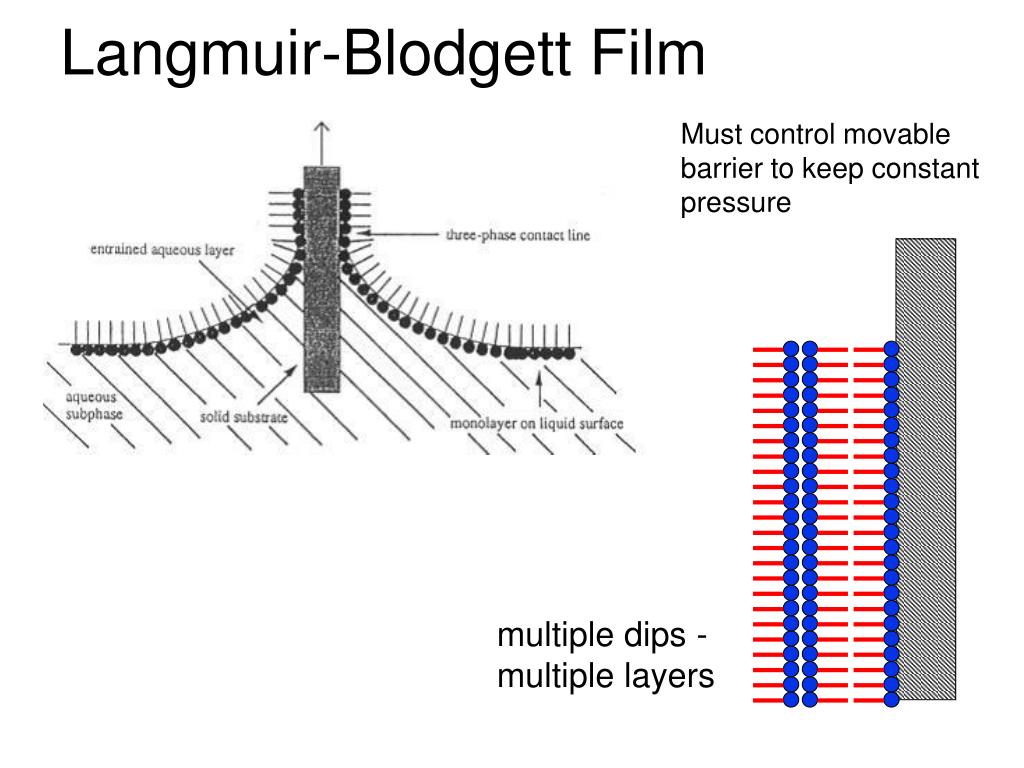

  26. multiple dips - multiple layers Must control movable barrier to keep constant pressure Langmuir-Blodgett Film

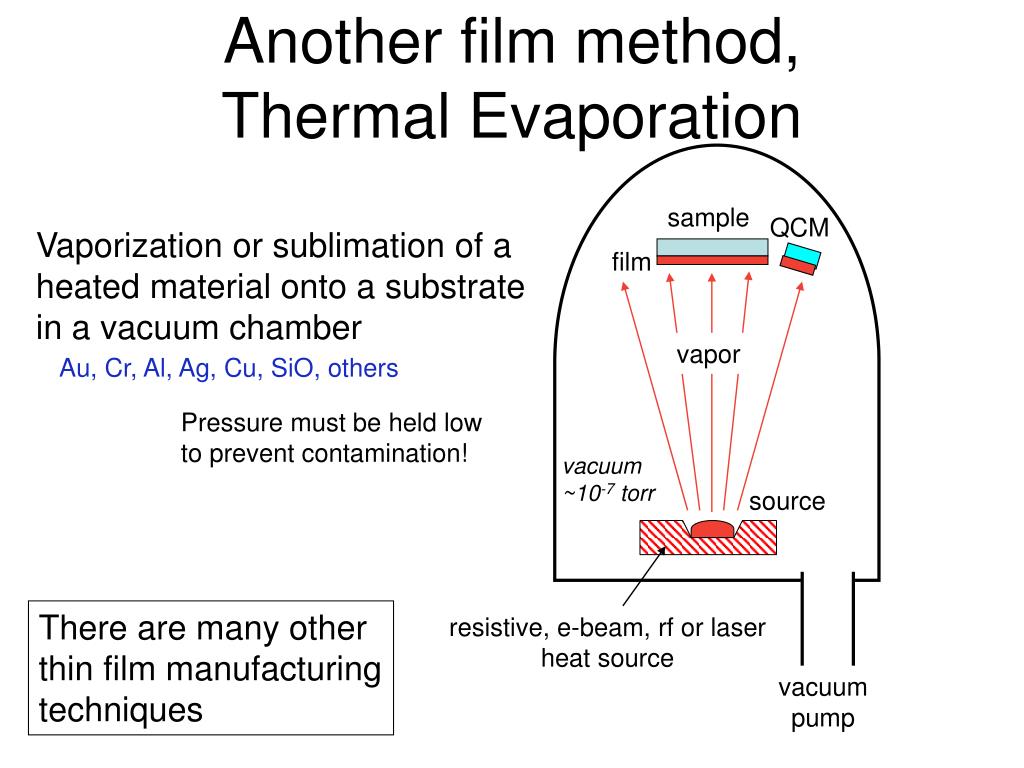

  27. Another film method,Thermal Evaporation sample QCM Vaporization or sublimation of a heated material onto a substrate in a vacuum chamber film vapor Au, Cr, Al, Ag, Cu, SiO, others Pressure must be held low to prevent contamination! vacuum ~10-7 torr source There are many other thin film manufacturing techniques resistive, e-beam, rf or laser heat source vacuum pump

  28. Lithography(controlling width and depth)

  29. Lithography Mark Tuominen Mark Tuominen (Using a stencil or mask)

  30. Electron Beam Polymer film Silicon crystal Making a nanoscopic mask Example: Electron-Beam Lithography Nanoscopic Mask !

  31. Lithography Patterned Several Times IBM Copper Wiring On a Computer Chip

  32. Self-Assembled Nanostructures

  33. Self Assembly

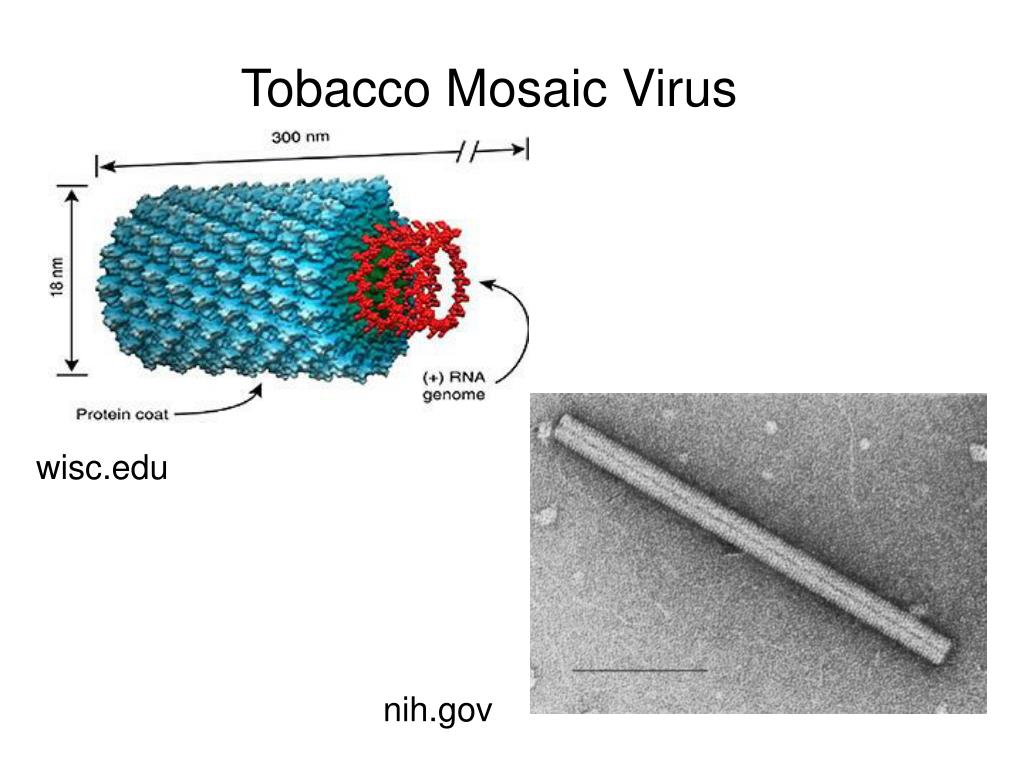

  34. Tobacco Mosaic Virus wisc.edu nih.gov

  35. Gecko feet

  36. Diatoms sinancanan.net priweb.org

  37. Abalone

  38. The Cell and Its Hierarchy ebi.ac.uk

  39. Self assembly at all scales? Whitesides et al. Science 295, 2418 (2002);

  40. ~10 nm NANOFABRICATION BY SELF ASSEMBLY One Example: Diblock Copolymers Block “B” Block “A” PS PMMA Scale set by molecular size Ordered Phases 10% A 30% A 50% A 70% A 90% A

  41. Deposition Template Etching Mask Nanoporous Membrane CORE CONCEPT FOR NANOFABRICATION (physical or electrochemical) Remove polymer block within cylinders (expose and develop) Versatile, self-assembling, nanoscale lithographic system

  42. NANOFABRICATION USING DIBLOCK COPOLYMER TEMPLATES template dots cylinders rings holes

  43. Measuring Nanostructures

  44. How do we see nanostructures? • A light microscope? Helpful, but cannot resolve below 1000 nm • An electron microscope? Has a long history of usefulness at the nanoscale • A scanning probe microscope? A newer tool that has advanced imaging

  45. TV screen eye electron beam electron source Light ! prelim. Television Set

  46. Electron Beam DETECTOR SAMPLE Scanning Electron Microscope

  47. (Atomic Force Microscope) "Optical Lever" laser pointer To determine amplification factor, use the concept of similar triangles

  48. AFM image PS/PEO (large ) µm Scanning probe microscope Laser Beam Vibrating Cantilever Surface AFM, STM, MFM, others

  49. AFM Instrument Head AFM Cantilever Chip Quicktime Laser Beam Path Cantilever Deflection

  50. AFM image PS/PEO (large ) µm Scanning probe microscope Laser Beam Vibrating Cantilever Surface AFM, STM, MFM, others
