Understanding Arc Length of Non-Linear Functions Using the Pythagorean Theorem

DESCRIPTION

This section focuses on calculating the arc length of non-linear functions using the Pythagorean Theorem and calculus techniques. By letting the segments become infinitesimally small, we aim to approximate the curve accurately. The process involves integrating and differentiating simultaneously, emphasizing careful application of both methods. We will apply the arc length formula to specific functions, such as finding the length of the curve defined by y = x^(3/2) from x = 0 to x = 4, and explore other examples to solidify understanding.

1 / 9

Télécharger la présentation

Understanding Arc Length of Non-Linear Functions Using the Pythagorean Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

  1. Section 7-4 Arc Length

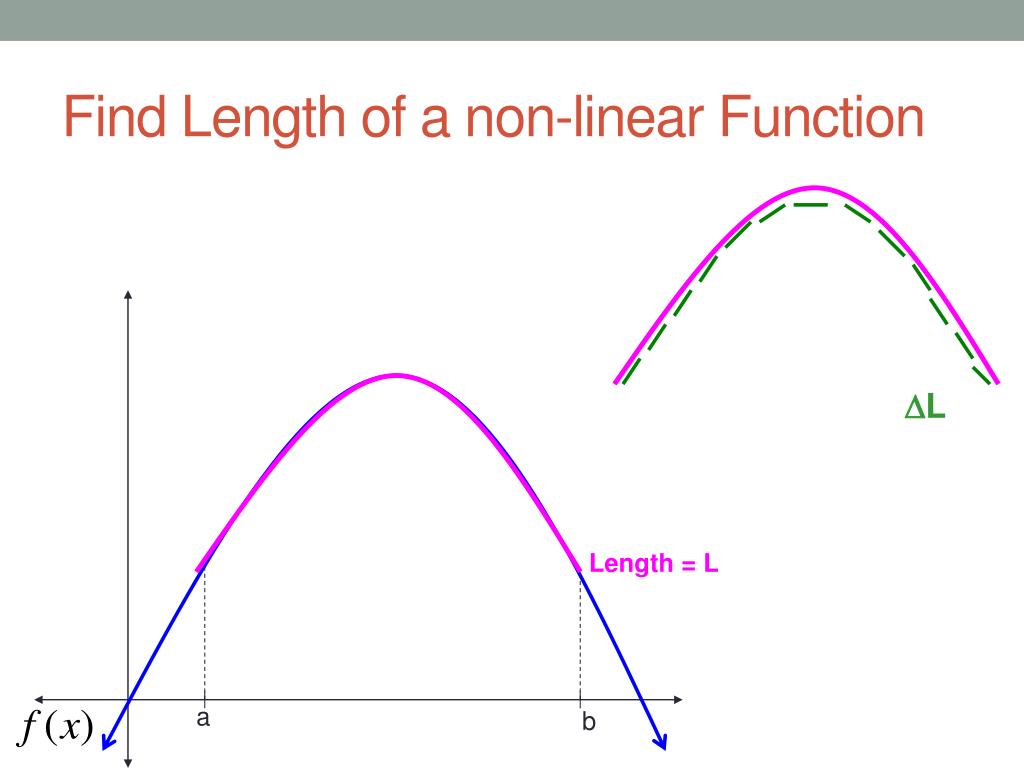

  2. Find Length of a non-linear Function DL Length = L a b

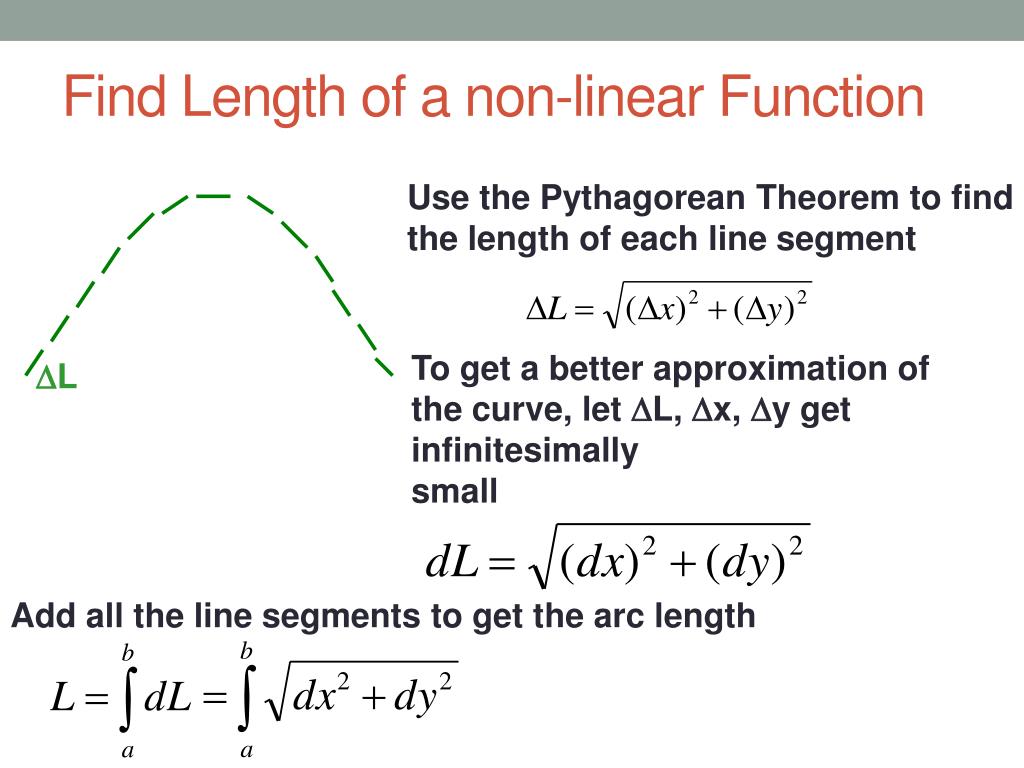

  3. Find Length of a non-linear Function Use the Pythagorean Theorem to find the length of each line segment To get a better approximation of the curve, let DL, Dx, Dy get infinitesimally small DL Add all the line segments to get the arc length

  4. Arc Length in terms of x Arc Length in terms of y You will be mixing Derivative and Integration! Be careful with the two techniques.

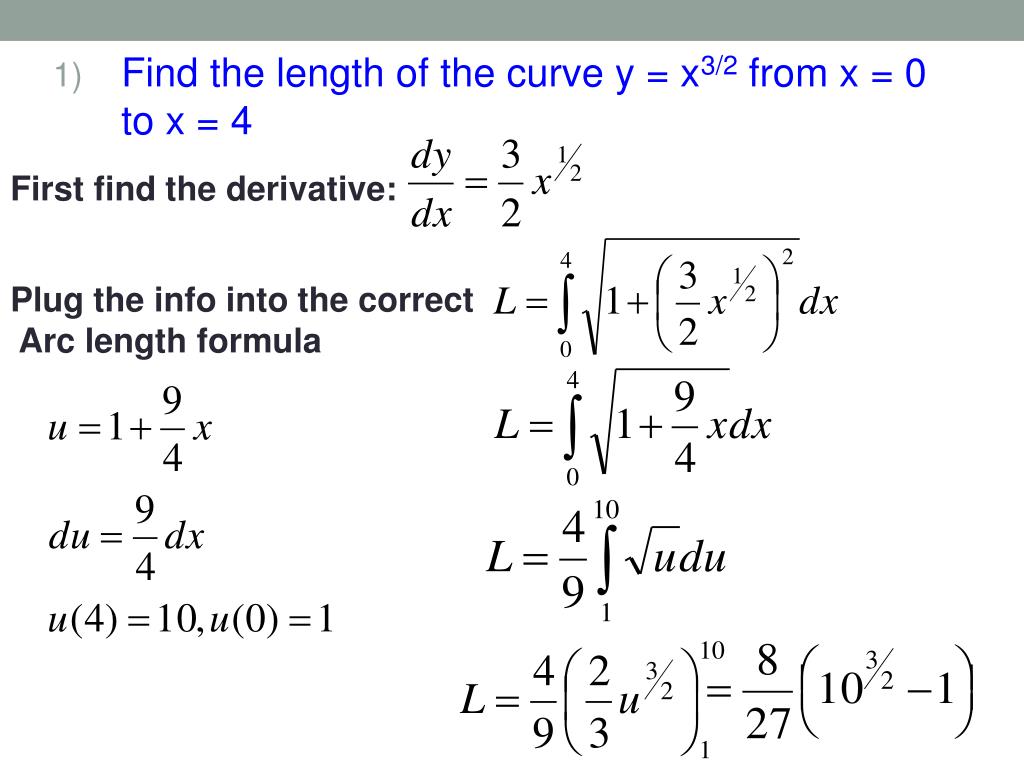

  5. First find the derivative: • Find the length of the curve y = x3/2 from x = 0 to x = 4 Plug the info into the correct Arc length formula

  6. 2) Find the length of the curve for

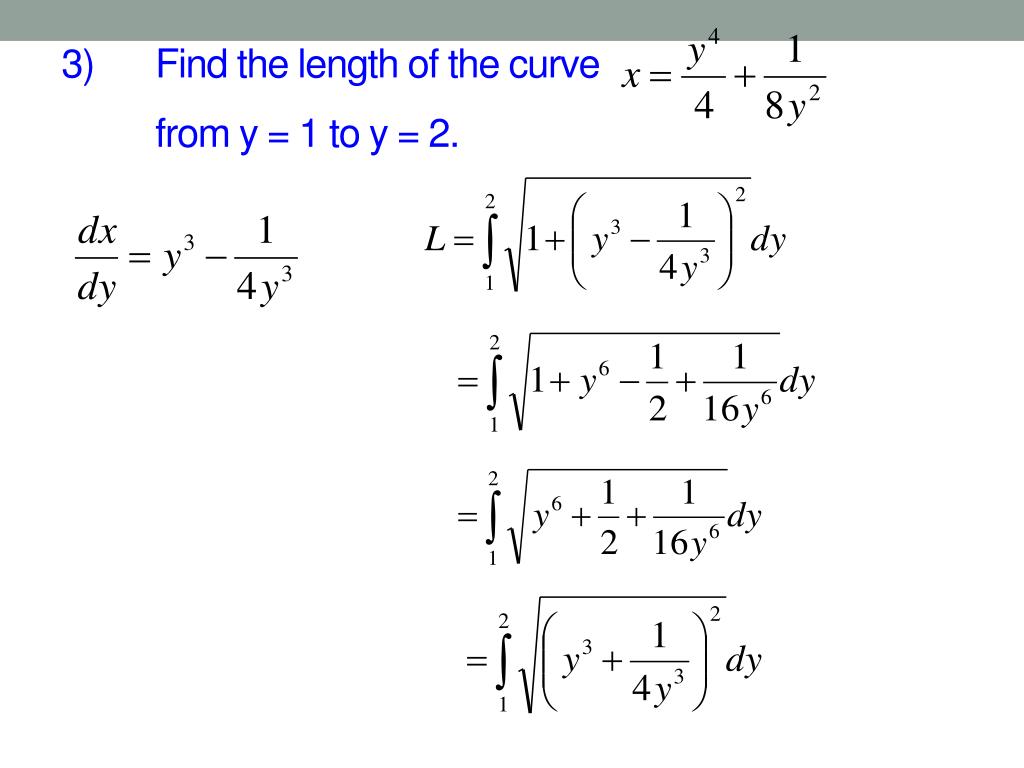

  7. Find the length of the curvefrom y = 1 to y = 2.

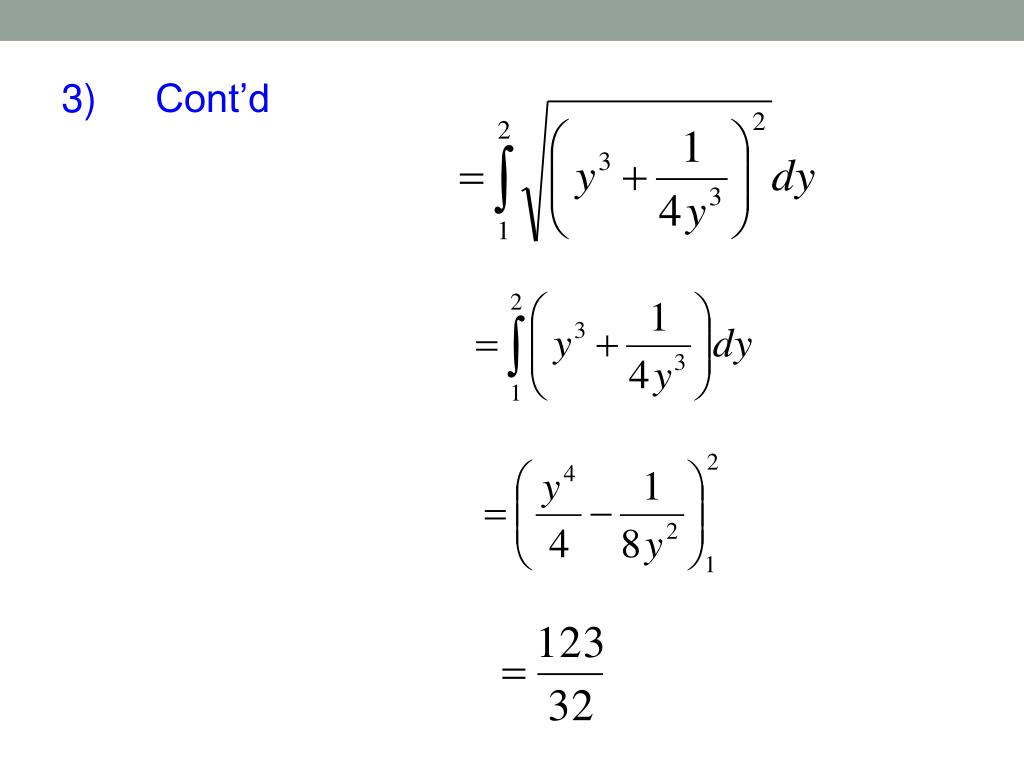

  8. Cont’d

  9. Homework Page 485 # 3-7
