Antibiotics

Antibiotics. Ampicillin and Kanamycin. Ampicillin. -Inihibits cell wall synthesis. -Irreversible inhibits transpeptidase, which cross-links the peptidoglycan. Ampicillin Resistance. -beta-lactam antibiotic -Acquires a gene that encodes β -lactamase -Cleaves β -lactam ring of

vlad
Télécharger la présentation

Antibiotics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

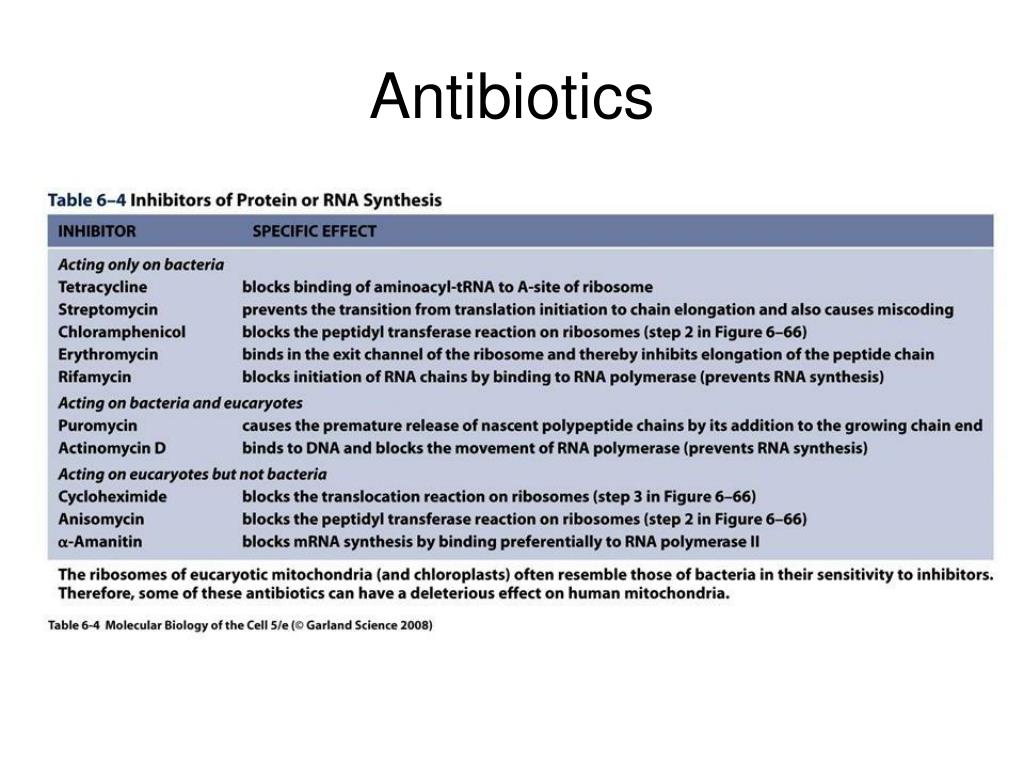

  1. Antibiotics

  2. Ampicillin and Kanamycin

  3. Ampicillin -Inihibits cell wall synthesis

  4. -Irreversible inhibits transpeptidase, which cross-links the peptidoglycan

  5. Ampicillin Resistance -beta-lactam antibiotic -Acquires a gene that encodes β-lactamase -Cleaves β-lactam ring of ampicillin -Ampicillin is no longer bound to transpeptidase and therefore functions normally

  6. Kanamycin -an aminoglycoside (amino modified sugar) bacteriocidal antibiotic -Isolated from Streptomyces kanamyceticus -Binds to the 30S procaryotic ribosome

  7. Kanamycin -Binds to the 30S procaryotic ribosome

  8. Kanamycin Resistance -aminoglycoside modifying enzymes, phosphorylation, making Kanamycin uneffective

  9. Bacteriostat vs. Bacteriocide Ampicillin – inhibits new cell wall synthesis Kanamycin – inhibits protein synthesis

  10. Restriction Endonucleases Nuclease – Enzymes that digest or cut DNA and RNA Endonuclease vs. Exonuclease Endonuclease – Cut nucleic acids at sites internal to the molecule Exonuclease - Cut nucleic acids at sites external to the molecule

  11. DNA Properties ??????

  12. Restriction Endonuclease -1950s, a “primitive immune system” in E. coli in defense of bacteriophage lambda infection -1968, Restriction enzyme HindIII was isolated from Haemophilus influenzae -Recognition site for HindIII 5’ G T A C 3’ 3’ C A T G 5’

  13. Restriction Endonuclease -1978, Nobel prize awards for the discovery of restriction endonucleases and their application to molecular genetics -Currently over 3000 restriction endonulceases isolated with 230 recognition sequences -Mostly isolated from bacteria, but some from viruses, archaea, and eucaryotes

  14. HindII -Recognition site for HindIII 5’ A A G C T T 3’ 3’ T T C G A A 5’ -Cleavage Products 5’ A A G C T T 3’ 3’ T T C G A A 5’

  15. Lambda (λ) Phage -Bacteriophage with double-stranded DNA genome, 48,502 bp

  16. DNA Gel Electrophoresis -Separation of DNA fragments through agarose by application of an electric field

  17. DNA Gel Electrophoresis

  18. DNA Gel Electrophoresis -DNA Mobility is inversely proportional to Log10 of its Molecular Weight
